| Year | 2012 |
|---|---|
| Make | Eaton Leonard |
| Model | VB152HP |
Description |
3-Axis CNC Hydraulic Tube Bender |
| Reference # | 8072529 |

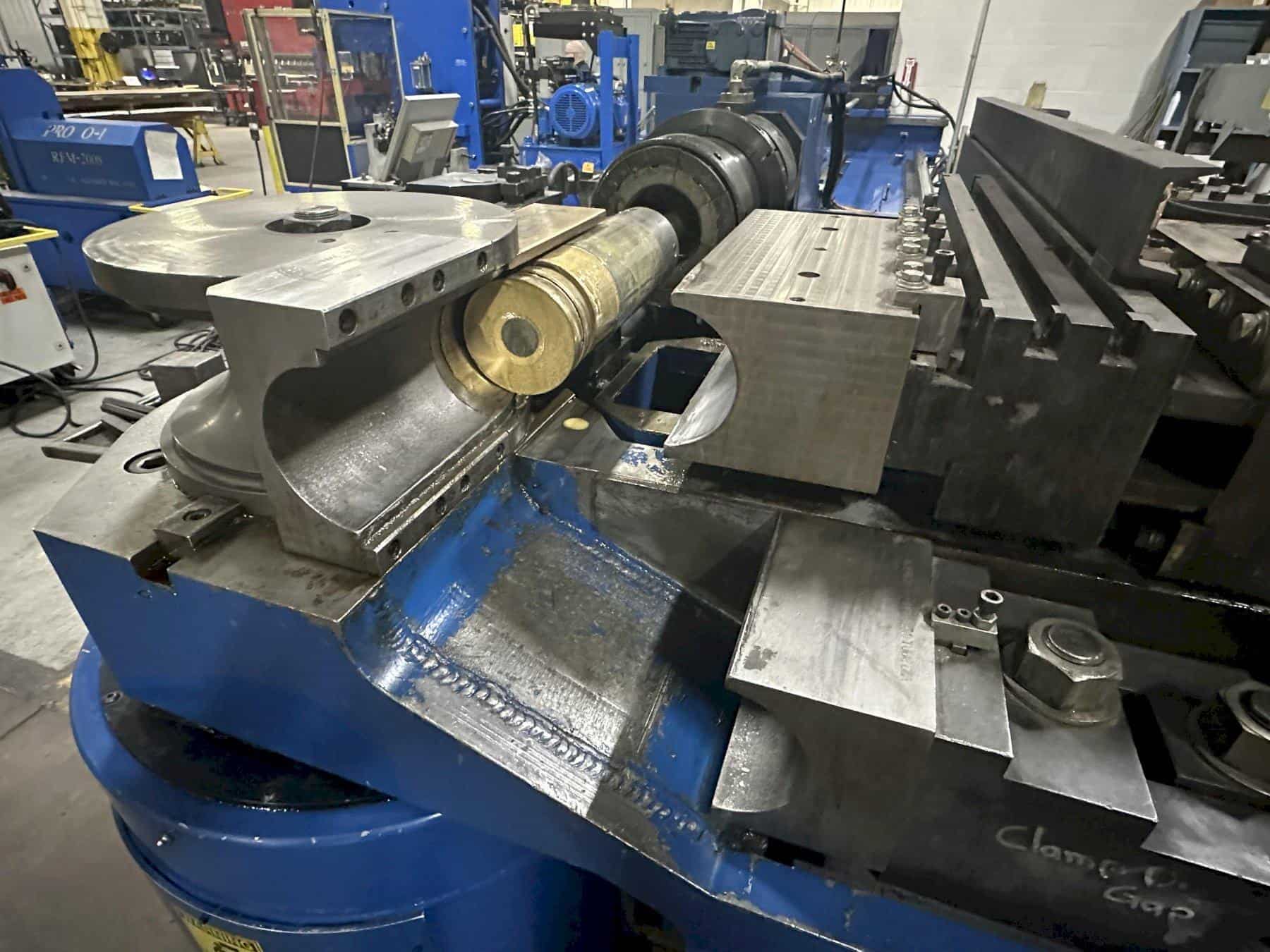

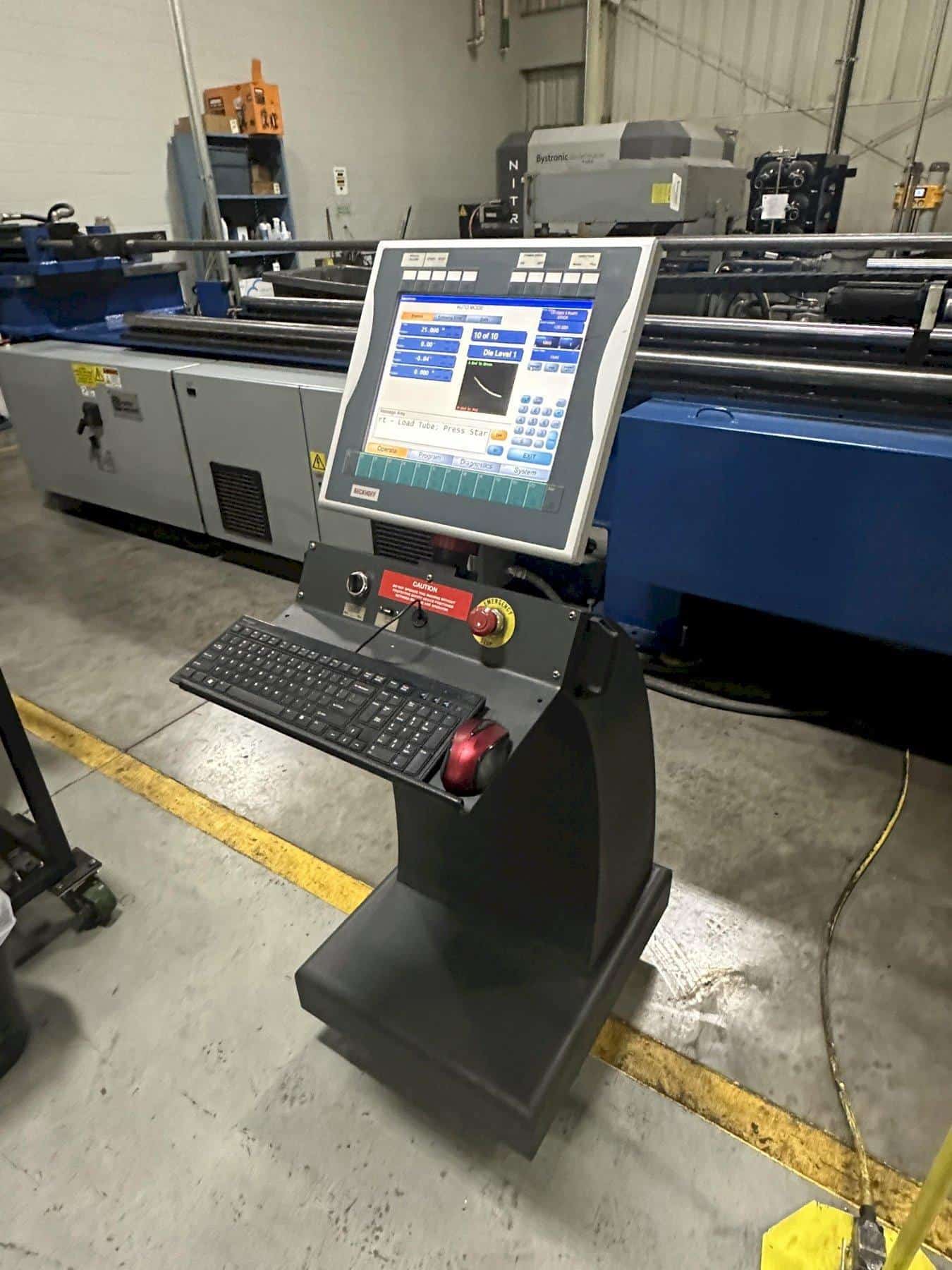

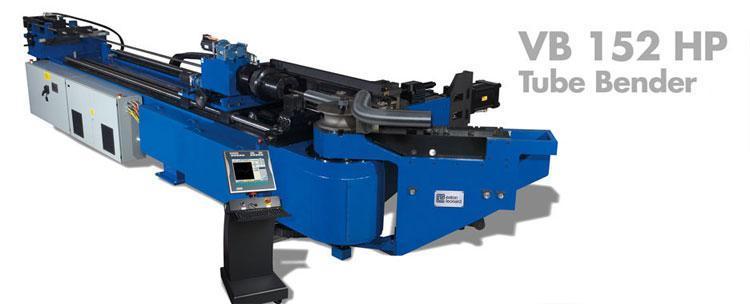

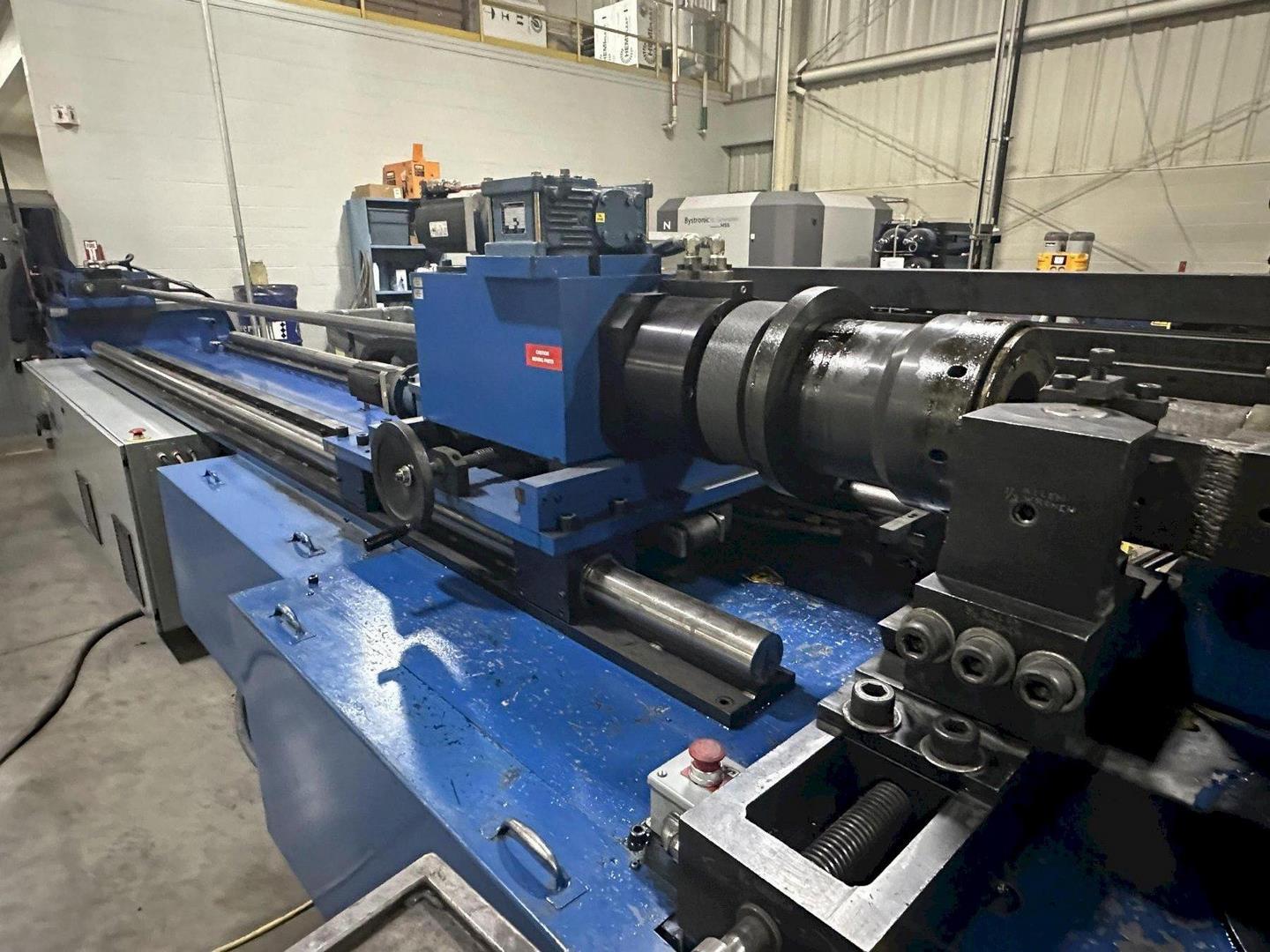

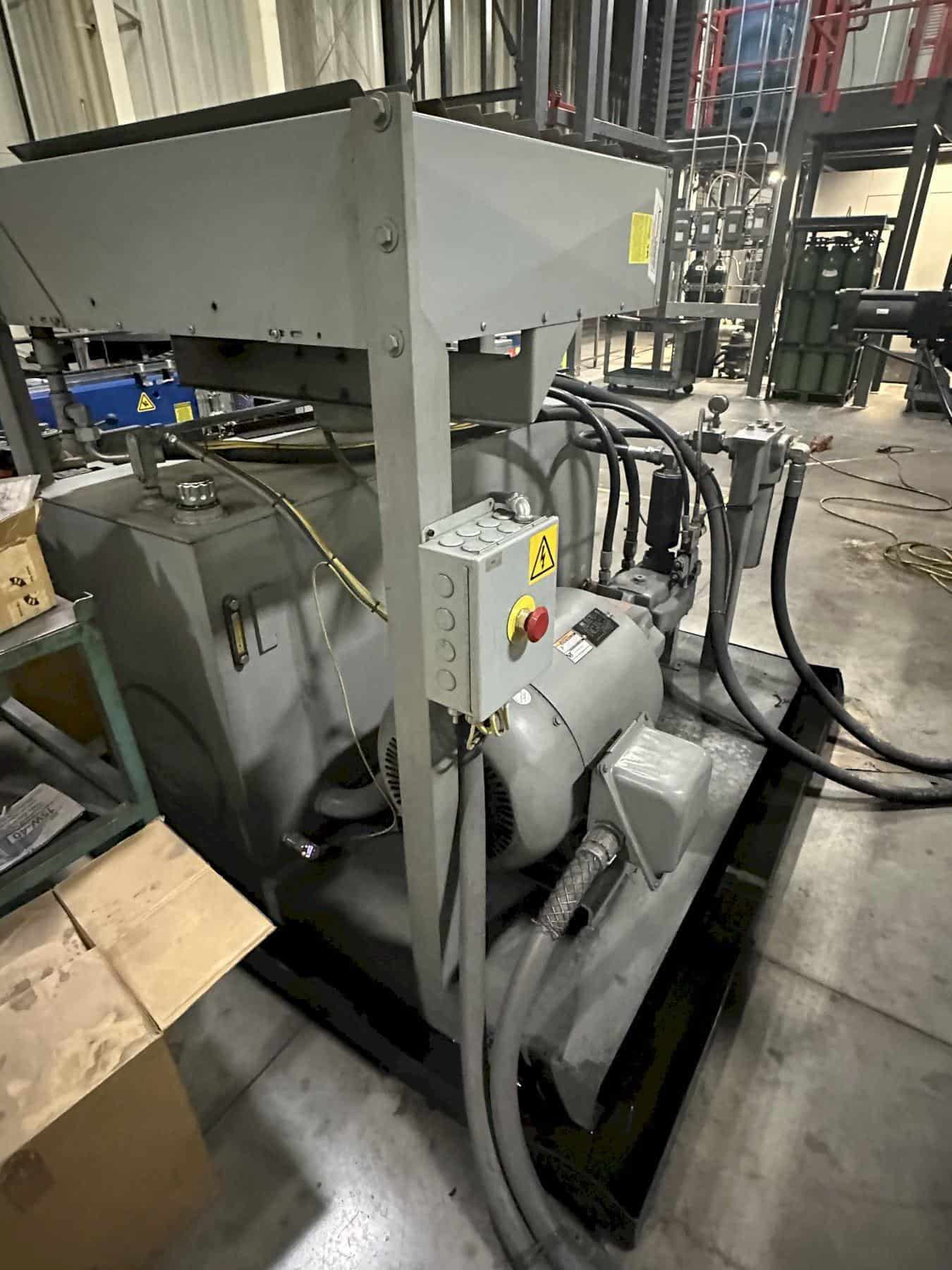

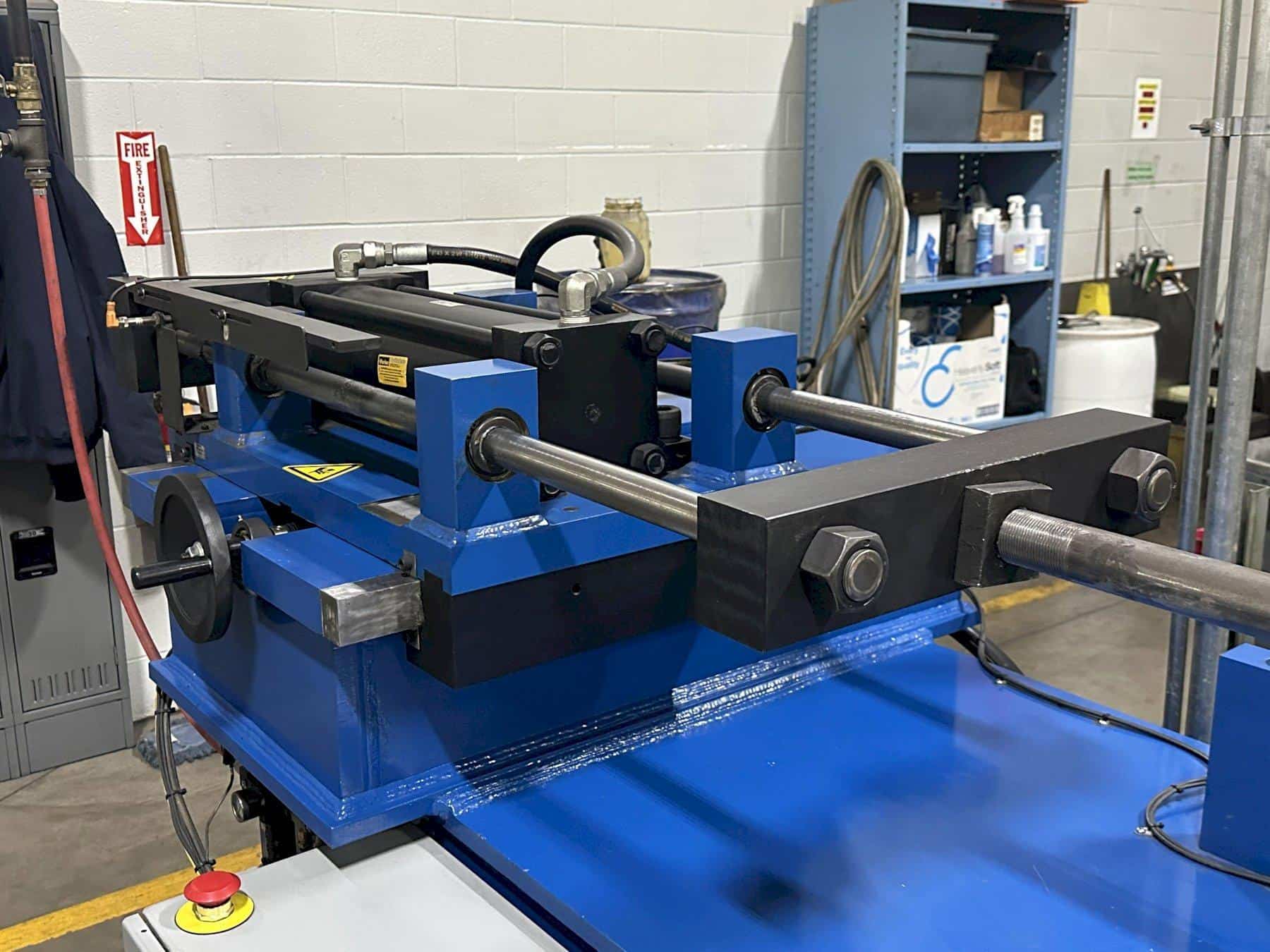

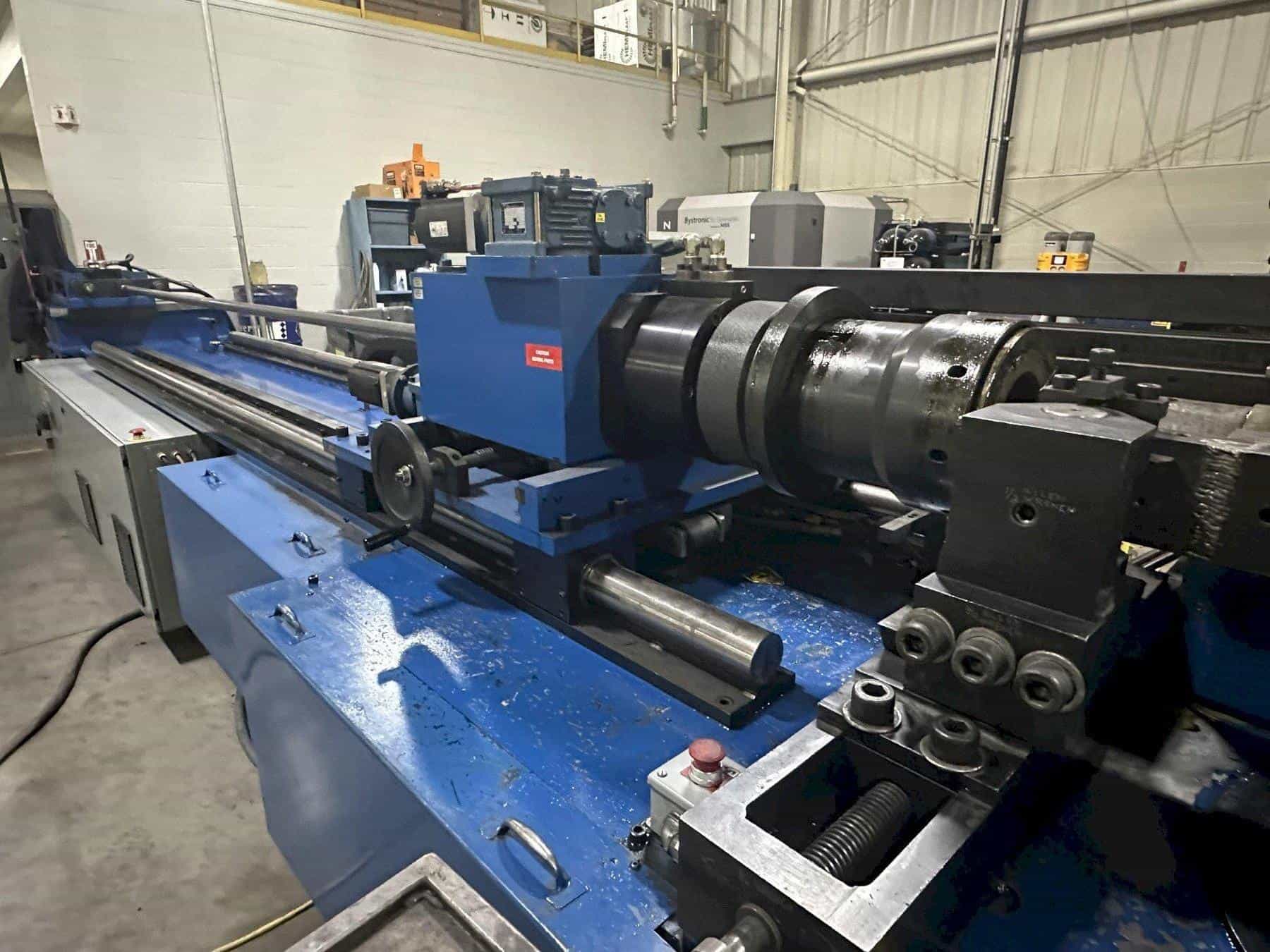

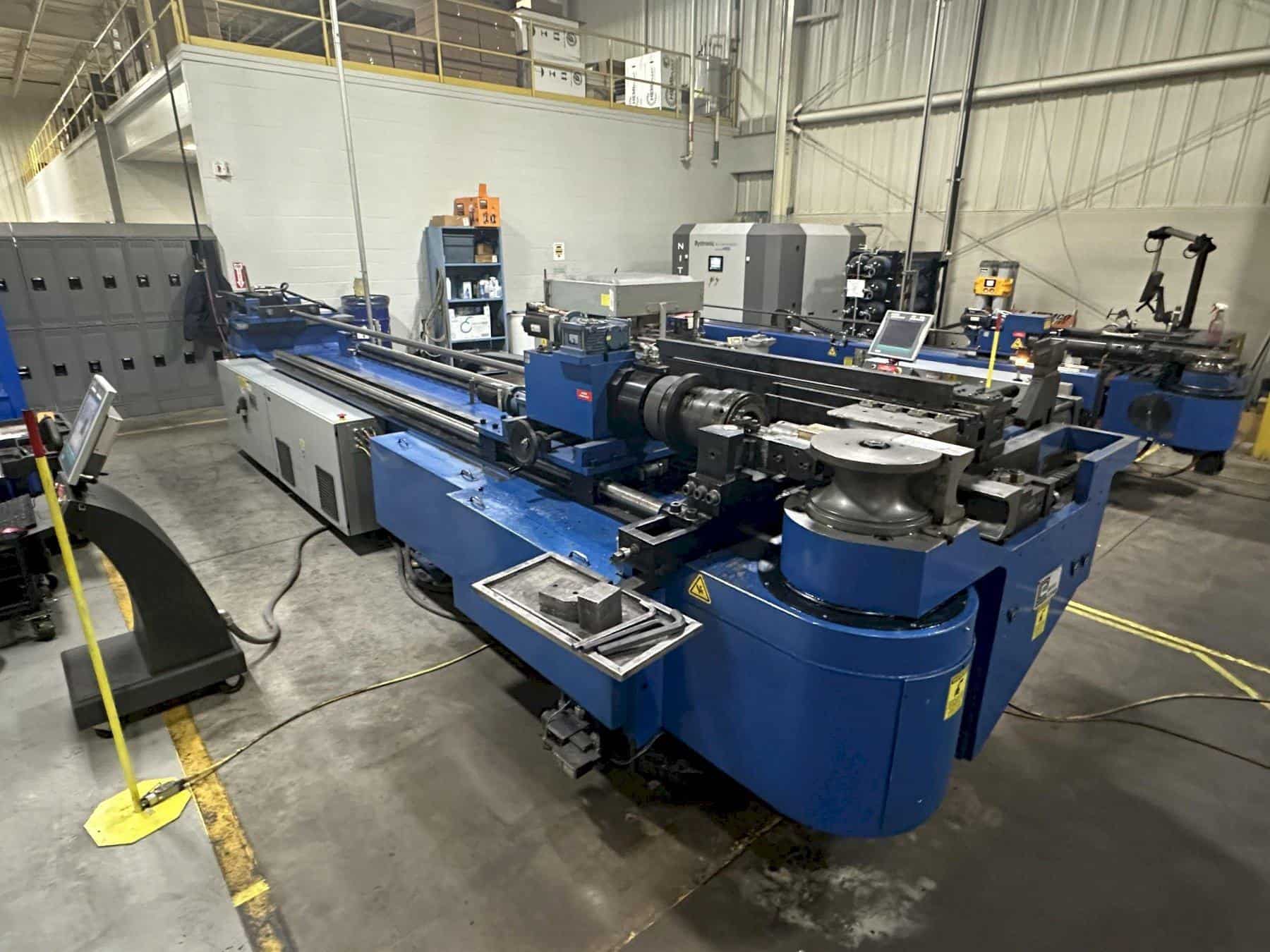

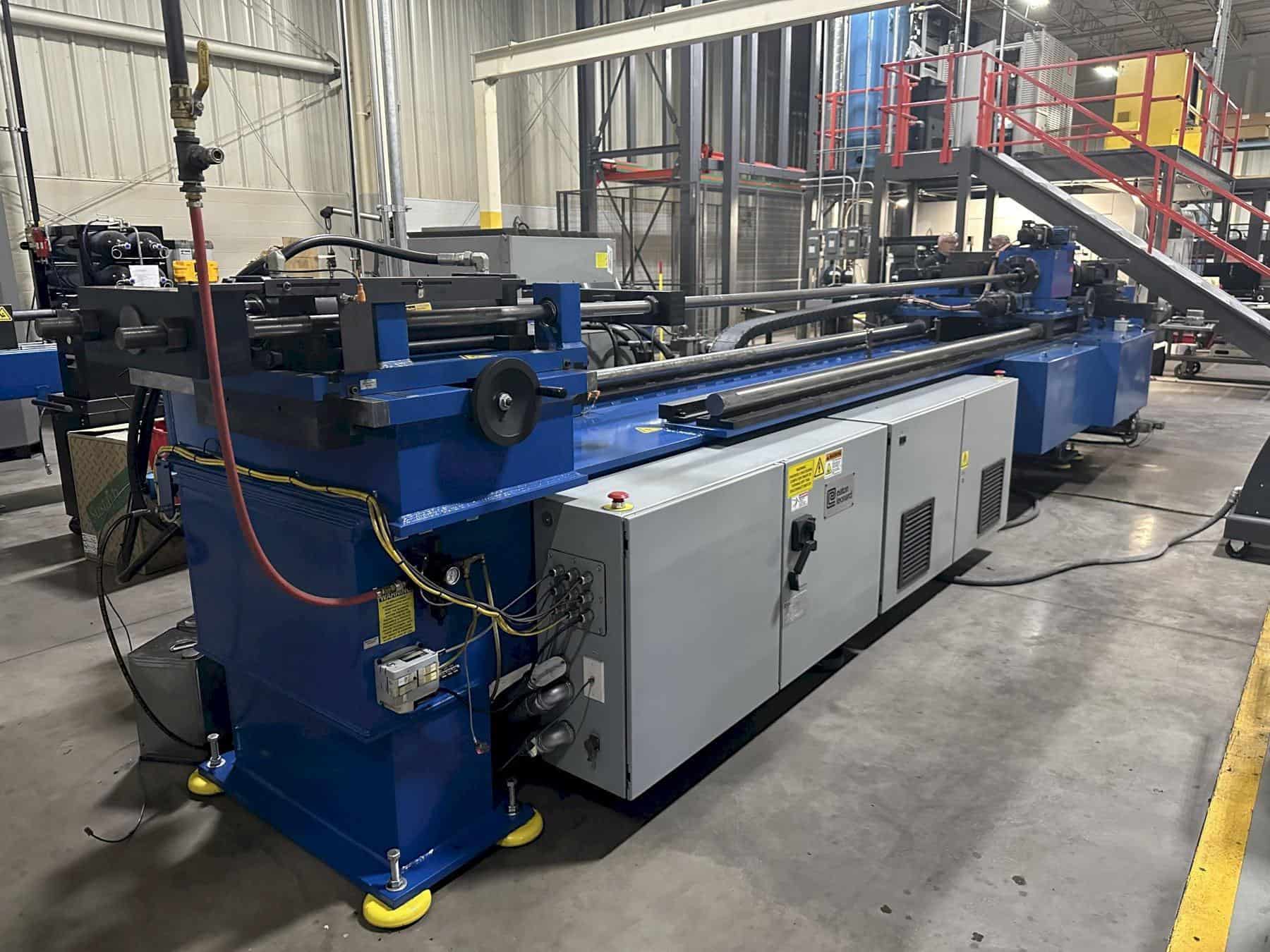

Used Eaton Leonard VB152HP (2012) Tube Bender for Sale. This pre-owned Eaton Leonard tube bender is located in Ohio and available to be seen under power for an inspection. If you have any questions regarding this Eaton Leonard Tube Bender, please feel free to contact us. You may Activate Pricing to view the price of this Fabrication Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Tube Length |
531" (Tube Over Mandrel) |
|---|---|
| Max Tube OD Stainless Steel |
6" x .18" |
| Max Tube OD Mild Steel |
6" x .22" |
| Max Tube OD Aluminum |
6" x .50" |
| Max Tube OD Carbon |
6" x .337" |
| Bend Angle |
190 Degrees |
| Centerline Radius |
2" to 25" |
| Bend Speed |
2 RPM (C-Axis) |
| DBB Speed |
900 IPM (Y-Axis) |
| POB |
15 RPM (B-Axis) |
| Motor |

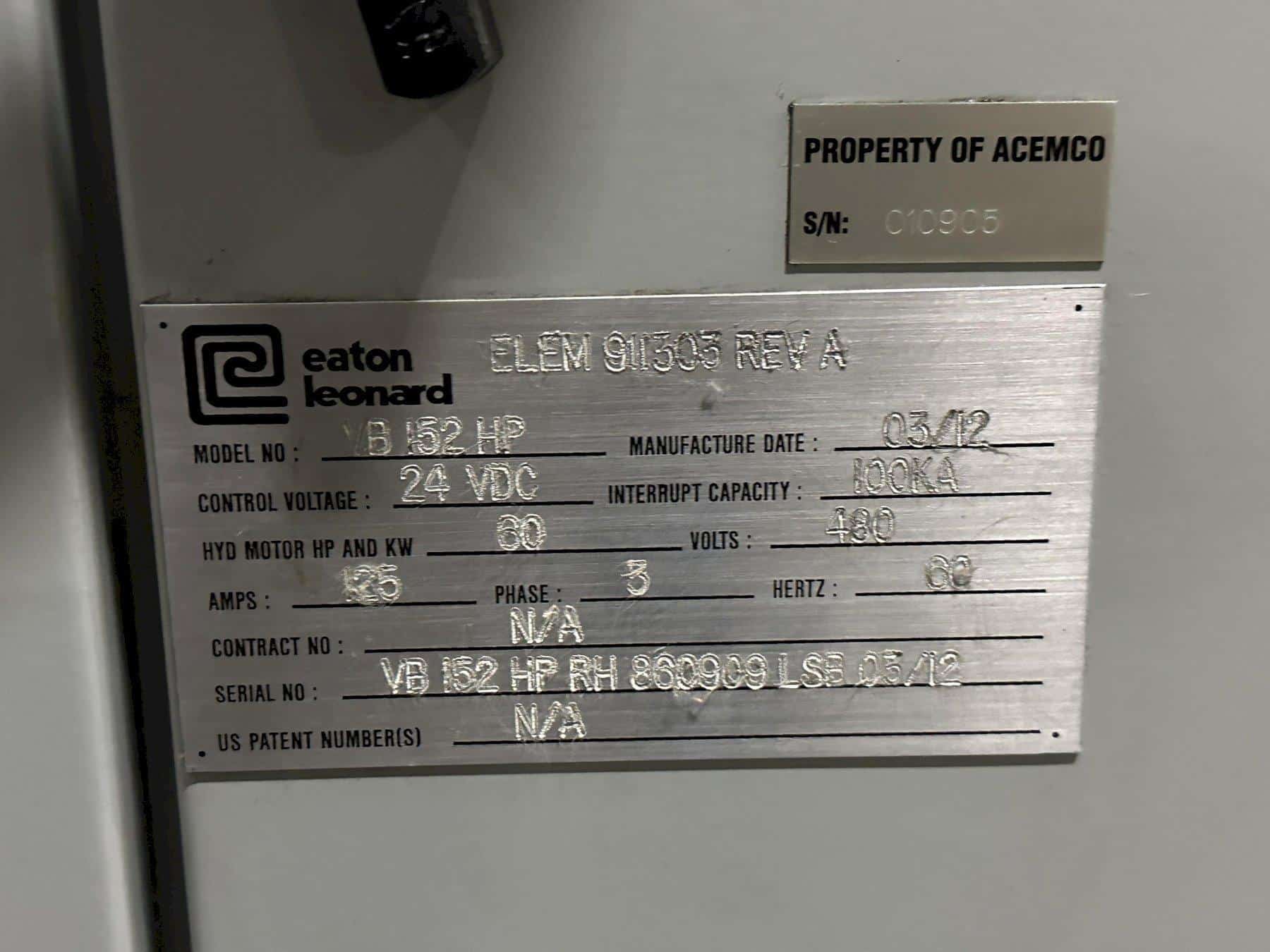

480/60/3, 125 Amps, 60 HP |
| Note |

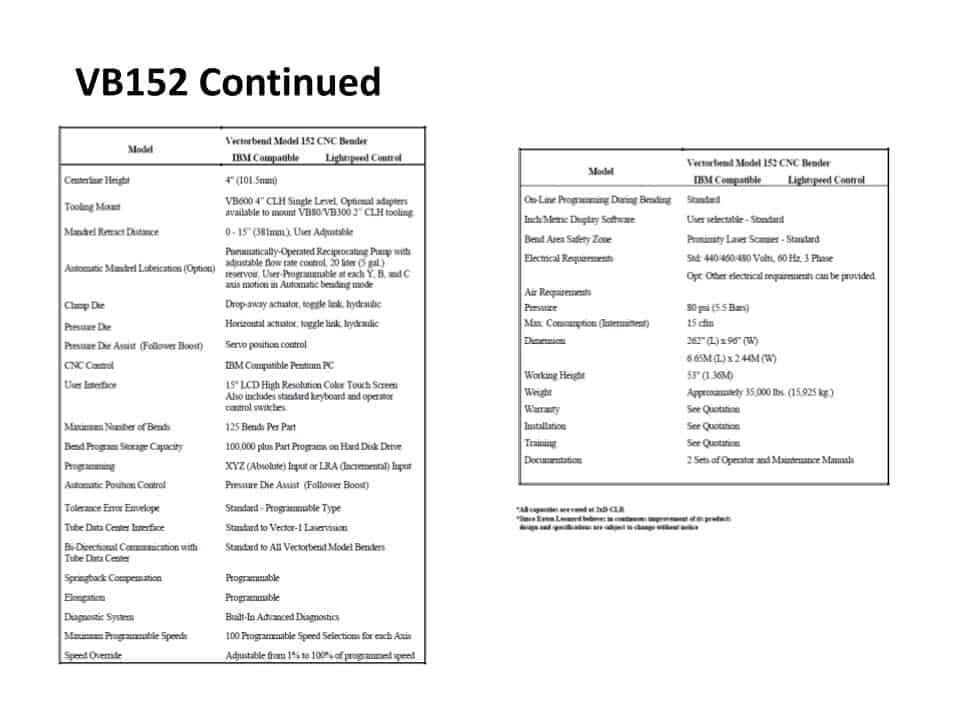

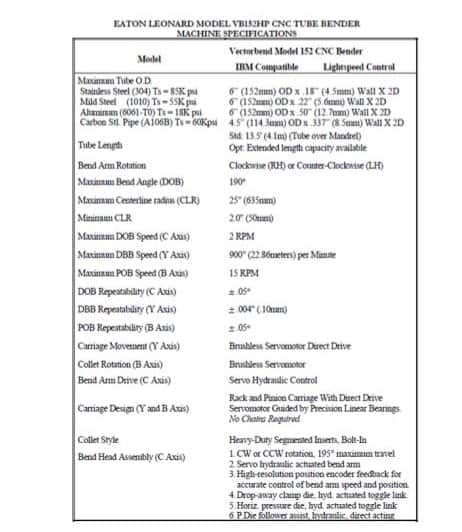

See Photos for More Specs |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
