| Year | 2012 |
|---|---|
| Make | American Kuhne |
| Model | AK150 24:1 AC EXT |
Description |
Single Screw Extruder |
| Reference # | 8075598 |
Price |
Activate PricingInquire Now |

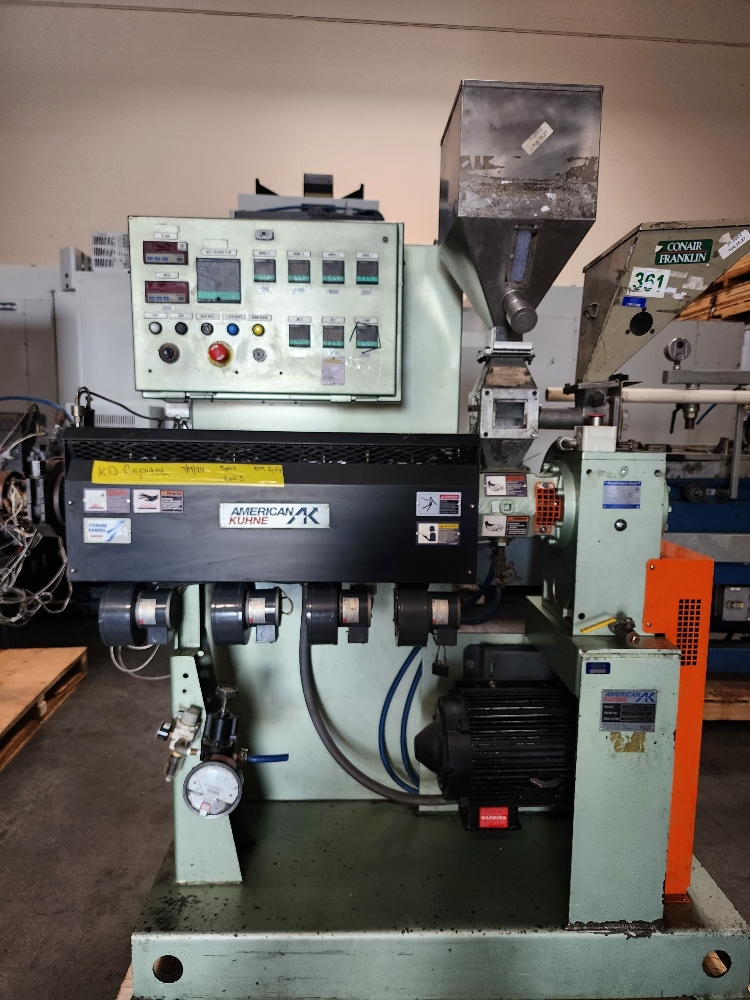

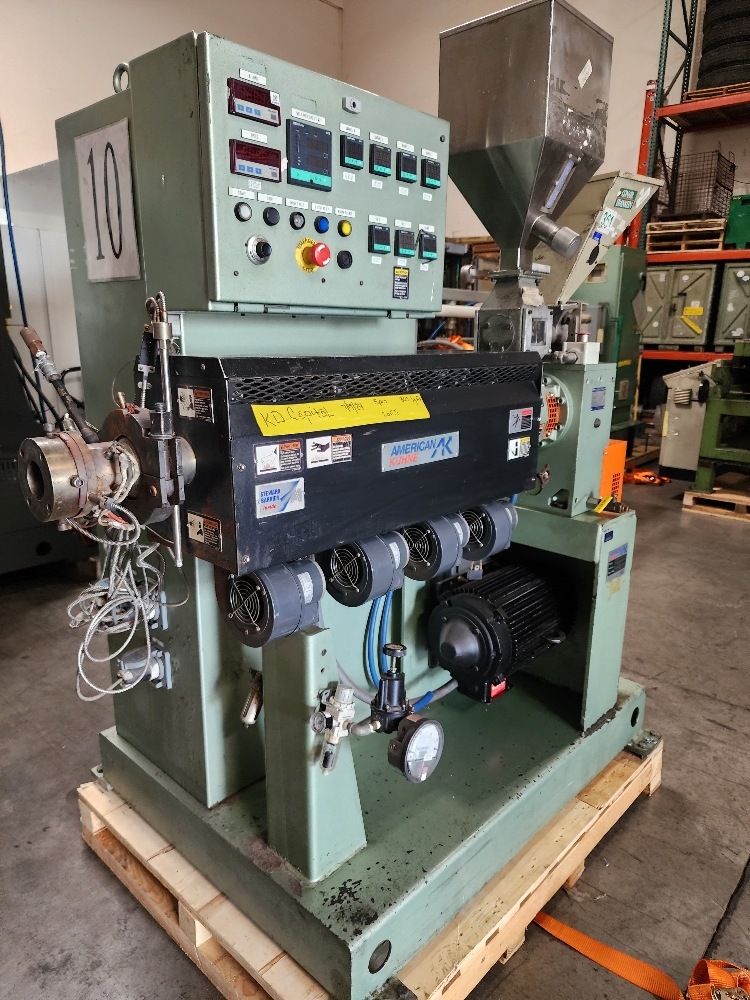

Used American Kuhne AK150 24:1 AC EXT (2012) Extruder for Sale. This pre-owned American Kuhne plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this American Kuhne Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
1.5" |
|---|---|
| L/D Ratio |
24:1 |
| Air Cooled |
(4) Barrel Cooling Zones |

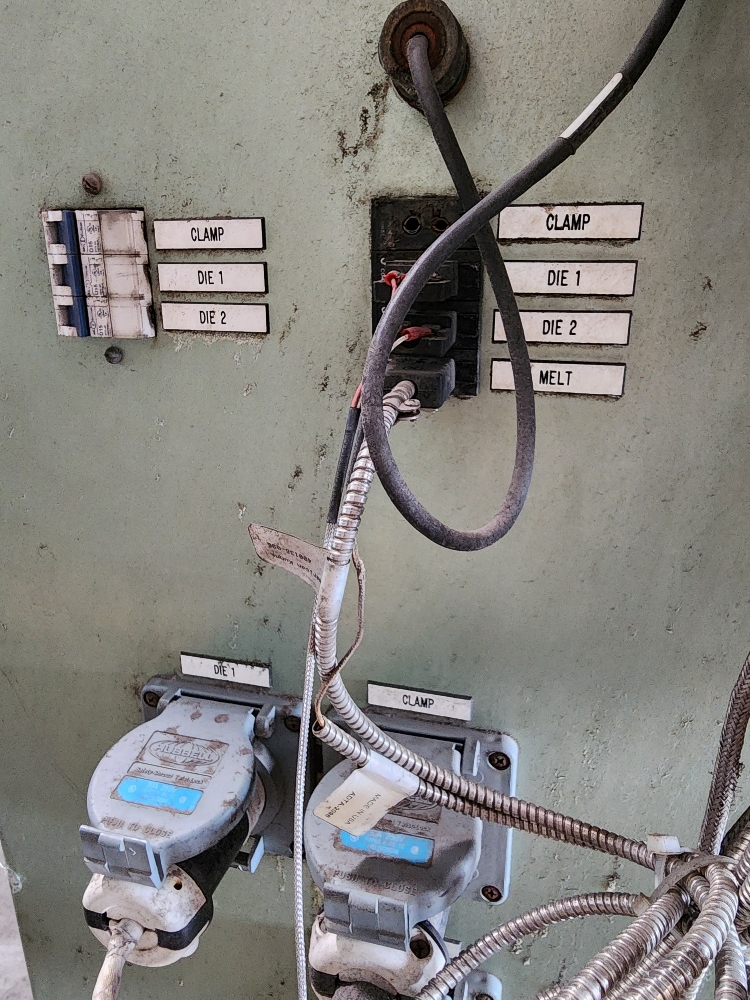

| Clamp Zones / Die Zones |
(1) Clamp Zone & (3) Die Zones |
| Gearbox Ratio |
17.54:1 |
| Horsepower |
10 HP |

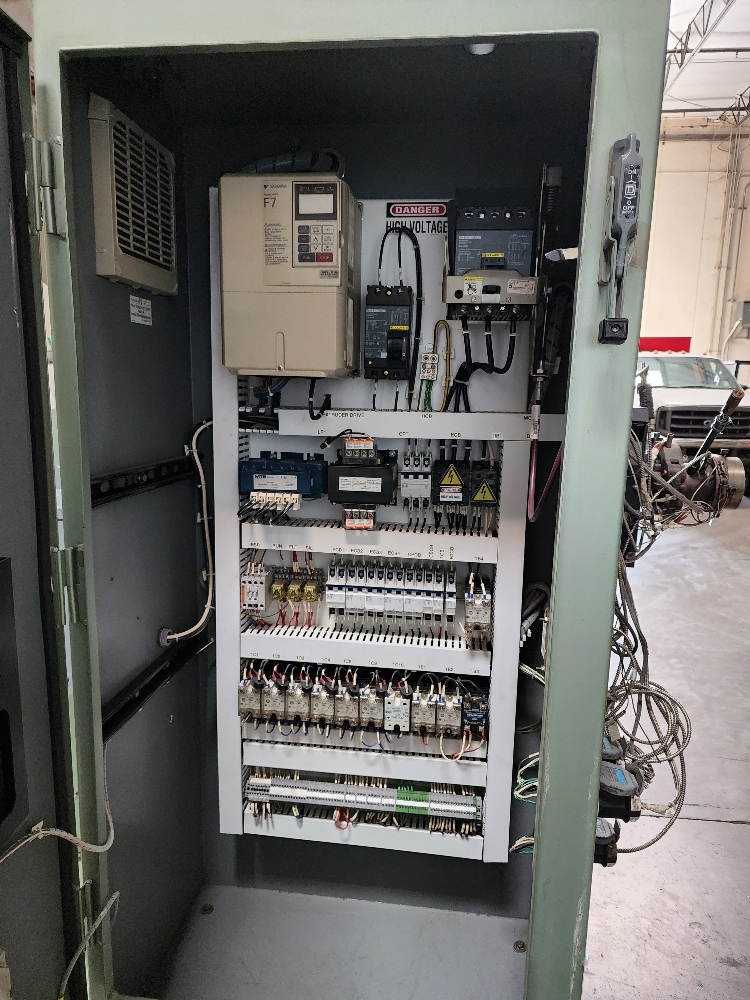

| Drive |

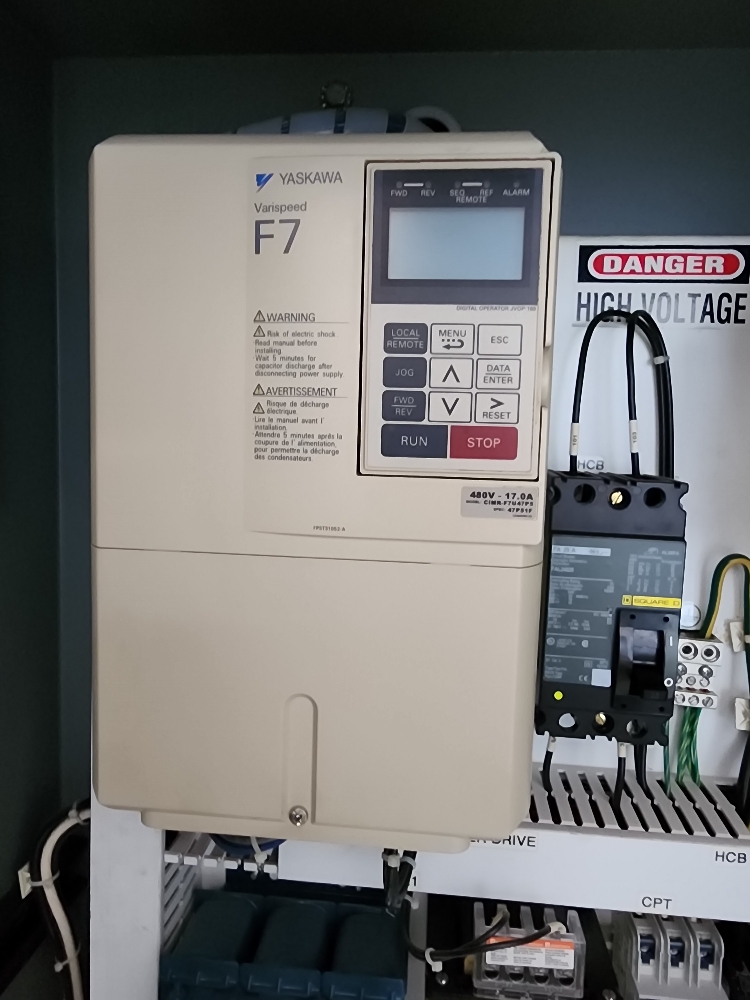

Yaskawa Varispeed F7 |

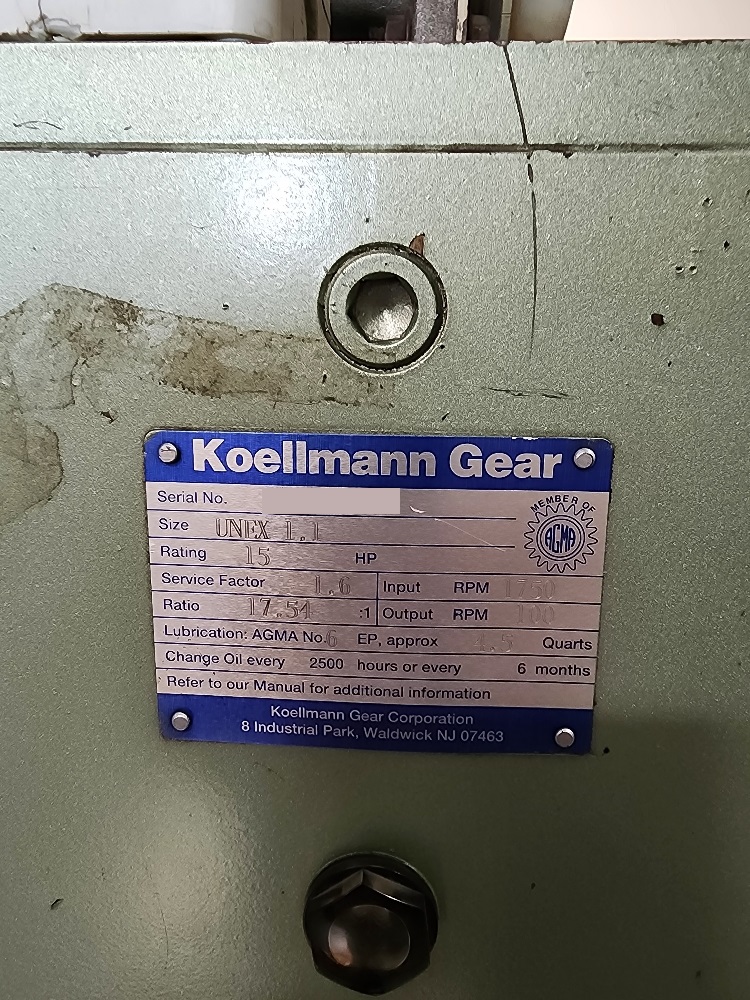

| Gearbox |
Koellmann (Gear HP Rating 15 hp) |

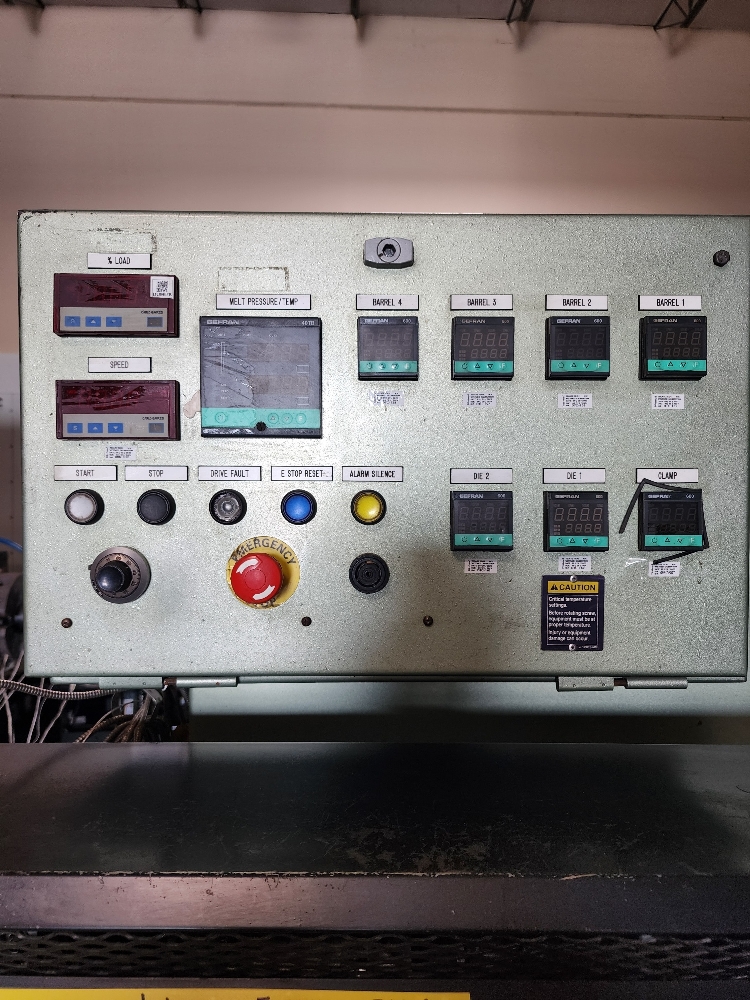

| Temperature Controls |
Gefran Mdl. 600 Temperature Controllers |
| Electrical Reequipments |
460v - 3 ph - 50 amps |
| Shipping Dims |
56" L x 44.5" Wide x 82.5" Tall |
Features
|

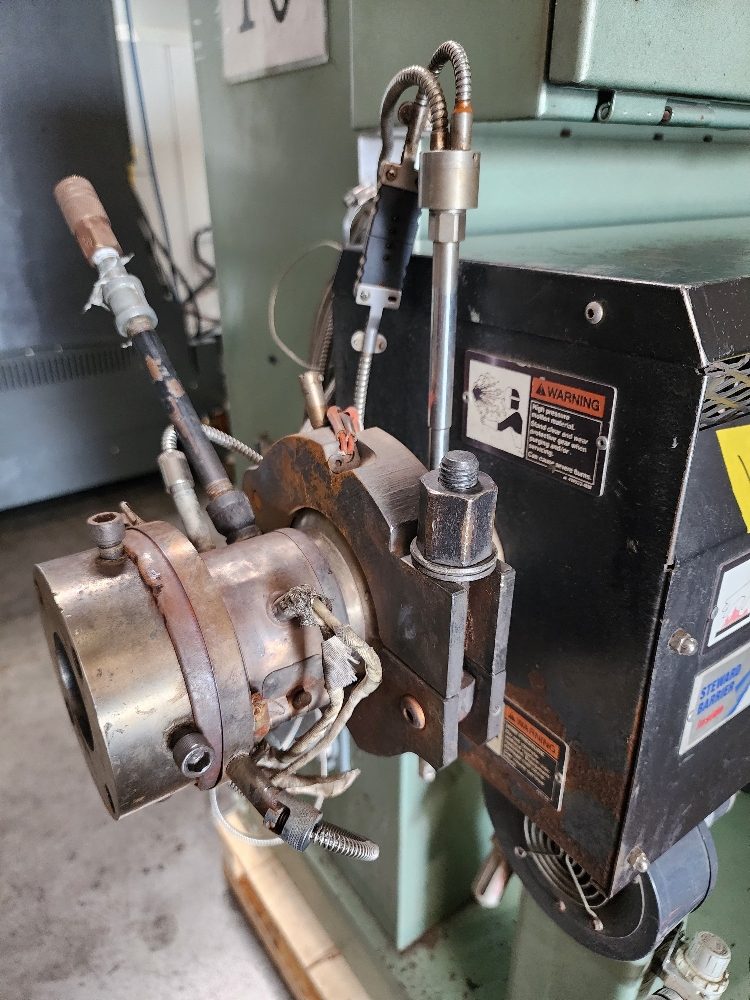

"C" Clamping Gate |

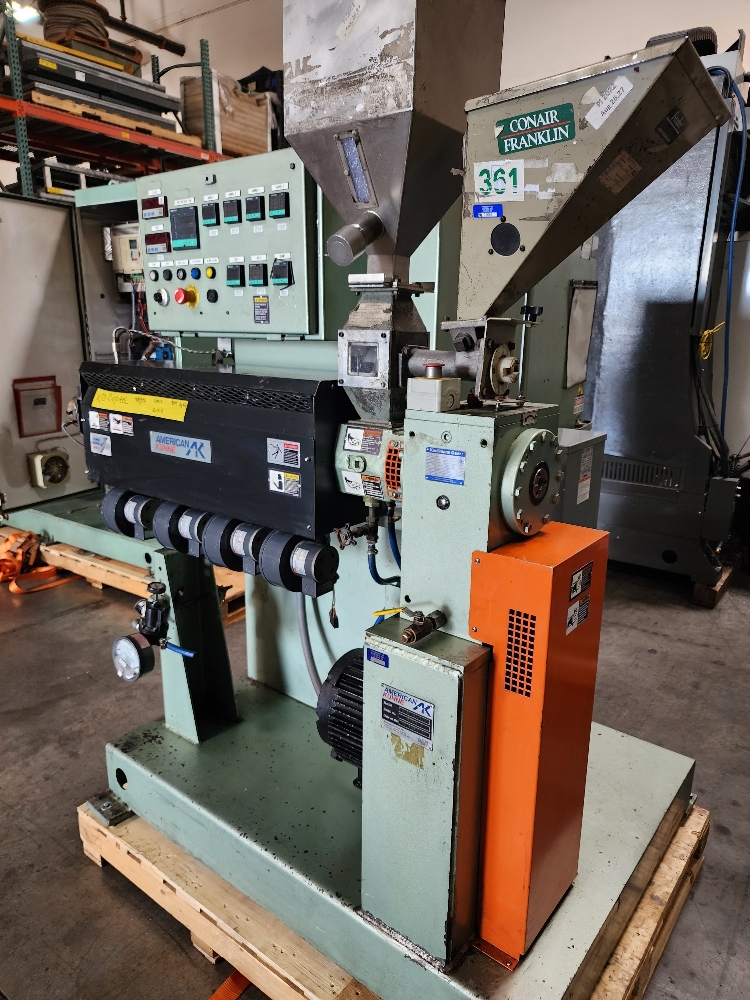

(2) Hopper Loaders |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
