| Year | 2011 |
|---|---|
| Make | Quintax |
| Model | 25G |
Description |
CNC Router |
| Reference # | 8076942 |

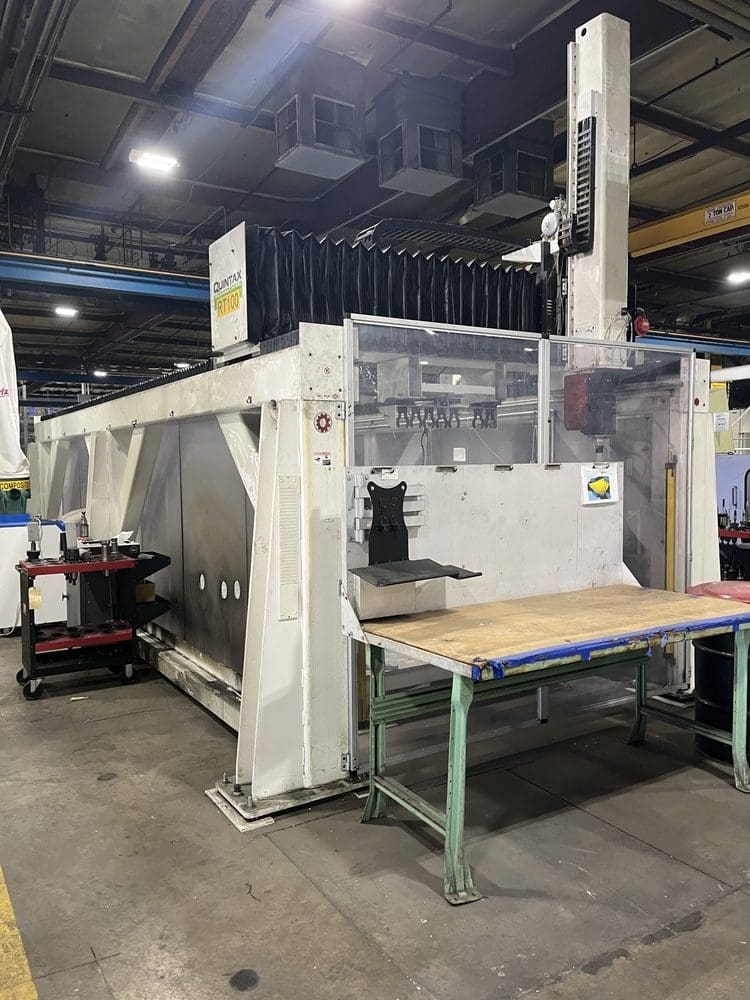

Used Quintax 25G (2011) CNC Router for Sale. This pre-owned Quintax cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Quintax CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

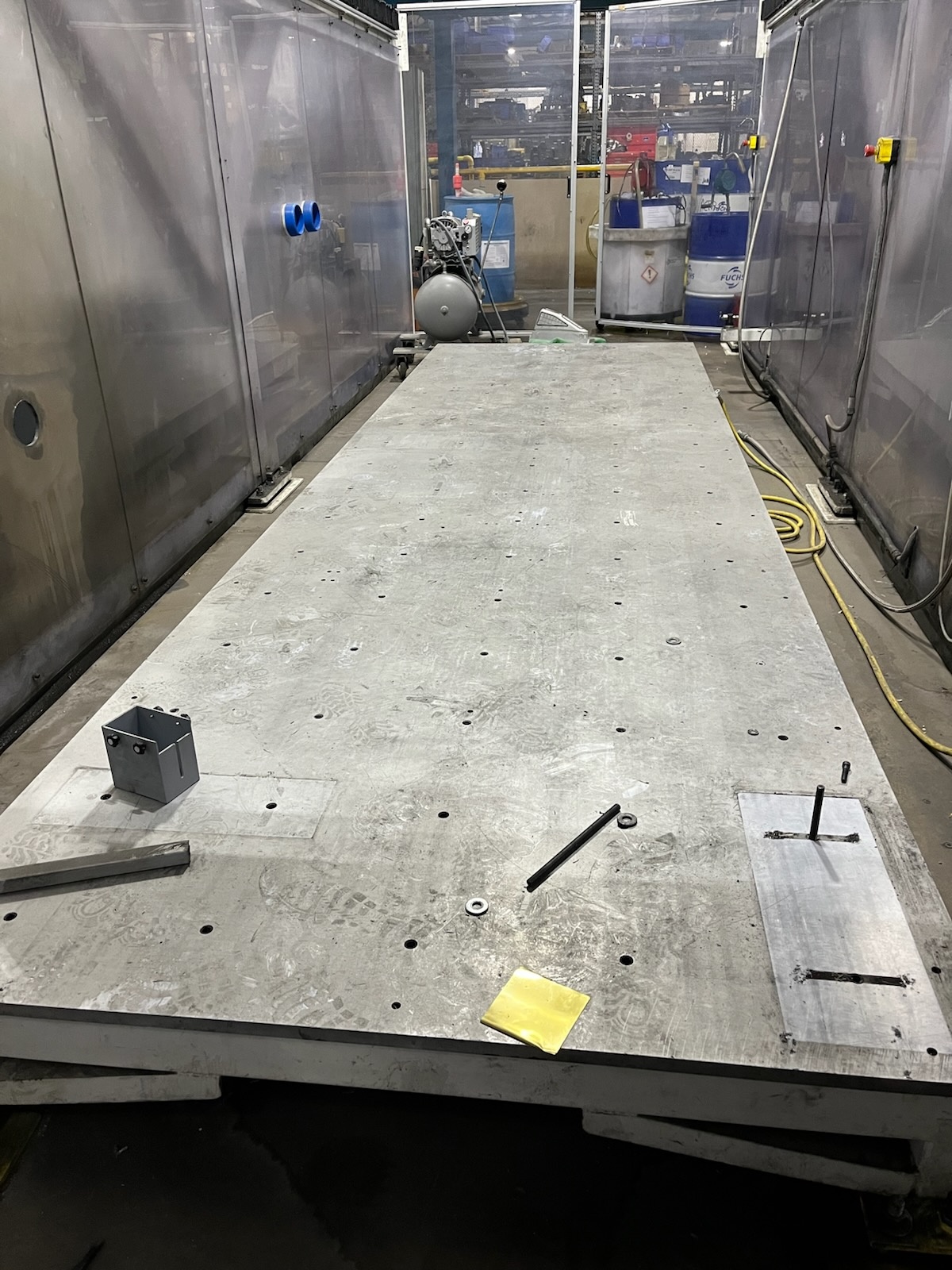

| Table Width |
60" |
|---|---|
| Table Length |
408" |
| Number of Axis |
5 |
| Spindle Horsepower |
13.4 HP |
| Spindle Speed |
24,000 RPM |
| Taper |
HSK-63F |
| Z-Axis Travel |
48" |
| Tool Changer |
(8) Position ATC |
| Control |
Fanuc 31i CNC Controller |
| Power Requirement |
480v - 3 ph - 60hz |
Features
|
3D Compensation Package w/ Lasertracker Alignment |
Automatic Tool-Setting Probe and Software |
|
Central Lube System w/ Low-Level Switch |

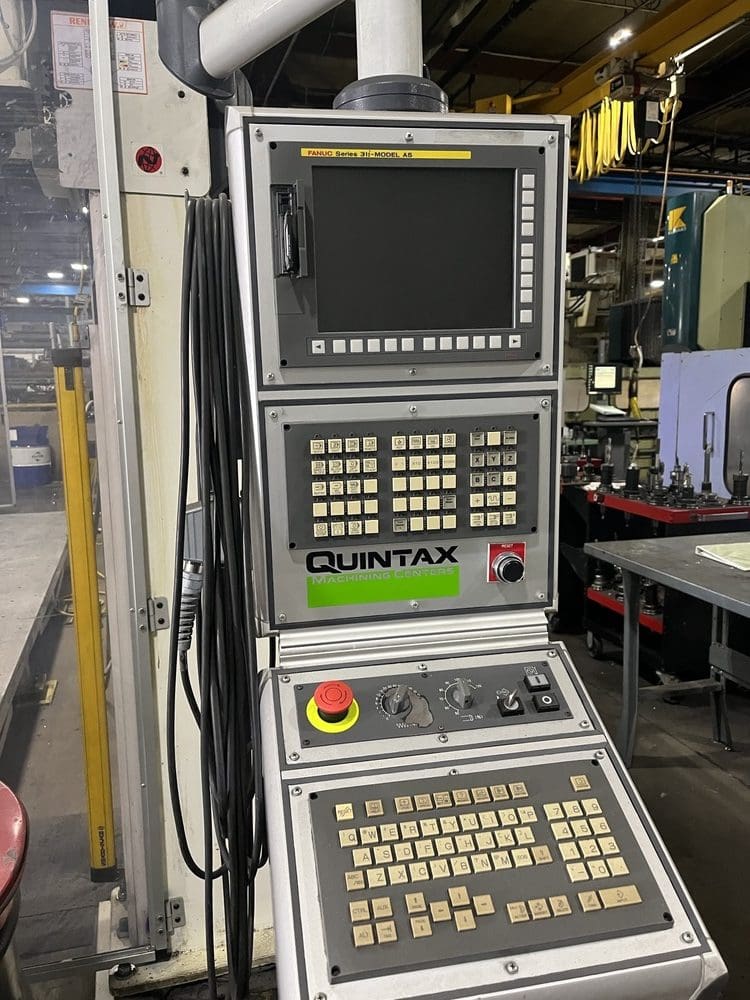

Fanuc 31i 5-Axis CNC Control |
|
Fanuc AC Digital Servo Package |

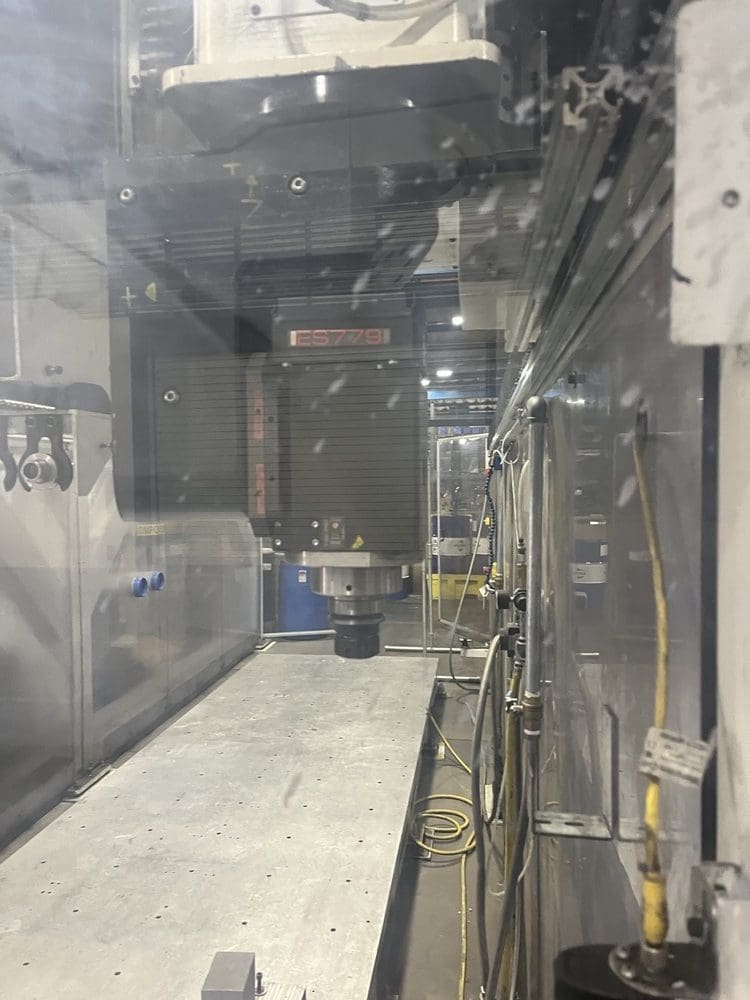

HS450 Head with ES779 (C-Axis +/- 220 deg. | A-Axis +/- 120 deg.) |
|
Tapping Option |
Hand Held Teach Pendant |
