| Year | 2011 |
|---|---|
| Make | Mazak |
| Model | VCN 700D/50II |
Description |
CNC Vertical Machining Center |
| Reference # | 8075836 |

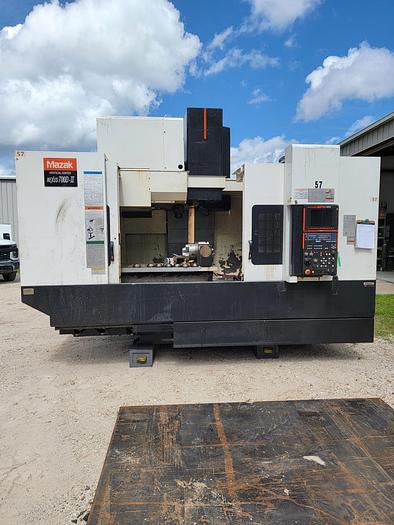

Used Mazak VCN 700D/50II (2011) CNC Vertical Machining Center for Sale. This pre-owned Mazak CNC vertical mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Vertical Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| X-Axis Travel |
60.24" |
|---|---|
| Y-Axis Travel |
27.55" |
| Z-Axis Travel |
25.59" |
| Spindle Speed |
6,000 RPM |
| Spindle Taper |
CAT 50 |
| Spindle Motor |
30 HP |
| Tool Magazine Capacity |
24 ATC |
| Control |
Mazatrol Matrix Nexus |
| Additional Axis |

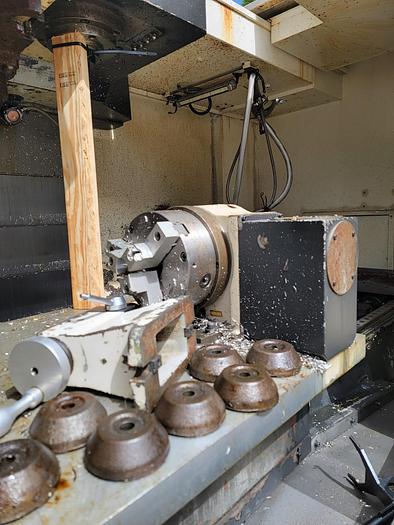

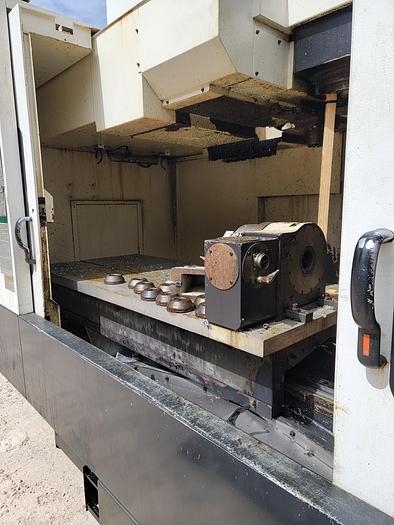

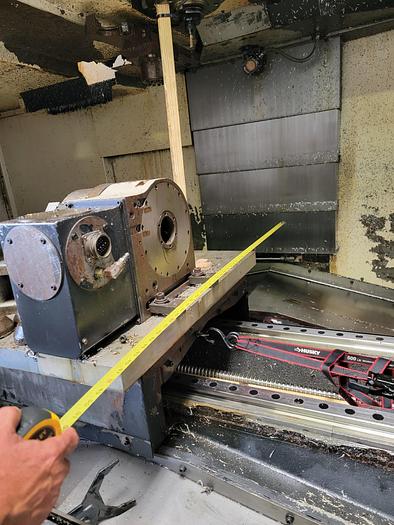

4th Axis Rotary Table |
| Chip Removal |

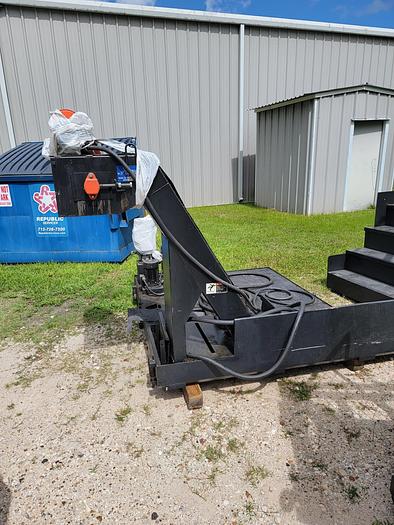

Chip Conveyor |
| Approx. Machine Dimensions |
161.41″ X 137.24″ (Without Chip Conveyor) |
| Approx. Machine Weight |
161.41″ X 137.24″ |
Features
|
9.13" 3-Jaw Manual Chuck SC-9T |
Absolute Encoder Sys N/A with S/F-3X |
|
ADD EIA/ISO Functions |
B (Synchronized Tapping) |
|
Cover Coolant |
Detachable Manuel Pulse Generator |
|
Hi-Pressure Coolant Thru Sys w/Flood 213psi |
Left Side Hinge Type Chip Conveyor for Steel |
|
MX Roller Guide Sys Dual Probing Kit OMP60/OTS AA w/EIA Inspection Plus |
North American Power Transformer |
|
Spindle Speed 6000 High Torque Spindle 665 FT/LBS |
Total Cover |
|
Windows XP Operating Sys for Mazak Machine Control |
EIA/ISO Code Input Function |
|
Mt Connect Adapter Software |
Relocation Device |
|
Work Light |
Kitagawa TS-250 Tailstock for Mazak MR-250 |
|
LAN Port in Electrical Cabinet |
Mazak MR-250RAM01 NC Rotary Table Package |
|
MT Connect Preparation |
Operator Door Interlock with Lock Switch |
