Year | 2011 |
---|---|
Make | Makino |
Model | DUO43 |
Description |
EDM Wire |
Reference # | 8075179 |

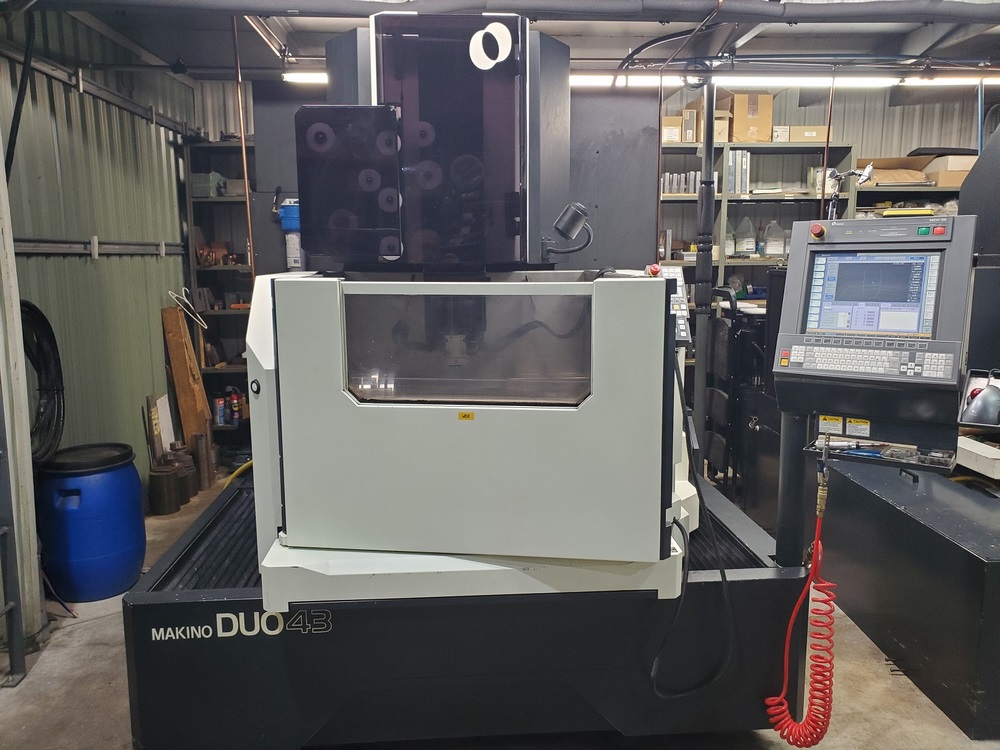

Used Makino DUO43 (2011) CNC EDM for Sale. This pre-owned Makino CNC EDM wire is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Makino EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
X-Axis Travel |
17.7" |
---|---|
Y-Axis Travel |
11.8" |
Z-Axis Travel |
12.6" |
Control |
MMGW-S6 |
U/V Axis Travel |
3.97" x 3.97" |
Degree Taper Cutting |
15 at 4" |
Inside Tank Dimensions |
33.5" x 28.3" |
Power Requirement |
200-230/3/60 |
Wire Diameters |
.004" - .012" |
Wire Spool Size |
10 Kg |
Maximum Workpiece Dimensions |
33.5" x 28.3" x 12.6" |
Maximum Workpiece Weight |
1,764 Lbs |
Table Size |
27.9" x 22.0" |
Tank Size |
34.25" x 29.72" x 15.9" |
Required Floorspace |
86" x 114" x 89" |
Machine Weight |
9,100 Lbs |
Features
Auto Wire Threading |
Chiller |
Rotary Encoder Glass Scale Feedback |
Submerged Cutting Capability |
Ethernet Connection (RS232C) |

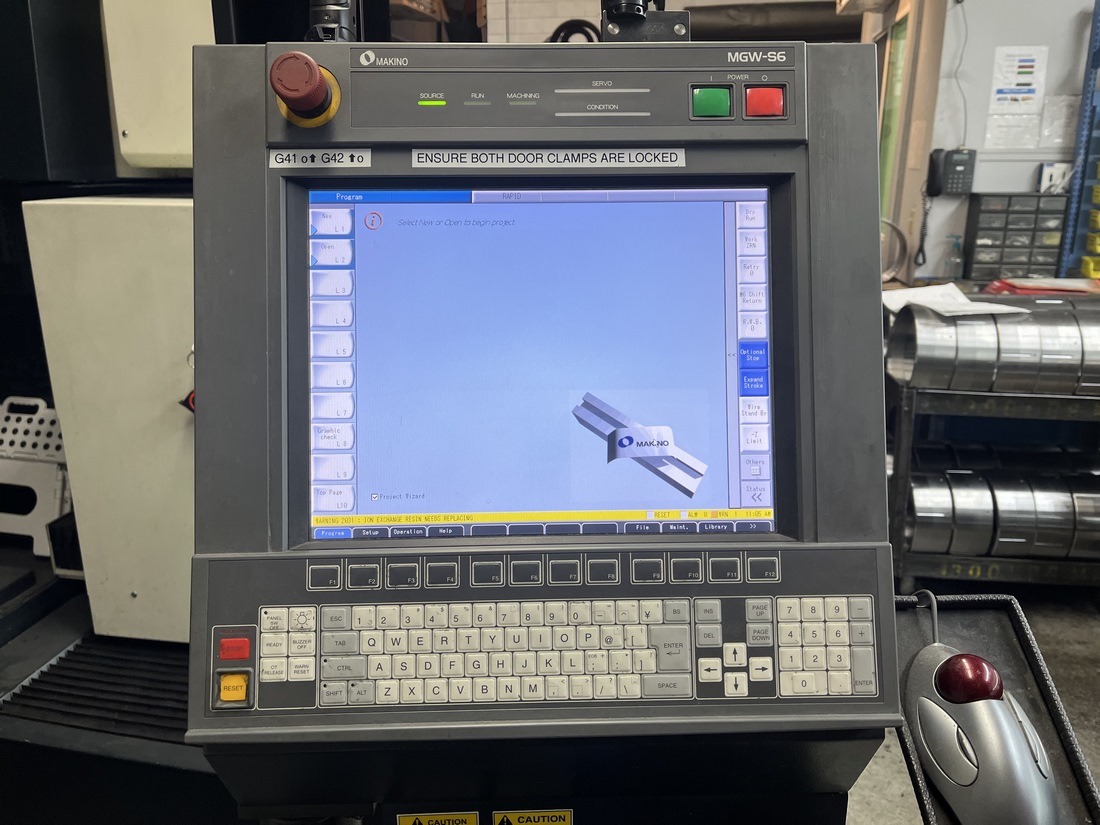

MGW-S6 CNC Control with Color CRT |
