| Year | 2011 |
|---|---|
| Make | Doosan |
| Model | Puma 400C |
Description |
CNC Lathe |
| Reference # | 8068791 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

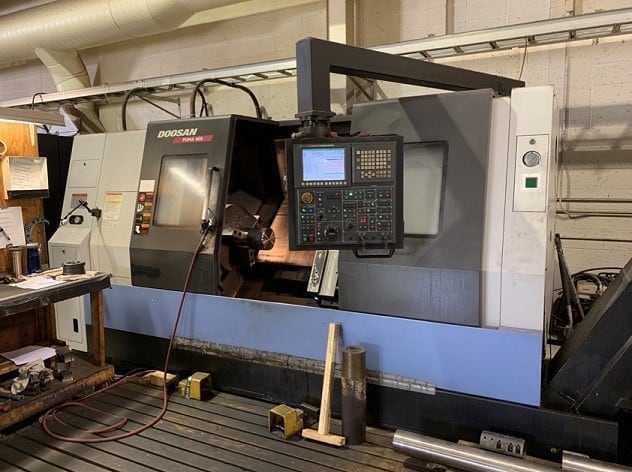

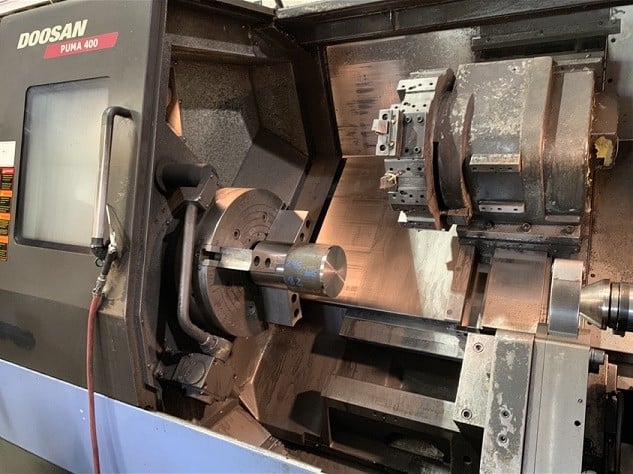

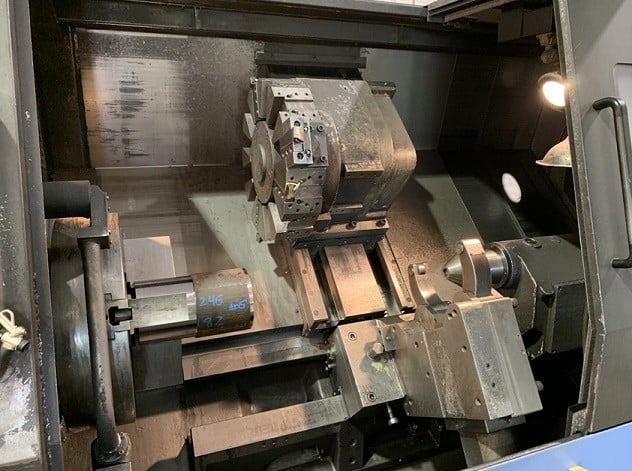

Used Doosan Puma 400C (2011) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
21" |
|---|---|
| Bar Capacity |
6.55" |
| Swing |
30.3" |
| Turning Diameter |
21.7" |
| Spindle Speed |
2,000 RPM |
| Control |

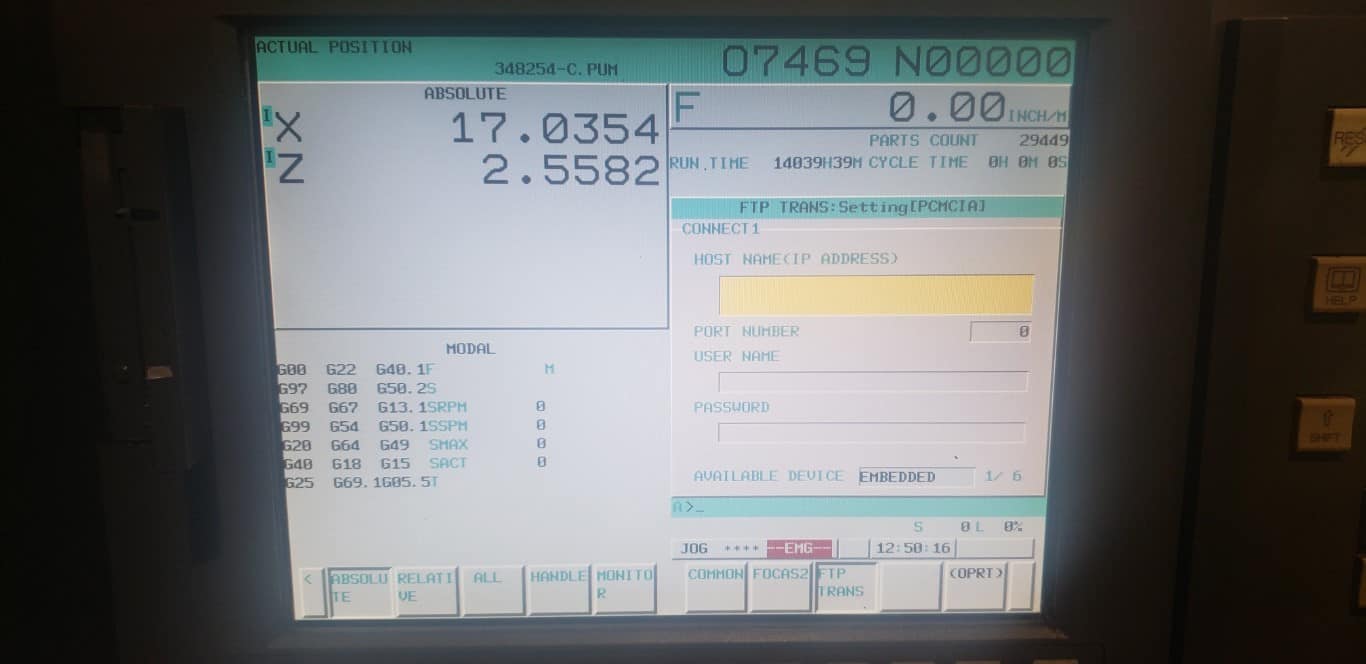

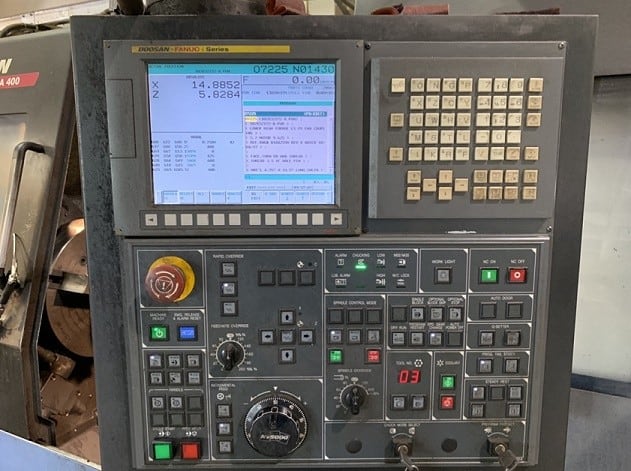

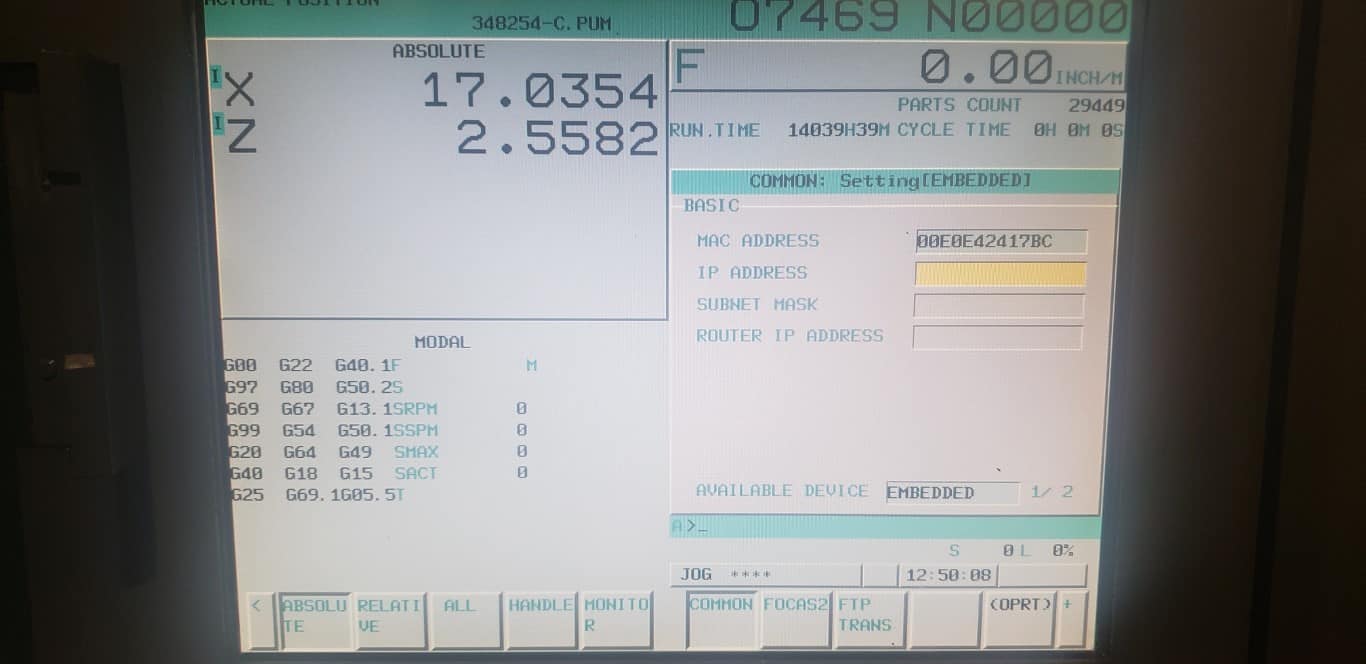

Fanuc i Series CNC |
| Distance Between Centers |
44.7" |
| Turret |
12 Station |
| Maximum Swing Over Saddle |
23.2” |
| X-Axis Travel |
14.3" |
| Z-Axis Travel |
43.5" |
| Spindle Nose |
A1-15 |
| Spindle Bore |
7.12” |
| Rapid Traverse Rates X / Z |
630 / 790 IPM |
| Tailstock Quill Diameter / Center |
4.7" / MT # 5 |
| Tailstock Quill Travel |
4.7” |
| Chip Removal |
Chip Conveyor |
| Approx Dimensions (LxWxH) |
225" x 92" x 94" |
| Approx Machine Weight |
27,500 lbs |
Features
|
2-Speed Gearbox |
Auto Tool Presetter |
|
Heavy Duty Boxed Ways |
RS 232 Port Interface |
|
Programmable Tailstock |

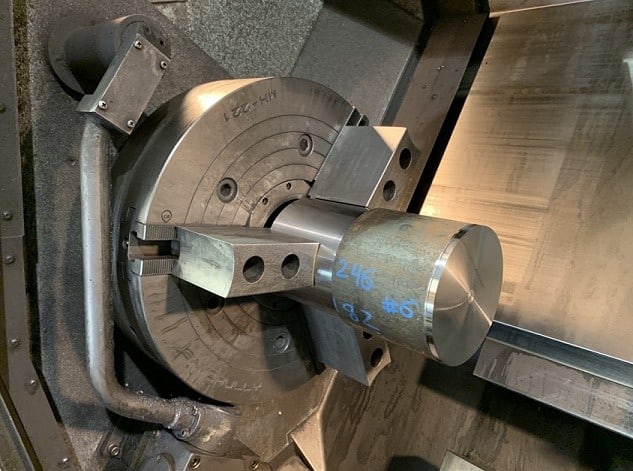

21" 3 Jaw Hydraulic Chuck w/ 6.55" Hole |
|
SMW Hydraulic Steady Rest |
