| Year | 2011 |
|---|---|
| Make | Amada |
| Model | EMLK 3610NT |
Description |
CNC Laser/Punch Combo |
| Reference # | 8074354 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

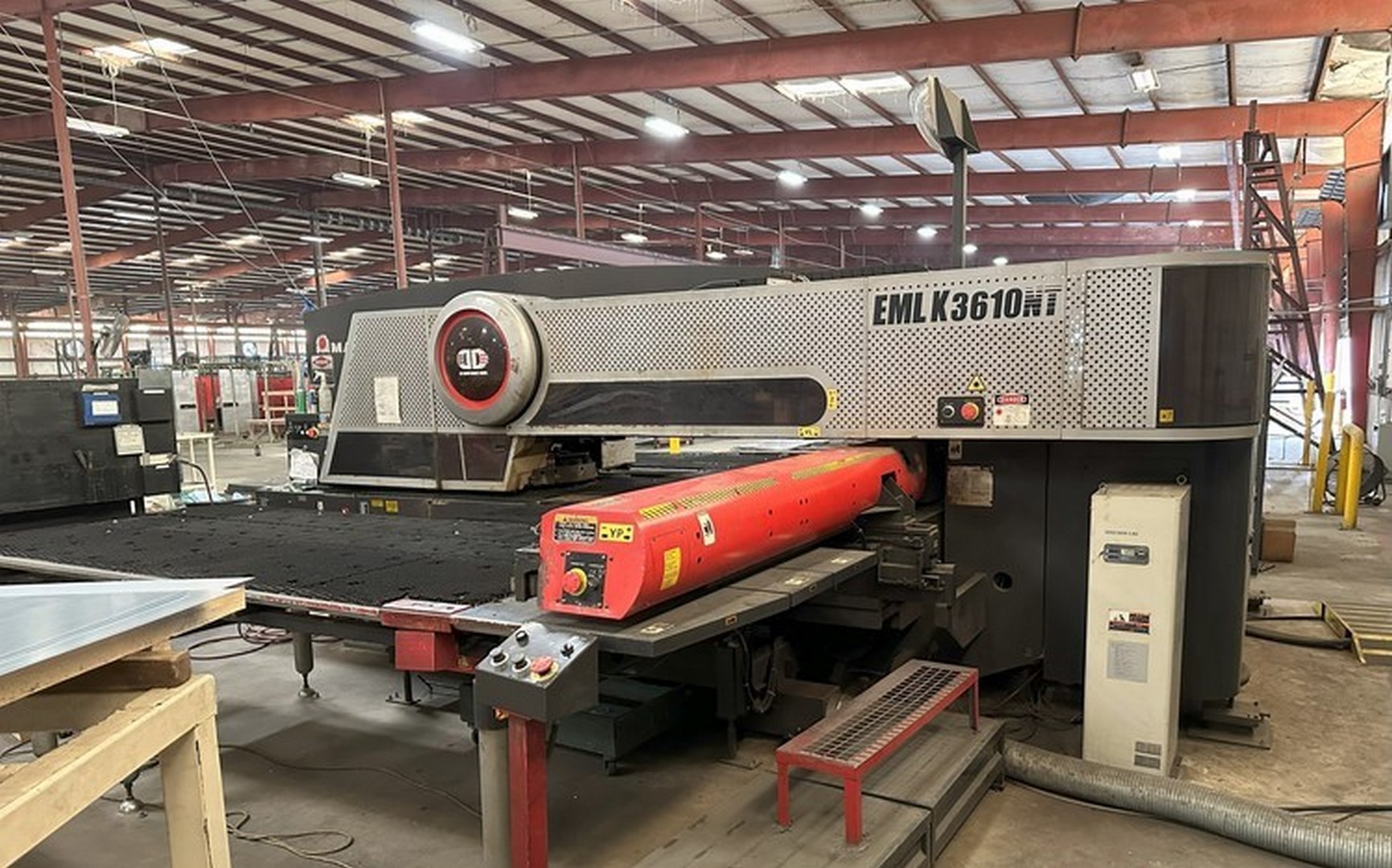

Used Amada EMLK 3610NT (2011) CNC Laser/Punch Combo for Sale. This pre-owned Amada CNC laser cutter/ turret punch is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Amada Laser/ Punch Combo, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Wattage |
4,000 |
|---|---|
| Tonnage |
33 Tons |
| Max Sheet Size |
5' x 10' |
| Laser |
AF-4000E (4KW) |
| Maximum Thickness Mild Steel |
.25" |
| Maximum Thickness Stainless |
.25" |
| Maximum Thickness Aluminum |
.25" |

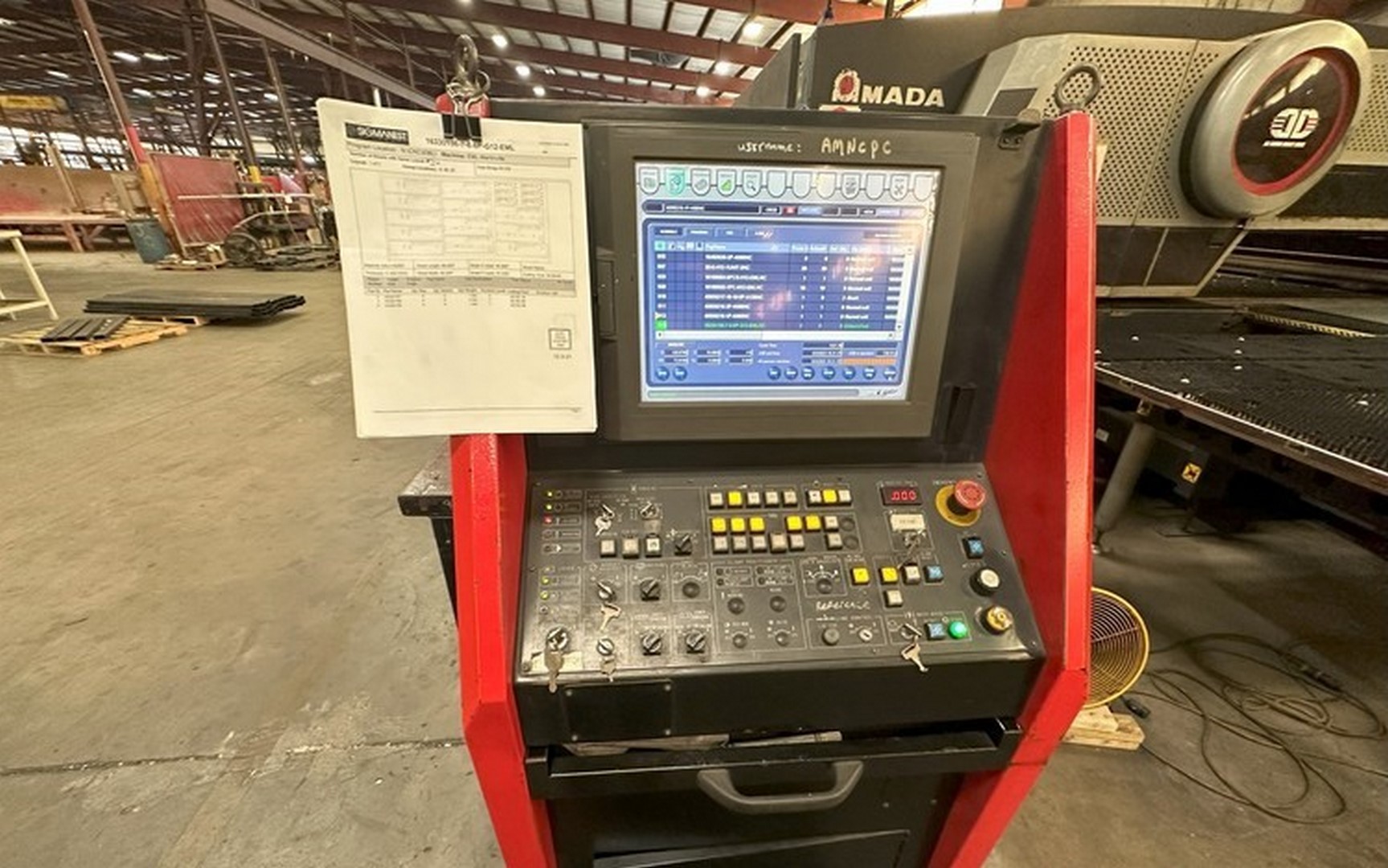

| Control |
AMNC PC (Windows Operating System) |
| Max Cutting Speed (X/Y) |
780 IPM |
| Hit Rate |
1800 HPM (High Speed Marking), 400 HPM on 1” Moves |
| Positioning Accuracy |
+/- .0012" / 39.37" |
| Repeatability |
+/- .00027" |
| Punching Accuracy |
+/- .004" |
| Max Work Weight |
330 Lbs |
| Machine Weight |
66,139 Lbs |
Features
|
Motion Axis X / Y / TL / Z / B / T / C |
Turret Configuration 58-Station 4A/I King Turret |
|
Z Axis Sensor HS - 2003 |
