| Year | 2011 |
|---|---|
| Make | Amada |
| Model | AE2510NT |
Description |

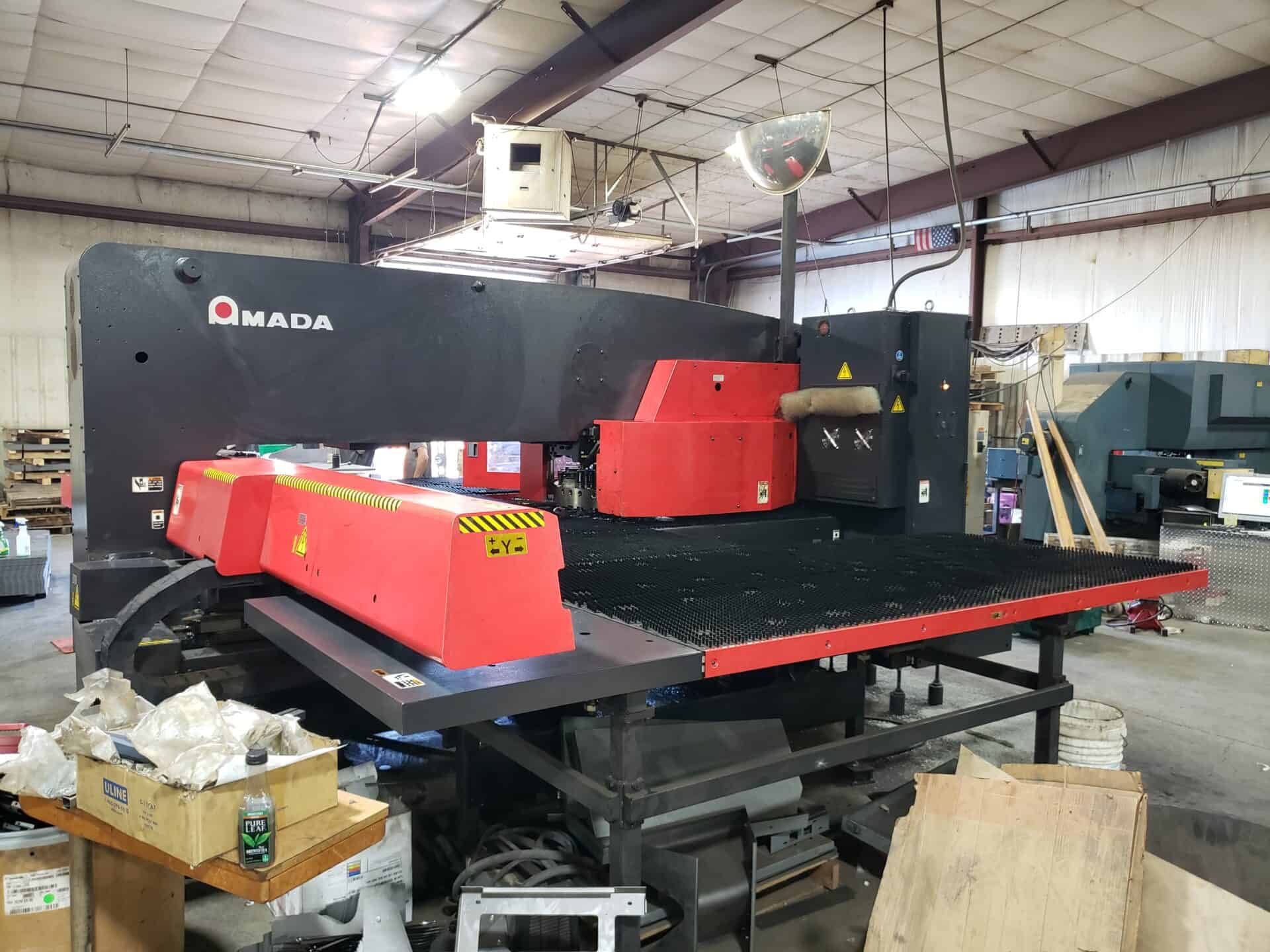

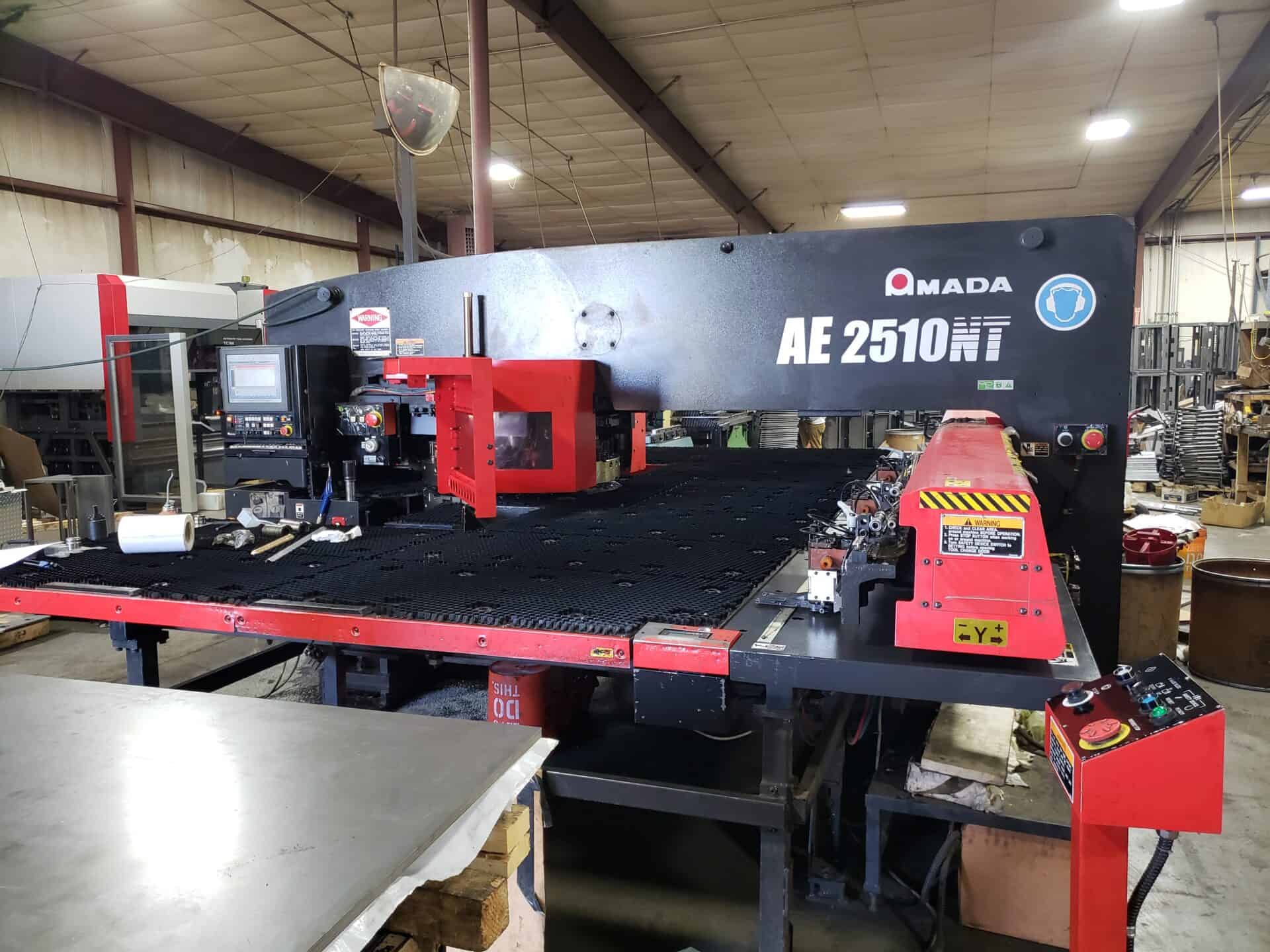

22 Ton Turret Punch |
| Reference # | 8069712 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
4.16' |
| Sheet Length |
8.2' |

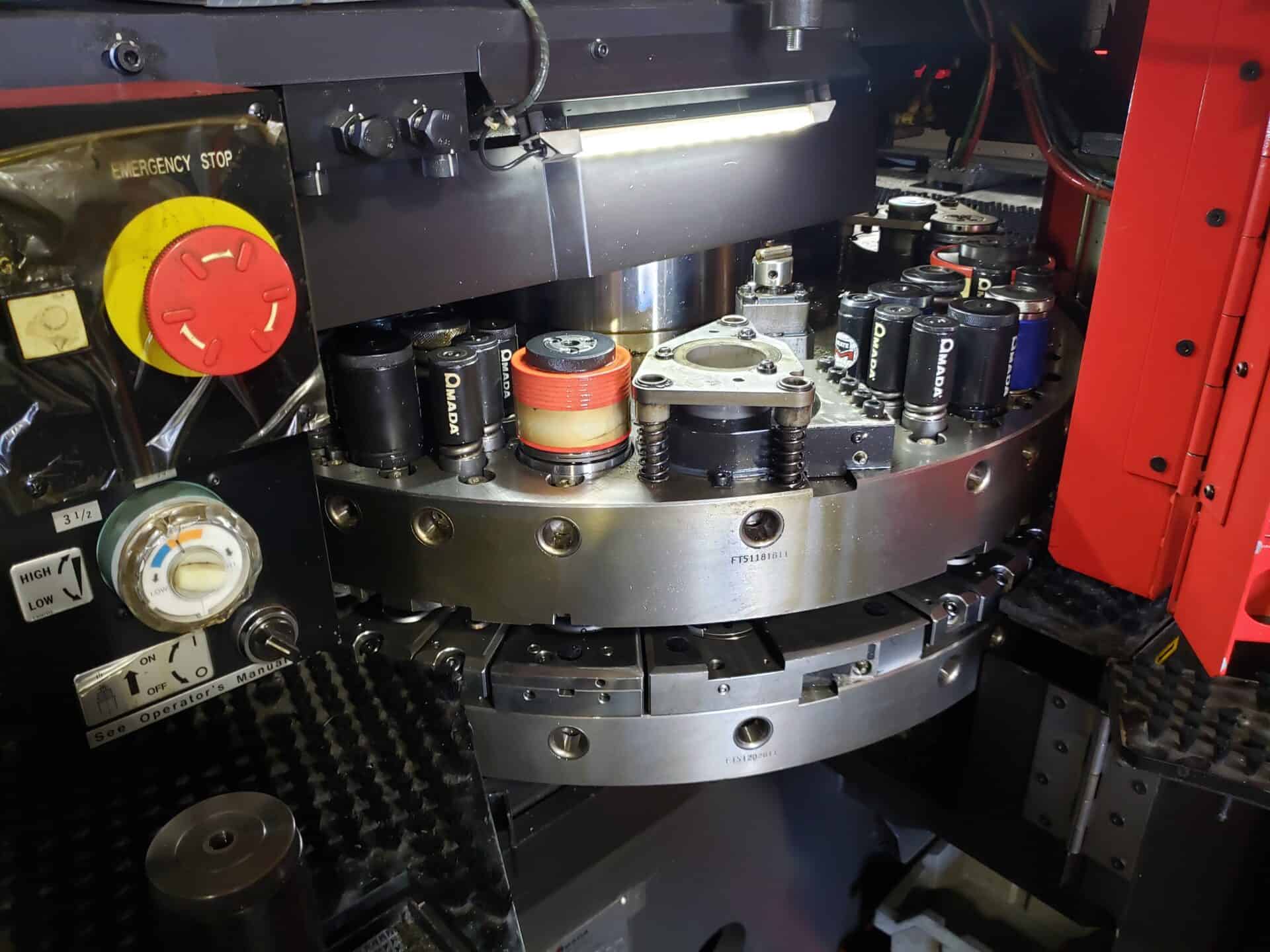

| Turret Stations |
51 |
| Y-Axis Travel |
98.4" |
| Throat Depth |
52" |
| Tooling Style |
Thick |
| Maximum Stroke Length |
1.65″ |

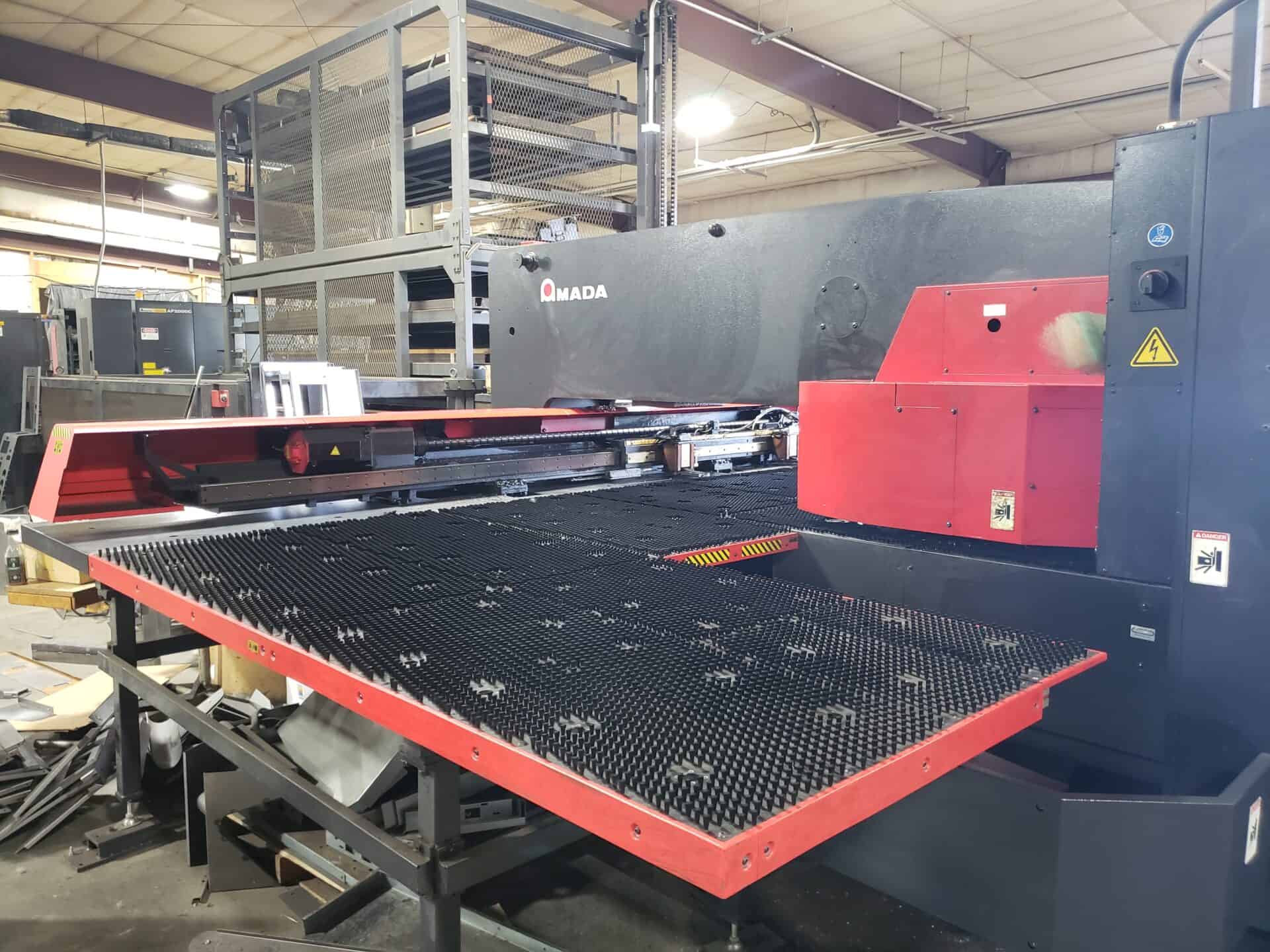

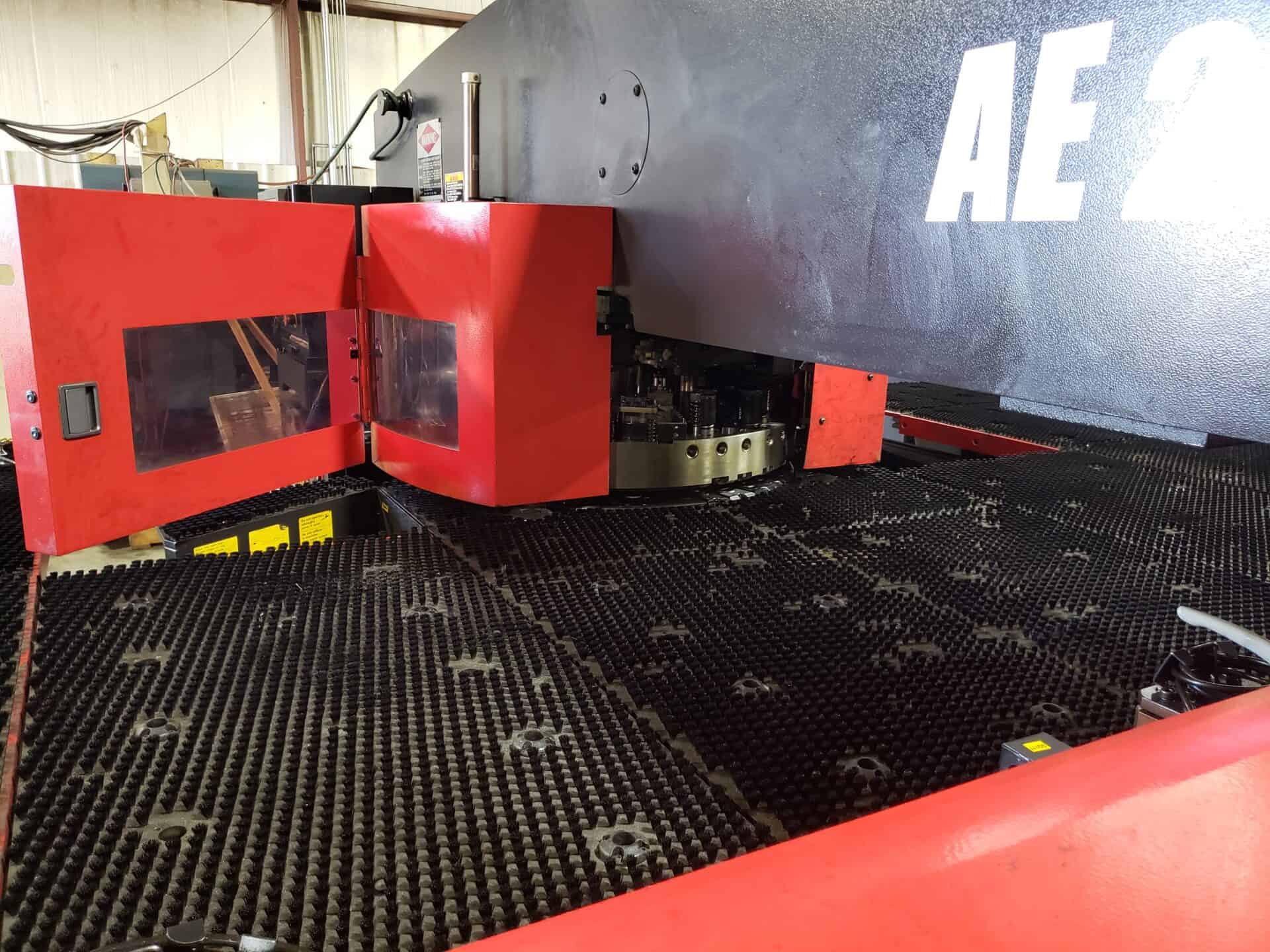

| Standard Brush Table |
0.12″ |
| X Axis |
3,150 Inches Per Minute |
| Y Axis |
2,362 Inches Per Minute |
| Optional High Density Brush Table |
0.25″ |
| Travel Range |
50″ x 98.4″ |
| Punching Accuracy |
+/- 0.004″ |
| Turret Rotation Speed |
30 RPM |
| Auto-Index Rotation Speed |
60 RPM |
| Power Requirement |
19 KVA |
| Maximum Air Consumption |
750 NI/Min. |
| Weight |
28,660 Lbs |
Features
|
Single Motor AC Servo Drive |
*
