| Year | 2011 |
|---|---|
| Make | AgieCharmilles |
| Model | CUT 20 P |
Description |
EDM Wire |
| Reference # | 8073005 |

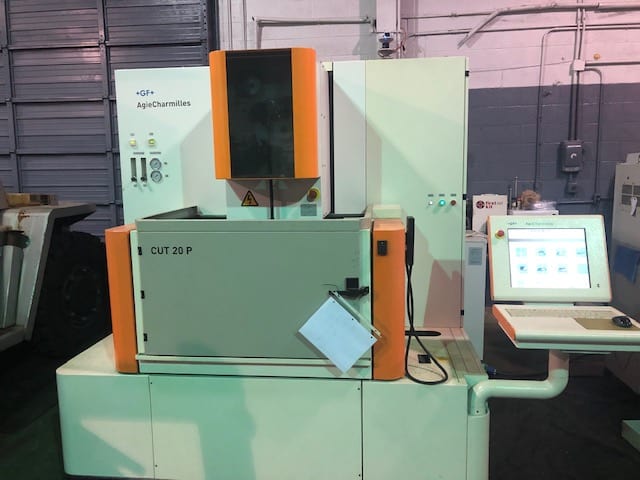

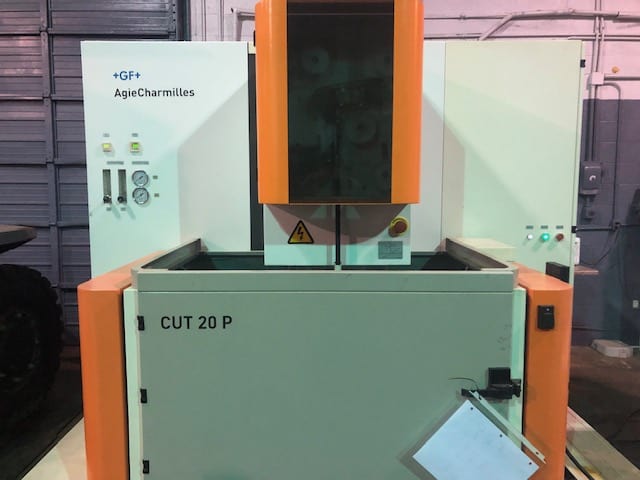

Used AgieCharmilles CUT 20 P (2011) CNC EDM for Sale. This pre-owned AgieCharmilles CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this AgieCharmilles EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
9.8" |
| Control |
Charmilles CNC Control |
| U/V Axis Travel |
1.7" x 1.7" |
| Degree Taper Cutting |
30 Degrees |
| Inside Tank Dimensions |
33.4" x 26.8" |
| Wire Diameter |
.006" - .012" |
| Wire Spool Size |
11 Lbs |
| Max Workpiece Dims |
33.43" x 26.77" x 9.84" |
| Max Workipiece Weight |
882 Lbs |
| Tank Size |
41.3" x 30.1" x 22" |

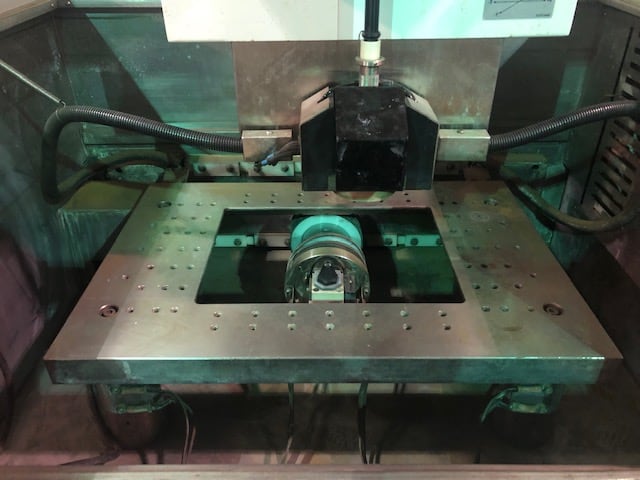

| Table Size |
27.55" x 18.89" |
| Water Tank Capacity (Clean) |
53 Gal |
| Water Tank Capacity (Dirty) |
159 Gal |
| Machine Weight |
6,613 Lbs |
| Machine Size |
99" x 99" x 87" |
| Floor Space |
138" x 138" |
Features
|

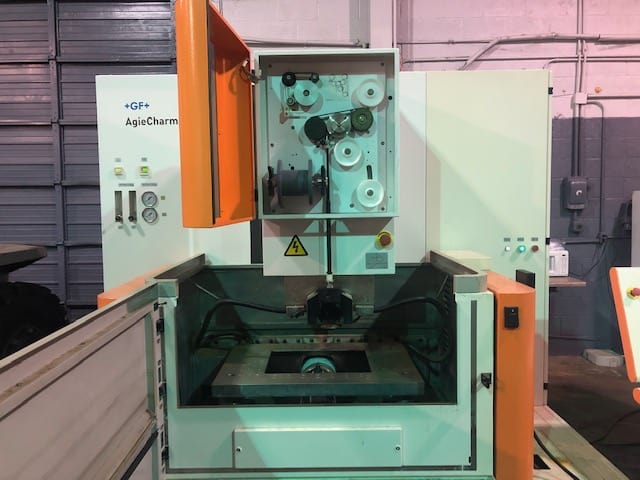

Auto Wire Threading |

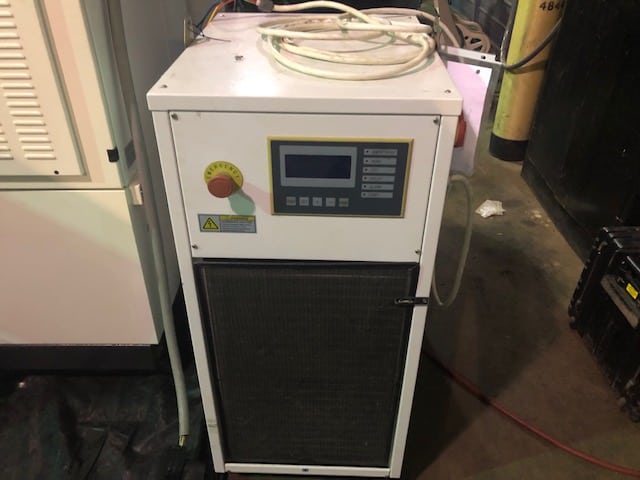

Chiller |
|
Submerged Machining |
Multitap Transformer |
|
X and Y Glass Scale Feedback |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
