Year | 2010 |
---|---|
Make | RFE |
Model | Structural C Purlin |
Description |
Roll Former |
Reference # | 8073549 |
Price |
Activate PricingInquire Now |

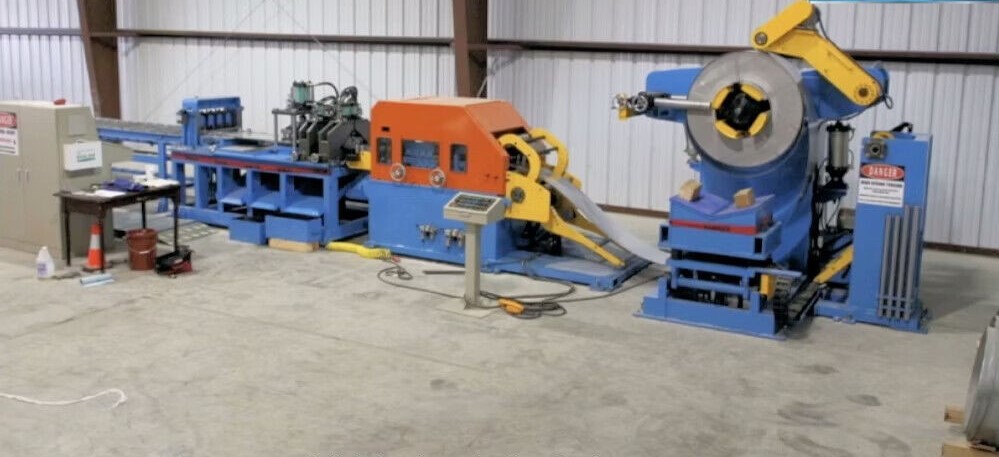

RFE Structural C Purlin
Specifications
Coil Max Weight |
7,500 kg |
---|---|
Coil Max Width |
550 mm |
Coil Max Outside Diameter |
1,500 mm |
Running Distance (Y) |
1,000 mm |
Running Speed (Approx.) |
6 m/min |
Hydraulic Cylinder Lift |
400 st (1.5m/Min) |
Drum Open/Close Distance (Approx.) |
570 mm - 620 mm |
Drum Loading Capacity |
7,500 kg |
Max Width of Sheet |
500 mm |
Max Width of Coil |
500 mm |
Width of Conveyor |
600 mm |
Shipping Dimensions |
430" x 78" x 54"H |
Shipping Weight |
60,000 Lbs |
Note |

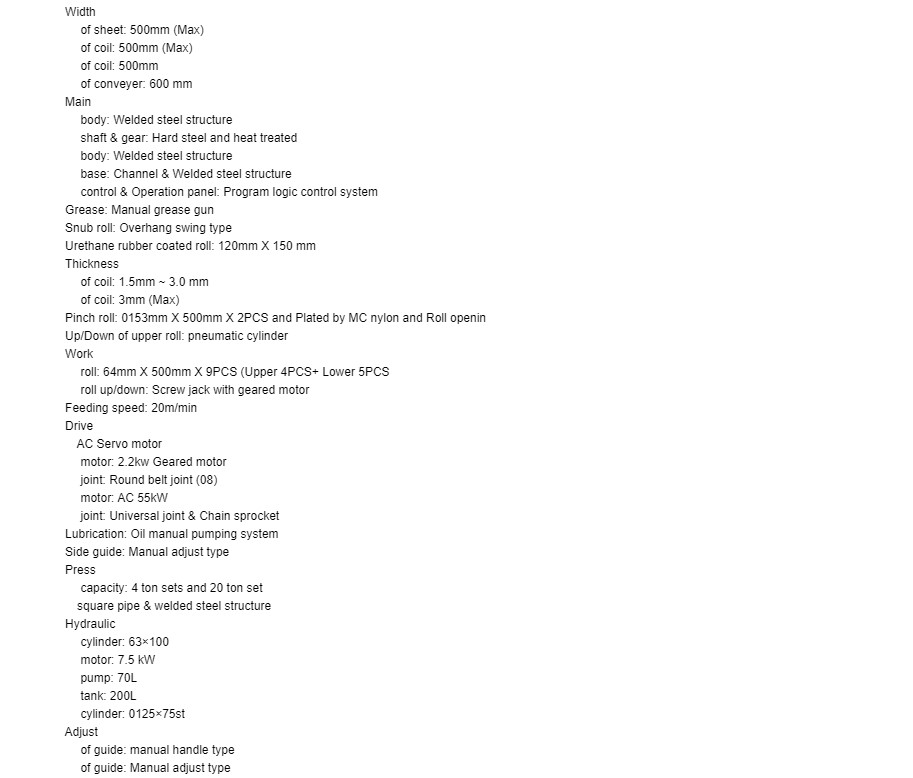

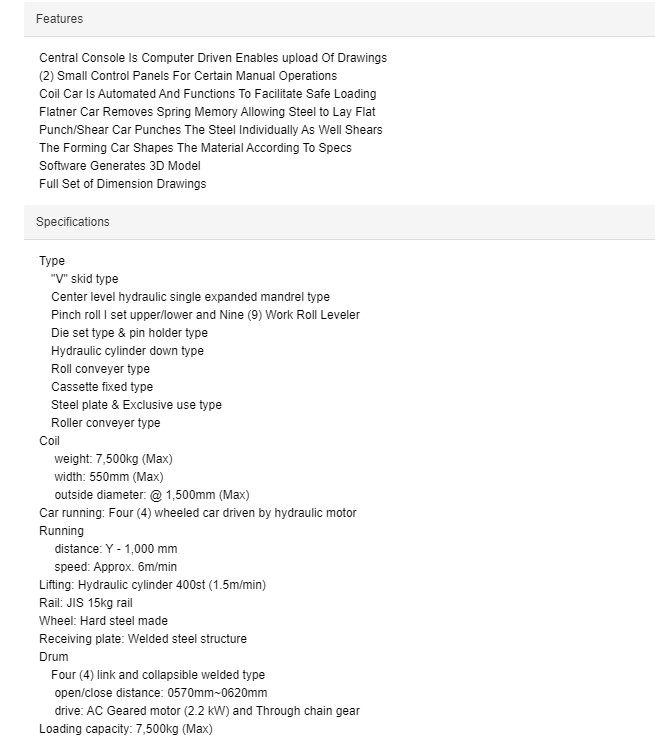

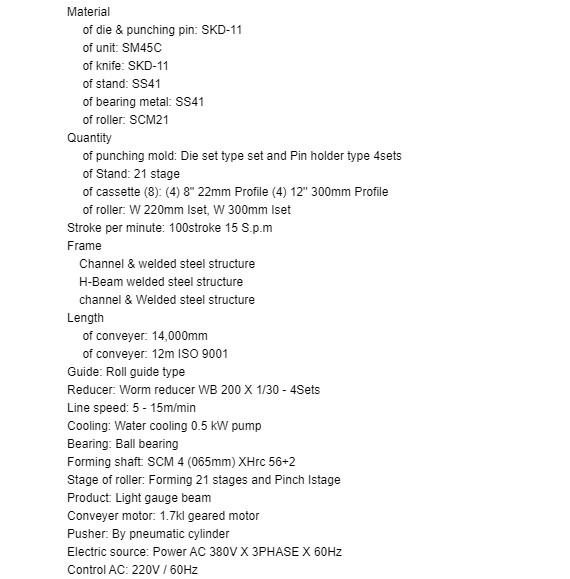

See Photos for More Specs |
Features

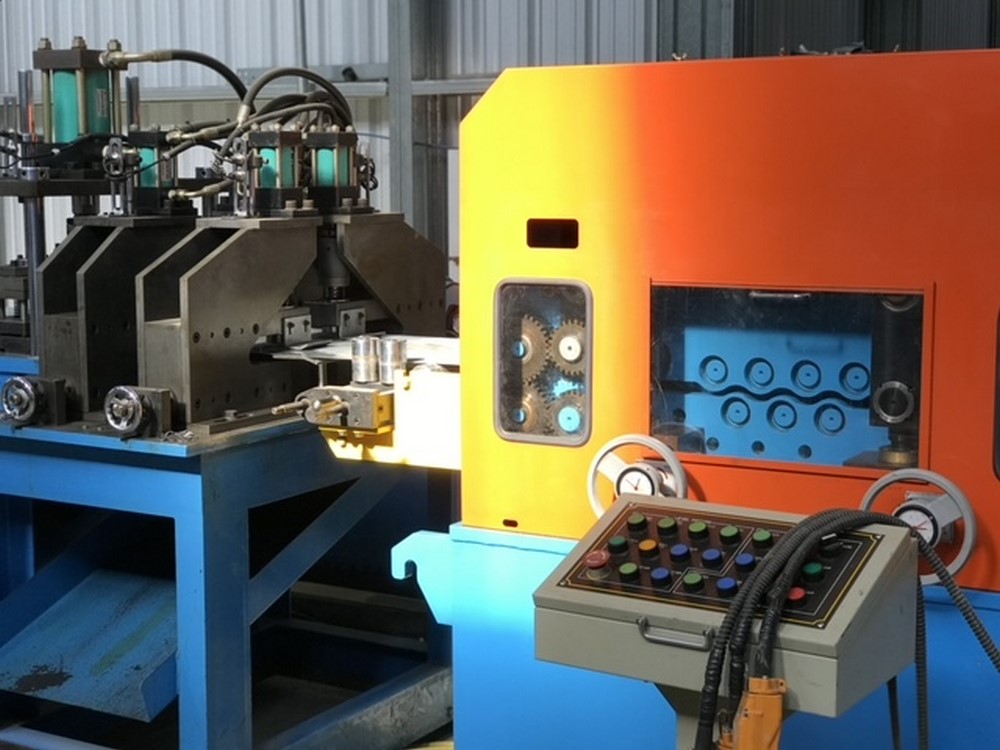

(2) Small Control Panels For Certain Manual Operations |

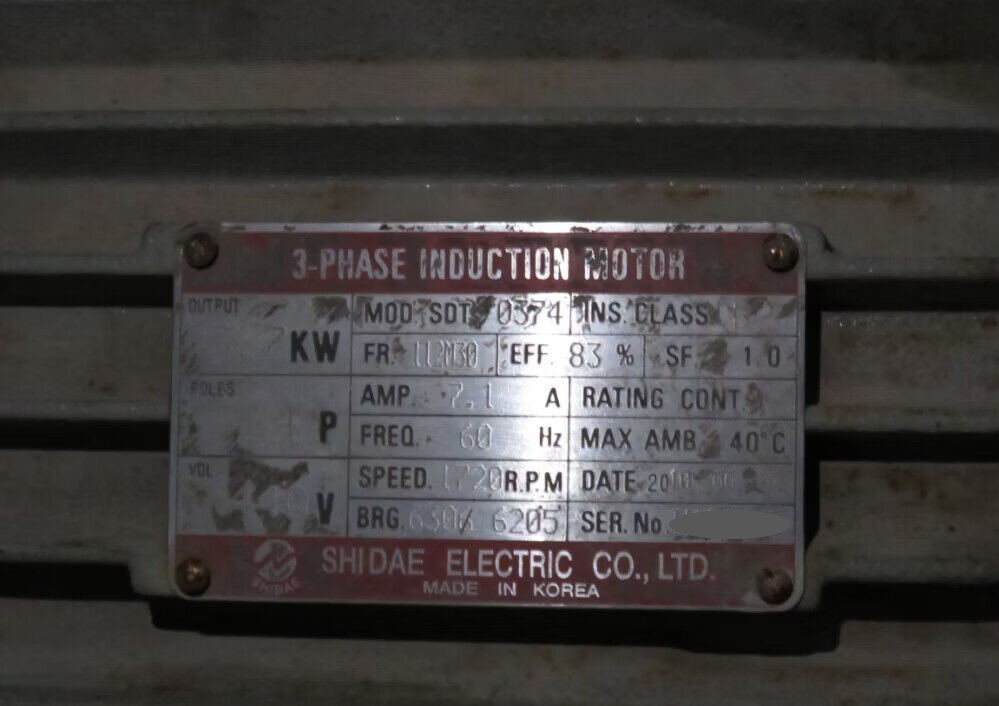

AC Geared Motor (2.2 Kw) and Through Chain Gear Drive |
Central Console Is Computer Driven Enables Upload of Drawings |

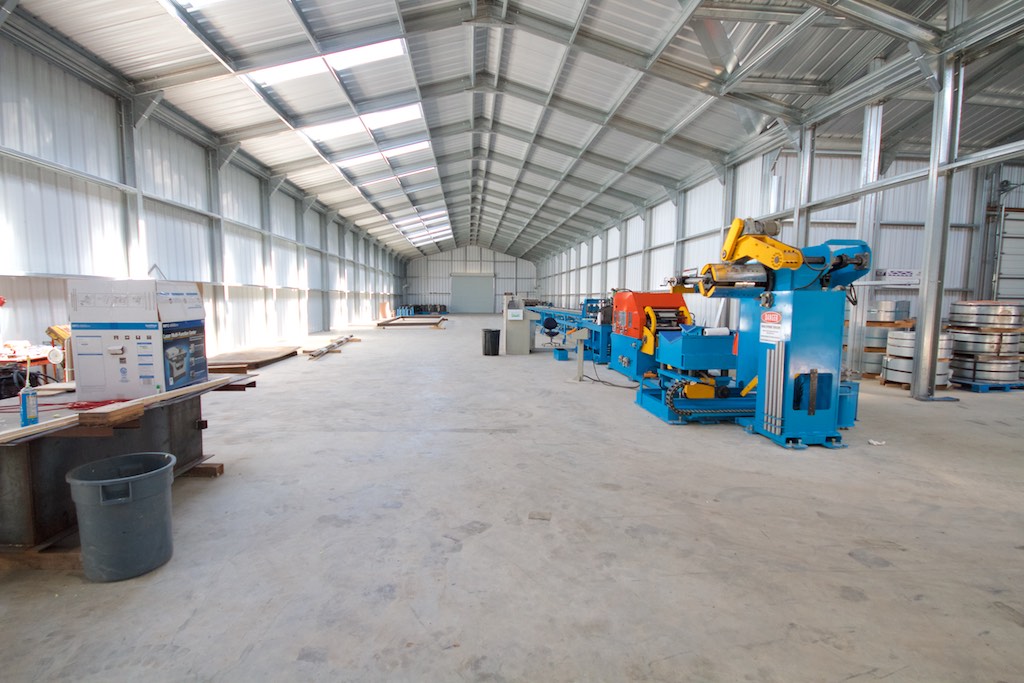

Coil Car Is Automated and Functions to Facilitate Safe Loading |

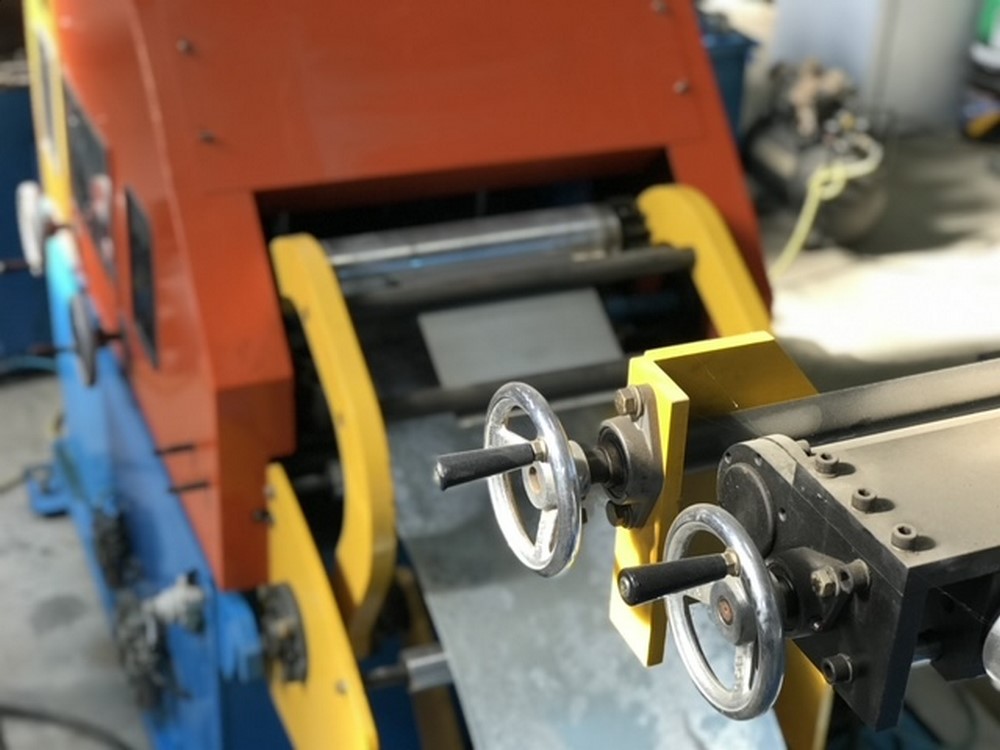

Flatner Car Removes Spring Memory Allowing Steel to Lay Flat |
Four-Link and Collapsible Welded Type Drum |
Four-Wheeled Car Driven by Hydraulic Motor |

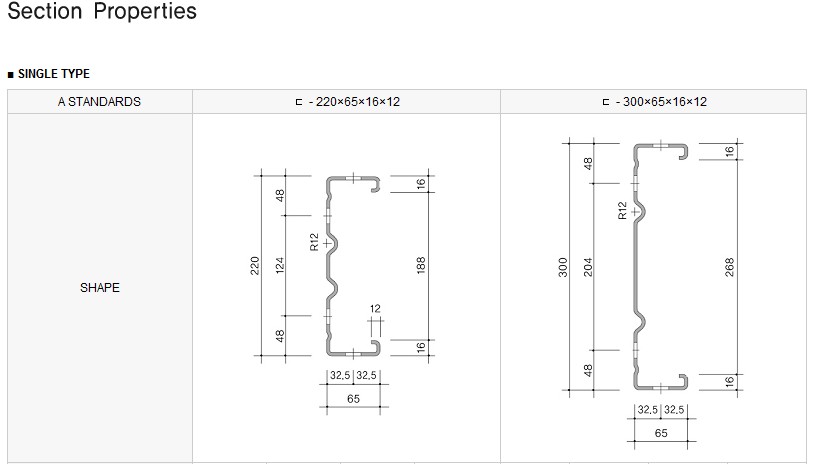

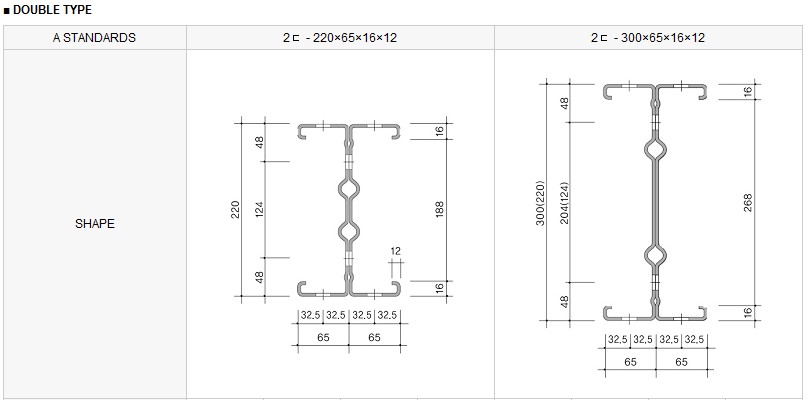

Full Set of Dimension Drawings |
Hard Steel Made Wheel |
JIS 15kg Rail |

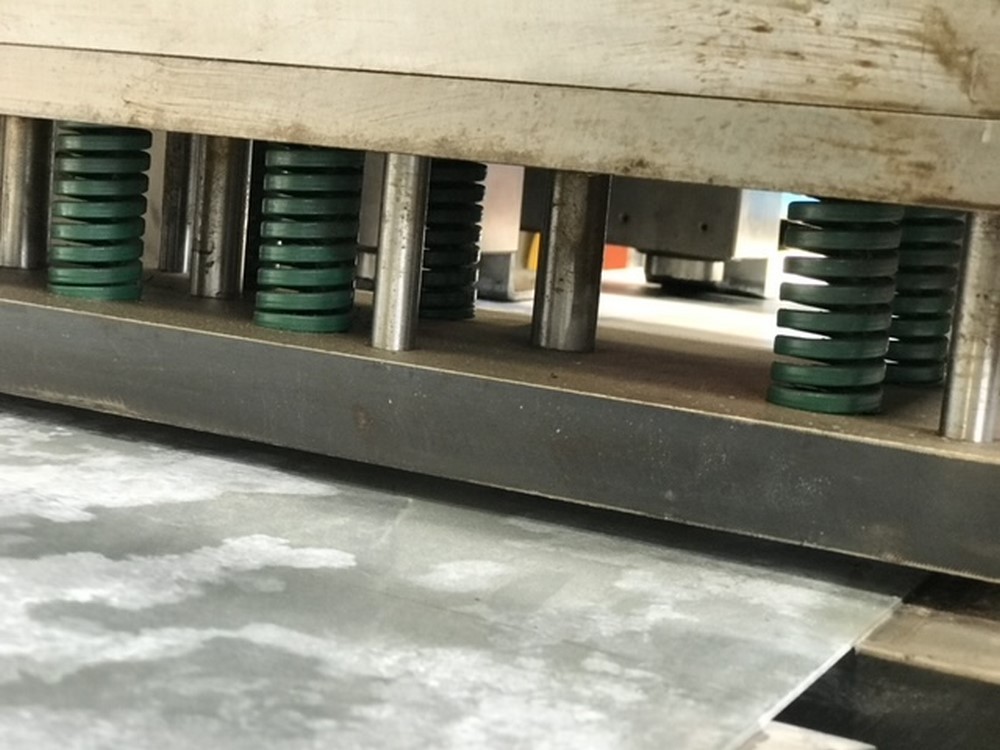

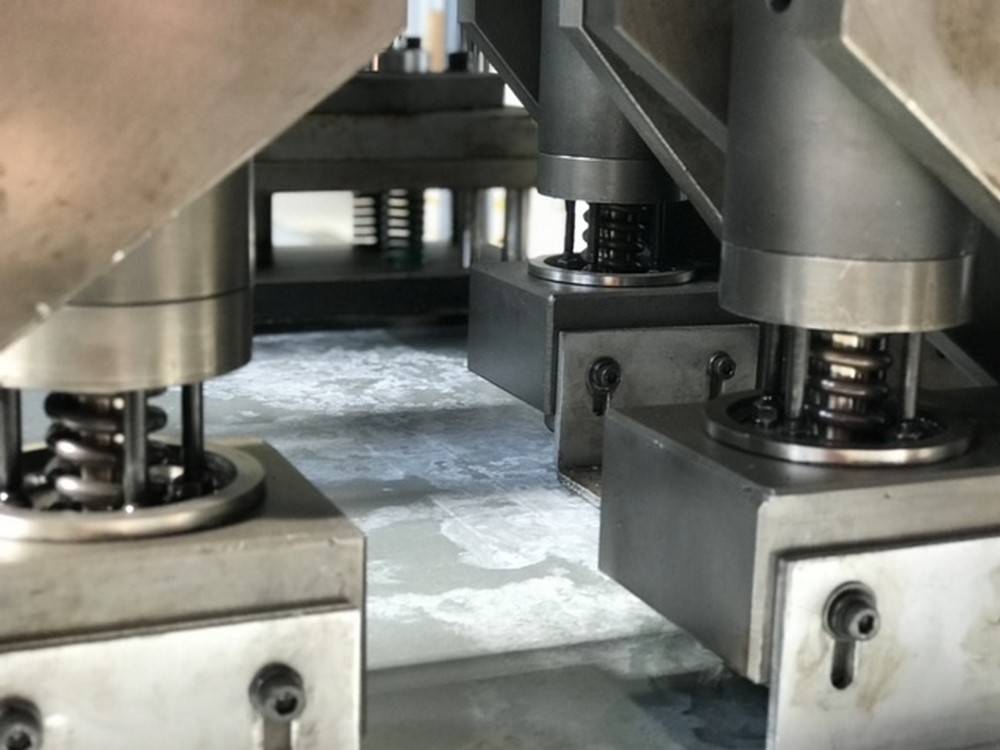

Punch/Shear Car Punches the Steel Individually and Shears |
Software Generates 3D Model |

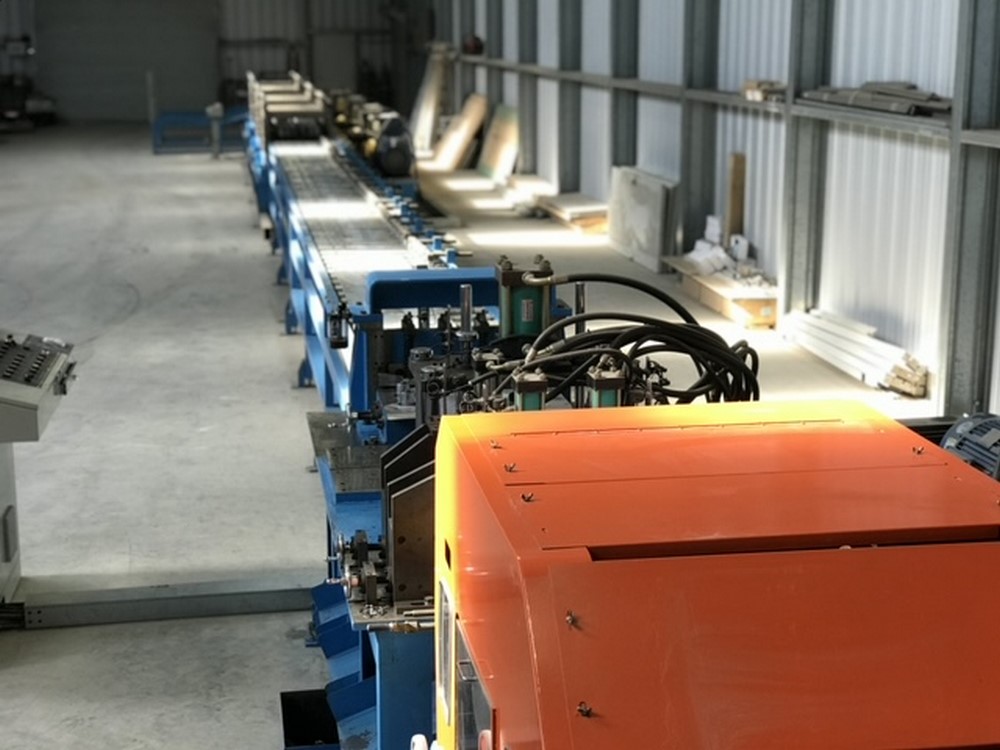

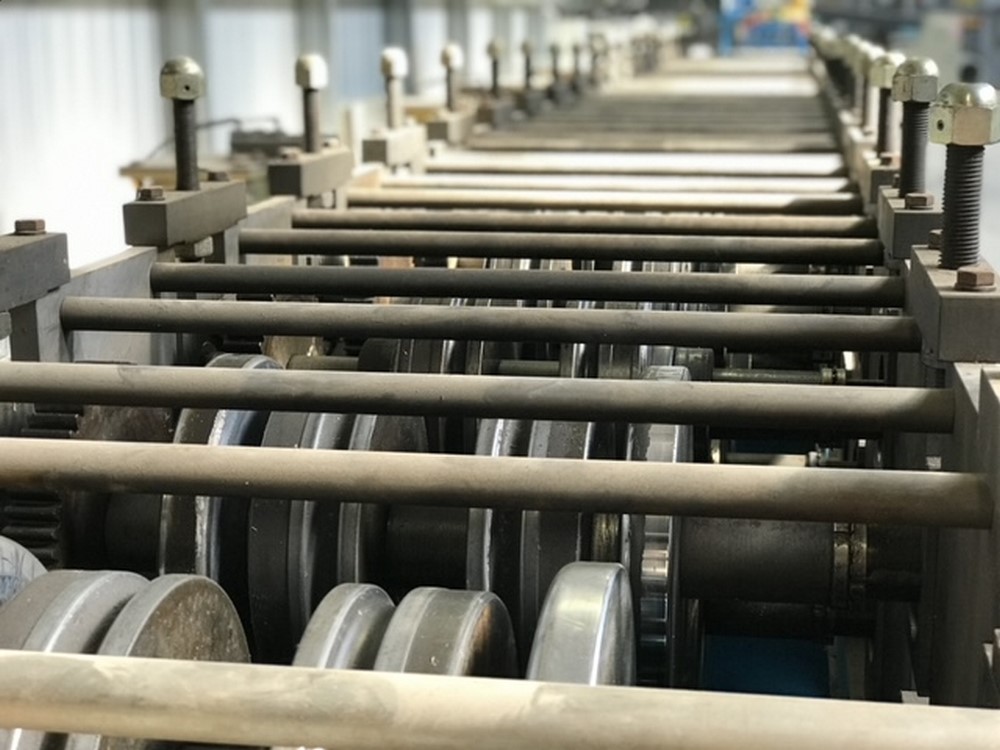

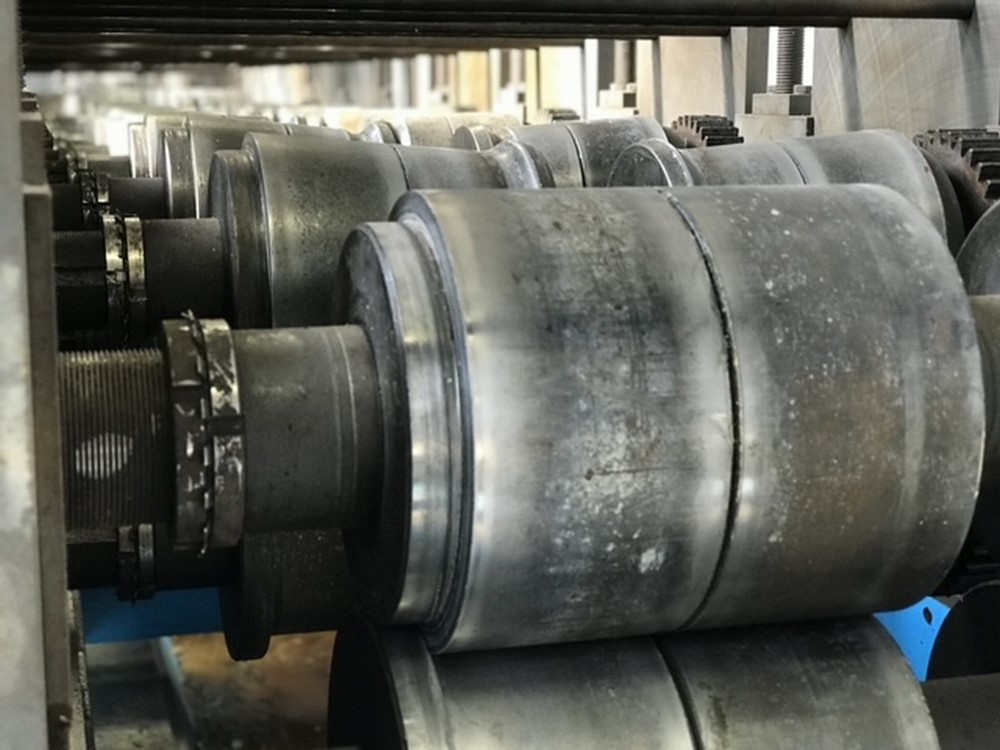

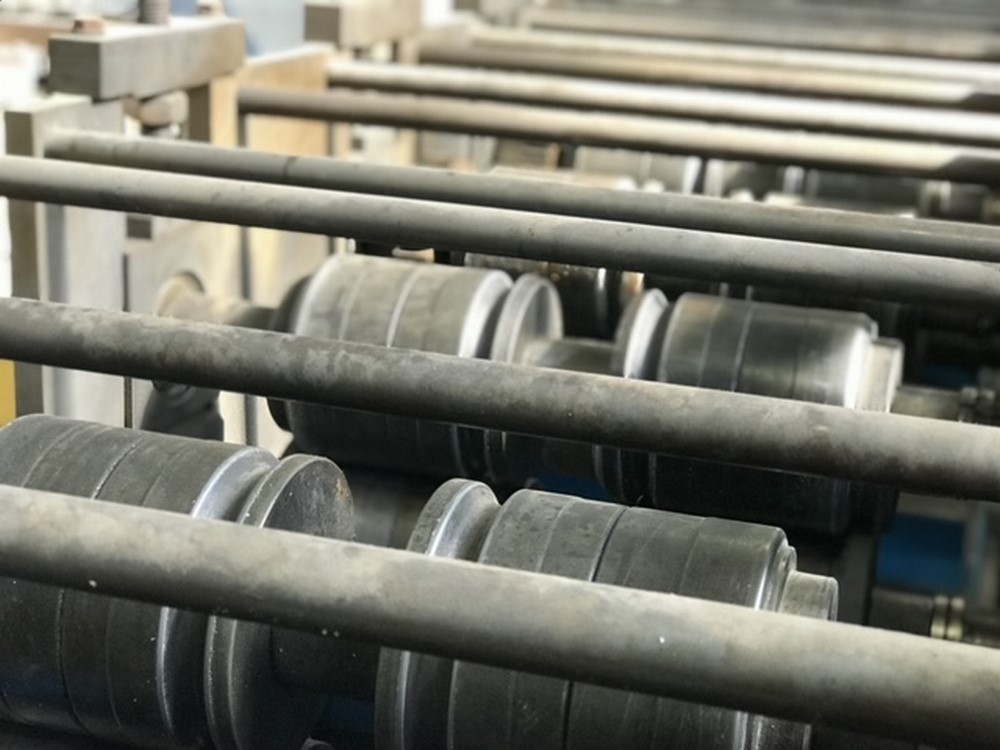

The Forming Car Shapes the Material According to Specs |
Welded Steel Structure Receiving Plate |
