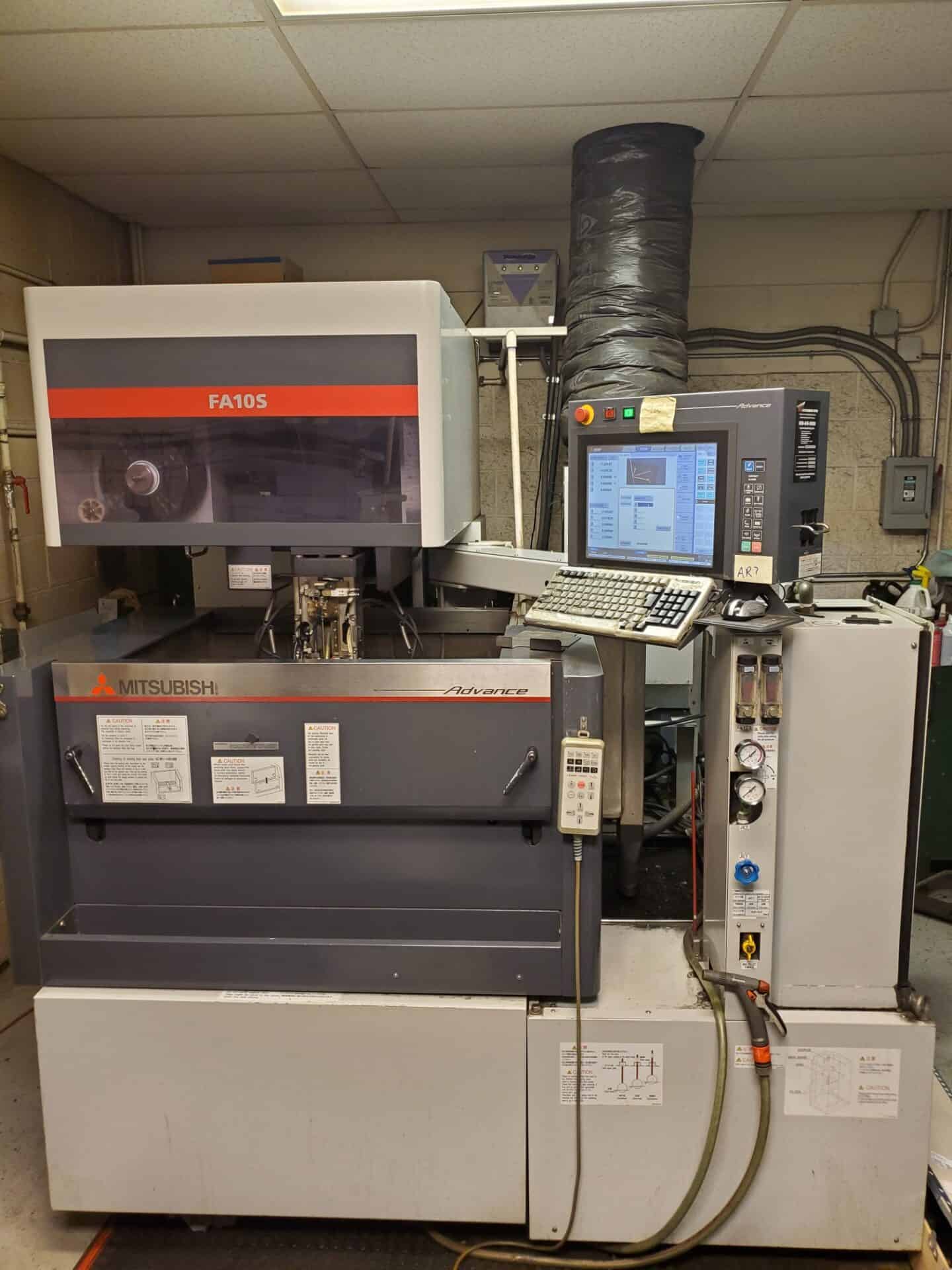

| Year | 2010 |
|---|---|
| Make | Mitsubishi |
| Model | FA10S Advance |
Description |
EDM Wire |
| Reference # | 8069791 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |

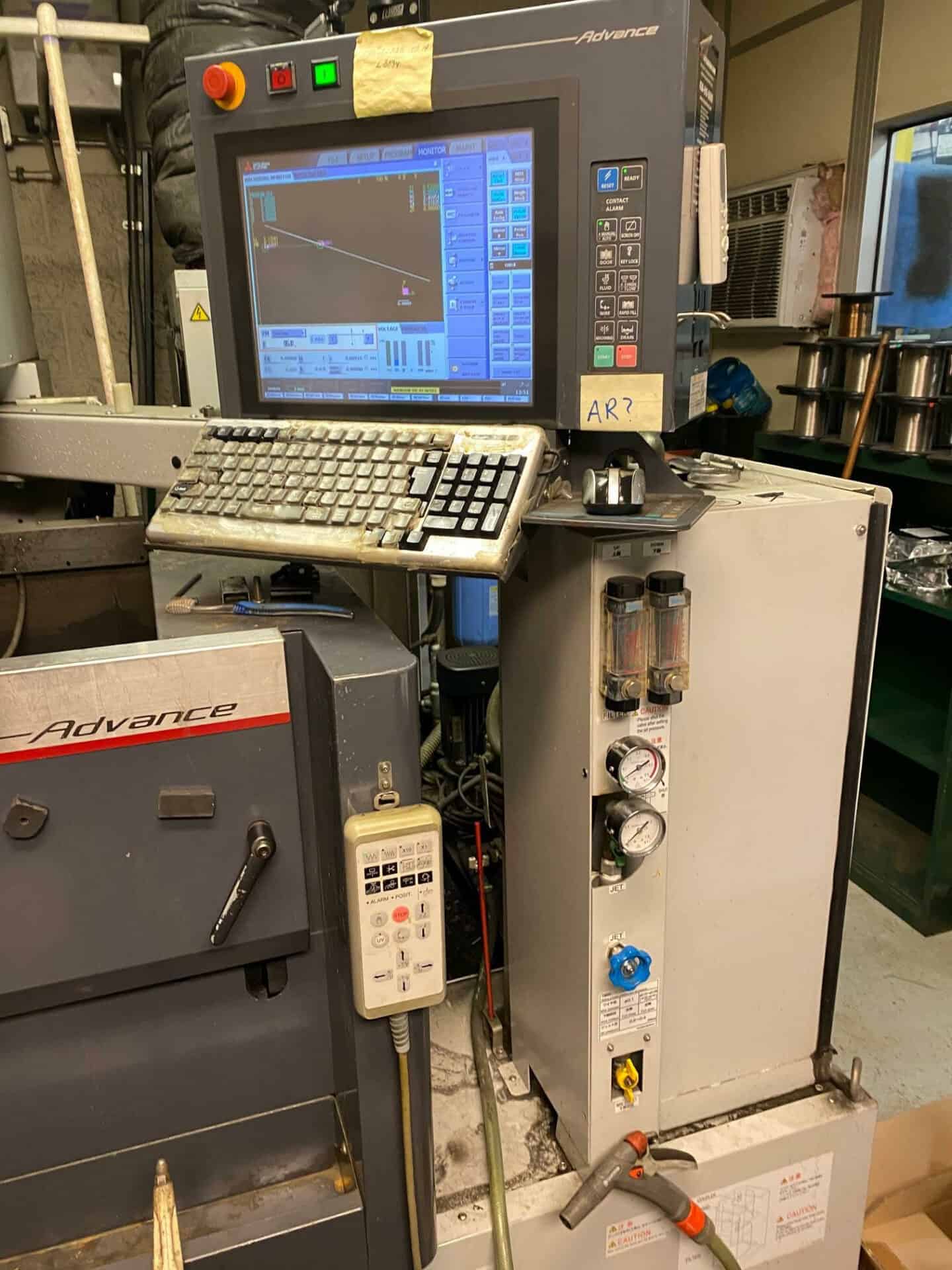

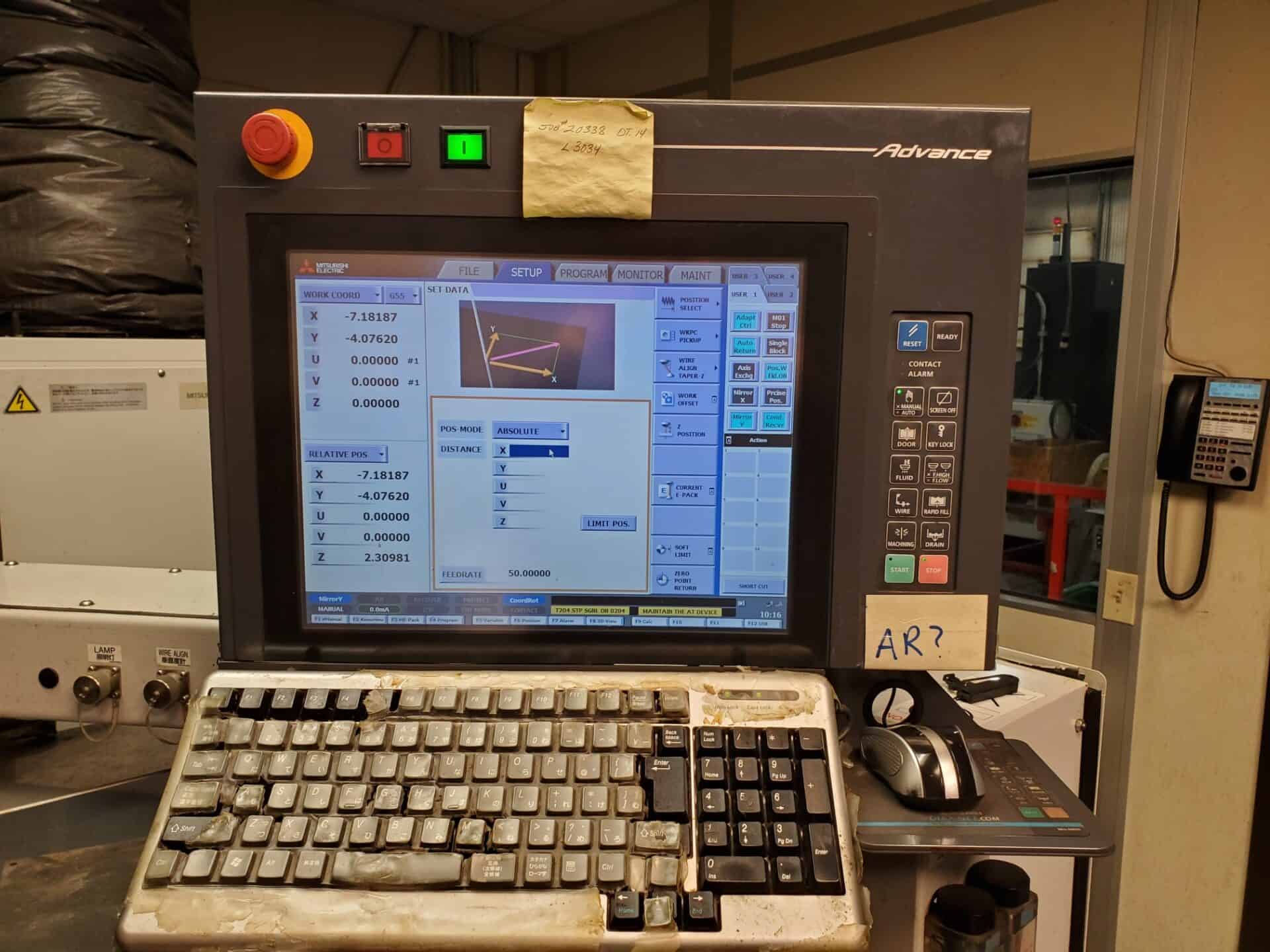

| Control |
Mitsubishi M700 |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
31.4" x 23.6" |
| Power Requirement |
200-240/3/60 |
| Glass Scale Feedback |
Linear Scales (X/Y) |
| Resolution |
.000002” (2 Millionths) |
| Table Rapid Feed |
51.2 IPM |
| Wire Diameter |
.004” - .012” (.010” STD) |
| Minimum Wire Thread Start Hole |
.020” |
| Maximum Workpiece At Height |
8.6” |
| Wire Tension |
50G - 2500G |
| Wire Spooling Speed |
0 - 11.8”/Sec |

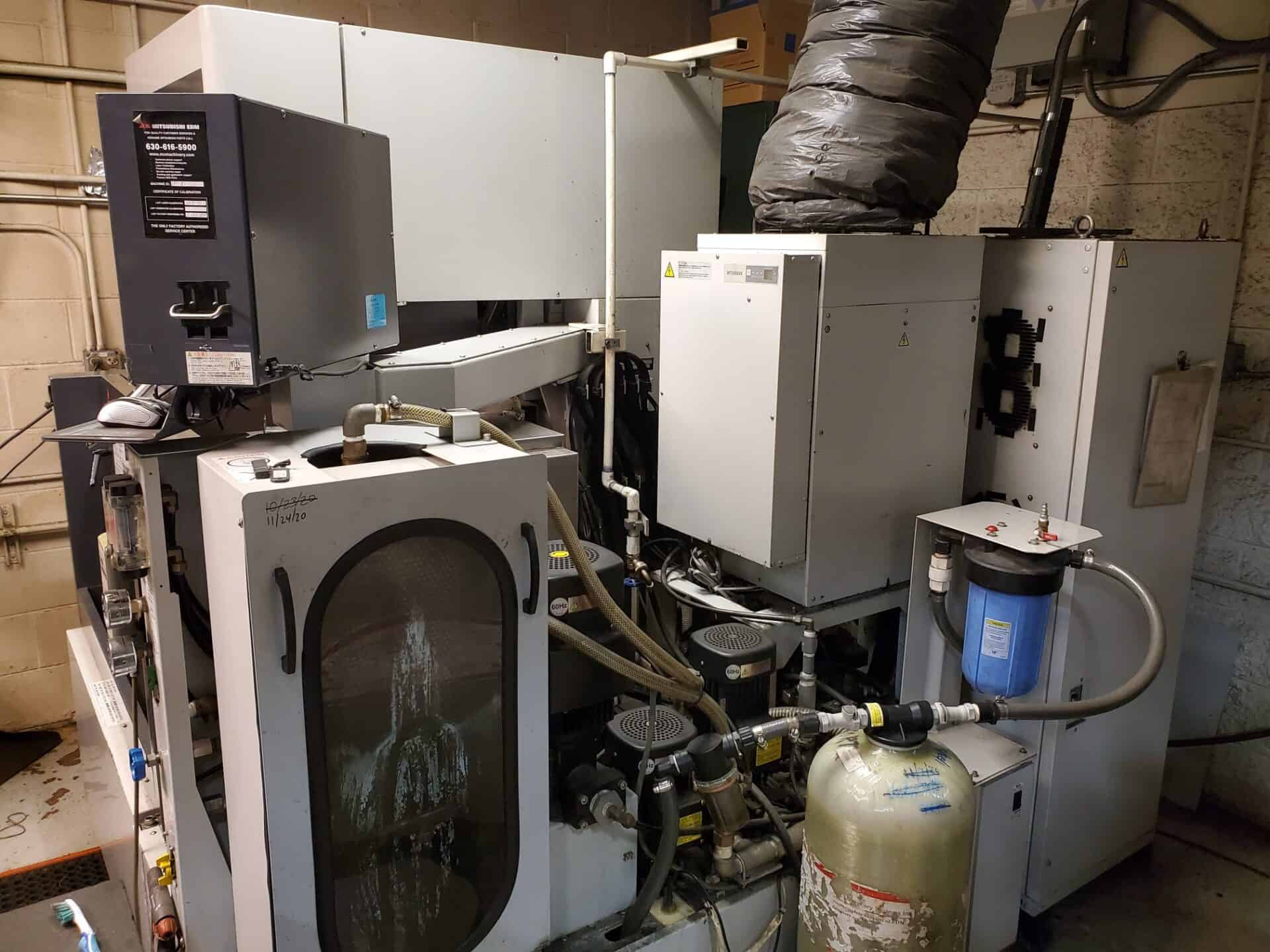

| Filter System |
Paper Cartridge (2x) |
| Filter Type / Precision |
Type 7 / 3 Micron |
| Filter Tank Capacity |
116 Gallons |
| Dielectric System Dimensions |
31.25” X 63.0” X 65.25” |
| Overall Machine Unit Dimensions |
62.2” X 80.0” X 76.0” |
| Machine Weight |
6,400 lbs |
Features
|
16 Step Programmable Flushing Control |

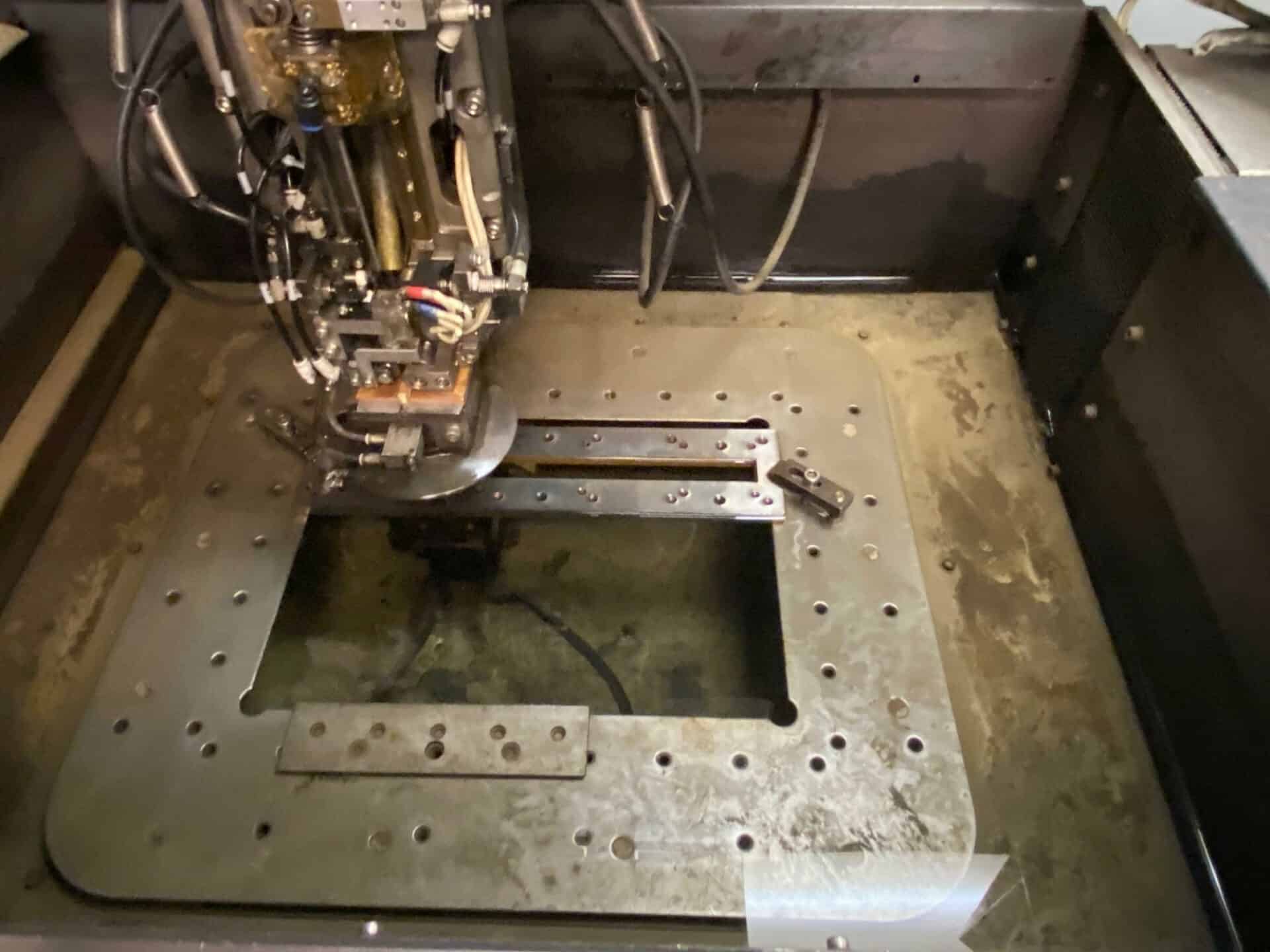

4 Sided Table (One-Piece) |
|
Auto Oiler |
Auto Power Recovery |
|

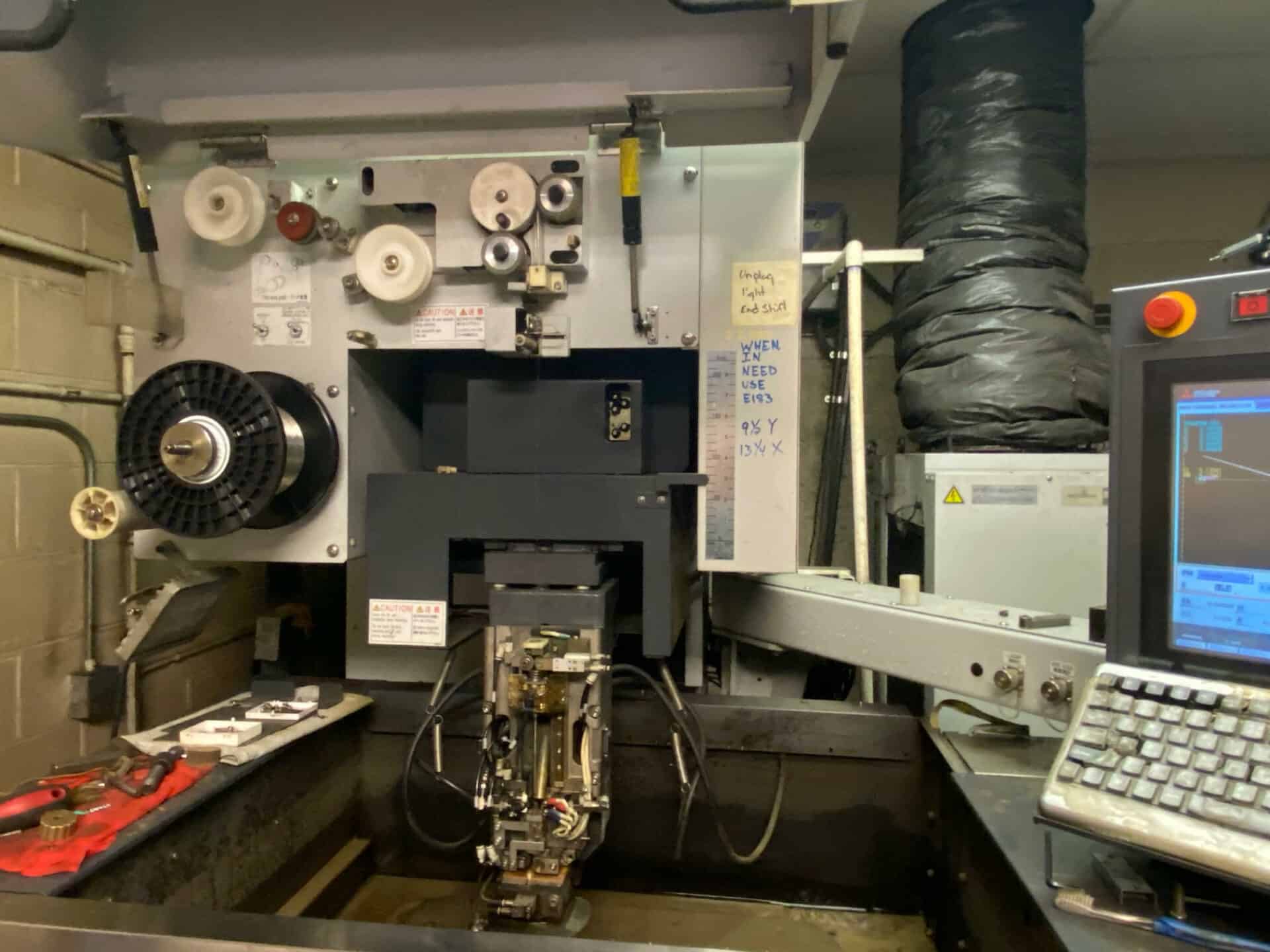

Auto Wire Threading |
Chiller |
|
Fast Fill Pump |
Fine Surface Machining (PF Circuit) |
|
10 KG (22lb) Wire Spool |
2 USB Ports |
|
Small Wire Device .004” (Does Not Include Guides) |
Wire Alignment Gauge |
|
Wire Chopper |
.010” Guides |
|
Wire Processor (Chopper) |
*
