| Year | 2010 |
|---|---|
| Make | Flow |
| Model | Mach 4 4020b-XD |
Description |
6.6' x 13.1' XD Head CNC Waterjet |
| Reference # | 8074255 |

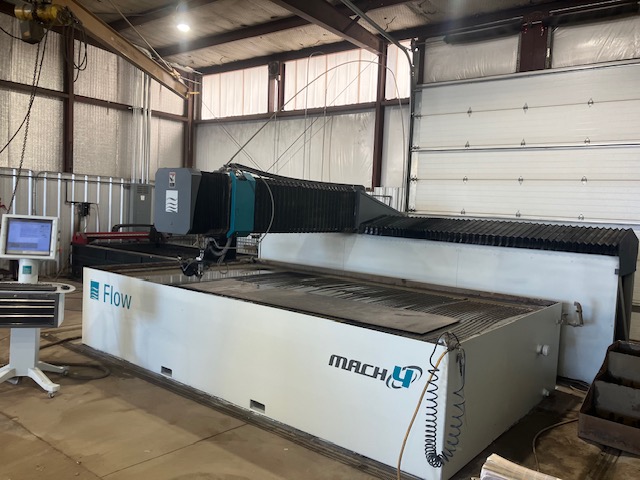

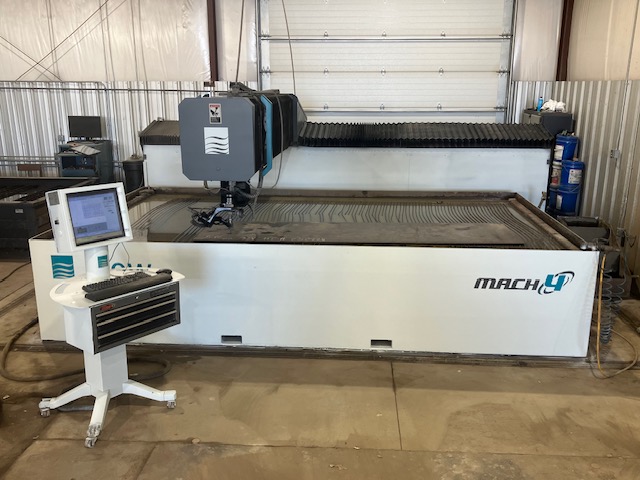

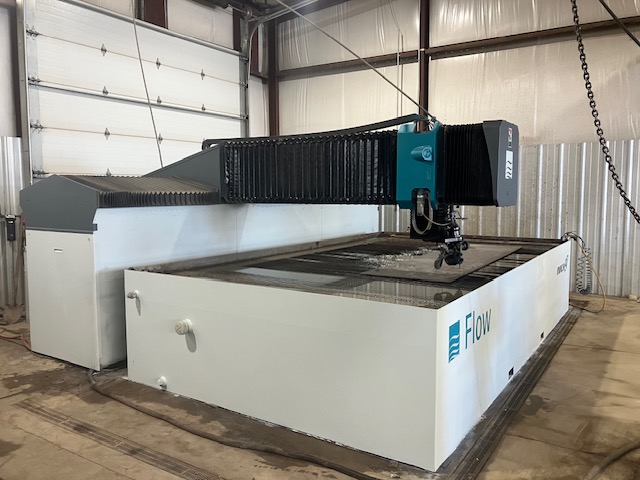

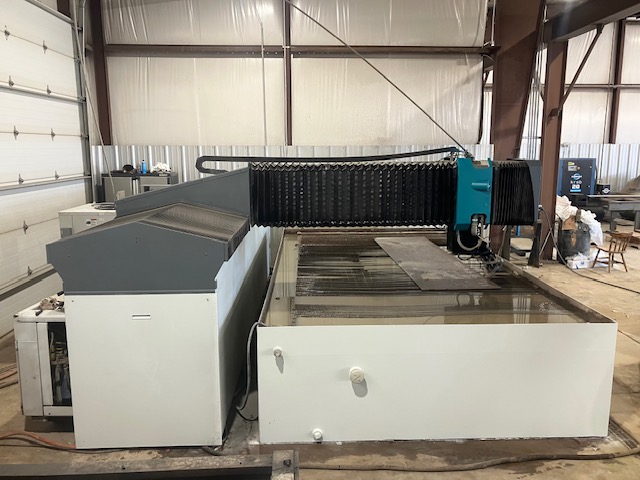

Used Flow Mach 4 4020b-XD (2010) CNC Waterjet for Sale. This pre-owned Flow CNC waterjet is located in The United States. If you have any questions regarding this Flow Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |
| Pump |
50 HP |
| Max Cutting Pressure |
94,000 PSI |
| Rapid Traverse |
1,400 IPM |
| Max Contouring Speed |
1,000 IPM |
| Linear Straightness |
.001" per 3ft |
| Repeatability |
.002" |
| Power Requirement |
460/3/60 |
| Recent Upgrades |

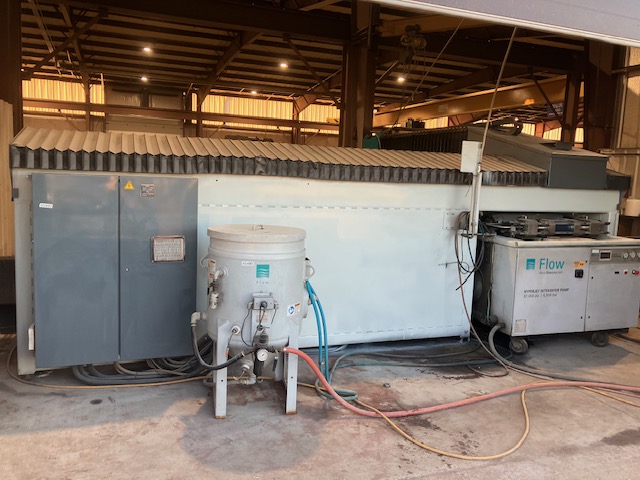

New rebuild on intensifier with upgrade to H20 low pressure puck, DC amplifiers converted to AC Flow retrosystem in Oct 2023 along with C drive motor. B drive motor 3yrs old. New secondary sand hopper. New oil cooler Oct 23. |
Features
|
Dual-Drive Base Axis |
Protection Package |
|

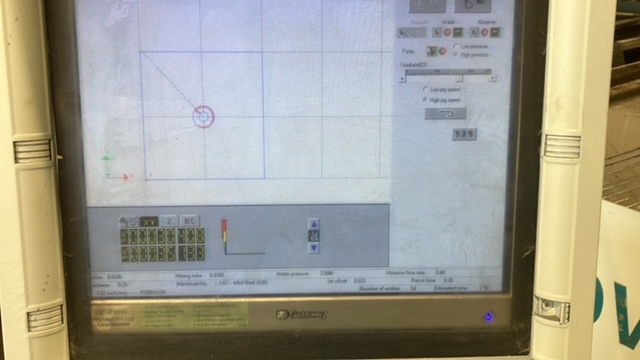

Touch Screen Control |
Abrasive Hopper with Lower Level Warning |
|
Paser 4 Cutting Head |
XD Head w/ Taper Compensation |
