| Year | 2010 |
|---|---|
| Make | Burlington Automation |
| Model | Python X |
Description |
Beam Line |
| Reference # | 8074208 |
Burlington Automation Python X
Specifications
| Control |
Touch Screen |
|---|---|
| Beam Width |
4"-36" |
| Beam Height |
4"-6" |
| KSS Tube Min/Max |
2" x 2"/24" x 16" |
| Channel Width |
3" -36 |
| Channel Height |
1.25" x 4" |
| Angle Min/Max |
3" x 3"/8" x 8" |
| Strip Width |
4"-36" |
| Strip Thickness |
.25"-1.25" |
| Useful Length |
40' |
| Travel Speed |
170 FPM |
| Horsepower |
7.5 HP |

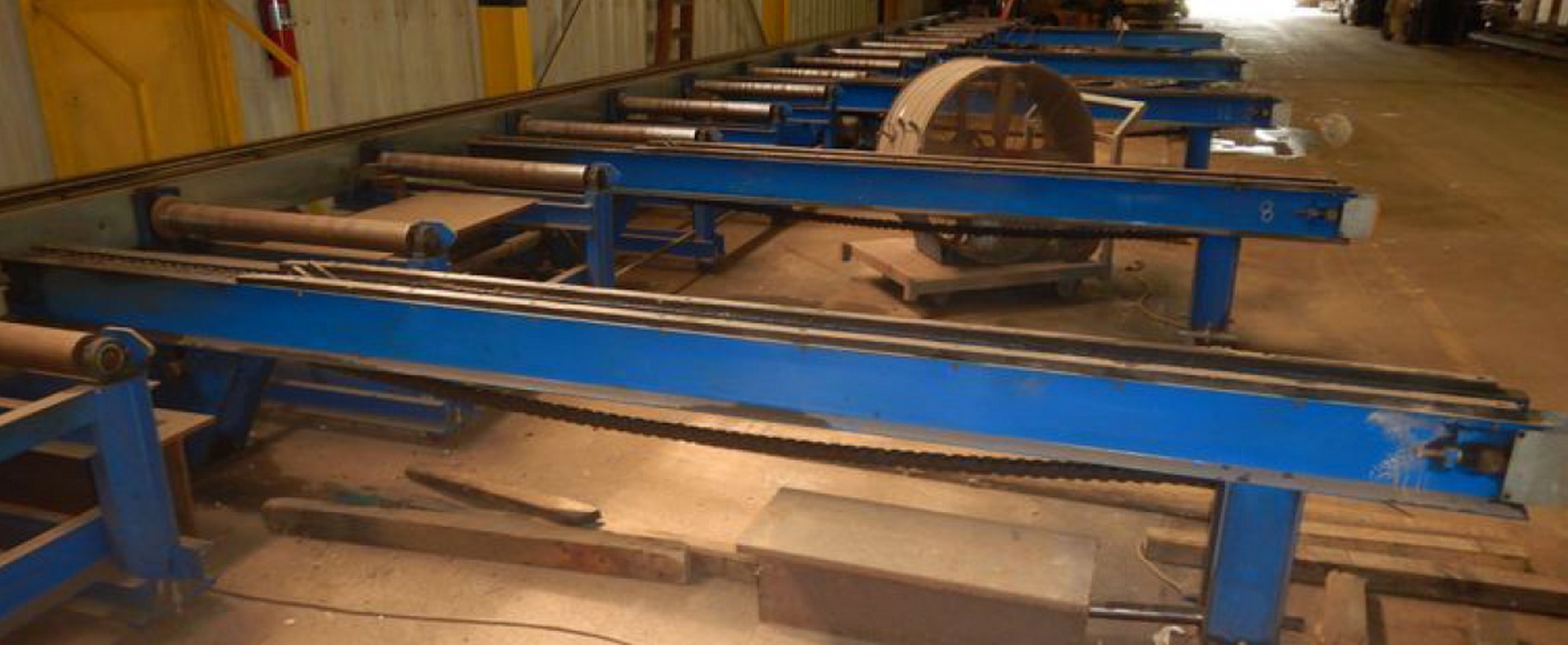

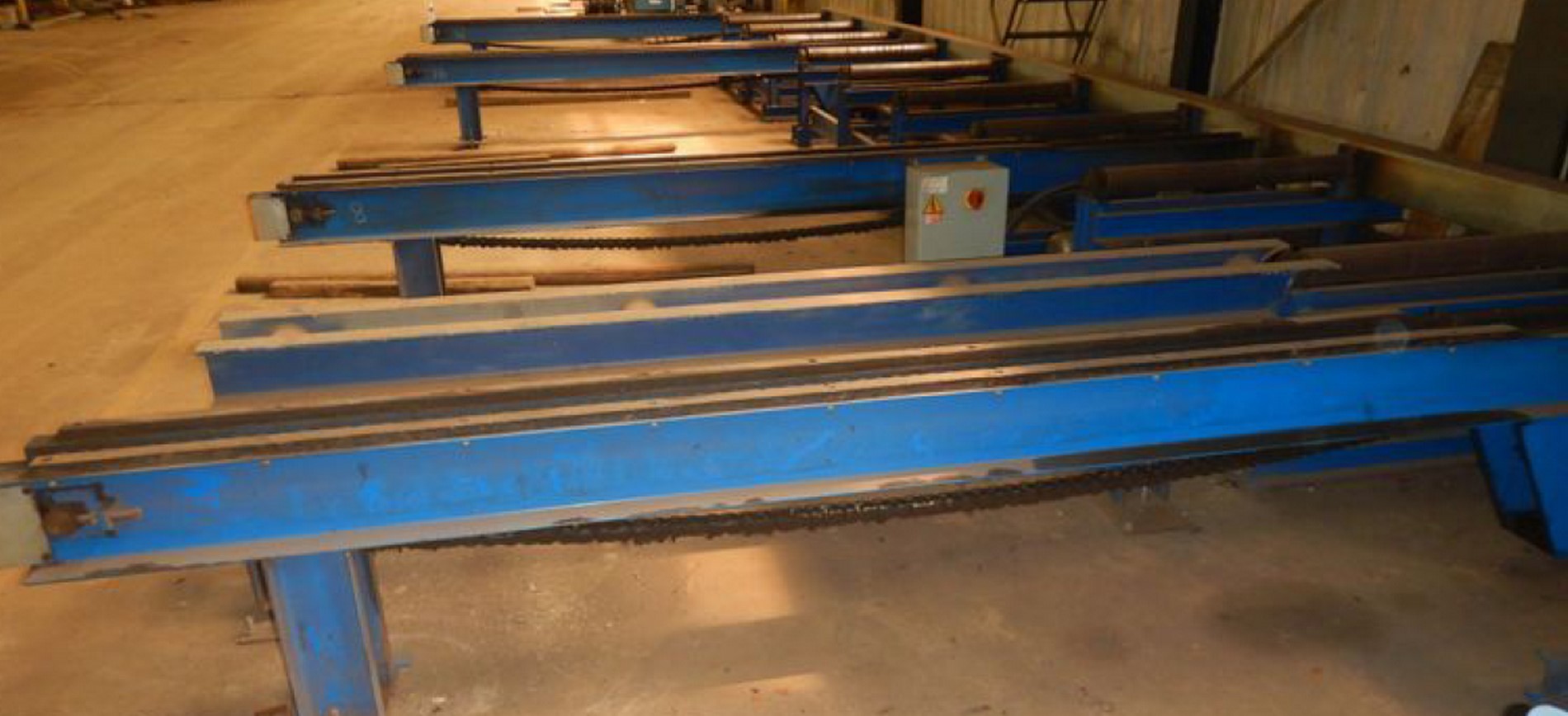

| Infeed Conveyor |
48' |
| Outfeed Conveyor |
40' |
| Maximum Starting Length |
40' |

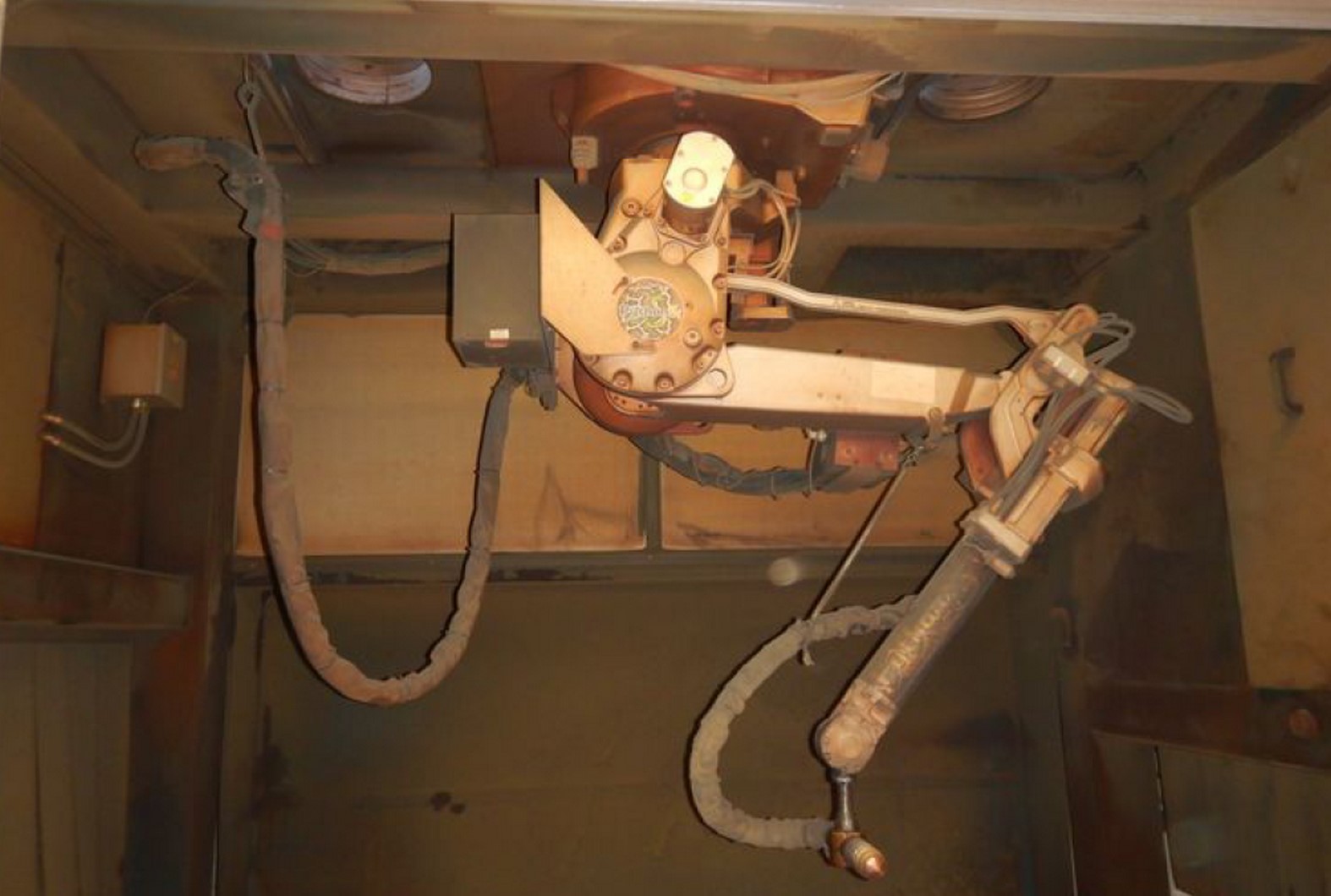

| Roll Spacing Within 96" of Plasma Cutting Arm |
16"/48" Elsewhere |
| Roll Diameter |
4" |
Features
|
Rack and Pinion Drive |
6-Axis |
|
Auto Gas Console |
Hypertherm HPR 260XD Plasma Source |
*
