Year 2009
Make Mori Seiki
Model NL-2500SY/700

Description

CNC Lathe
Reference # 8076118

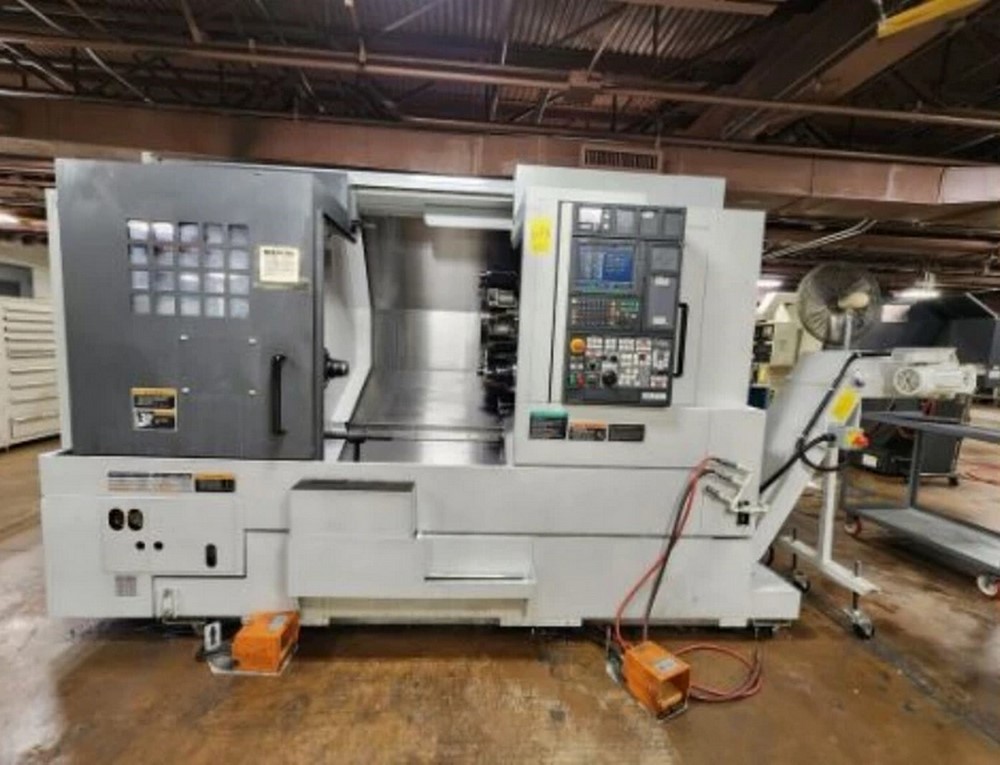

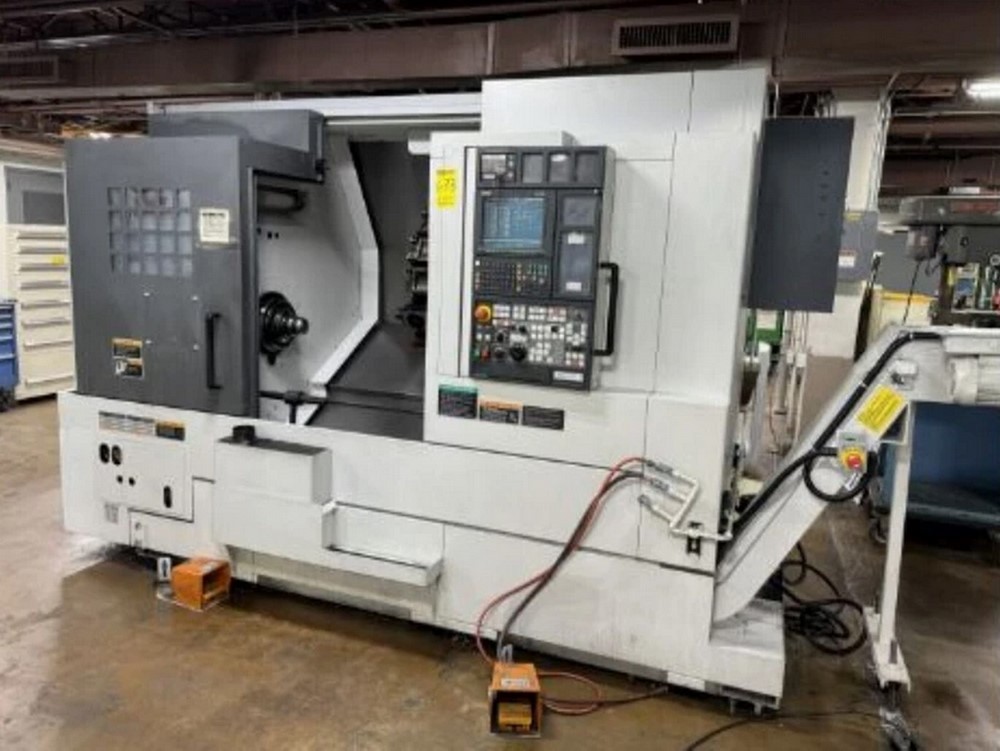

Used Mori Seiki NL-2500SY/700 (2009) CNC Lathe for Sale.  This pre-owned Mori Seiki CNC lathe is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Mori Seiki Lathe, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Chuck Size

10"

Bar Capacity

3.1"

Swing

36.4"

Turning Diameter

14.5"

Spindle Speed

4,000 RPM

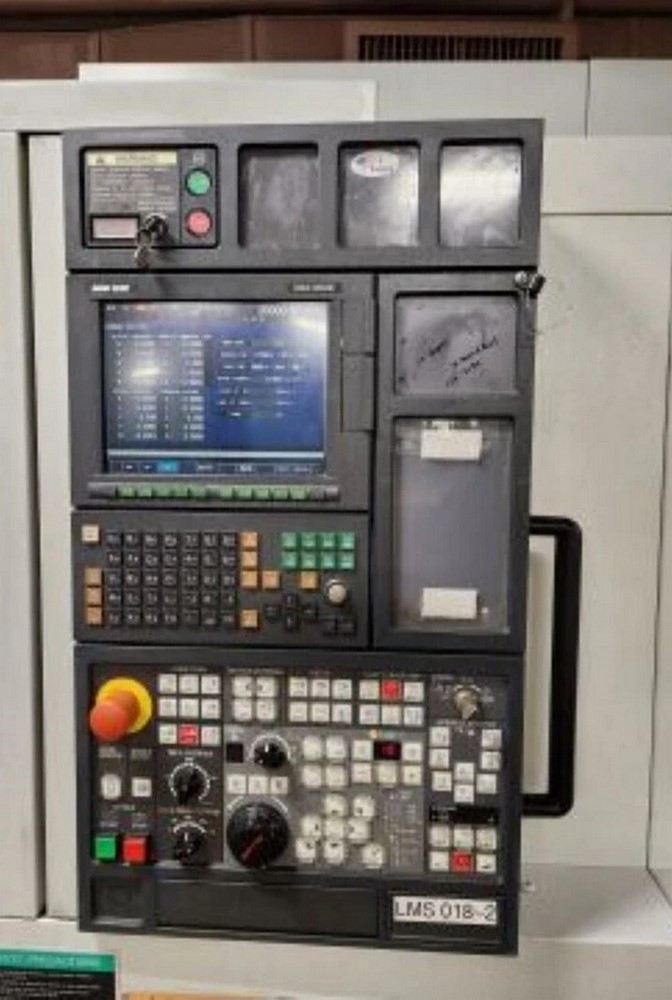

Control

MSX-850 III

Distance Between Centers

27.55"

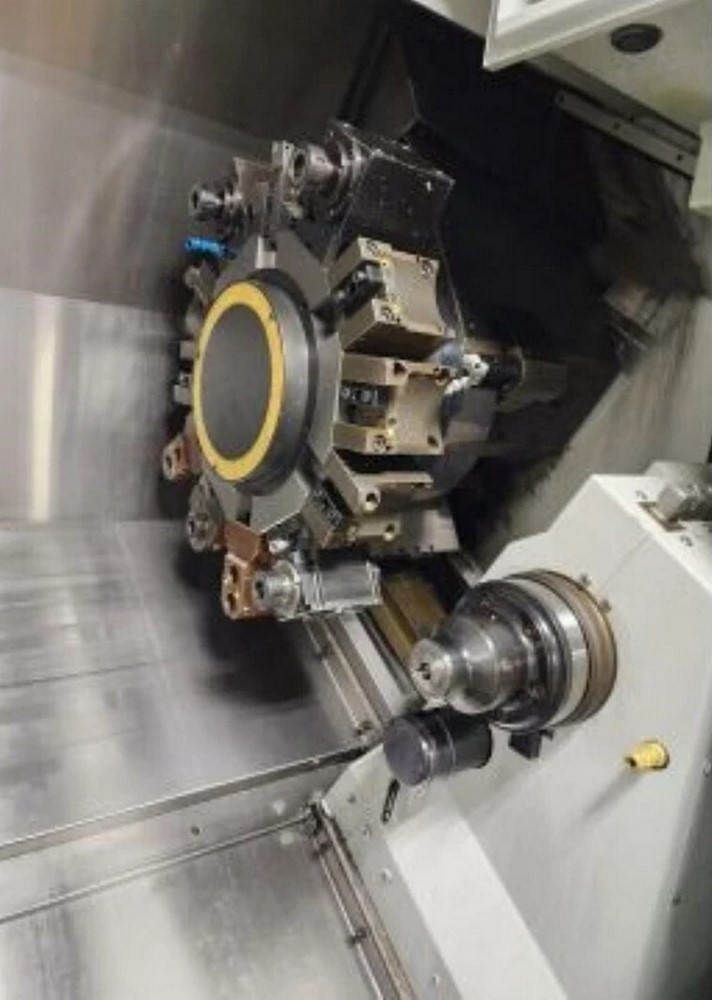

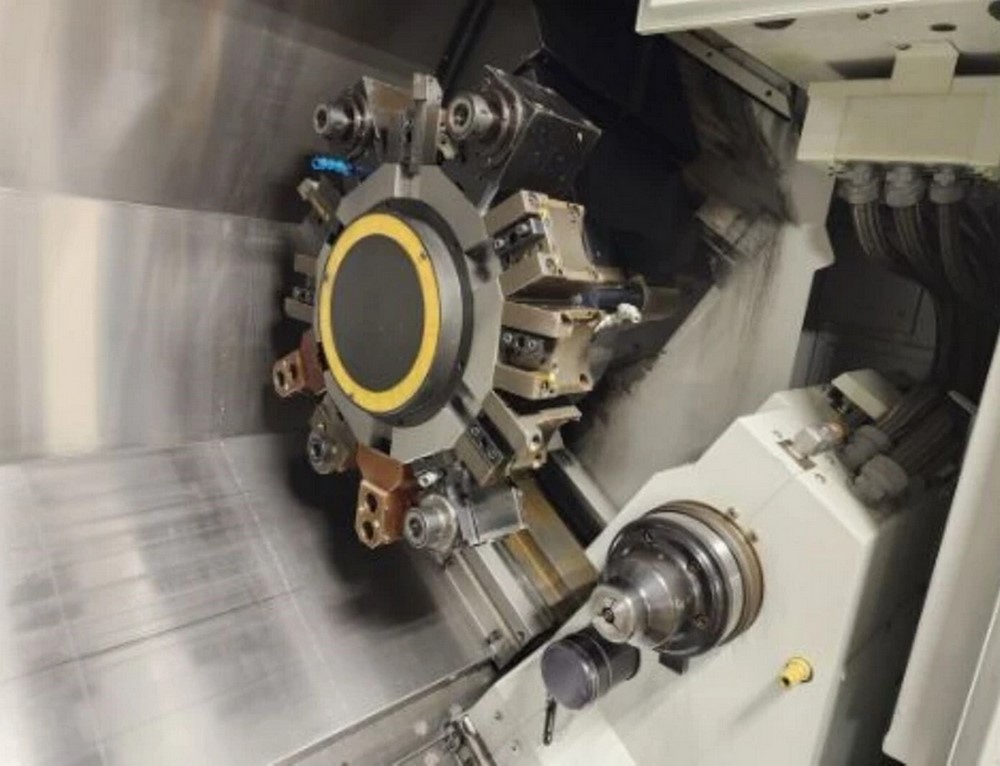

Turret

12 Station

Live Tooling

C-Axis Live Tooling, Y-Axis

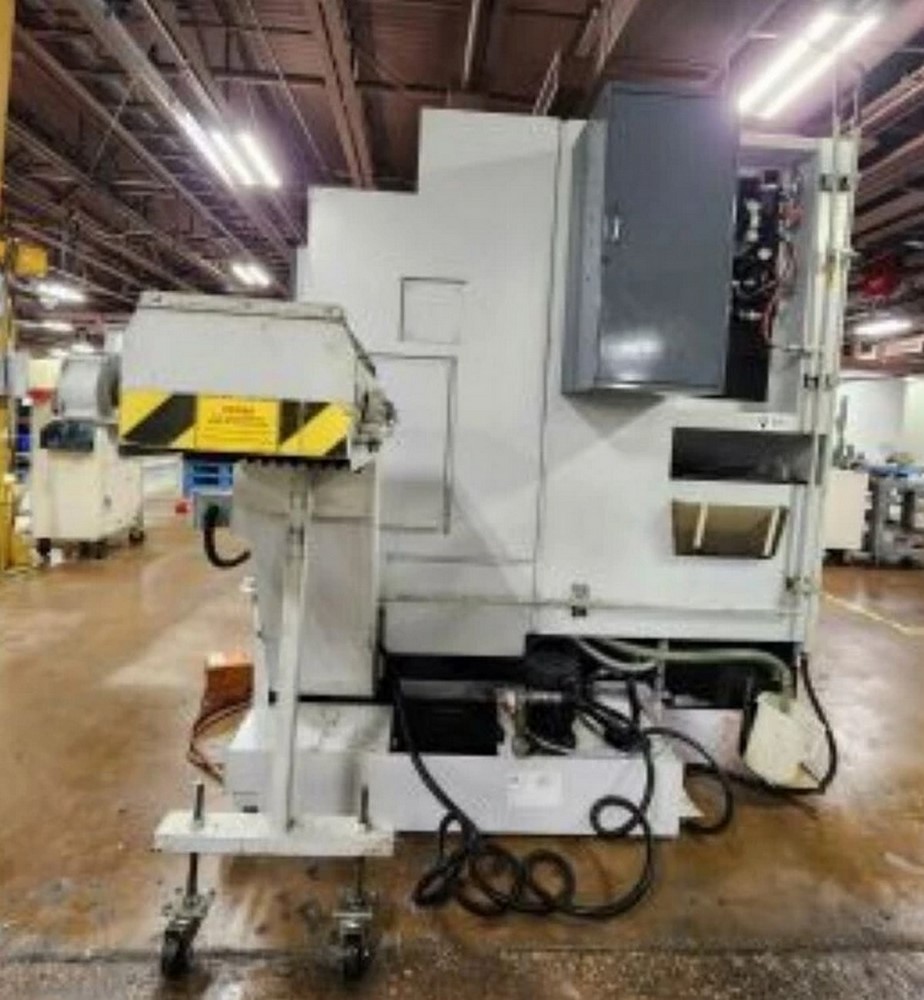

Chip Removal

Chip Conveyor

X-Axis Travel

10.2"

Y-Axis Travel

31.3"

Z-Axis Travel

3.9"

C - Axis Travels

0.001°

Rapid Traverse X/Z-Axis

1,181 IPM

Rapid Traverse Y-Axis

394 IPM

Spindle Motor

25 HP

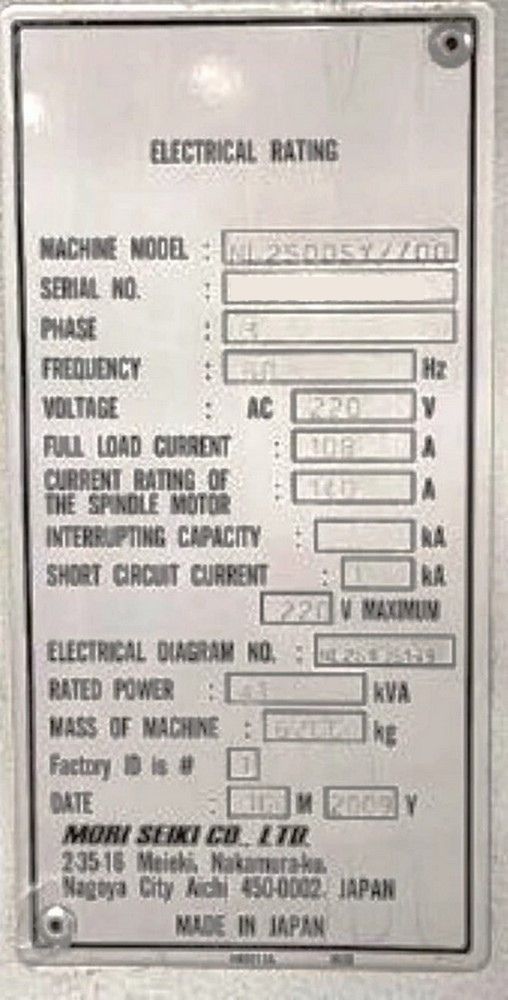

Power Requirement

220/3/60

Approx. Weight

13,420 Lbs

Dimensions

122” x 72” x 83”

Features

C & Y-Axis Live Tooling Capability

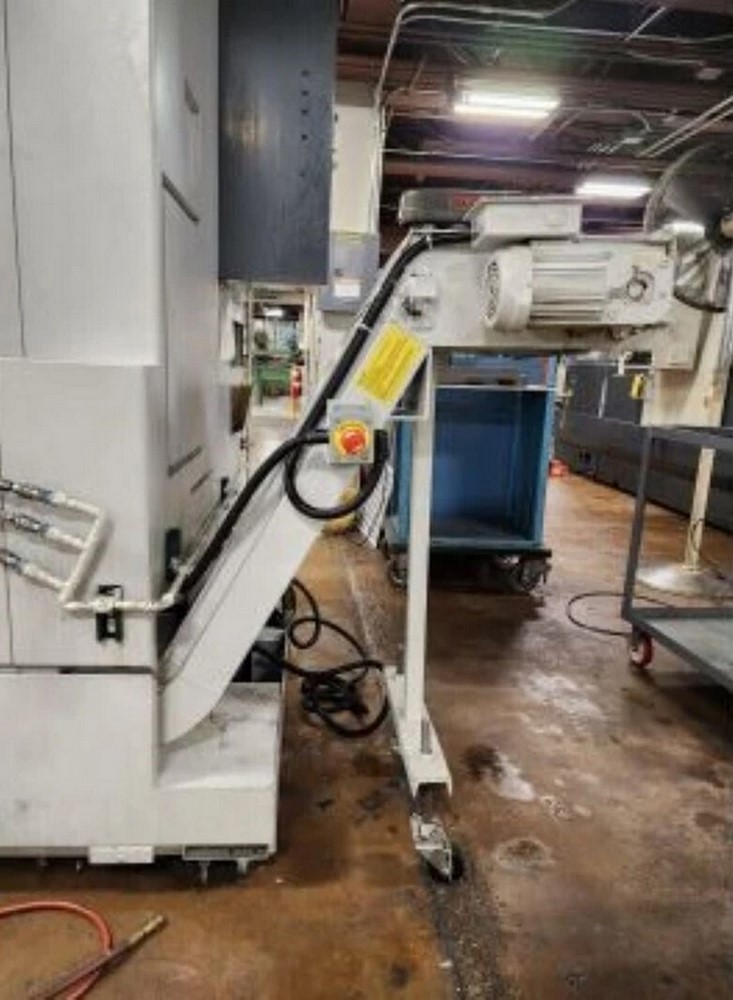

Chip Conveyor (Hinge-Type Side Exit)

Collet Chuck on Main Spindle and Sub Spindle

Integral Built-In Milling Spindle Motor

MAPPS III Programming

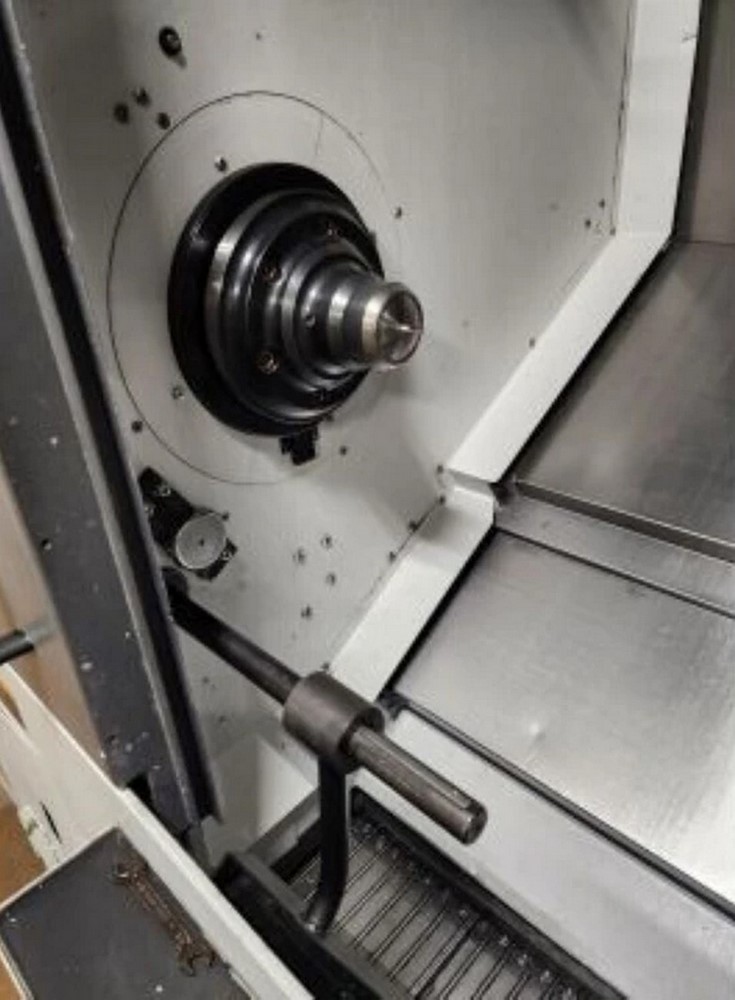

Programmable Sub Spindle

Servo Driven Turret

Parts Catcher

Auto Parts Catcher

PC/MCIA Interface

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
