| Year | 2009 |
|---|---|
| Make | Kitamura |
| Model | HX-250iF |
Description |
CNC Horizontal Machining Center |
| Reference # | 8075468 |
Price |
Activate PricingInquire Now |
Used Kitamura HX-250iF (2009) CNC Horizontal Machining Center for Sale. This pre-owned Kitamura CNC horizontal mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Kitamura Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
250 |
|---|---|
| Pallet Size |
10" x 10" |
| X-Axis Travel |
12" |
| Y-Axis Travel |
12" |
| Z-Axis Travel |
13" |

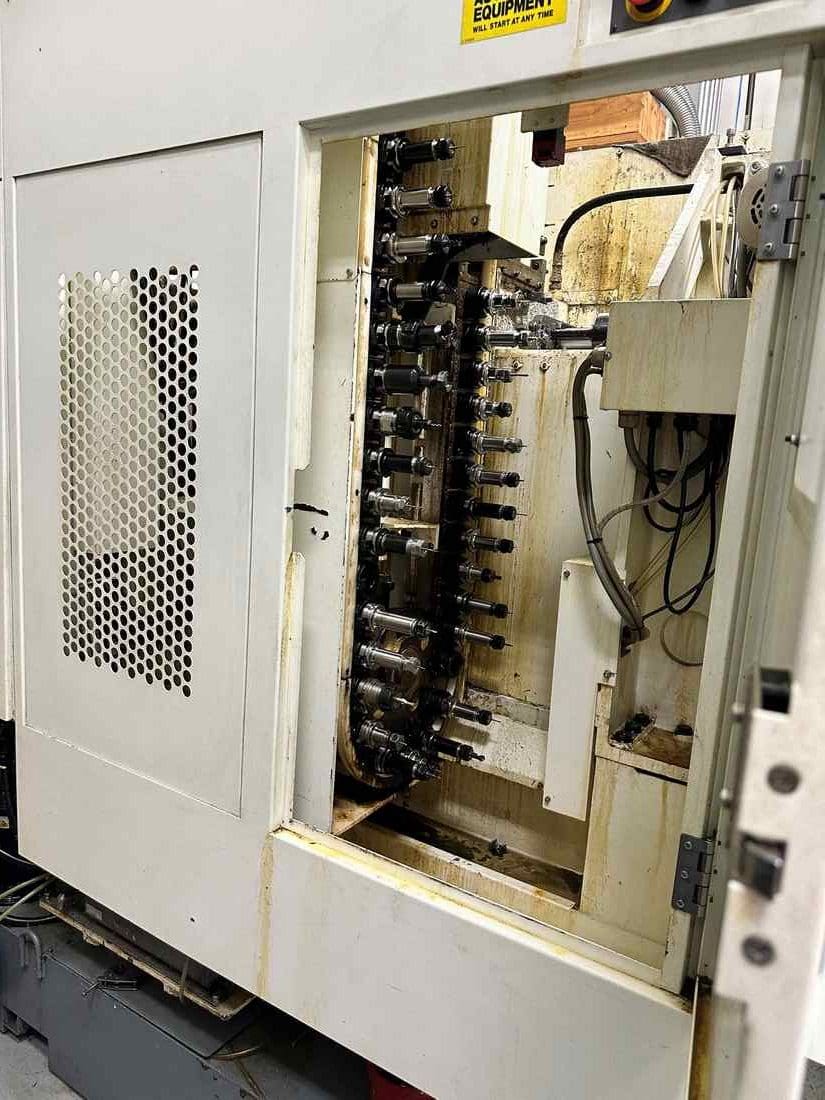

| Tool Magazine Capacity |
40 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
BT 30 |
| Rapid Rate (X/Y/Z-Axis) |
1,898 IPM |
| Control |
Fanuc 18iMB |
| Pallet Indexing |
Full 4th Axis |
| Chip Removal |
Chip Conveyor |
| Coolant |
Through-Spindle Coolant |
| Max Pallet Load |
220 Lbs |
| Dimensions |
108" x 80" x 84" |
| Weight |
9,300 Lbs |
Features
|

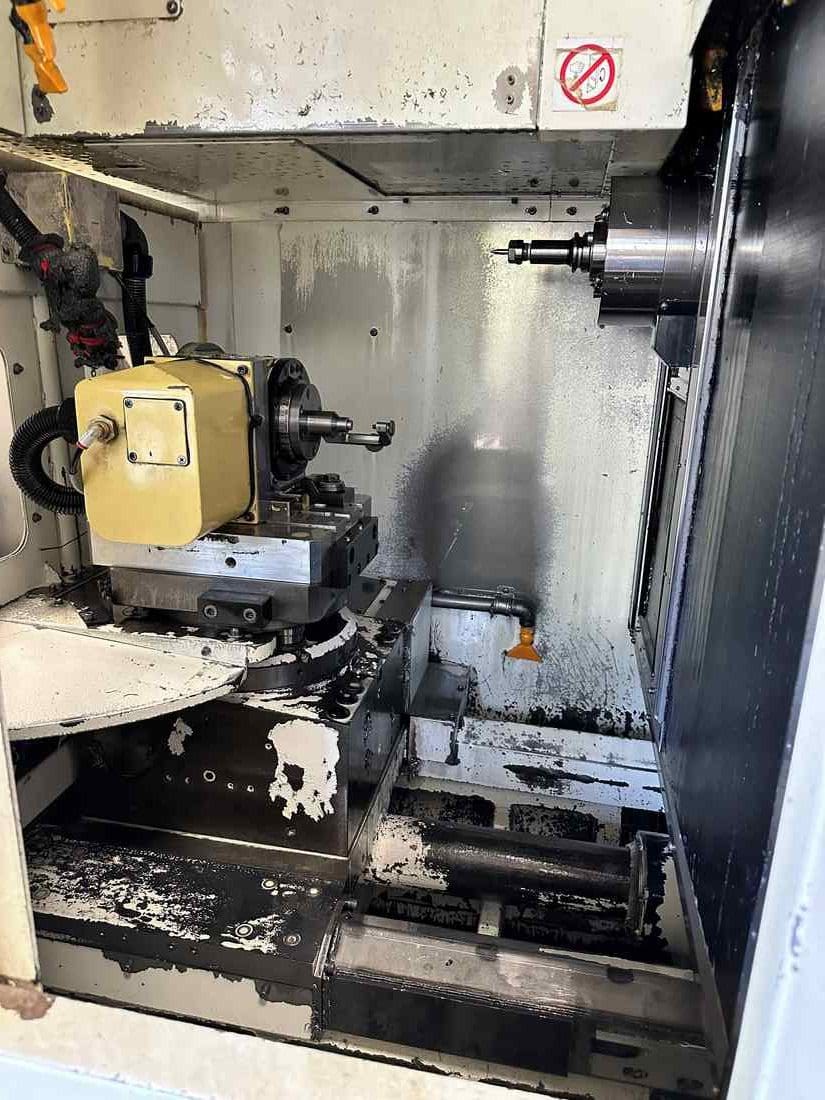

Nikken Rotary Table (3 + 2) |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
