| Year | 2009 |
|---|---|
| Make | Elumatec |
| Model | SBZ-151 |
Description |
5 Axis CNC Router |
| Reference # | 8074088 |

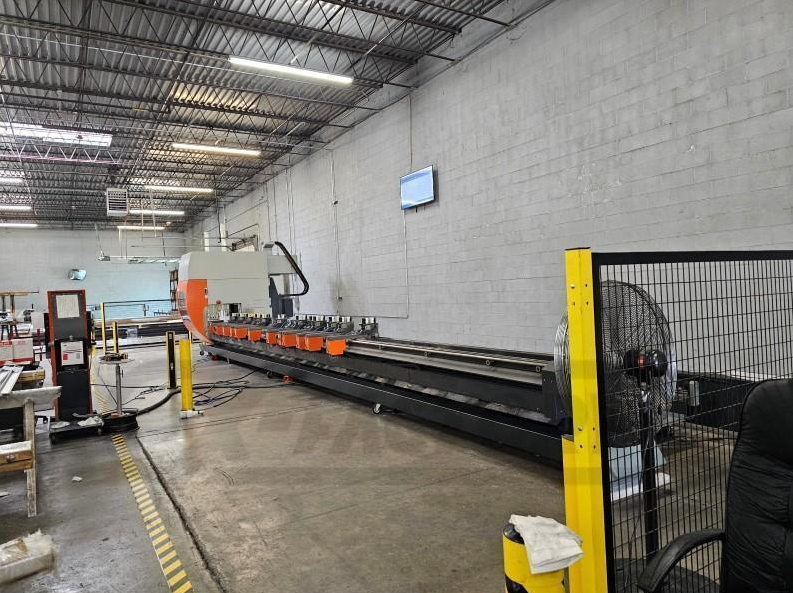

Used Elumatec SBZ-151 (2009) CNC Router for Sale. This pre-owned Elumatec 5 axis cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Elumatec CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
45" |
|---|---|
| Table Length |
408" |
| Number of Axis |
5 |
| X-Axis Travel |
405" |
| Y-Axis Travel |
45" |
| Z-Axis Travel |
28" |
| Spindle Speed |
24,000 RPM |
| Tool Changer |
20 Station |
| Max Machining length with profile End Machining: |
392.91" |
| Machining Length without Profile End Machining |
405.51" |
Features
|
Air Conditioning Unit for Control Cabinet |
Automatic Length Measuring (Both Sides) |
|
Autonomous Clamp Positioning with Absolute Measurement System |
Chip Collection Tray |
|
Drilling / Tapping / Thread Milling / Notching / Sawing |
HSK-F63 Quick-Action Chuck |
|
Pulse Spray Mist Coolant System |
15" Color Display |
|
USB Port |
