| Year | 2009 |
|---|---|
| Make | Black Clawson Davis Standard |
| Model | 4.5 EXTR B |
Description |
Extruder |
| Reference # | 8075937 |
Used Black Clawson Davis Standard 4.5 EXTR B (2009) Extruder for Sale. This pre-owned Black Clawson Davis Standard plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Black Clawson Davis Standard Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Extruder #1 |
2.5", 30:1 L/D Ratio |
|---|---|
| Extruder #2 |
2.5", 30:1 L/D Ratio |
| Extruder #1 & #2 Throughput |
90-100 Lbs/Hr (Approx) |
| Extruder #3 |
4.5", 30:1 L/D Ratio |
| Extruder #3 Throughput |
1,000 lbs. / Hr. (approx) |
| Material Processed |
Fluoro Polymers (Pellet Form) |
| Maximum Web Width *1 |
84" Trimmed Finished / 92" Untrimmed |
| Maximum Web Width *2 |
56" Trimmed |

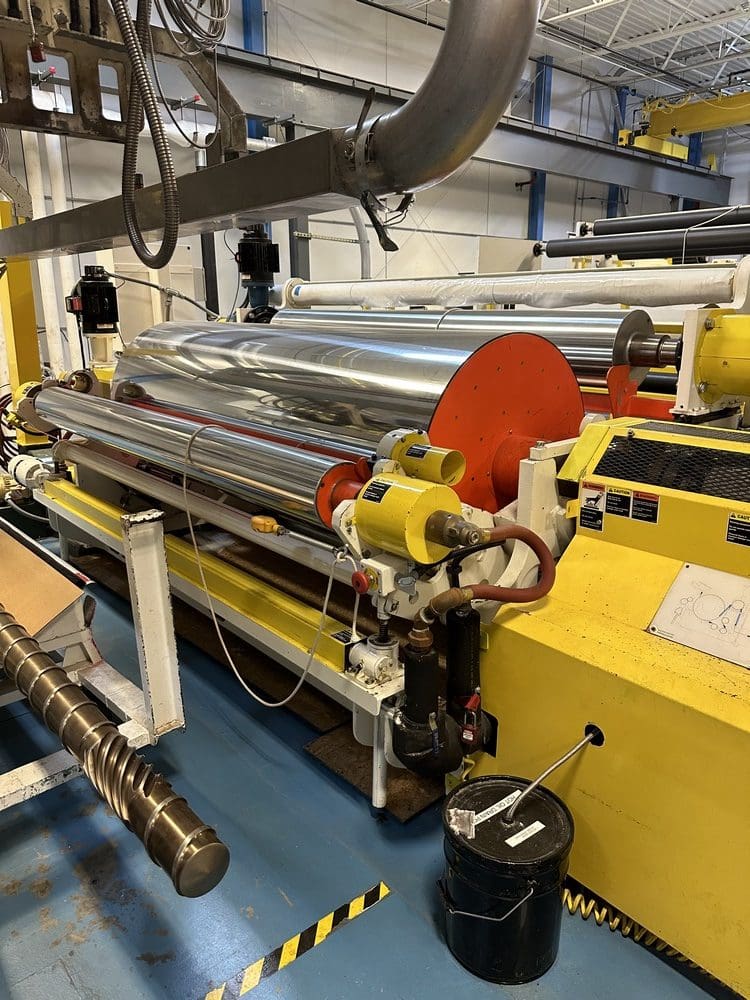

| Nominal Machine Roll Face |
96" / 102" at Winder (For Oscillation) |
| Machine Line Speed *1 *2 |
10-250 FPM |
| Gear-In Speed |
250 FPM |
| Adjustable Thread Speed |
Up to 50 FPM |
| Process Tension Ranges *1 |
Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs. |
| Hand of Machine Except Winder/Drive Side *4 |
Right Side |
| Hand of Winder Only |
Left |
| Slitters |
Edge Trim Razor Blade (3 Pairs) |

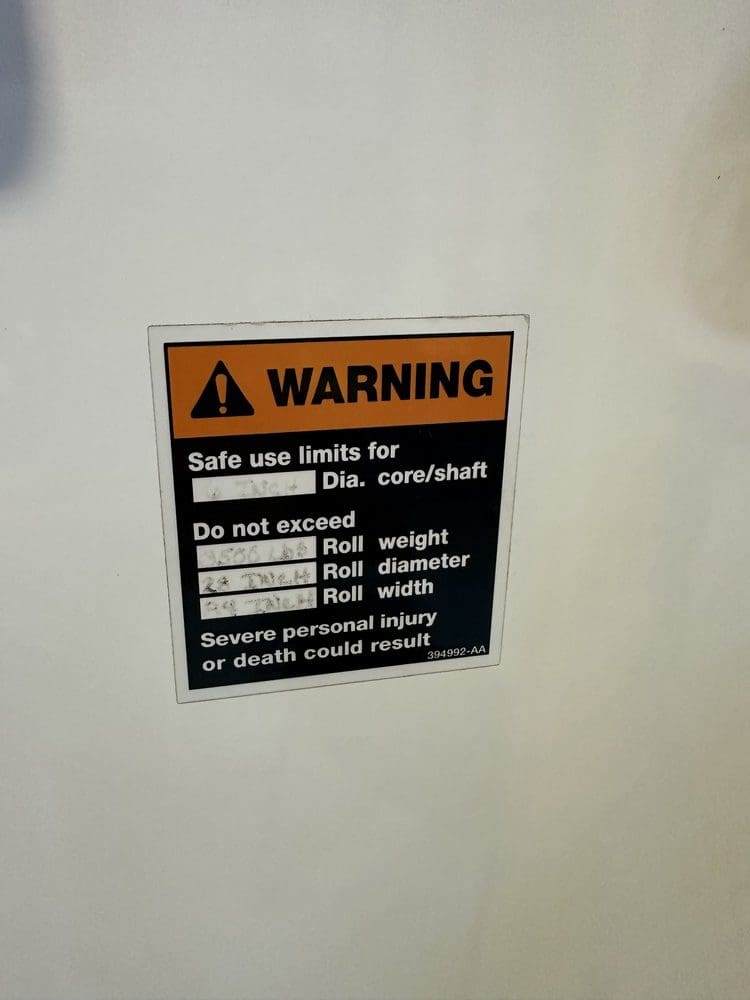

| Max Roll Diameter (Winder) |
26" |
| Max Roll Weight (Winder) |
3,500 Lbs. |
| Core Size Shafted *5 |
6" ID, 6 1⁄2" OD |
| Core Material |
Fibre |
| Web Tension Range *1 |
Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs. |
| Idler Rolls |
6" O.D. Live Shaft Carbon Fiber |
| Note |

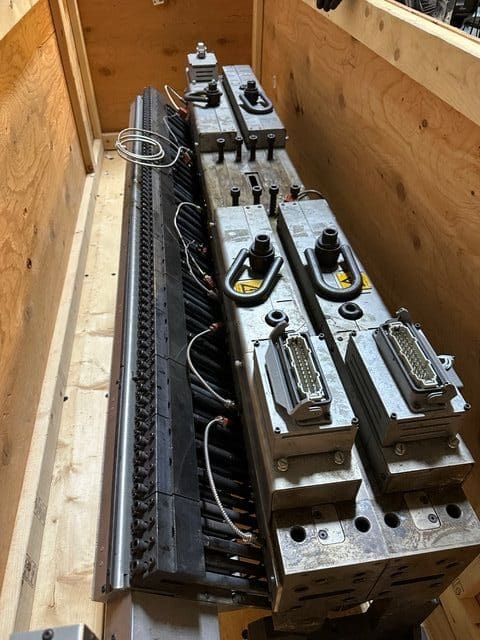

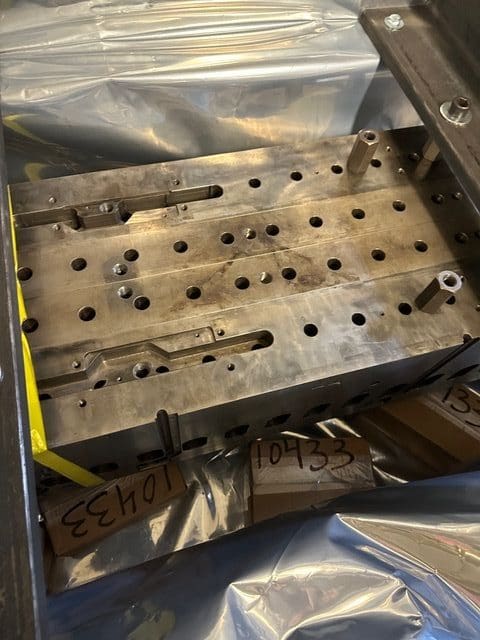

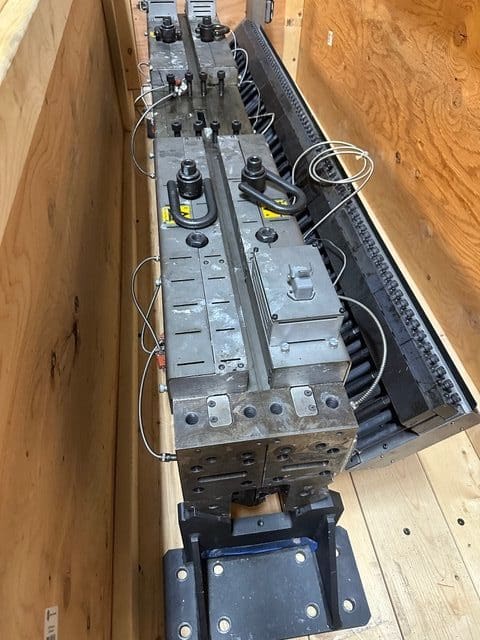

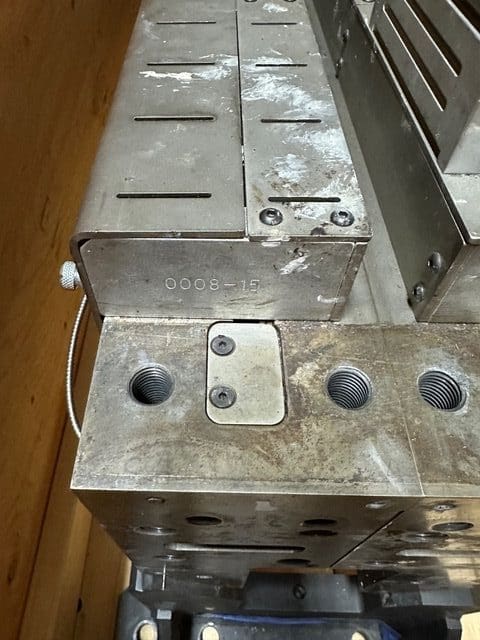

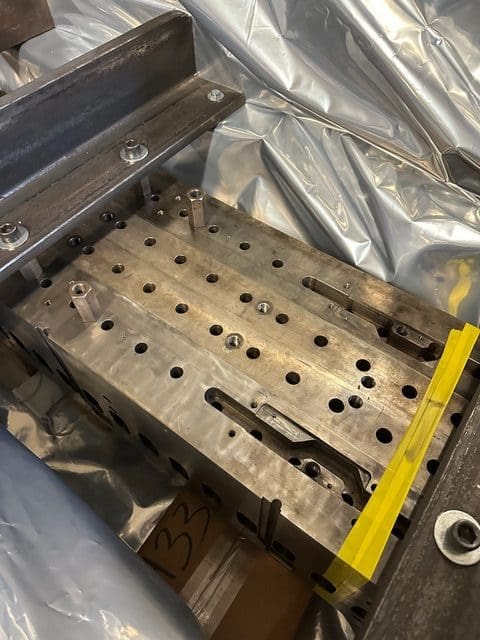

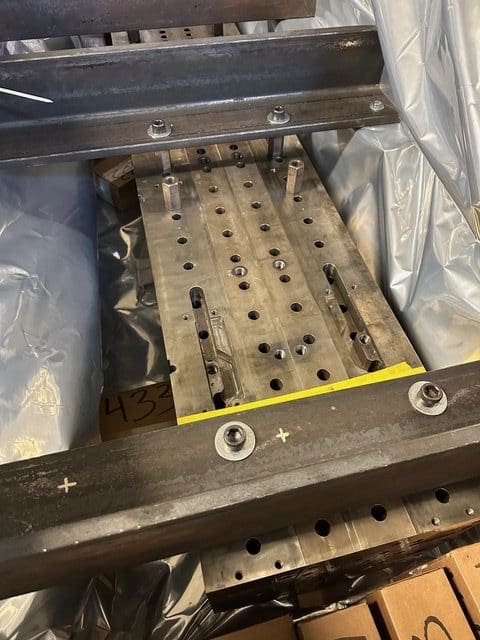

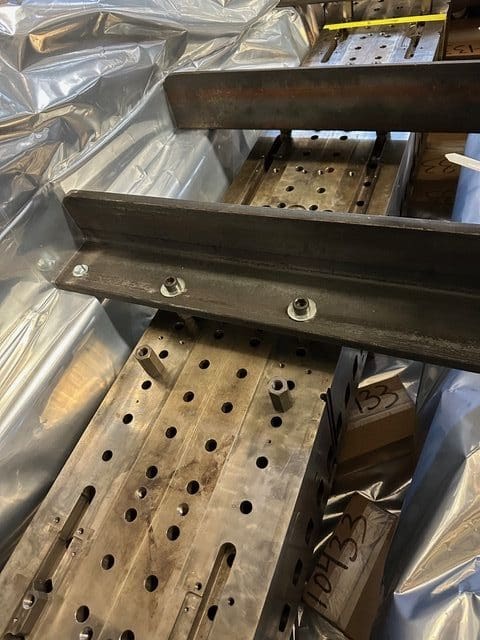

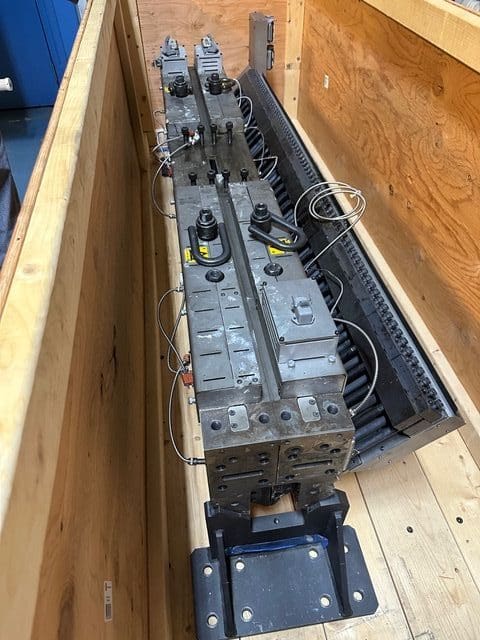

Very Low Hours, System can also run TPU (Thermoplastic Polyurethane) 96" Multi-Manifold Die.......New Replacement Cost - $1.0 mil., Sri-Air Model HP4-X 750 FM system - NOT INCLUDED |
