| Year | 2008 |
|---|---|
| Make | Trumpf |
| Model | TruBend 5170 |
Description |

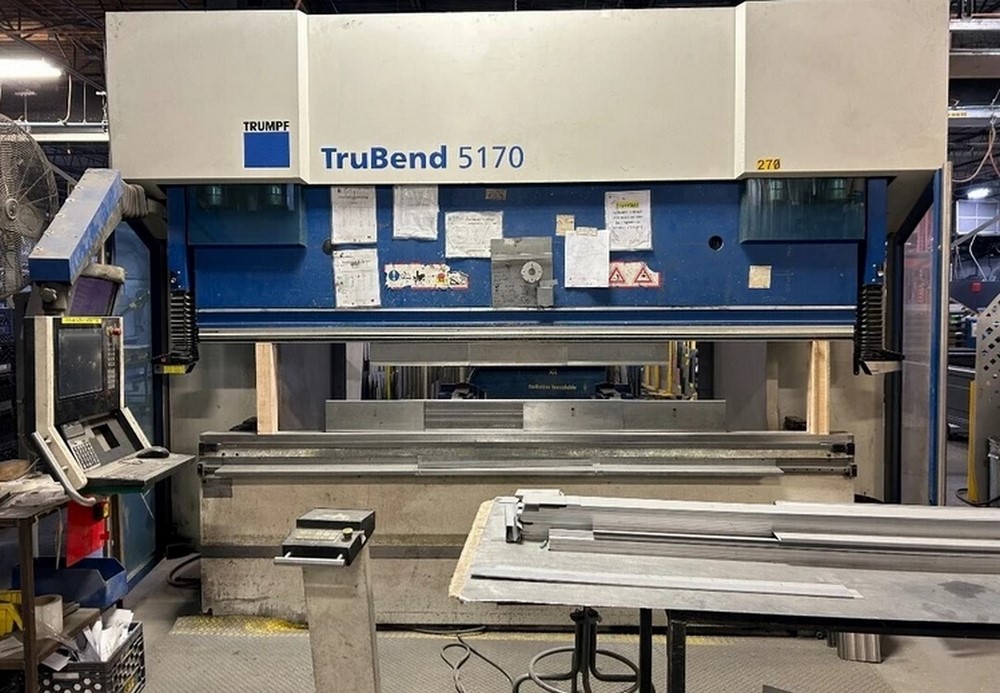

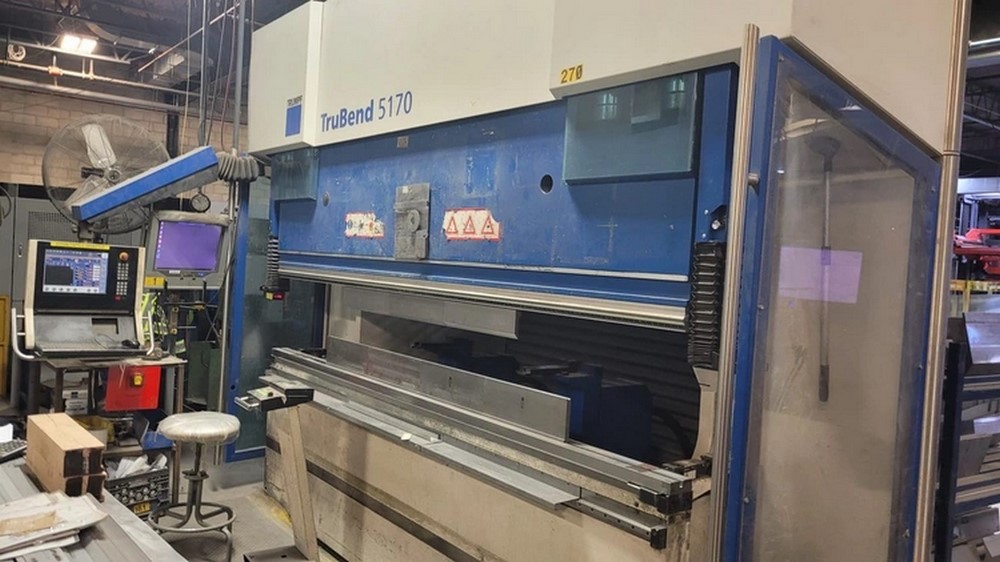

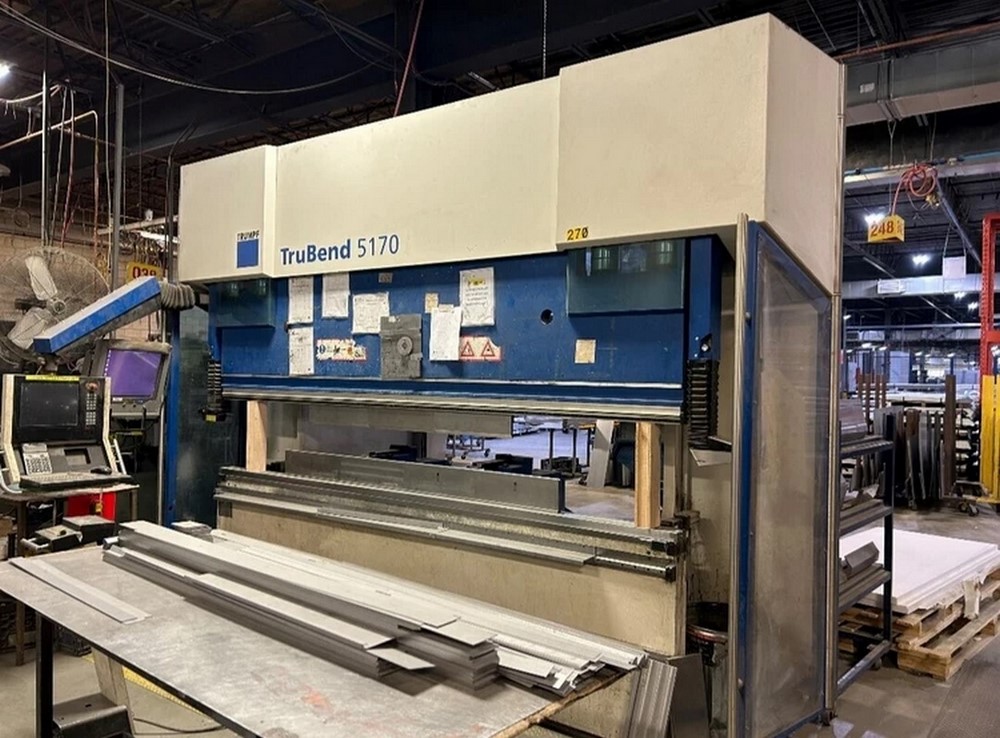

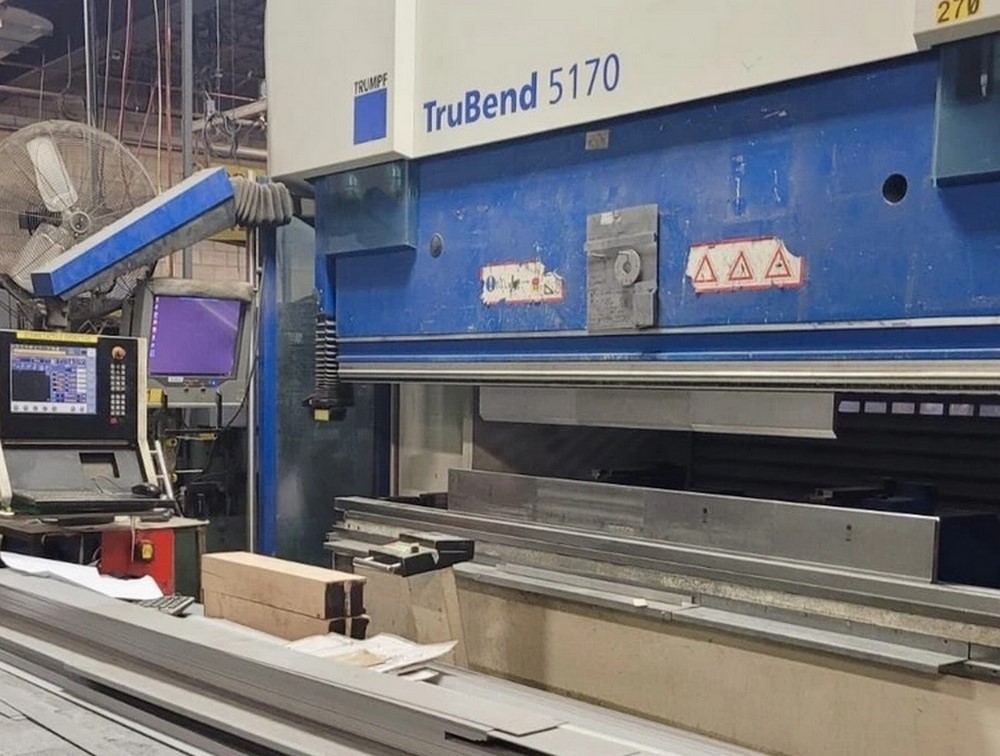

187 Ton x 10' Hydraulic Press Brake |
| Reference # | 8075701 |

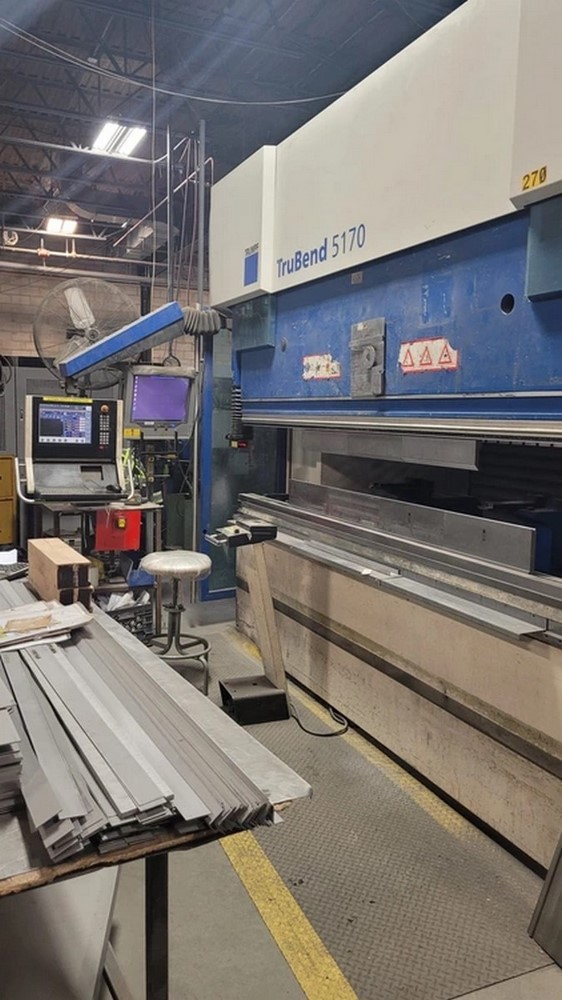

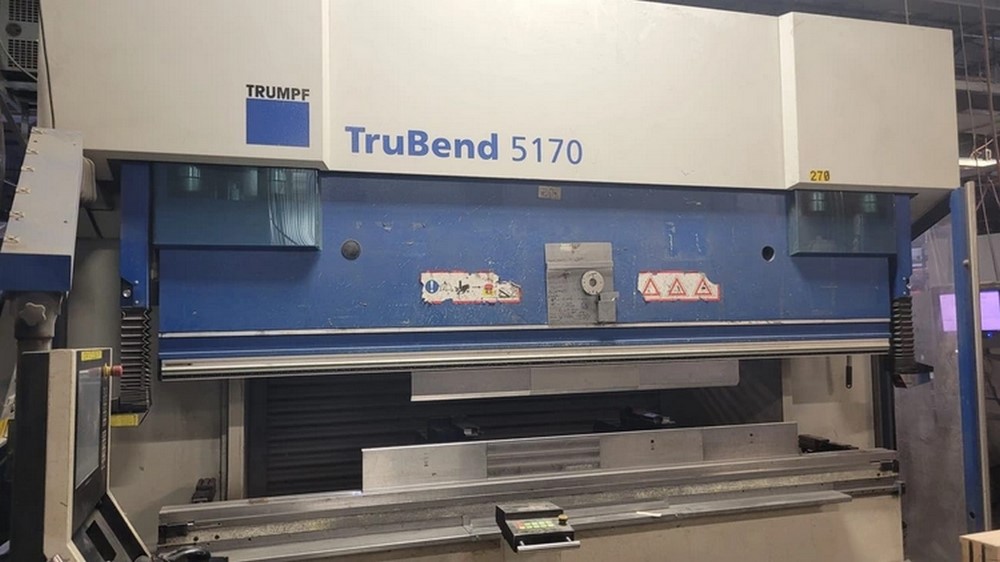

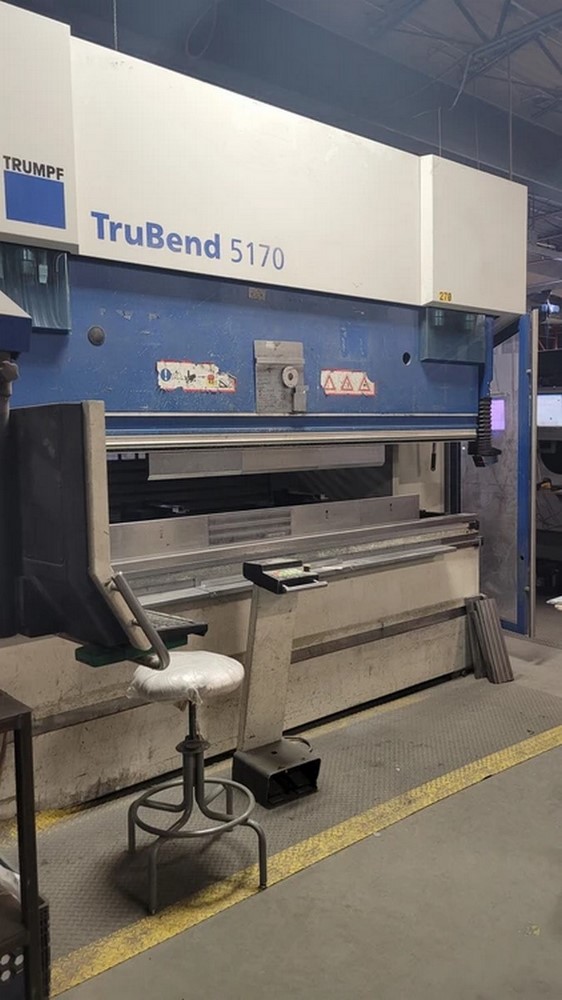

Used Trumpf Trubend 5170 (2008) CNC Press Brake for Sale. This pre-owned Trumpf CNC press brake is located in The United States. If you have any questions regarding this Trumpf Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
187 Ton |
|---|---|
| Overall Length of Bed |
10' |
| Control |

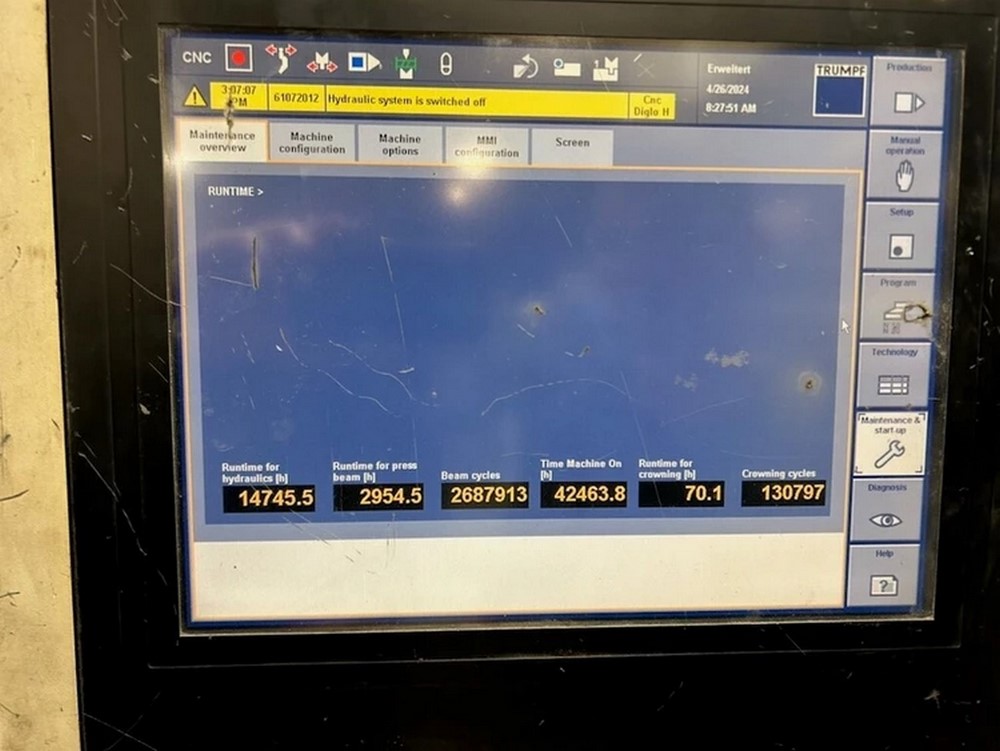

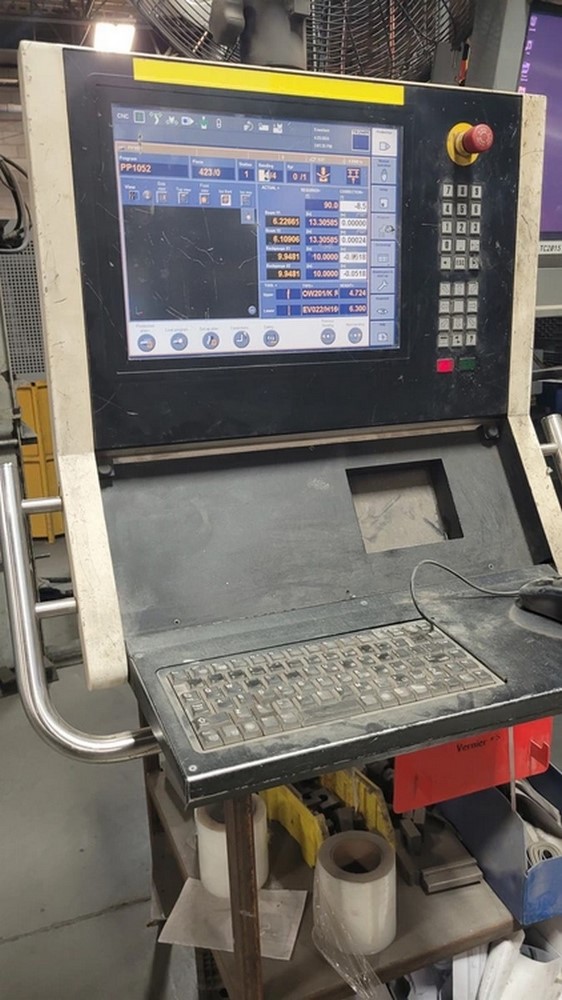

Tasc 6000 |

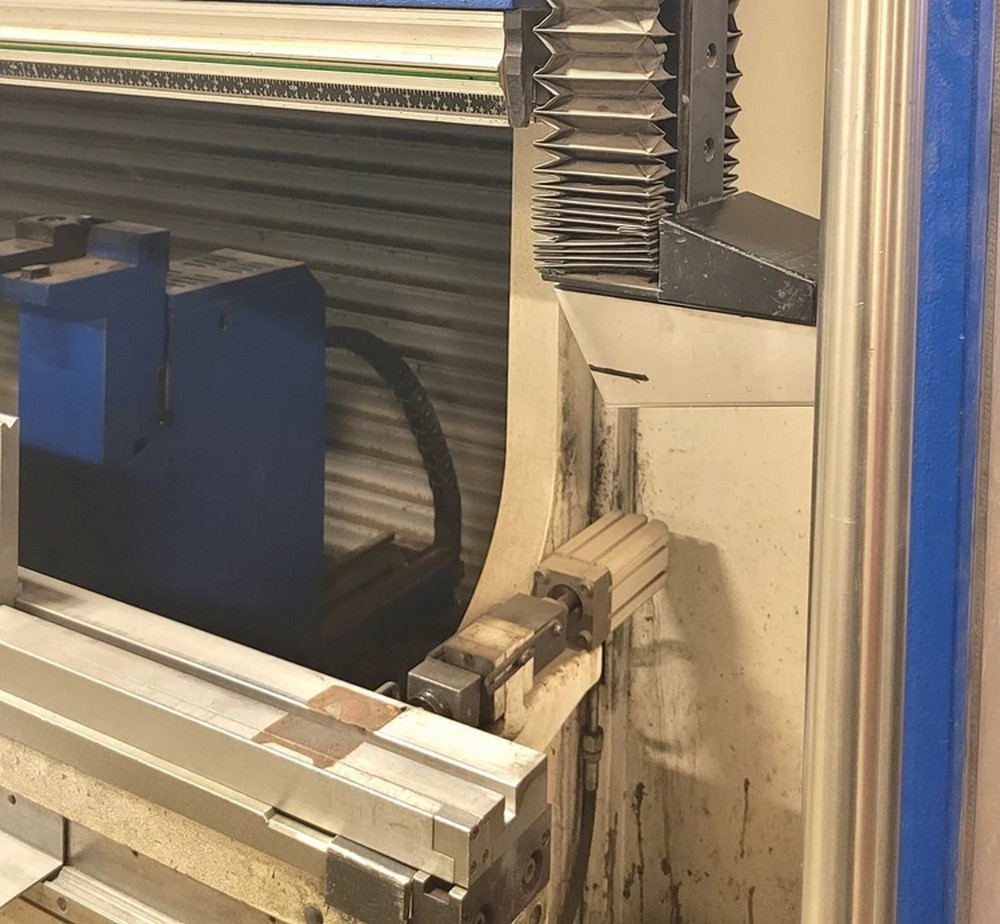

| Back Gauge |
6 Axis |
| Distance Between Housings |
106" |
| Stroke |
17.5" |
| Throat Depth |
16.5" |
| Open Height |
24" |
| Power Requirement |
40/3/60 32 KVA |
| X-Axis Rapid Speed |
590 IPM |
| Y-Axis Rapid Speed |
520 IPM |
| Z-Axis Rapid Speed |
2,362 IPM |
| X-Axis Gauge Depth |
34" |
| R-Axis Travel |
10" |
| Dimensions |
156" x 74.8" x 118.1" H |
| Weight |
26,900 Lbs. |
Features
|
6-Axis and I-Axis |
Wila Style Upper and Lower Hydraulic Tool Holder |
|
CNC Crowning |
Ability to Retrofit ABC |
|
Bendguard Safety Device |
Footswitch |
|
Pneumatic Die Positioning |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
