| Year | 2008 |
|---|---|
| Make | ST |
| Model | TA150 ASPI COEX SECO |
Description |
Blow Molder |
| Reference # | 8074414 |

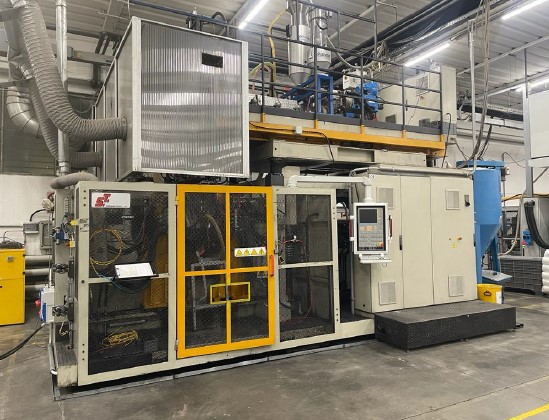

Used ST TA150 ASPI COEX SECO (2008) Blow Molder for Sale. This pre-owned ST blow molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this ST Blow Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Type of Blow Molder |
Co-Extrusion Accumulator Head |
|---|---|
| Closing Force |
15 Metric Tons, 16.5 US Tons |
| Minimum Mold Thickness |
12.20" |
| Max Opening |
39.37" |
| Floor Opening Space |
13.78" x 2 |
| Dimensions of Floor B x H |
27.55" x 31.49" |

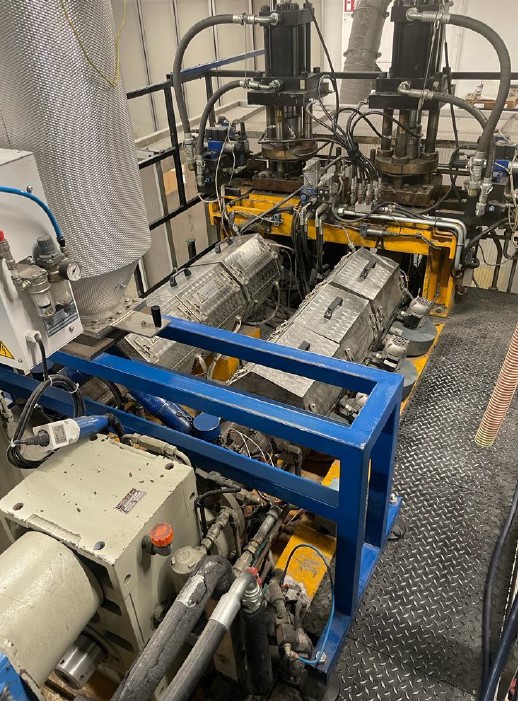

| (2) Extruders |
. |
| Screw Size |
60mm |
| L/D Ratio |
24:1 |
| Estimate Output (HDPE) |
180 lbs/hour (60mm) & 340 lbs/hour (70mm) |
| Heads |
. |
| Shot Size Capacity |
1.5 Ltr. (3.30 lbs) HDPE |
| Maximum HDPE Extrusion Weight (kg x 2) |
1.2 |
| Min/ Max Die Diameter |
.19" (5 mm) - 2.95" (75mm) |
| Weights |
21 Min. & 23 Max Tonnage |
| Length |
342" Length (L) and 173.22" Length (B) |
| Height |
196.85" |
| Note |
13,519 Running Hours Currently In Operation for Inspections |
Features
|

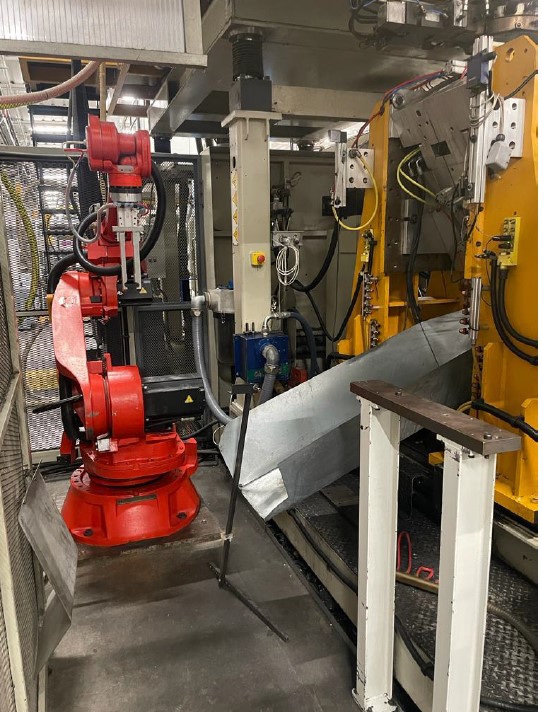

Anthropomorphic Robot and Parison Marker |
Spare Parts for Resistors/ Pin / Dies |
