| Year | 2008 |
|---|---|
| Make | Peddinghaus |
| Model | Ocean Avenger MDL 1000B |
Description |
CNC Beam Drill Line |
| Reference # | 8075158 |

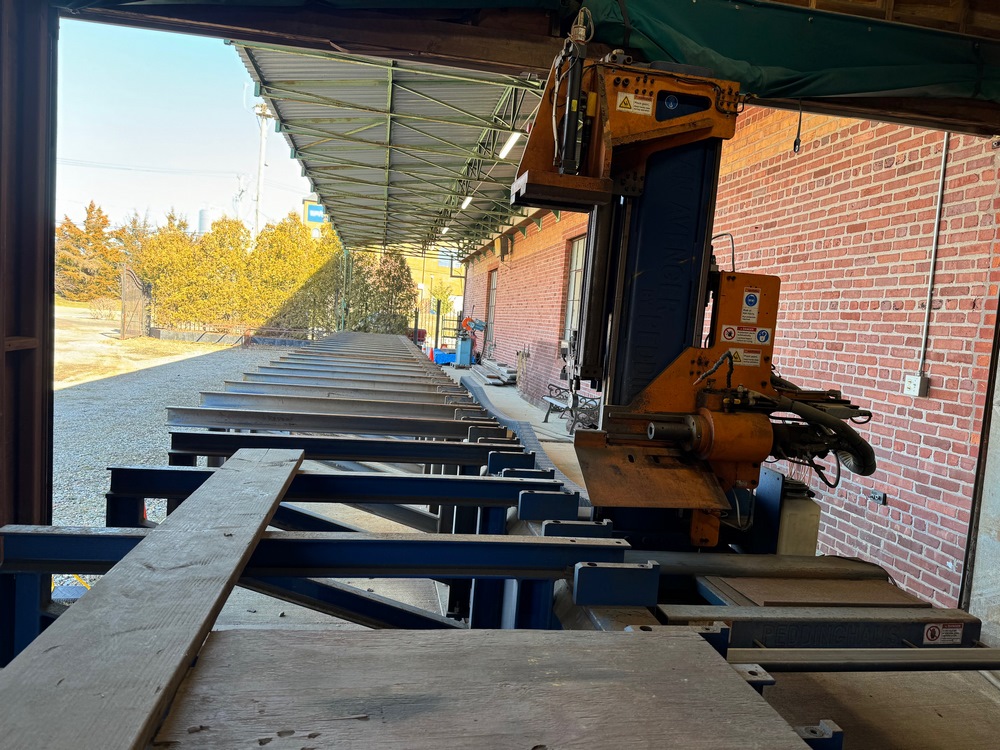

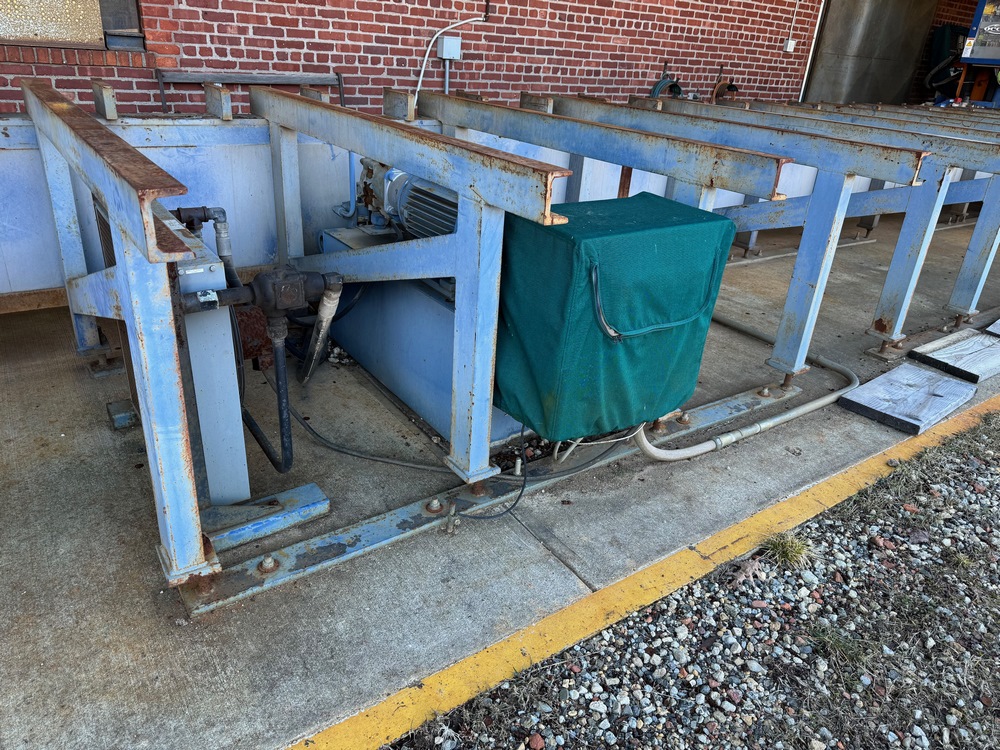

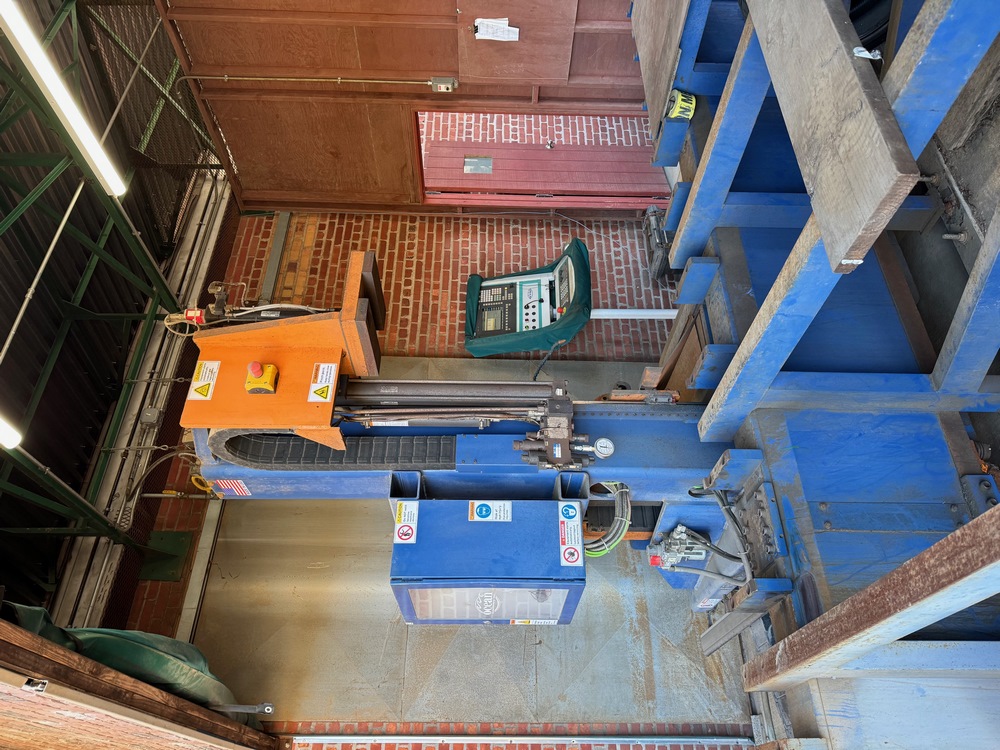

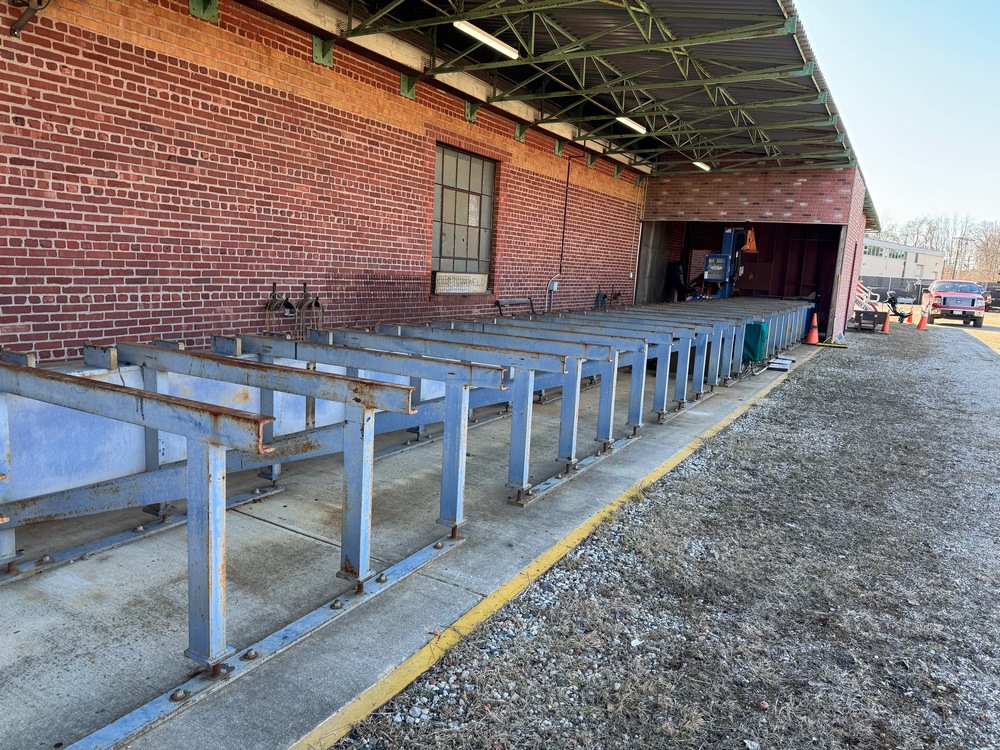

Peddinghaus Ocean Avenger MDL 1000B
Specifications
| Control |
Ocean Machinery Controls |
|---|---|
| Beam Height Capacity |
40" |
| Beam Length Capacity |
60' |
| Min Drill Diameter |
1/4" |
| Max Drill Diameter |
2" |
| Spindle Speed |
200 - 850 RPM |
| Spindle Stroke |
13" |
| Drilling Feed Rate |
2 - 10 IPM |
| X/Y-Axis Speed |
120 FPM |
| Head Travel Table Length |
60' |
| Motor |
13.5 HP |
Features
|
Vertical Clamping Vice |
*
