| Year | 2008 |
|---|---|
| Make | Okuma |
| Model | Multus B400-W |
Description |
CNC Lathe |
| Reference # | 8075838 |

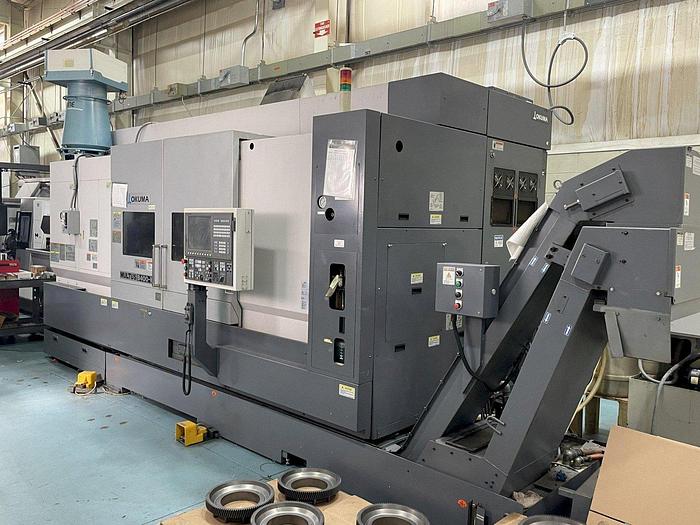

Used Okuma Multus B400-W (2008) CNC Lathe for Sale. This pre-owned Okuma CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications

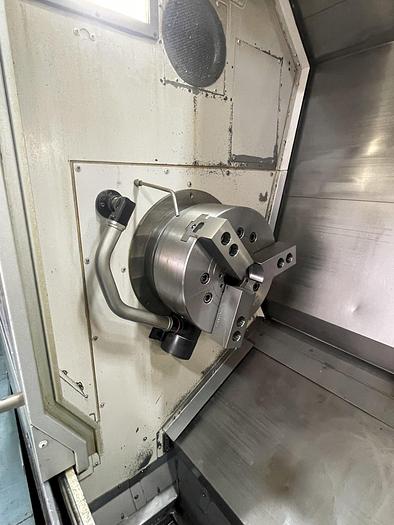

| Chuck Size |
15" |
|---|---|
| Distance Between Centers |
60.83" |
| Control |
OKUMA OSP-200L CNC Control |
| B-Axis Index |
225 Degree at 0.001″ |
| C-Axis Index |
360 Degrees at 0.001 |
| Max Machining Length |
60″ |
| Max Swing |
27.9" |
| Cutting Length |
60" |
| Swing Over Saddle |
27.95" |
| Max Turning Length |
60" |
| X Axis Travel |
27.17" |
| Y Axis Travel |
60.83" |
| Z Axis Travel |
9.06" |
| Main Spindle Speed Range |
38 – 3800 RPM |
| Main Spindle Nose |
A2-11 |
| Main Spindle Bore |
4.72″ |
| Sub Spindle |
12″ Chuck |
| Tool Taper in the M-Spindle |
Capto (C6) |
| Milling Spindle Speed Range |
50 – 6000 RPM |
| Main Spindle |
40/30 HP |
| Opposing Spindle |
30/20 HP |
| Control |
OSP P200L Control |
Features
|
Foot Switches |
Lots of Tooling (approximately $25k) |
|
Touch Setter M |
Chip Conveyor |
|
Coolant System |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
