| Year | 2007 |
|---|---|
| Make | Mazak |
| Model | Integrex 300-IV |
Description |
CNC Lathe |
| Reference # | 8074855 |

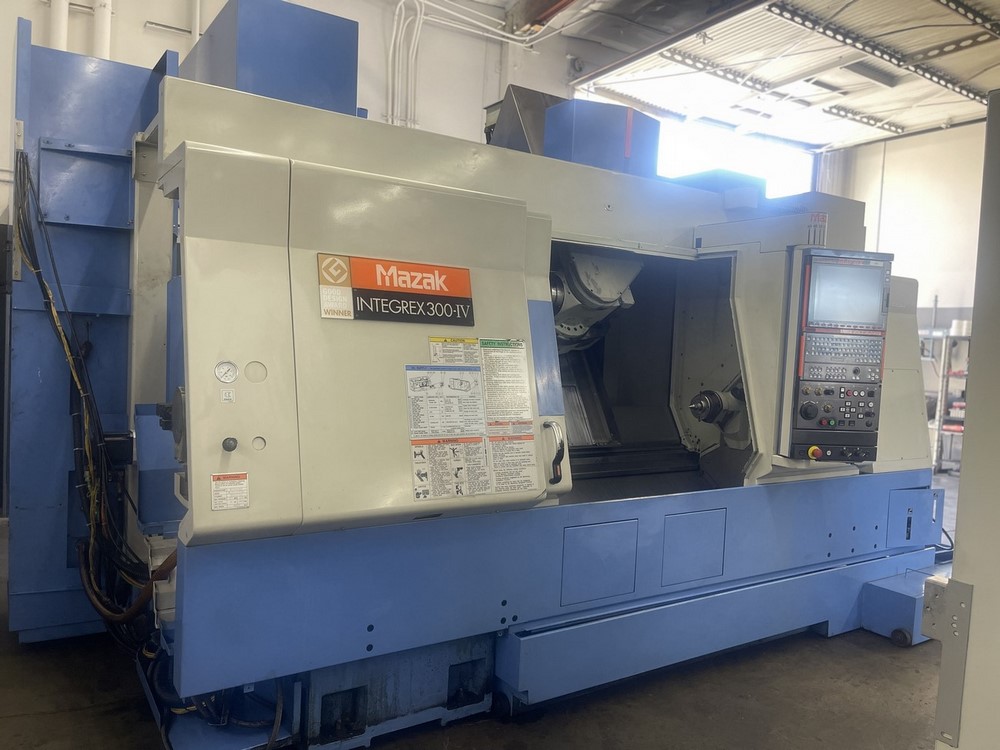

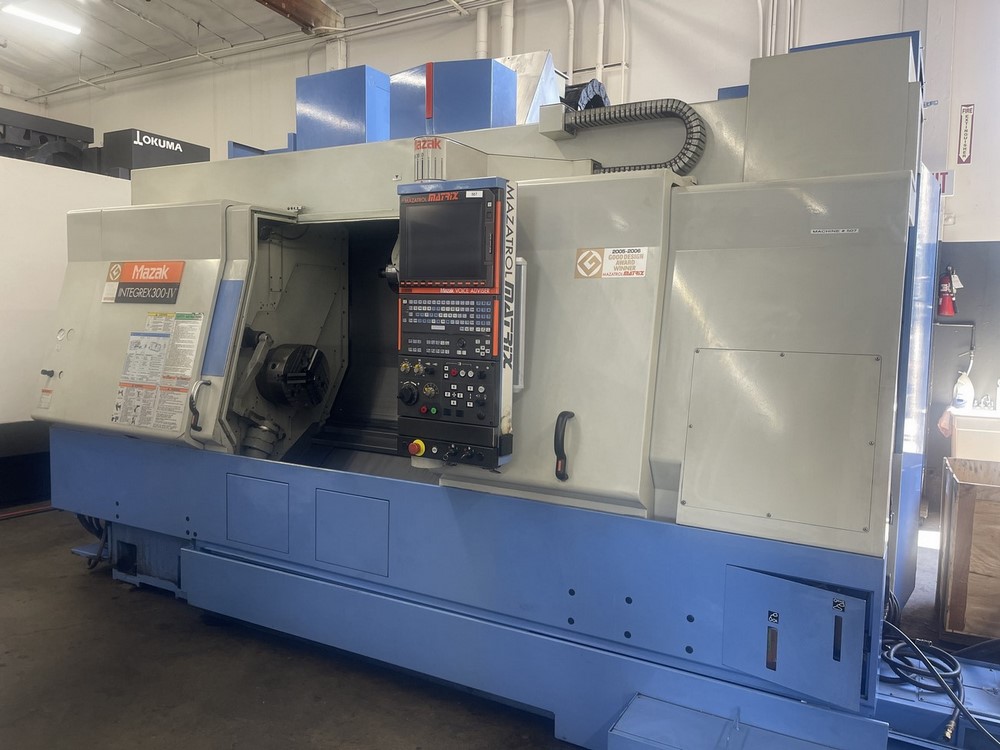

Used Mazak Integrex 300-IV (2007) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in California and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
12" |
|---|---|
| Bar Capacity |
3" |
| Swing |
24" |
| Turning Diameter |
15" |
| Spindle Speed |
3,500 RPM |

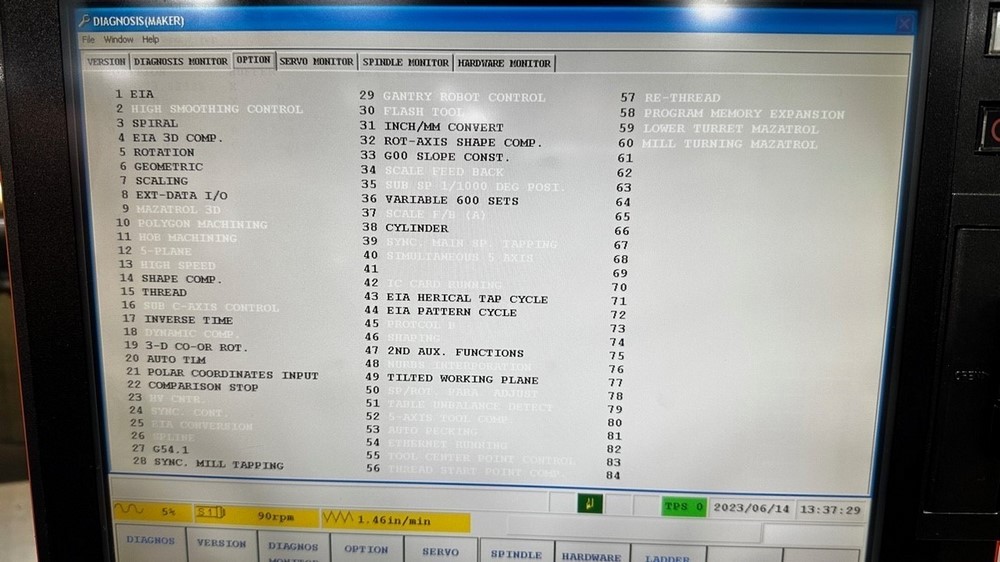

| Control |

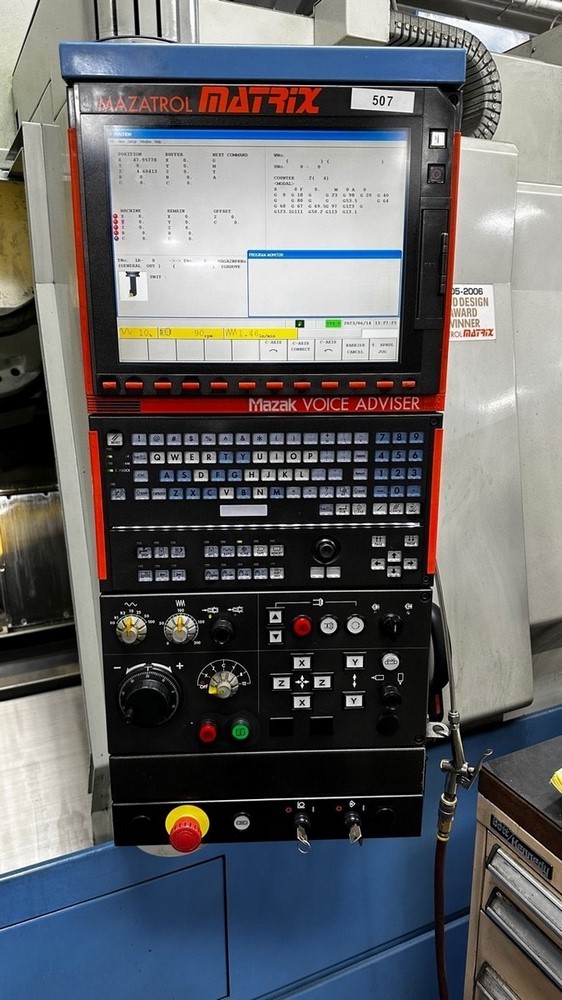

Mazatrol Matrix |
| Distance Between Centers |
40" |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
30/35 HP |
| C-Axis |
.001 Degree |
| Y-Axis |
4.13" |
| Max Swing Over Slant Bed |
24.01" |
| Max Swing Over Carriage |
17.71" |
| Cross Travel (X-Axis) |
22.83" |
| Z-Axis |
40" |
| B-Axis |
225 Degree |

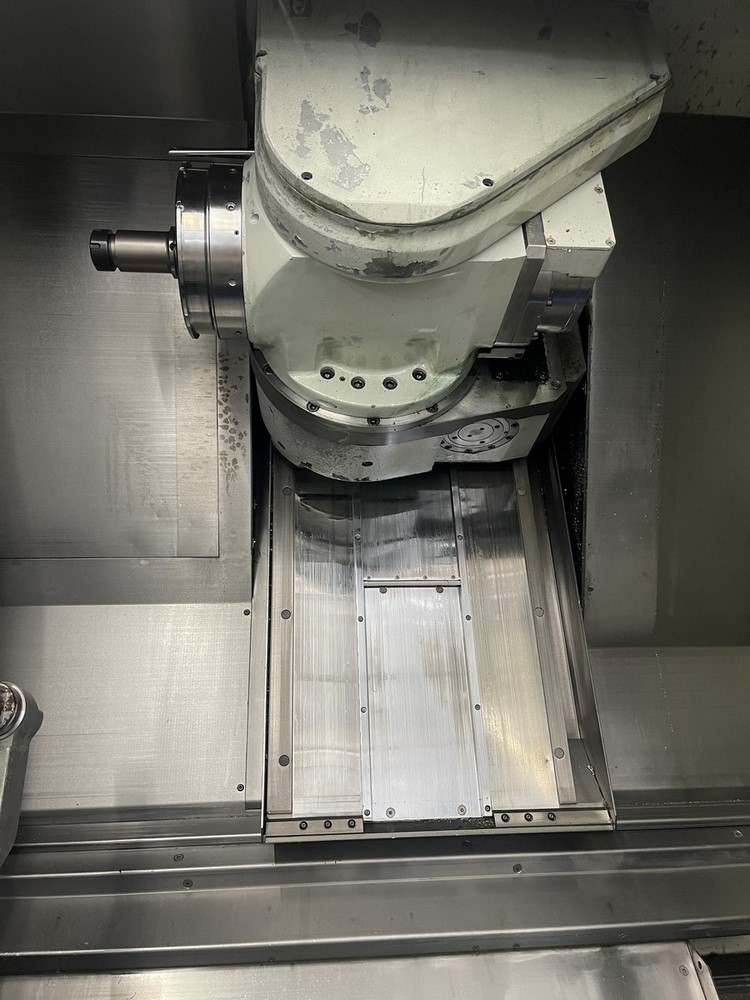

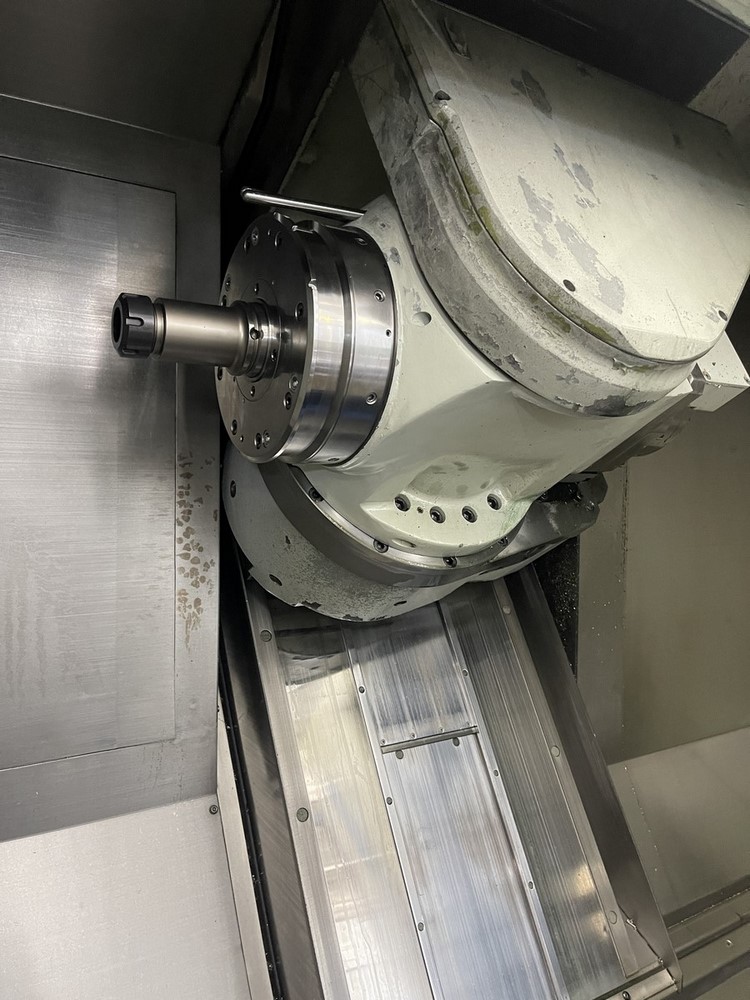

| Rotary Tool Spindle |
20 HP / 6,000 RPM |
| Hole Thru Spindle |
3.46" |
| Machine Dimensions |
143" x 89" x 106" |
| Machine Weight |
18,942 Lbs |
| Max. Cutting Length |
59" |
| Spindle Nose |
A2-8 |
| Spindle Bore |
3.46" |
| ATC Tool Shank |
KM |
| Rapid Traverse Rates (X, Z / Y) |
1181 / 590 IPM |
| Rotary Tool Motor |
AC 20 HP |
| X-Axis |
22.83" |

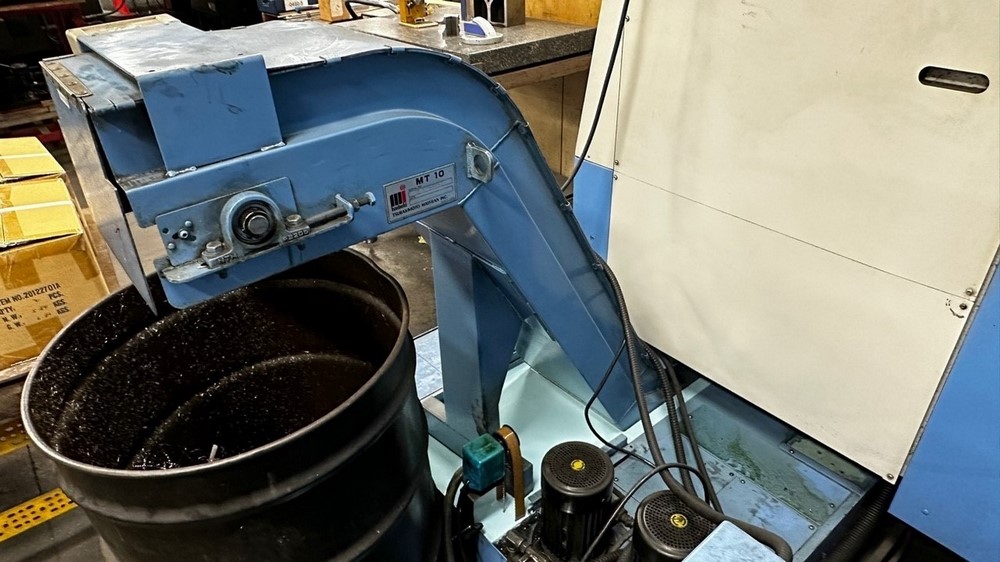

| Chip Removal |
Chip Conveyor |
| Note |
Calibrated in 2022 |
Features
|

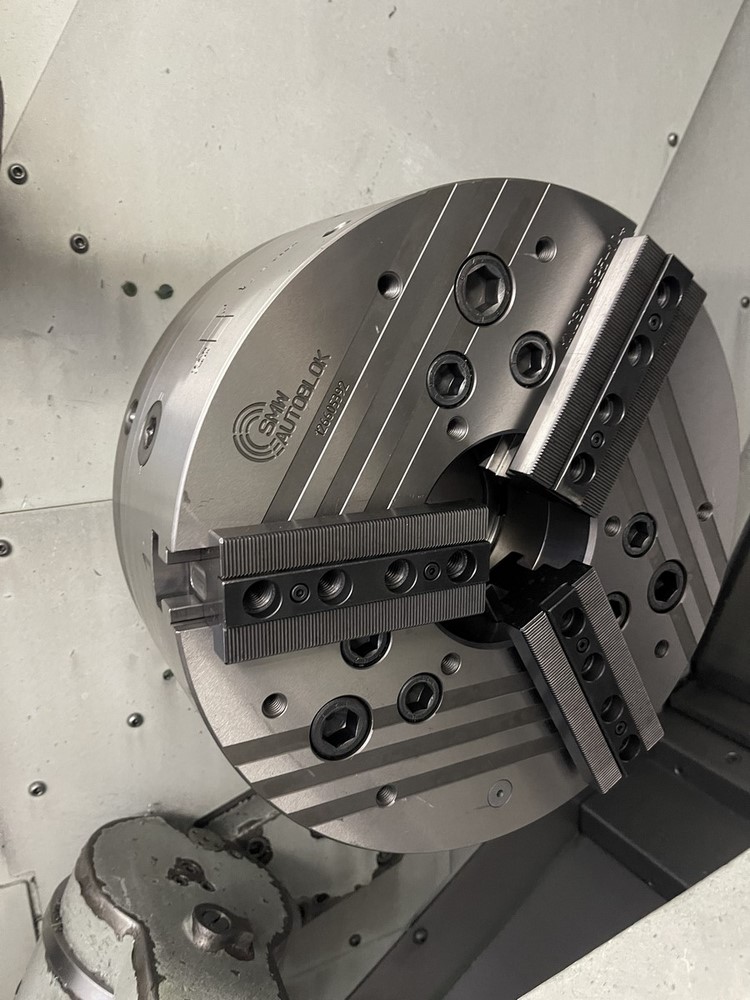

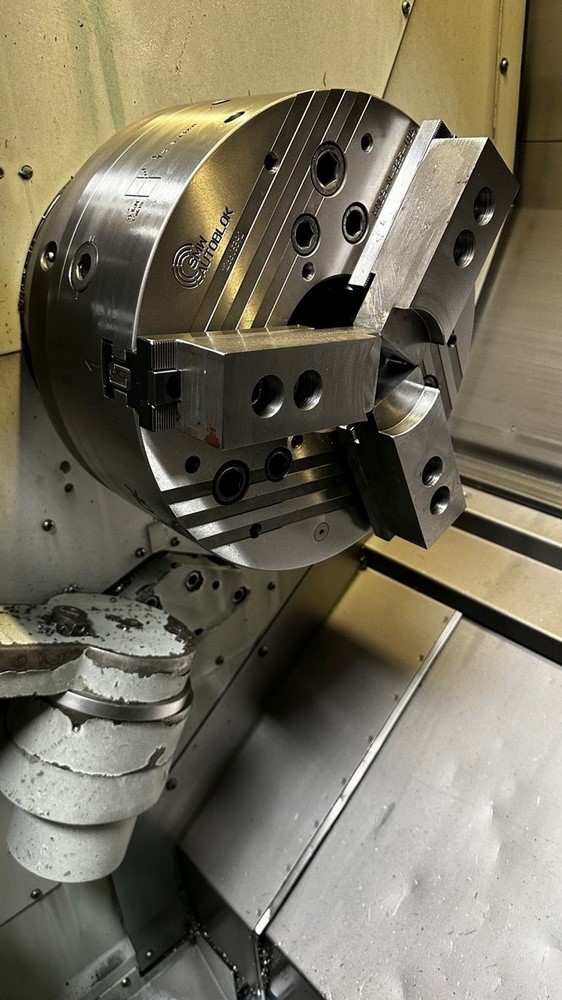

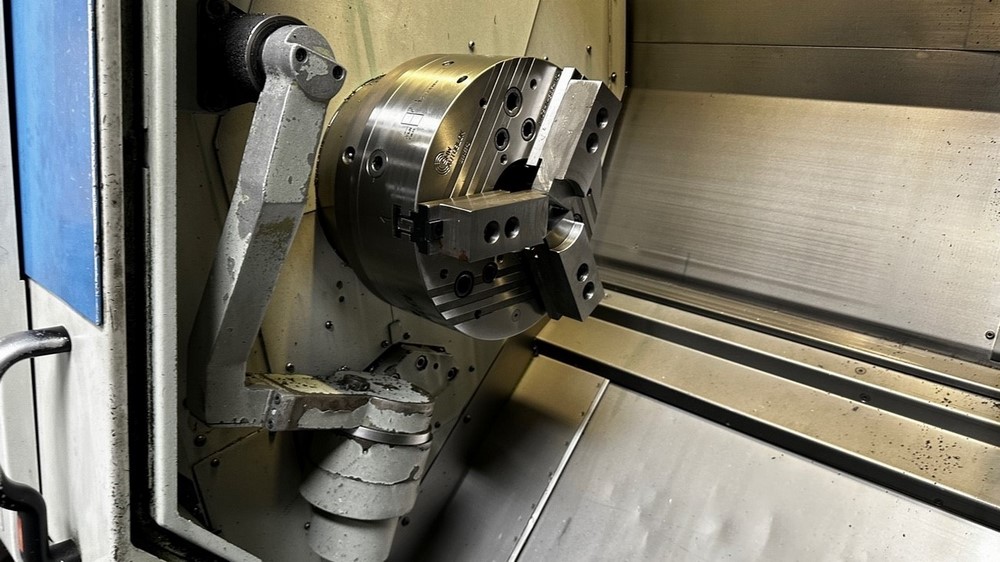

AUTOBLOK KNCS-N-325-104 3-Jaw Quick Change Chuck |

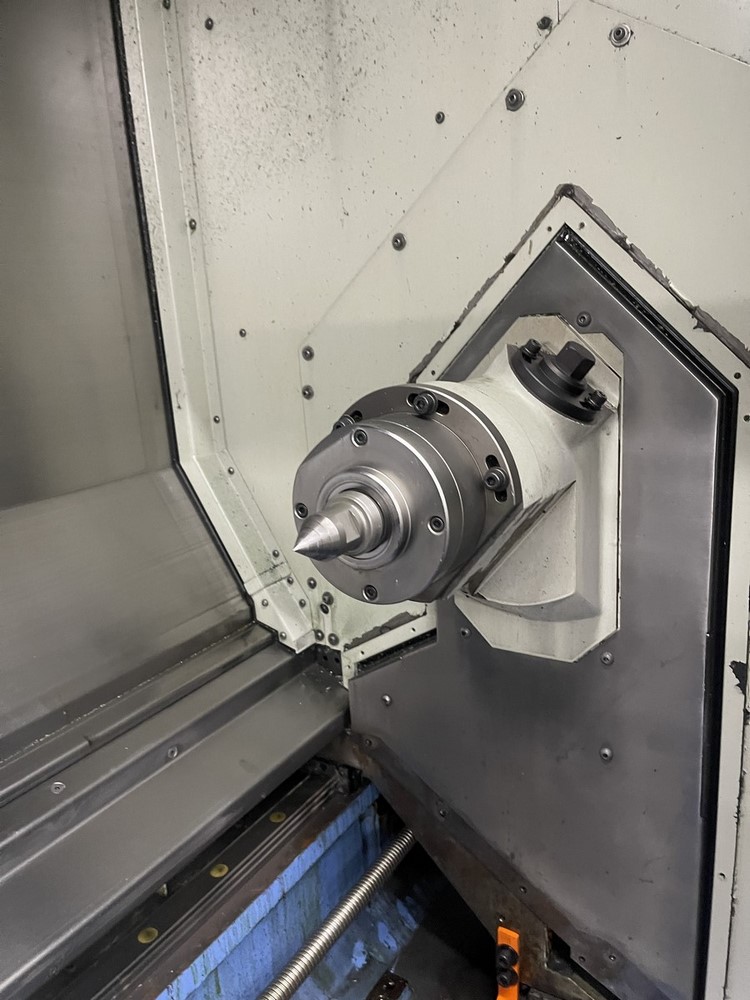

Programmable Tailstock (Built-In Center) |
|

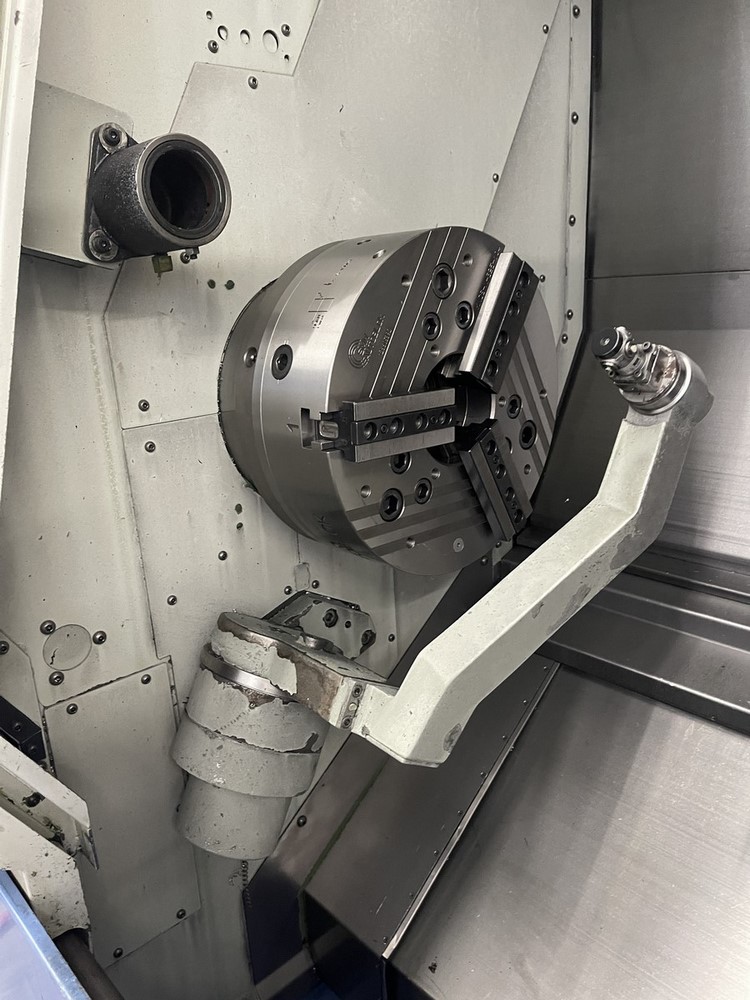

Work Measuring System OMP40 |
Auto Tool Presetter |
|
Tool Eye (Automatic) |
Chuck Open/Close Confirmation |
|
Overload Detection System |
