| Year | 2007 |
|---|---|
| Make | Mazak |
| Model | Cybertech 4500MT |
Description |
CNC Lathe |
| Reference # | 8075438 |

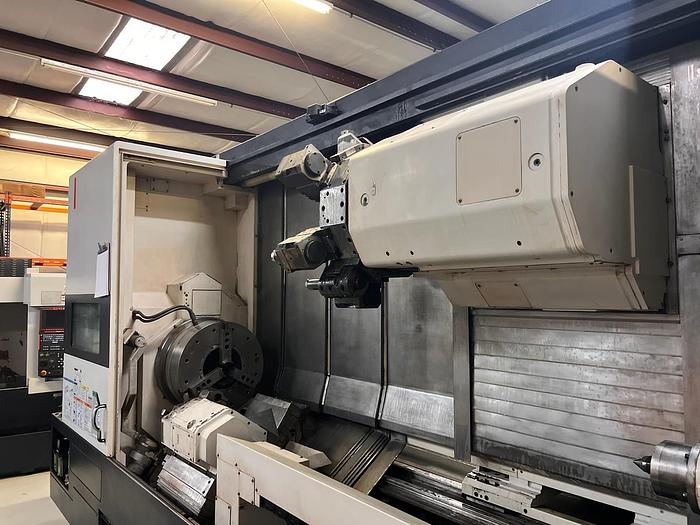

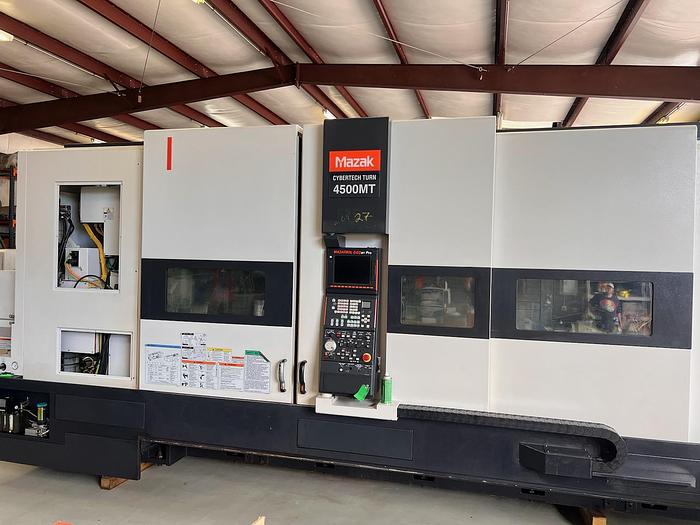

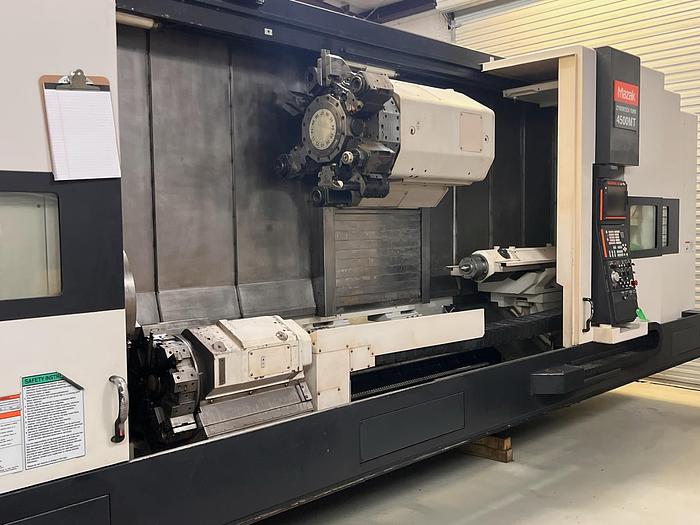

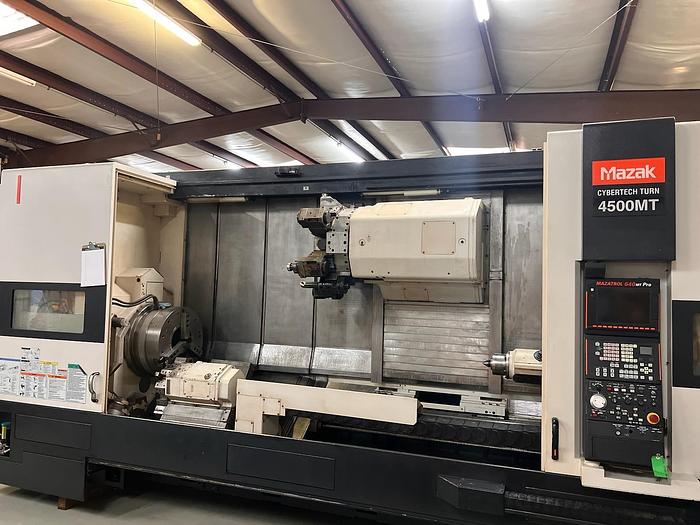

Used Mazak Cybertech 4500MT (2007) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
12.5" |
| Turning Diameter |
31.88" |

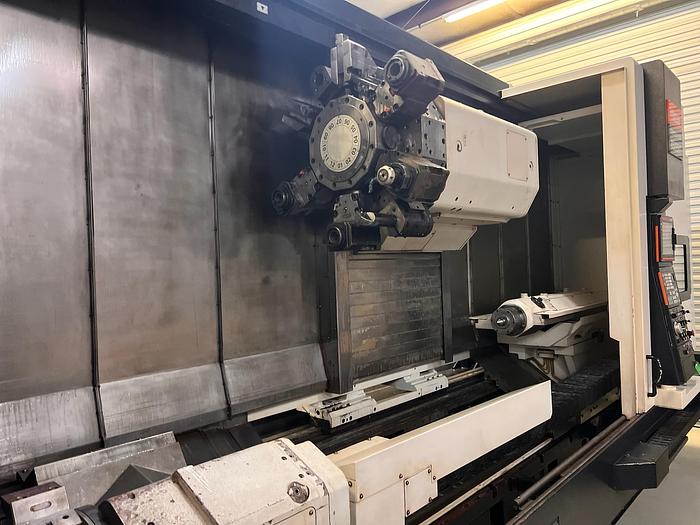

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Control |
Mazatrol PC-Fusion NC 640 MT Pro |
| Max Swing/Over Carriage |
33.88″ / 27.5 |
| Max Cutting Diameter |
31.88″ |
| Max Cutting Length |
120" (102" for Lower Turret) |
| X Axis Travel |
21.375″ |
| X2 AxisTravel |
9.06" Lower Turret |
| Z Axis Travel |
123.2" (100.4" Lower Turret) |
| Spindle Bore |
10.5" |
| Spindle Speeds-2 Ranges |
1000 RPM |
| Spindle Motor HP |
50 HP |
| Rotary Tool Speed |
3,000 RPM |
| Rotary Tool HP / Spindle Torque |
15 HP / 103 FT/LBS |
| Number of Turret Positions - All Live |
12 POS TRT |
| Lower Turret |
8 Position Turning |
| Rapid Traverse Rates |
X / Z 945/ 1181 IPM |
| Tailstock / Max Body Travel |
MT #5 / 100.4″ |
Features
|
(1) Spare GeoBrick |
(1MB for Mazatrol/EIA) |
|
12.1 inch Color TFT Display |
12.1″ COLOR LCD |
|
213 PSI/ 2.5 GPM |
48 Alphanumeric Characters for Program Name (Mazatrol) |
|
8 Figure Program Number (EIA) |
Barrier Protection (Set via Parameters) |
|
C-Axis 0.001 Degree Incr. |
Data Input/Output: I C Memory Card Interface (Download/Save Only) |
|
High Power Coolant 213 PSI/ 2.5 GPM |
Hinge Type Chip Conveyor |
|
Machining Navi-Monitor – Prediction/Monitor/Results |
Main Spindle Motor AC Programmable Tailstock |
|
Manual 3 Jaw Chuck with 8" Bore |
Mazak Tapping Tornado (Mazatrol) |
|
Mazatrol and EIA/ISO Programming Language |
PCMCIA I/F (2-SLOT |
|
CARD BUS) |
Prep for Rear Chuck & Syl & Spin Jog Button |
|
Program Registration (HD: 1GB for drip feed EIA/ISO) |
ROTARY-TOOL SPINDLE SPEED 3000 RPM |
|
RS-232 C |
SMW BB-N-600-275-3 Big Bore |
|
Spindle Bore 12.5" |
Tool Eye Measurement for Upper and Lower Turret (Mazatrol) |
|
Tool Life Monitoring (Mazatrol) |
Tool Wear Compensation (Mazatrol) |
|
Variable Feed Rate Control (Mazatrol) |
Background Tool Path Check |
|
Re-Threading |
Milling Spindle Synchronous Tapping |
|
3.5" Floppy Disc Drive |
Thread Point Start Compensation |
|
Tool Eye (Automatic) |
Hydraulic Pressure Interlock |
|
Multitap Transformer |
N-EIA/ISO Option Package |
|
Operator Door Interlock with Lock-Switch |
