| Year | 2007 |
|---|---|
| Make | Matsuura |
| Model | MAM 72-63V |
Description |
CNC Vertical Machining Center |
| Reference # | 8076654 |

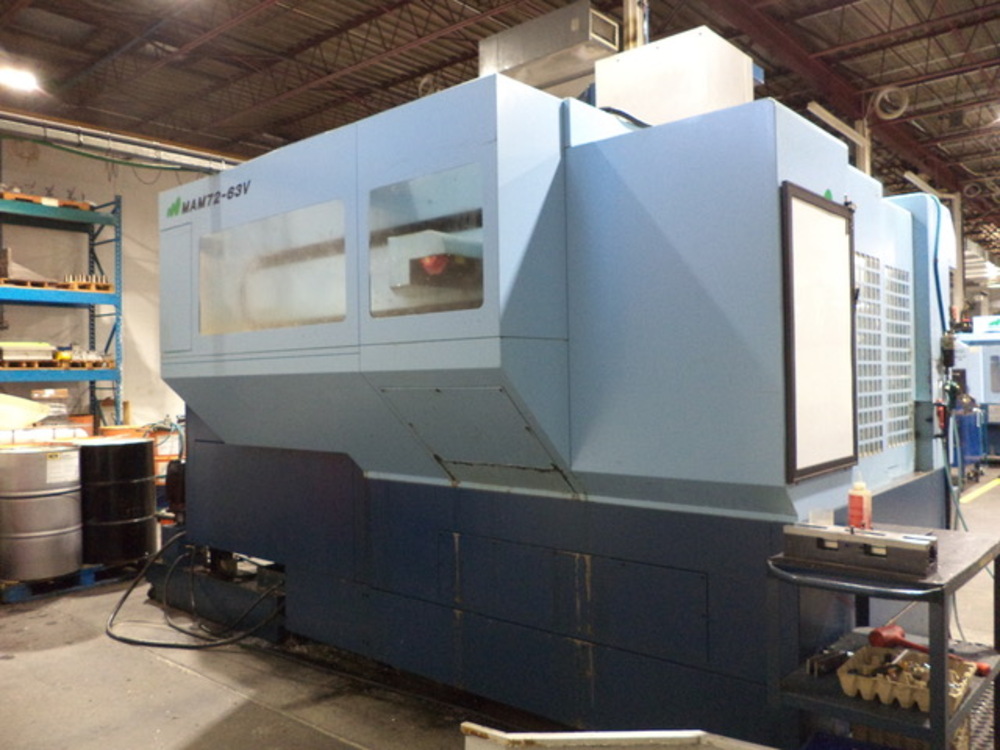

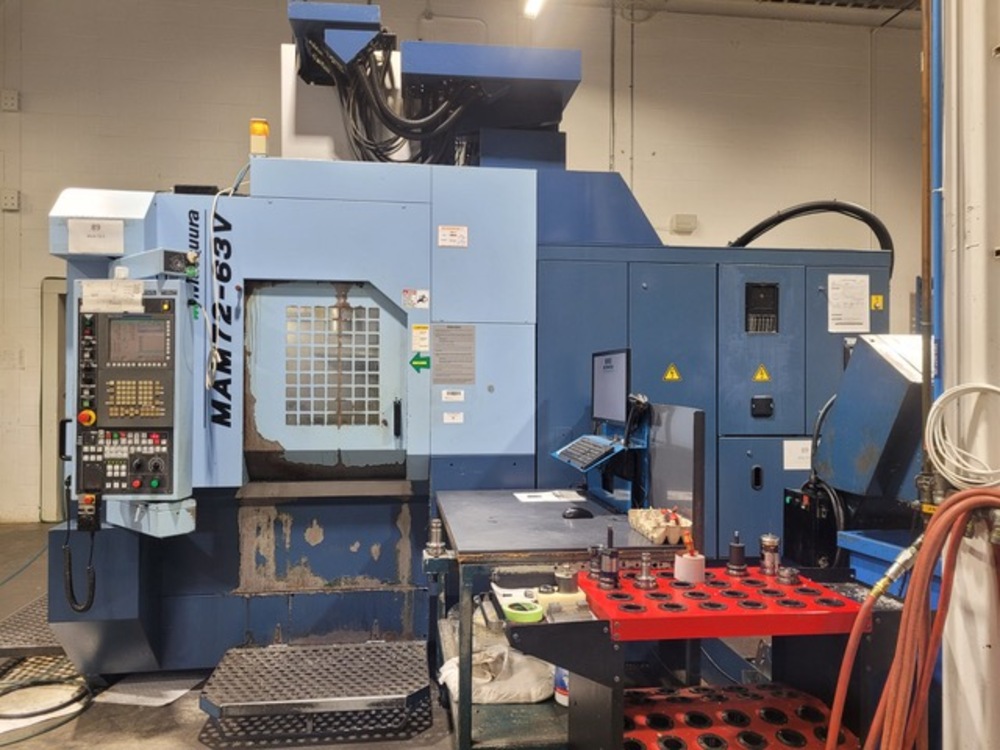

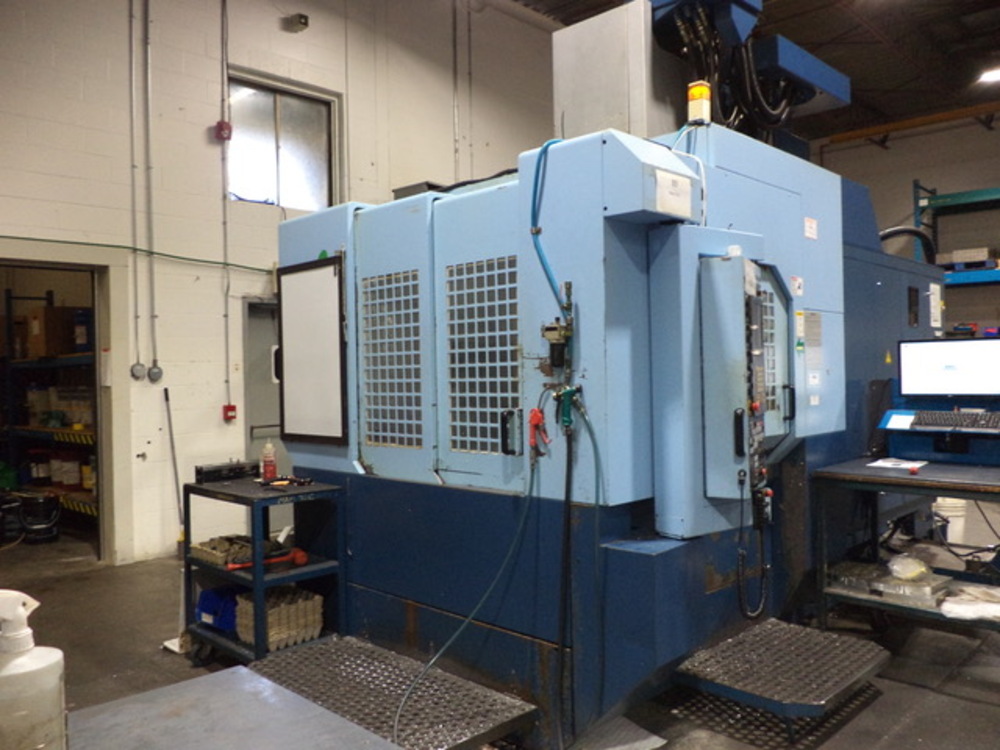

Used Matsuura MAM 72-63V (2007) CNC Vertical Machining Center for Sale. This pre-owned Matsuura CNC vertical mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Matsuura Vertical Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
29.92" |
|---|---|
| Y-Axis Travel |
33.26" |
| Z-Axis Travel |
25.98" |
| A - Axis Travels |
120 +/-Deg |
| C - Axis Travels |
360 Deg |
| Rapid Rate X/Y/Z-Axis |
2,362 IPM |
| Table Size |
19.68" x 19.68" |
| Max Table Load |
882 Lbs |
| Spindle Motor |
30 HP |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Tool Changer |
40 ATC |
| Control |
Matsuura G-Tech 30I (Fanuc) |
| Dimensions |
284" x 154" × 126" |
| Weight |
31,967 Lbs |
| Chip Removal |
Chip Conveyor |

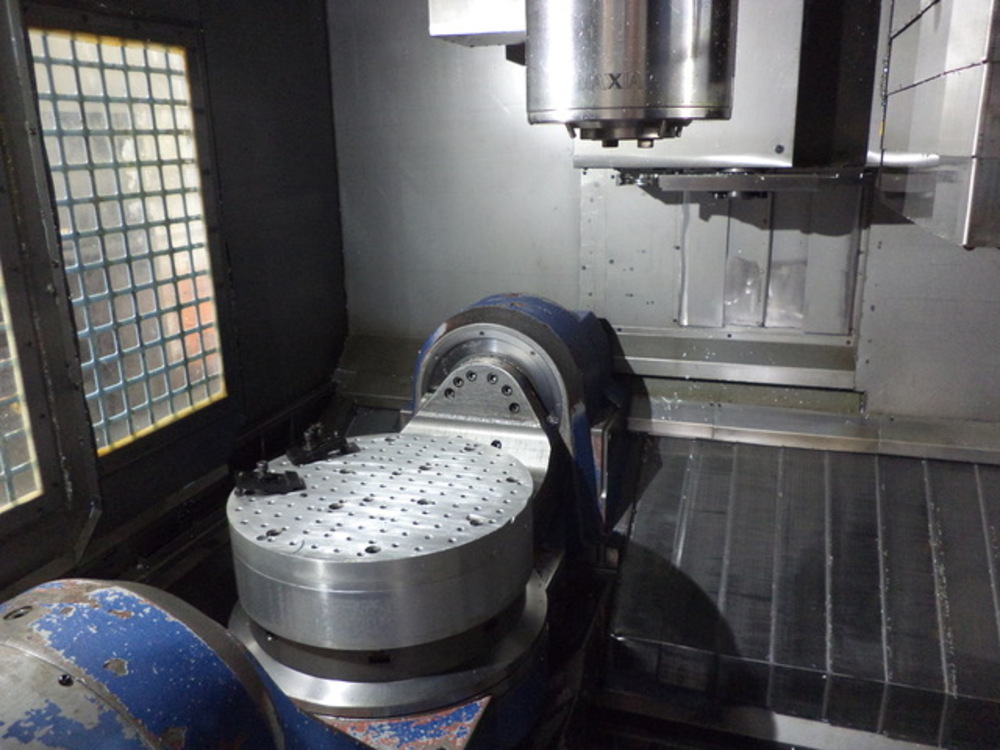

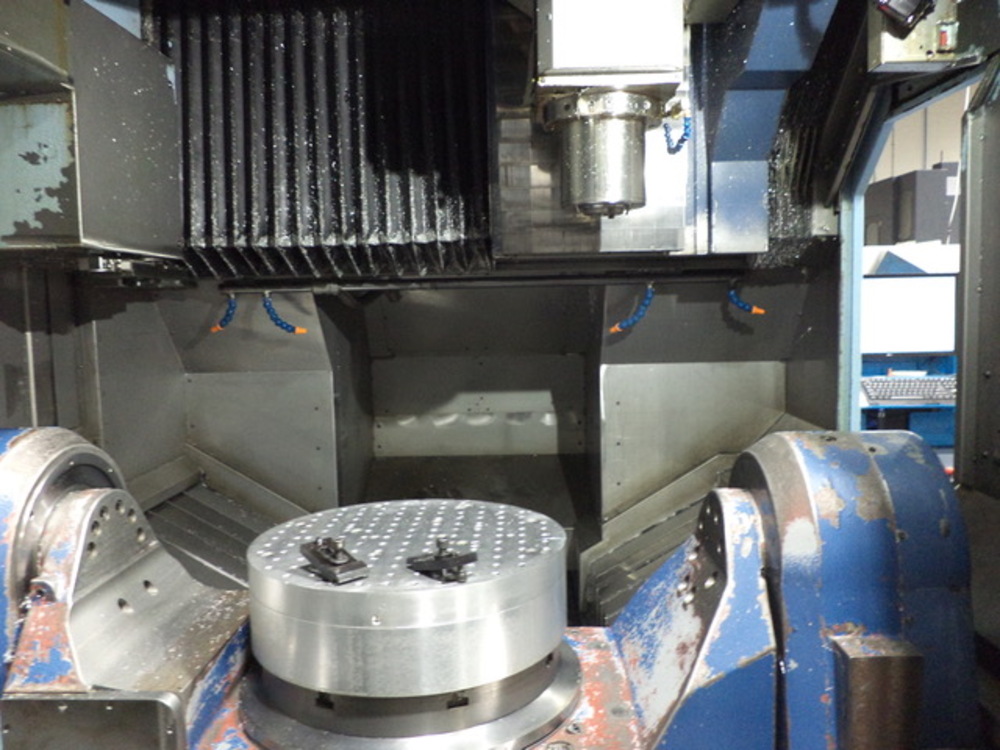

| Additional Axis |
5th Axis Trunnion Table |
| Coolant |
Coolant Thru Spindle/300 PSI Coolant Pump |
Features
|
Auto Grease Supply Unit (X/Y/Z) |
Microscraper 500 Conveyor Right Hand Side Rear Discharge |
|

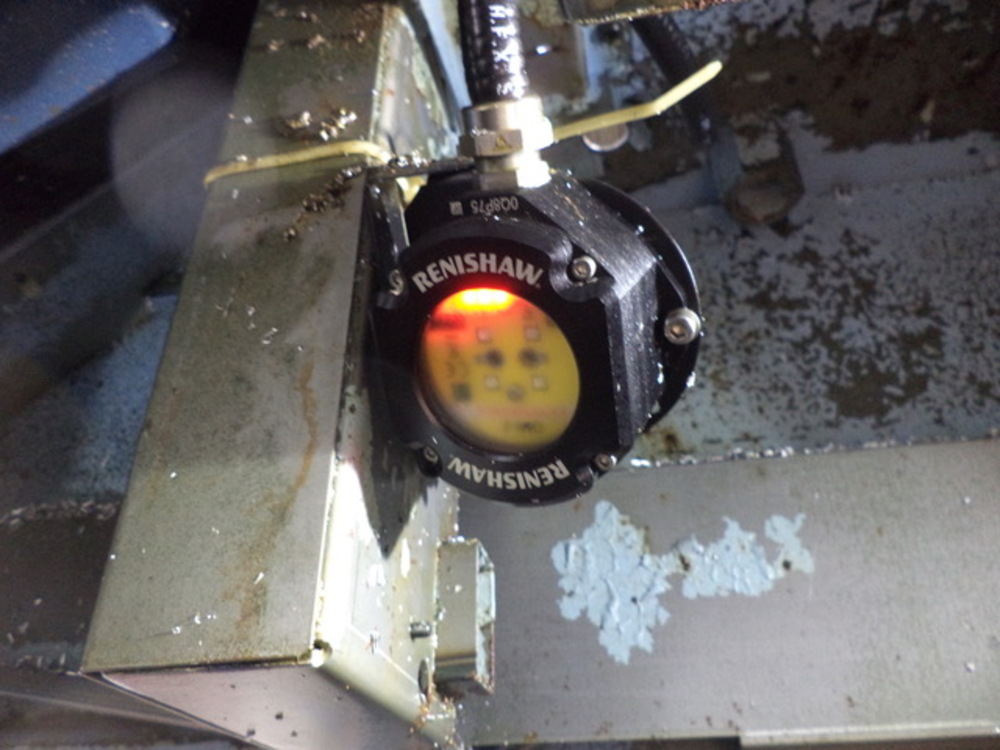

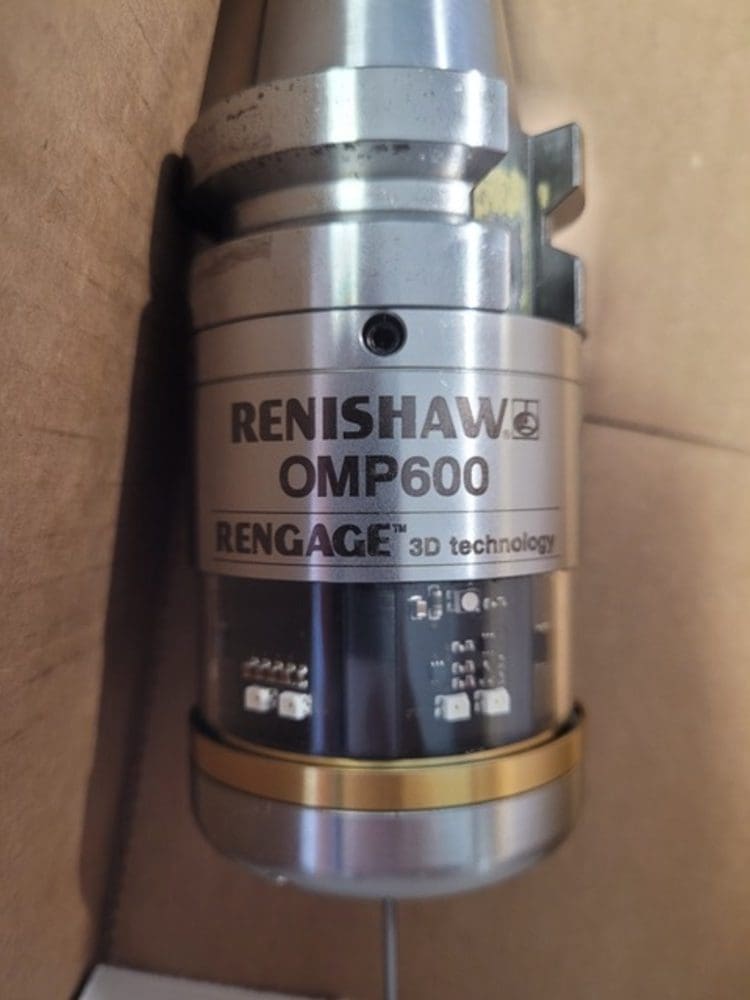

Renishaw Part Touch Probe |
Scale Feedback (X/Y/Z)/Heidenhain |
|
Full 5 Axis Simultaneous |
Data Server |
|
Rigid Tapping |
Thermal Displacement Compensation |
