| Year | 2007 |
|---|---|
| Make | Makino |
| Model | SP43 |
Description |
EDM Wire |
| Reference # | 8075178 |

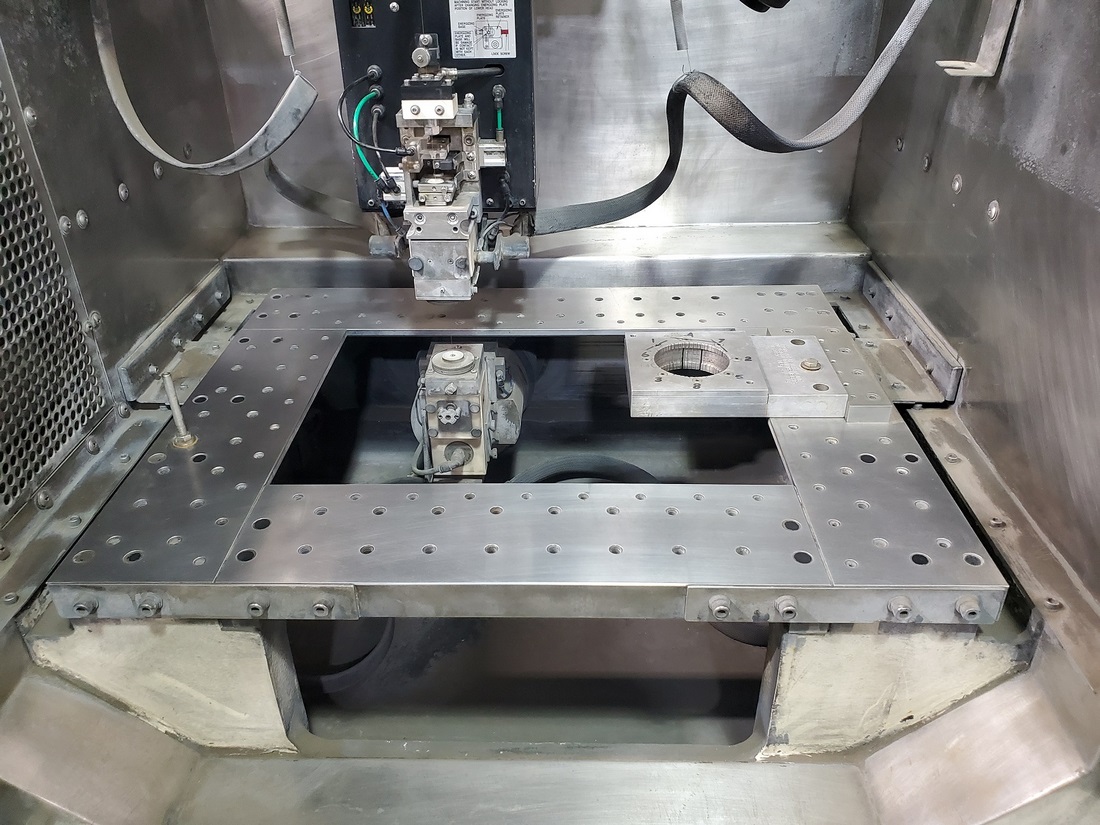

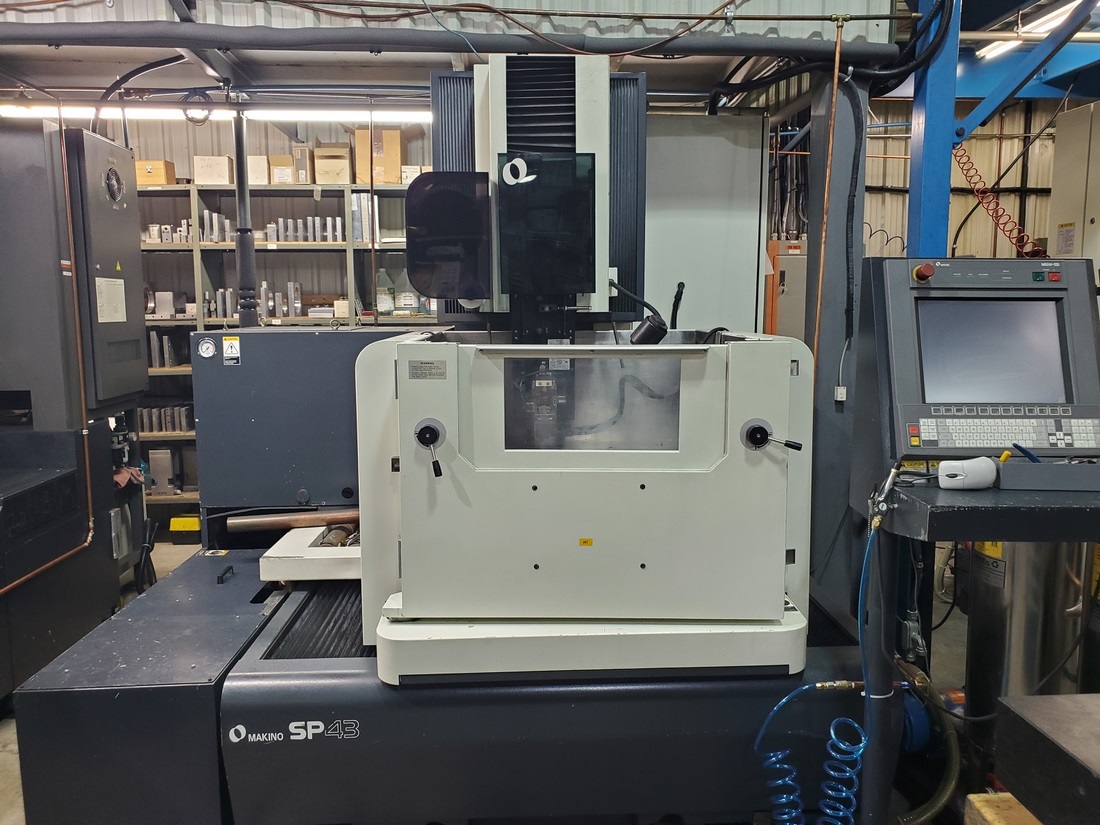

Used Makino SP43 (2007) CNC EDM for Sale. This pre-owned Makino CNC EDM wire is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Makino EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
17.72" |
|---|---|
| Y-Axis Travel |
11.81" |
| Z-Axis Travel |
12.59" |
| Control |
MGW-S 15″ Touch Screen Interface |
| Repeatability |
+/- 0.015mm |
| Position Accuracy |
+/- 0.015mm |
| Rapid Traverse Rate (U/V-Axis) |
39.37 IPM |
| Rapid Traverse Rate (X/Y/Z-Axis) |
78.74 IPM |
| Wire Feed Rate |
50-360mm/s |
| U/V Axis Travel |
3.98" |
| Table Size |
28.7″ x 22.8″ |
| Machine Dimensions |
112″L x 72″W x 95″H |
| Machine Weight with Supply Tank |
6,900 Lbs |
Features
|
15-Second Thread Time Programmable Wire Threading |

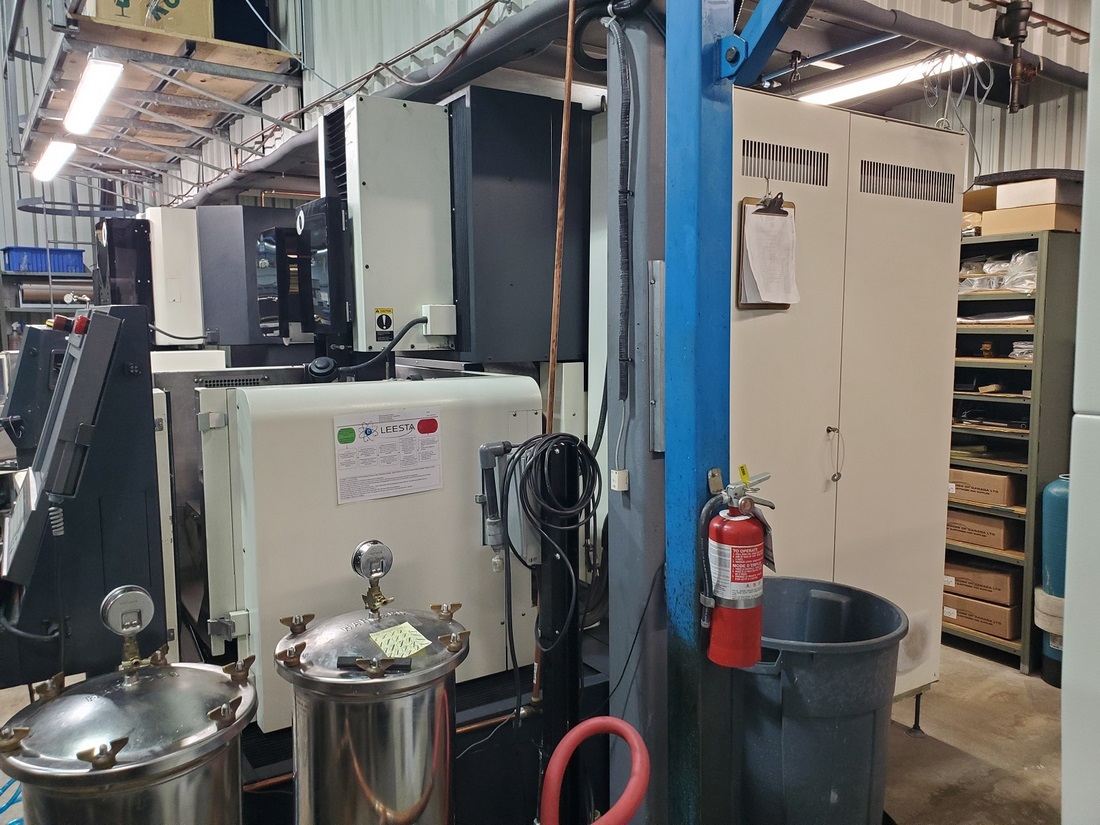

220 Gal Dielectric Supply Tank |
|
Automatic Power Failure Recovery |
Filtering System with Inside-Out Type Paper Filters (4) |
|
HEAT Technology |
Two-Piece “V” Type Wire Guide |
|
V-Flat Diamond Wire Guide |
WireWIZARD CNC Control System with EZ-Cut |
|
Auto Wire Threading |

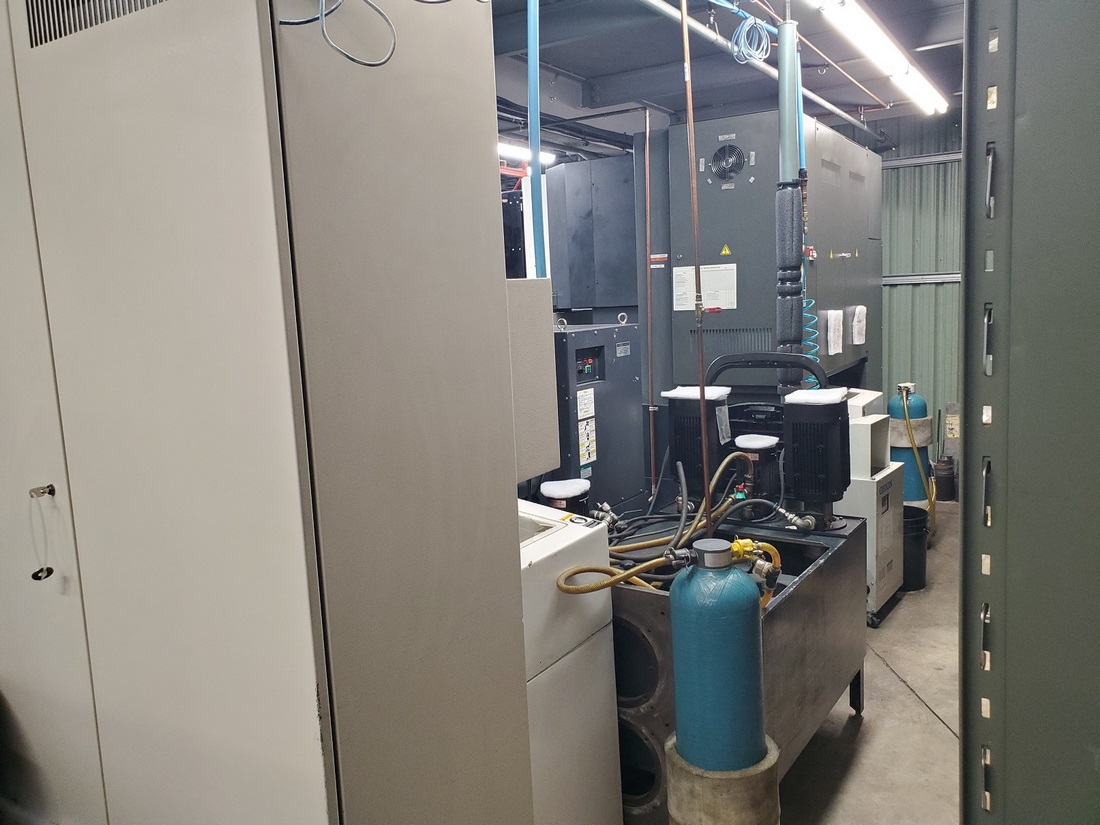

Chiller |
