| Year | 2006 |
|---|---|
| Make | Arburg |
| Model | 420C 1000-290 |
Description |
110 Ton 4.8 oz Shot Size Injection Molding Machine |
| Reference # | 8076842 |

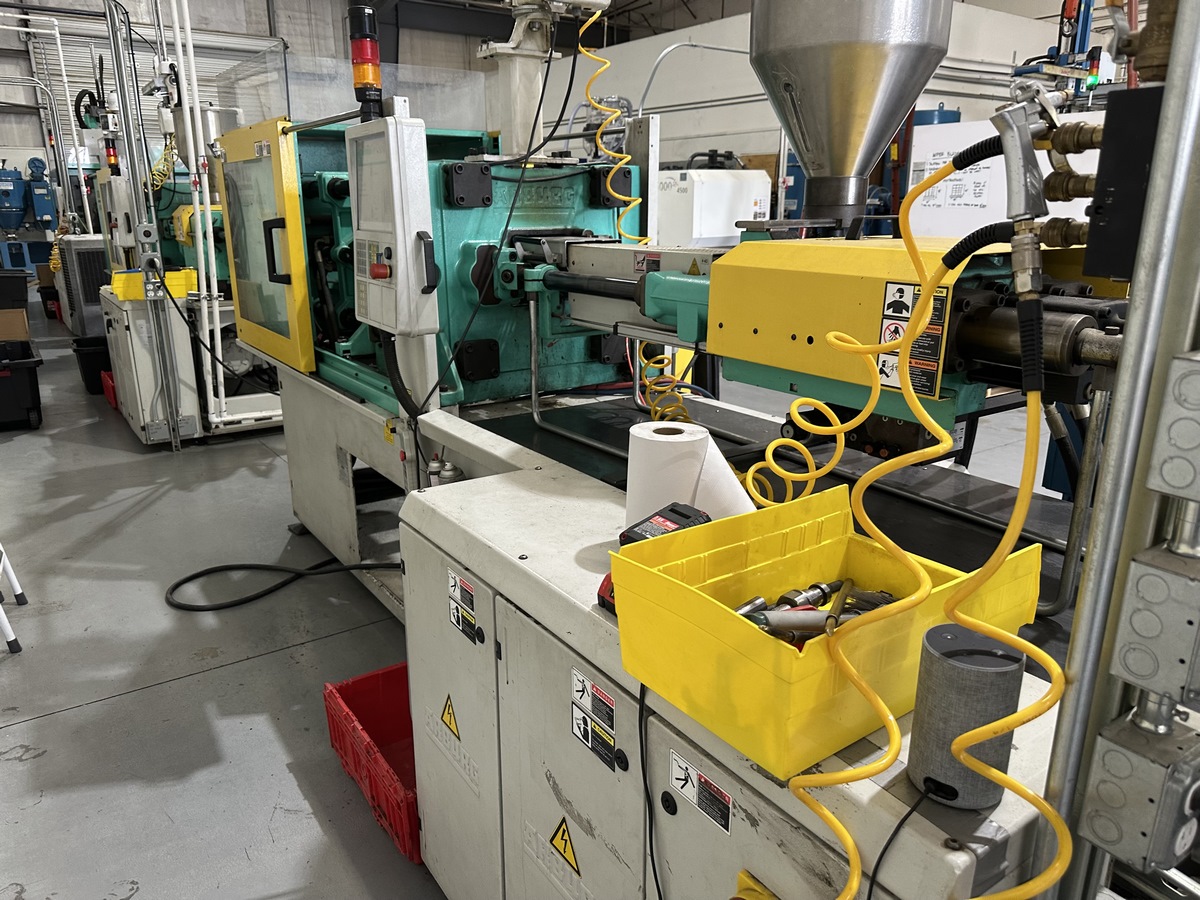

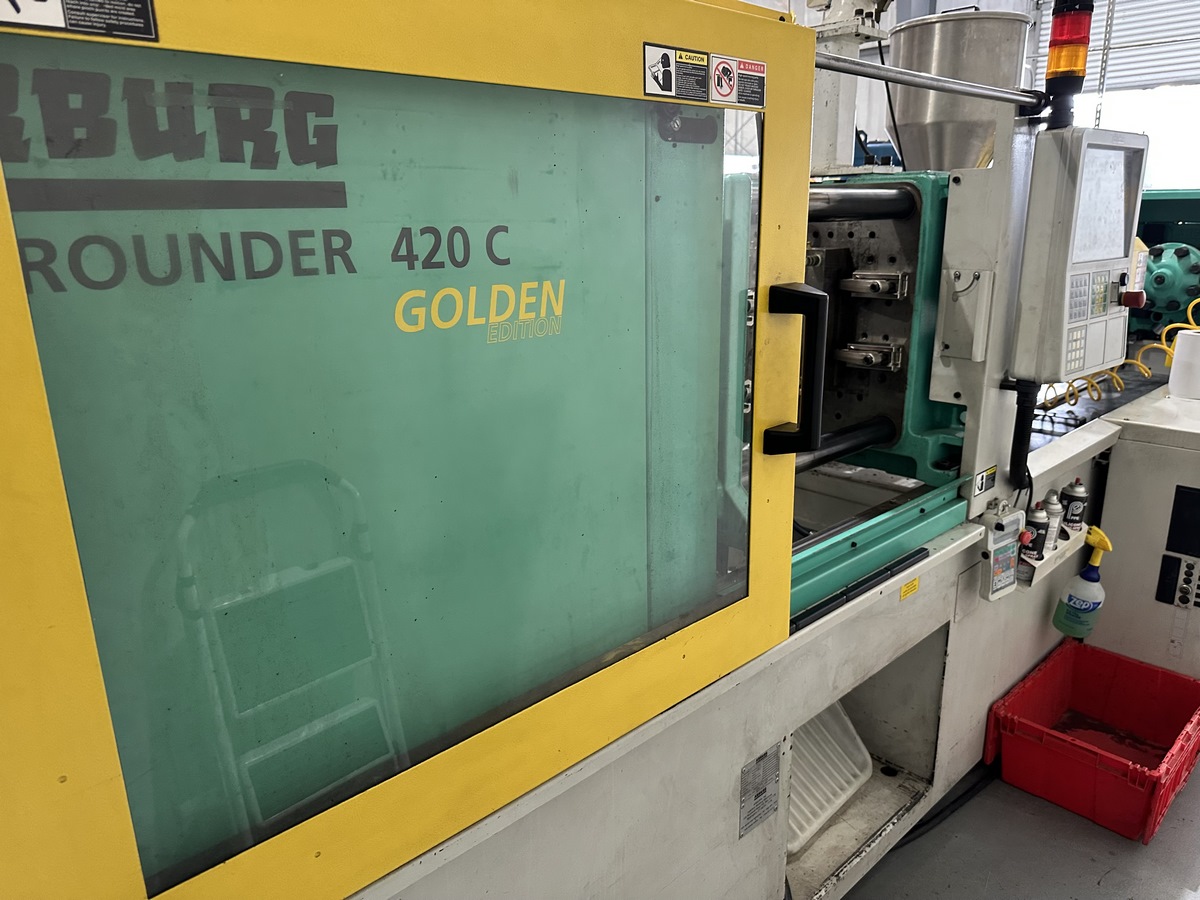

Used Arburg 420C 1000-290 (2006) Injection Molding Machine for Sale. This pre-owned Arburg plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Arburg Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
110 Ton |
|---|---|
| Shot Size |
4.8 oz |
| Tie Bar Spacing |
16.5" x 16.5" |
| Platen Size |
22.8" x 22.8" |
| Max Daylight |
29.5" |
| Min /Max Mold Height |
9.8" Min |
| Clamp Stroke |
31.5" |
| Control |
Selogica |
| Power Requirement |
460V |
| Dimensions |
170" x 64.4" x 81.6" |
| Weight |
8,030 Lbs |

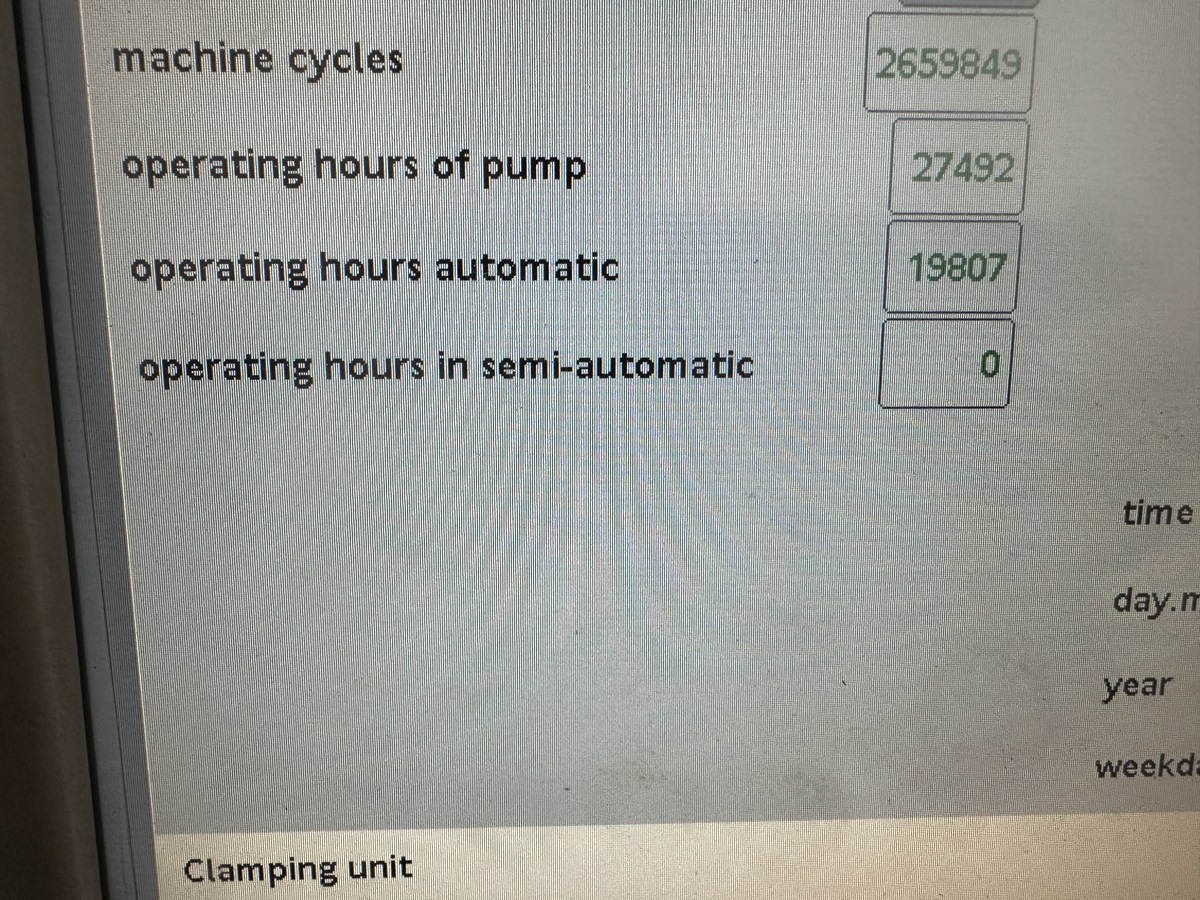

| Hours |
27,492 |
Features
|
Hydraulic Ram Clamps |
Core Pull |
|
Hydraulic Knockout |
Under Power |
*
