| Year | 2005 |
|---|---|
| Make | Mitsubishi |
| Model | ED-2000M |
Description |
EDM Hole Popper |
| Reference # | 8072100 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

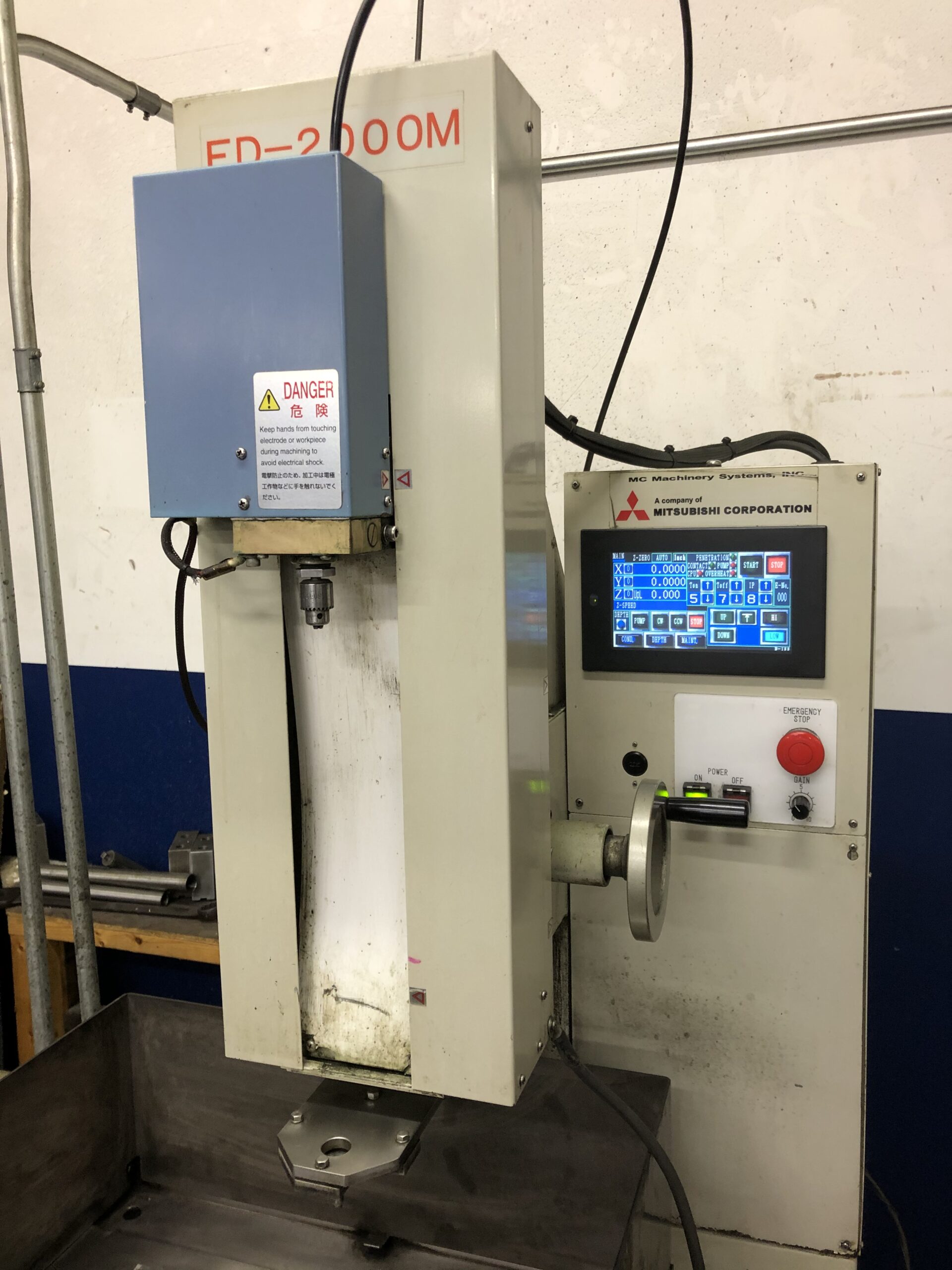

Used Mitsubishi ED-2000M (2005) CNC EDM for Sale. This pre-owned Current CNC EDM hole popper is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Current EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
11.8" |
|---|---|
| Y-Axis Travel |
7.8" |
| Z-Axis Travel |
5.9" |
| Control |

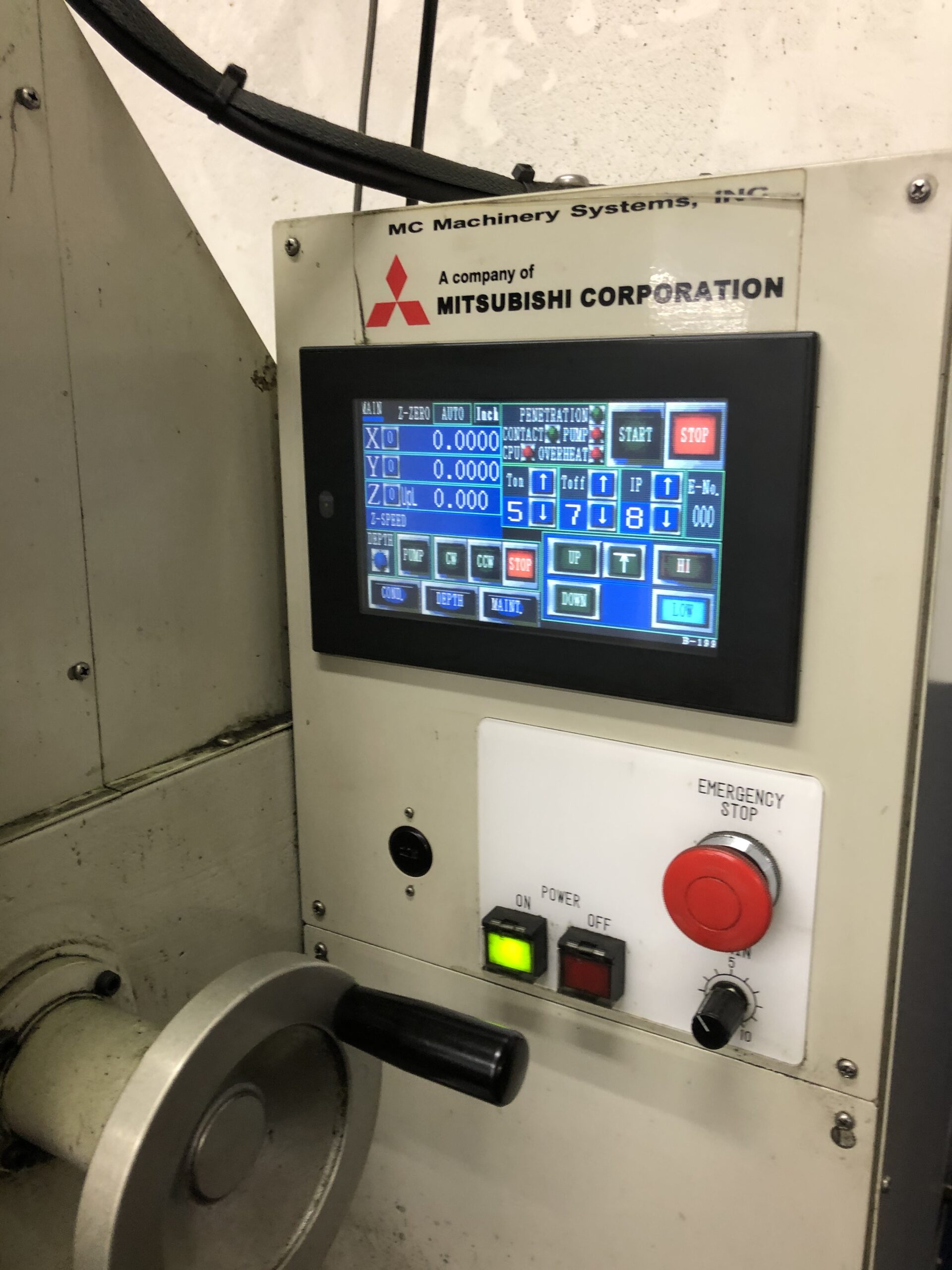

Mitsubishi Touch Screen |

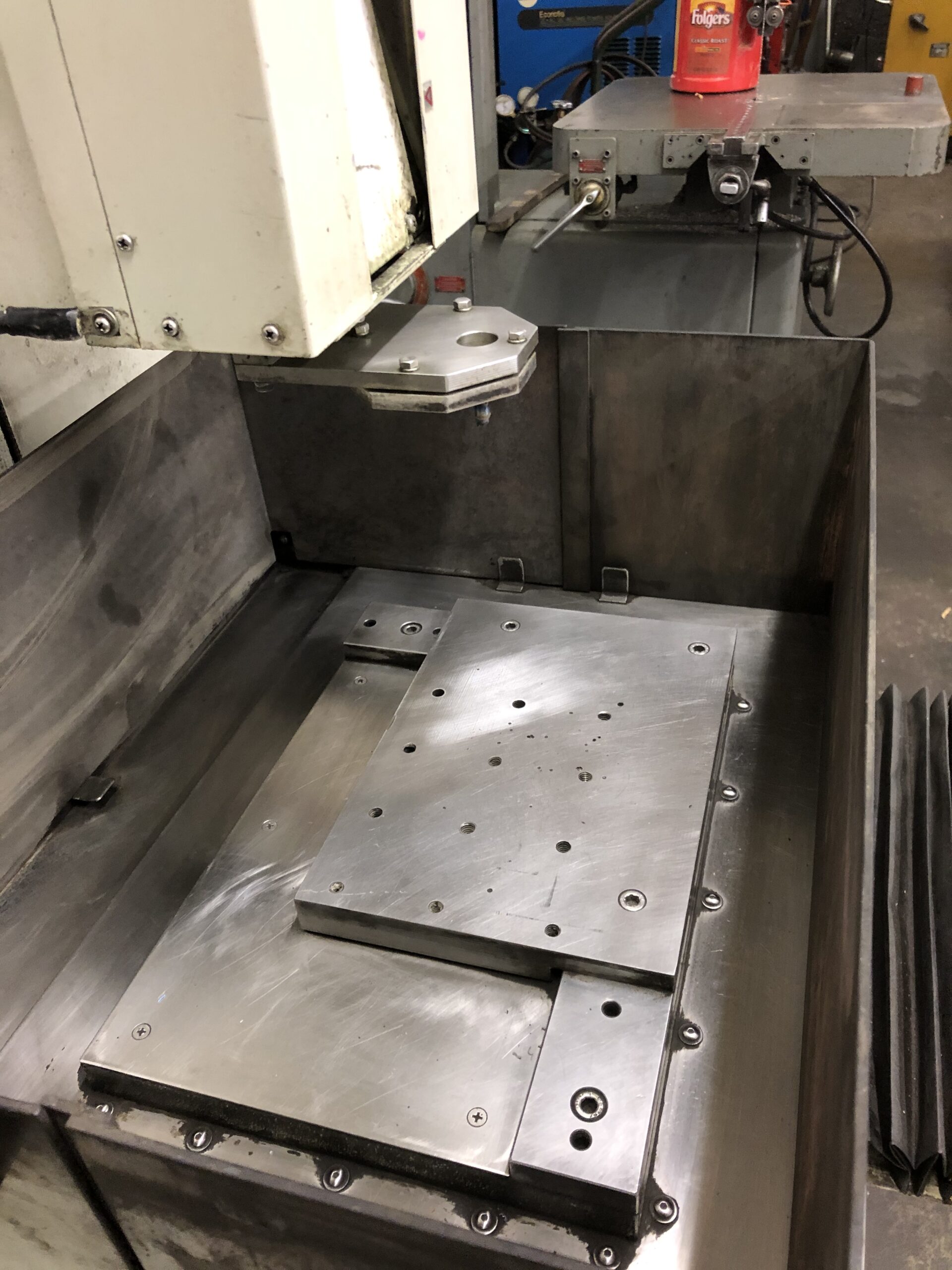

| Table Size |
18.9" x 19.2" |
| Max Workpiece Dimensions |
18.9" x 8.3" x 6.1" |
| Max Workpiece weight |
440 Lbs. |
| Ram Servo Travel |
13.6" W-Axis Electrode Max Travel |
| Electrode Diameter Capacity |
012 - .120" (.3-3.0mm) |
| Max Electrode Length |
16" |
| Dielectric Fluid Capacity |
5 Gallons / 19 Litres |
| Current (Amps) |
30 Amps |
| Servo W-Axis Electrode Feed Rate |
Max 31.5 IPM |
Features
|

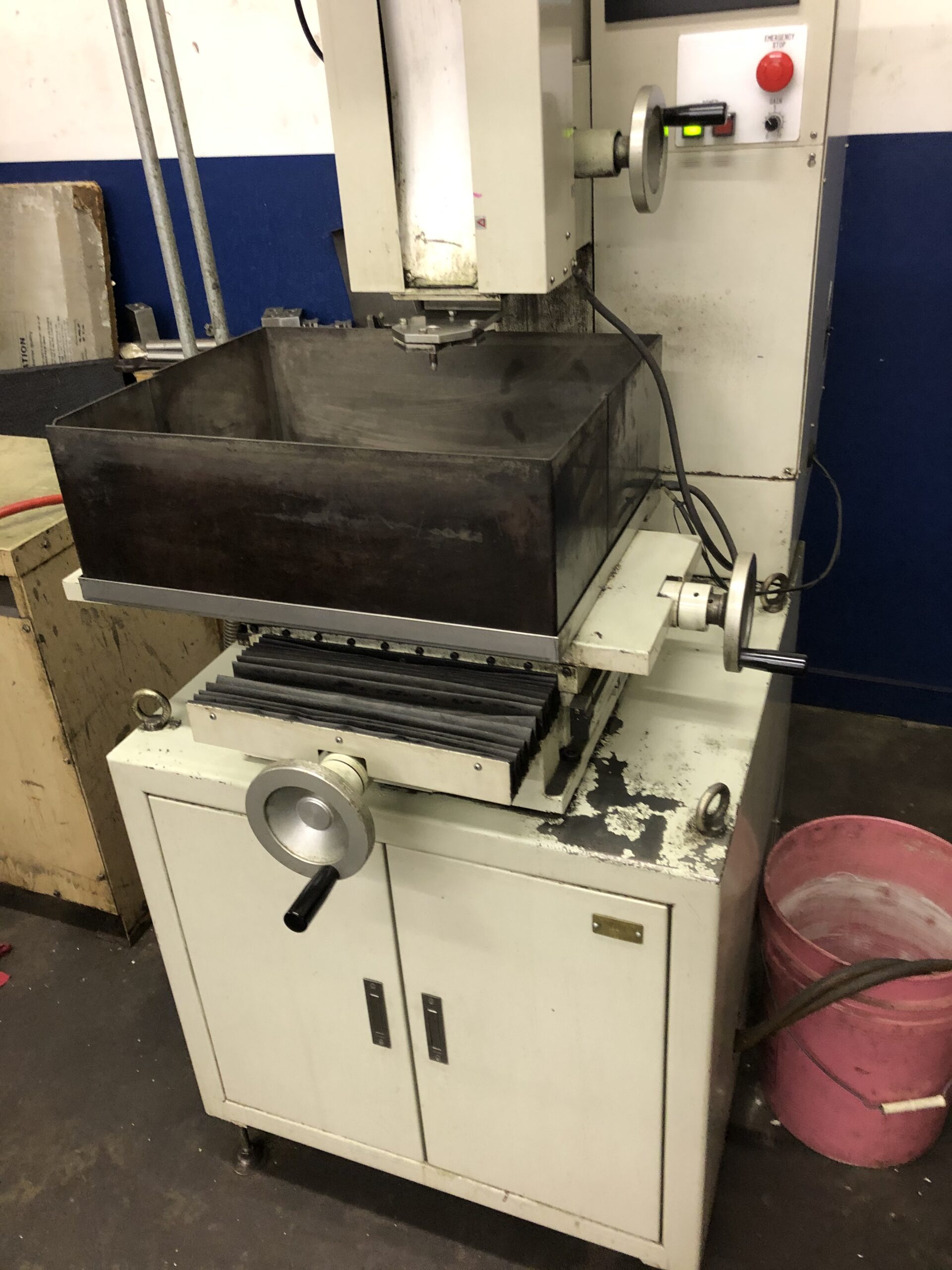

Cabinet Base |
Electrode Chuck |
|
Hand Table Feeds |
W-Axis Electrode Max Programmable Feed Length |
