| Year | 2005 |
|---|---|
| Make | Ganesh |
| Model | Cyclone 32 CS |
Description |
CNC Swiss Lathe |
| Reference # | 8076444 |

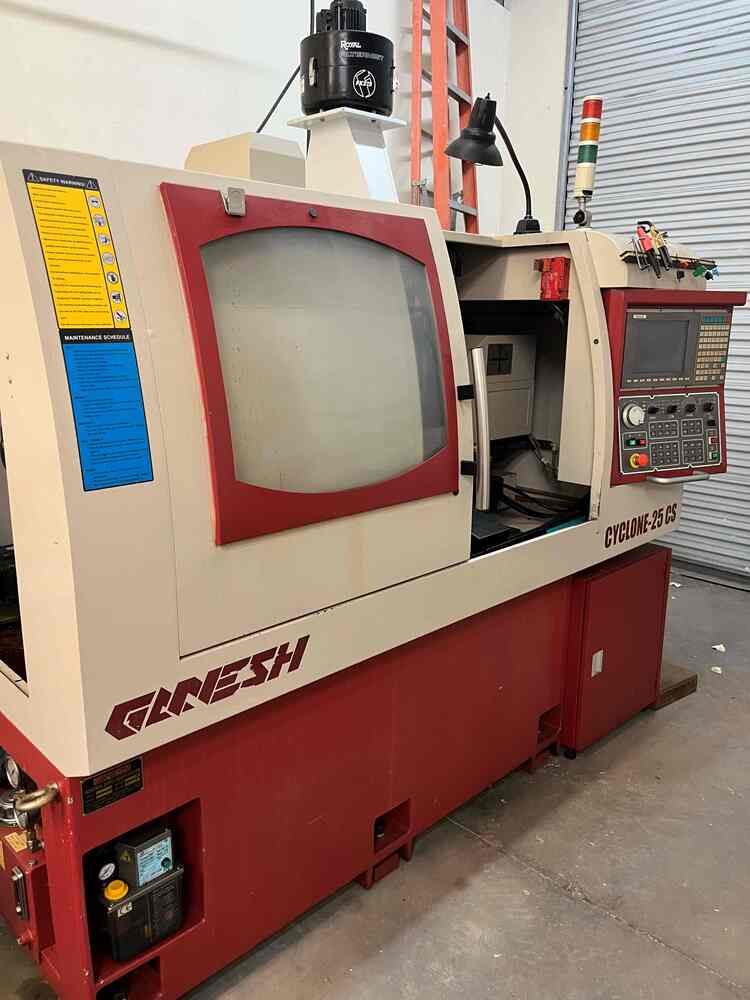

Used Ganesh Cyclone 32 CS (2005) CNC Swiss Lathe for Sale. This pre-owned Ganesh CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Ganesh Swiss Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Main & Sub Spindle Speed |
6,000 RPM |
|---|---|
| Spindle Motor |
10 HP |
| Barstock Diameter (Max) |
1.25” Standard (1.375” with Adapter) |
| X-Axis Travel |
7.28" |
| Y-Axis Travel |
19.29" |
| Z-Axis Travel |
6.50" |
| Sub Spindle Motor |
5 HP |
| Live Tool Collet Size |
ER-20 Collet |
| Max RPM for Live Tools |
4,000 RPM |
| Machine Length |
101” L (+36” for Chip Conveyor) x 68” D x 80” H |
| Machine Weight |
8,000 Lbs. |
Features
|
Air Blast Nozzle |
Finished Parts Ejector |
*
