| Year | 2004 |
|---|---|
| Make | Trumpf |
| Model | TrumaBend V170 |
Description |
187 Ton x 13.3' Hydraulic Press Brake |
| Reference # | 8075731 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

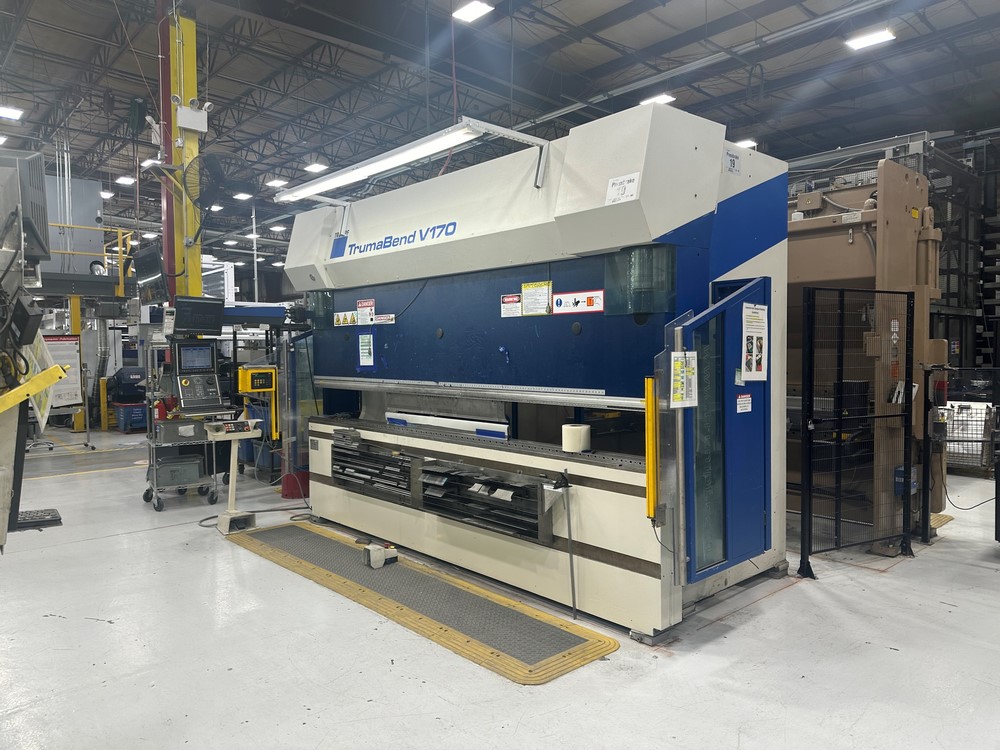

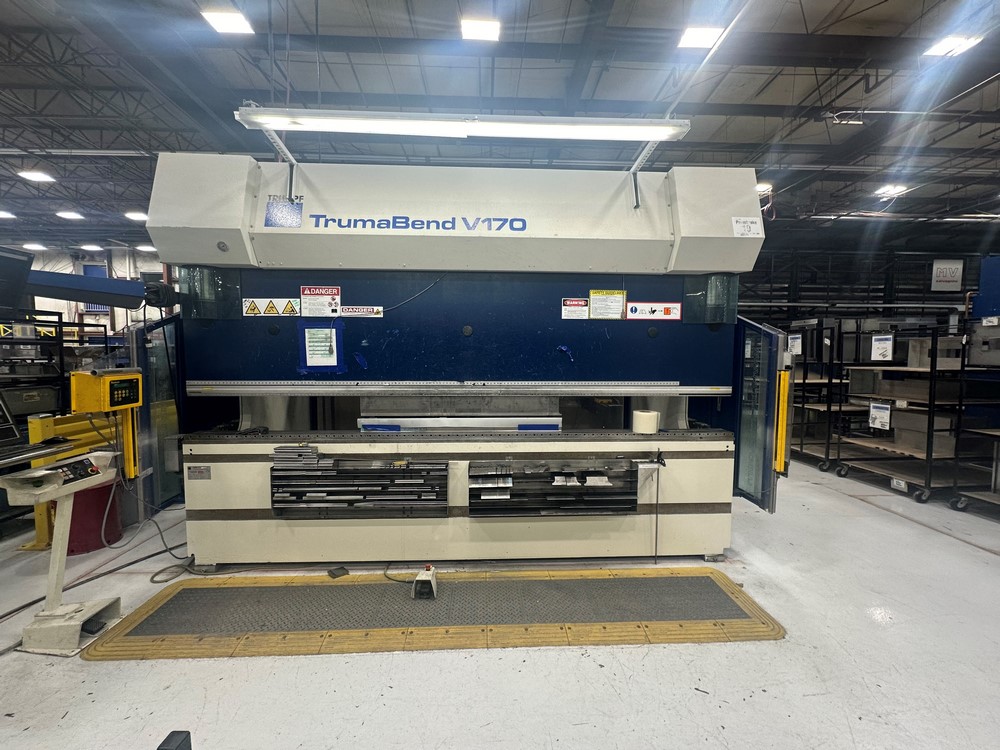

Used Trumpf TrumaBend V170 (2004) CNC Press Brake for Sale. This pre-owned Trumpf CNC press brake is located in The United States. If you have any questions regarding this Trumpf Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
187 Ton |
|---|---|
| Overall Length of Bed |
13.3' |

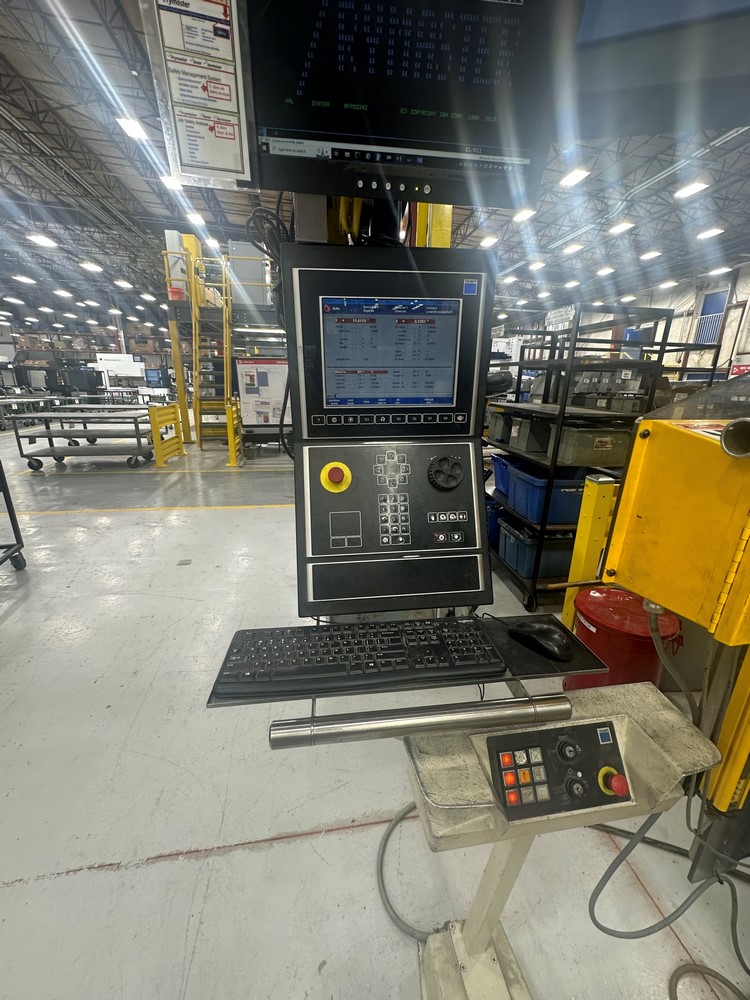

| Control |
Delem DA69-TW PC Based |
| Distance Between Housings |
144.88" |
| Stroke |
14.37" |
| Throat Depth |
16.14" |
| Rapid Approach Speed |
480 IPM |
| Bending Speed |
2 - 26 IPM |
| Return Speed |
320 IPM |
Features
|
Merlin Light Curtains |
Pedestal Foot Switch |
|
Pneumatic Die Shift |
Hydraulic Upper and Lower Clamping |
|
Independent Ram Scales (Y1-Y2) |
6-Axis CNC Back Gauge (X1 |
|
X2 |
R1 |
|
R2 |
Z1 |
|
Z2) |
CNC Crowning |
*
