| Year | 2004 |
|---|---|
| Make | Sodick |
| Model | AQ-535L |
Description |
EDM Wire |
| Reference # | 8072569 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

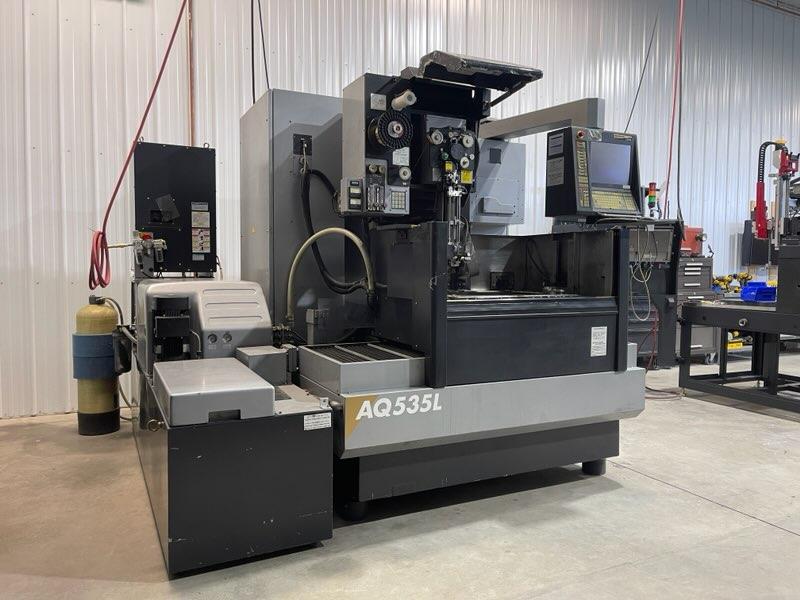

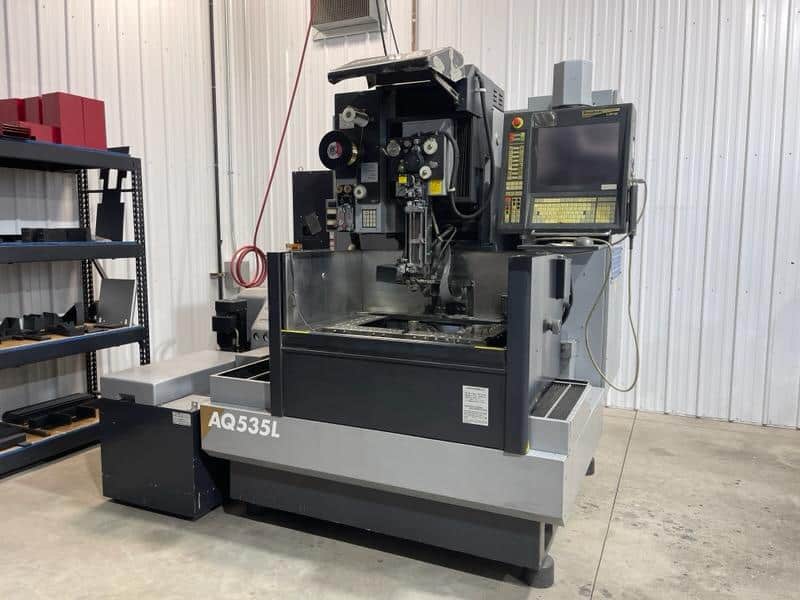

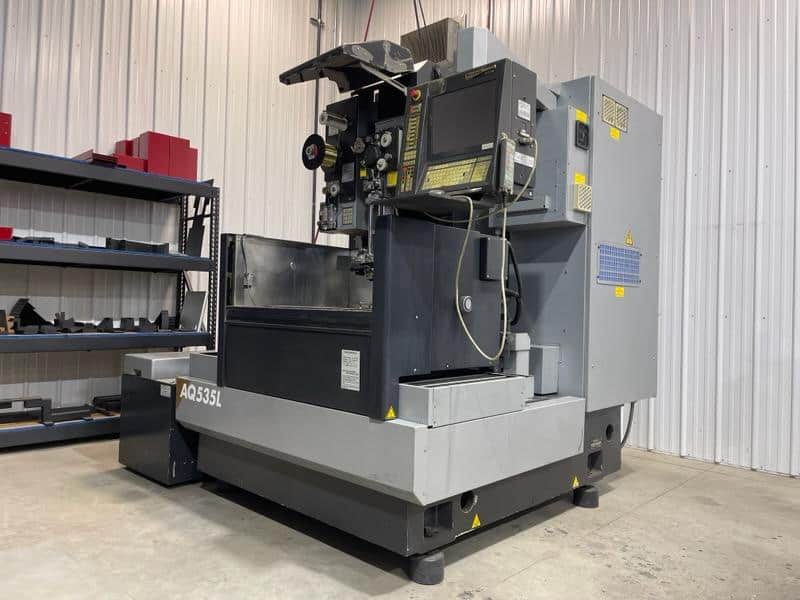

Used Sodick AQ-535L (2004) CNC EDM for Sale. This pre-owned Sodick CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Sodick EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
21.6" |
|---|---|
| Y-Axis Travel |
13.7" |
| Z-Axis Travel |
11.8" |
| Control |
LQ1W |
| U/V Axis Travel |
3" x 3" |
| Degree Taper Cutting |
+/- 20 Degrees @ 3.01" |
| Inside Tank Dimensions |
43.3" x 28.3" |
| Power Requirement |
200-230/3/60 |
| Max. Wire Feed Speed |
16.54 IPS |
| Wire Diameter |
.006" - .019" |
| Max. Wire Spool Volume |
17.64 Lbs |
| Max. Workpiece Height |
8.66" |
| Max. Workpiece Weight |
1,760 Lbs |
| Distance From Floor to Table Top |
39.37" |
| Machine Tool Weight |
9,500 Lbs |
| Machine Tool Dimension (WxDxH) |
78" x 93" x 93" |
Features
|
Auto Wire Threading |
Chiller |
|
3-23 N Wire Tension |
Wire Chopper |
|
X/Y/Z/U/V Glass Scale Feedback |
*
