| Year | 2004 |
|---|---|
| Make | Hydmech |
| Model | H-20 |
Description |
Horizontal Band Saw |
| Reference # | 8075623 |
Price |
Activate PricingInquire Now |

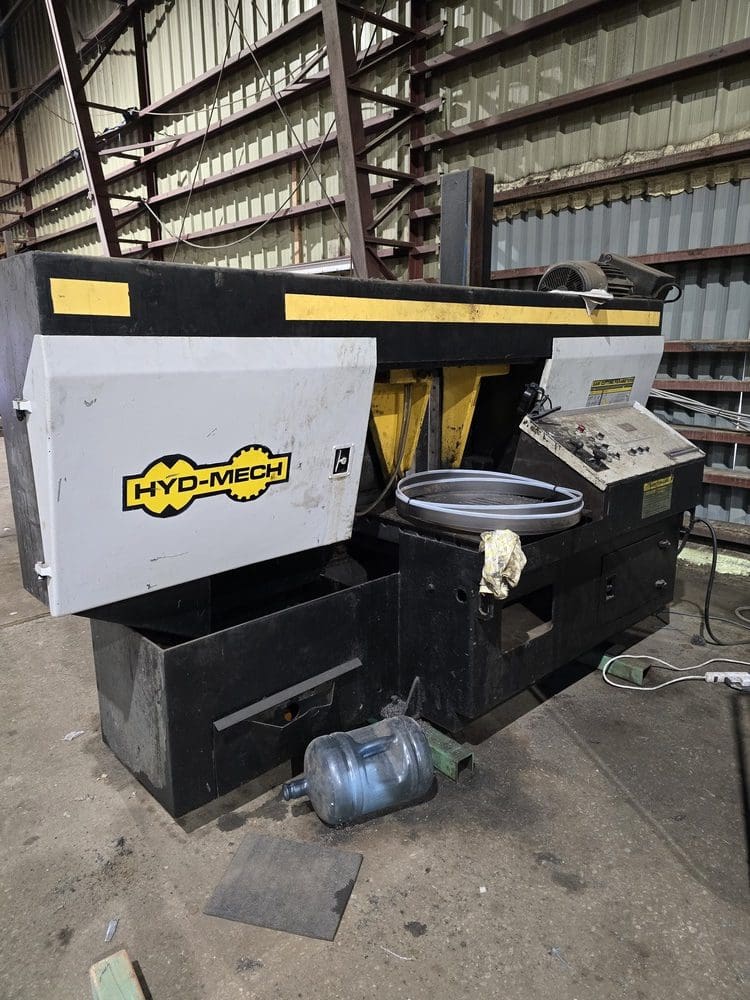

Used Hydmech H-20 Saw for Sale. This pre-owned Hydmech automatic horizontal bandsaw is located in The United States. If you have any questions regarding this Hydmech Saw, please feel free to contact us. You may Activate Pricing to view the price of this Saw, or request a quote by clicking on the Inquire Now button.

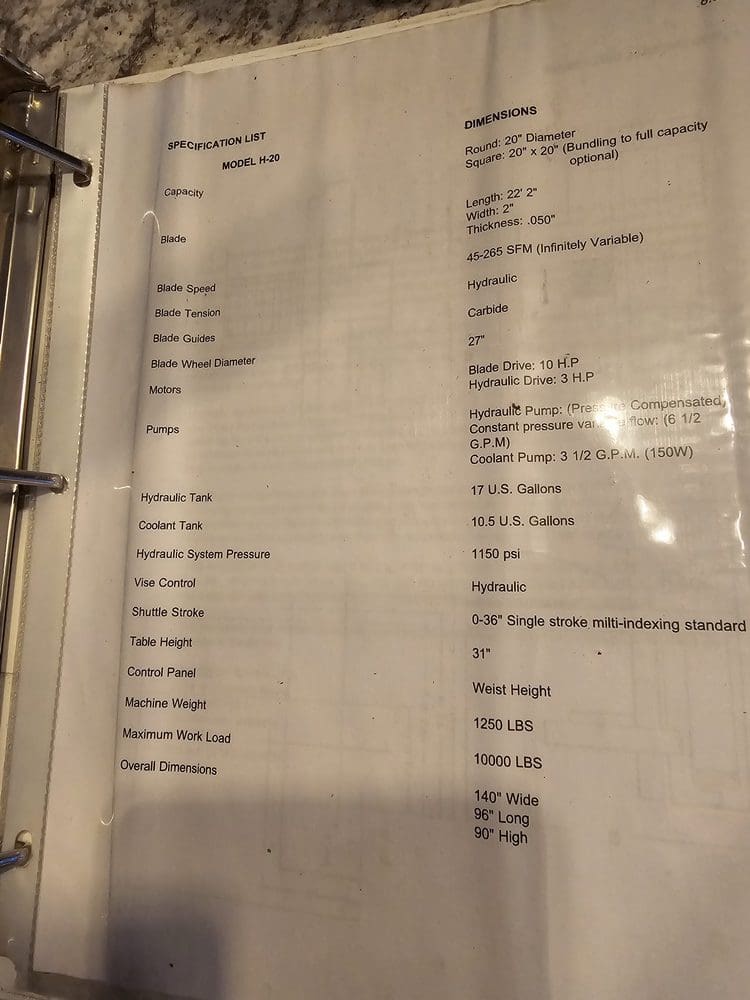

Specifications
| Round Capacity |
20" Diameter |
|---|---|
| Square Capacity |
20" X 20" (bundling to full capacity optional) |
| Blade Length |
22' 22" |
| Blade Width |
2" |
| Blade Thickness |
0.050" |
| Blade Speeds |
45-265 SFM (Infinitely Variable) |
| Blade Tension |
Hydraulic |
| Blade Guides |
Carbide |
| Blade Wheel Diameter |
27" |
| Motors (Blade Drive) |
10 HP |
| Motors (Hydraulic Drive) |
3 HP |
| Coolant Pump |
3 1/2 G.P.M. (150W) |
| Hydraulic Tank |
17 U.S. Gallons |
| Coolant Tank |
10.5 U.S. Gallons |
| Hydraulic System Pressure |
1,150 PSI |
| Vise Control |
Hydraulic |
| Shuttle Stroke |
0-36" Single Stroke Multi-Index Standard |
| Table Height |
31" |
| Machine Weight |
1,250 Lbs |
| Maximum Work Load |
10,000 Lbs |
| Overall Dimensions |
140" W X 96" L X 90" H |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
