| Year | 2003 |
|---|---|
| Make | Nissei |
| Model | FV9200/860-600L |
Description |
943 Ton 201.2 oz Shot Size Injection Molding Machine |
| Reference # | 8074221 |

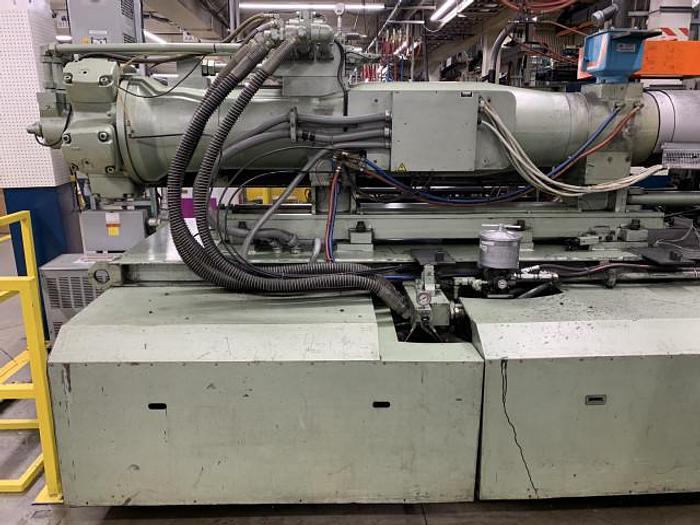

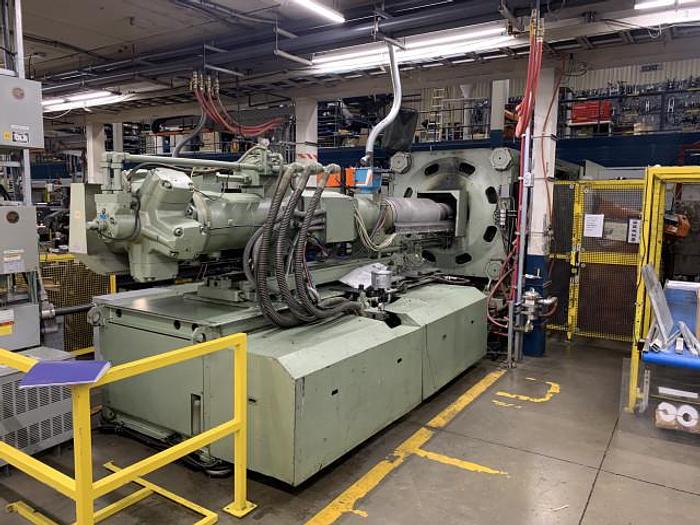

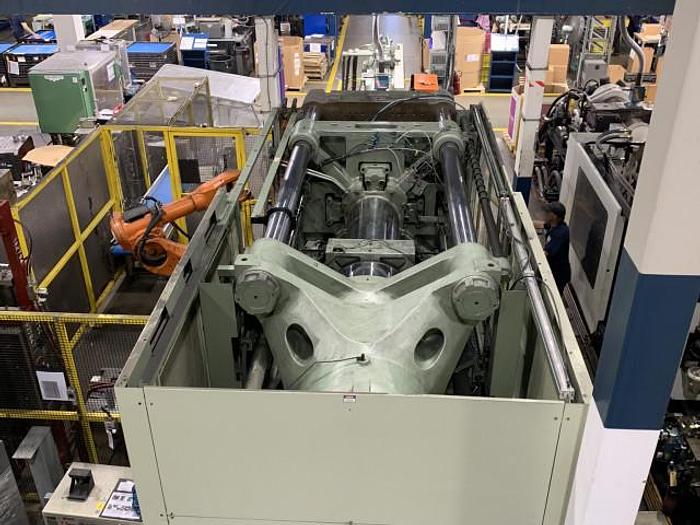

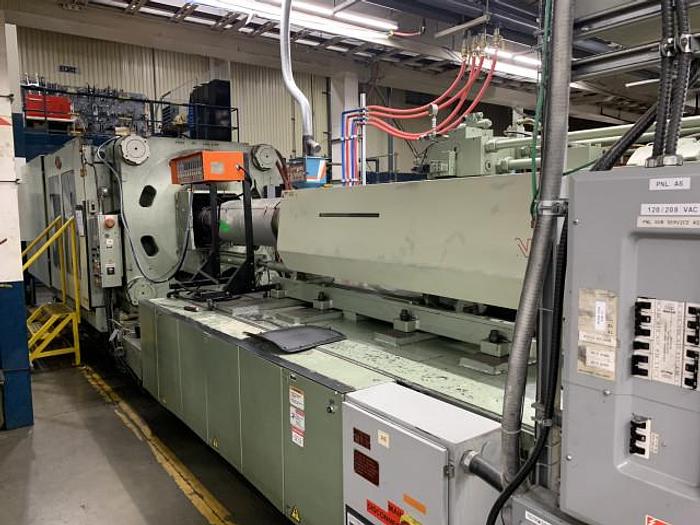

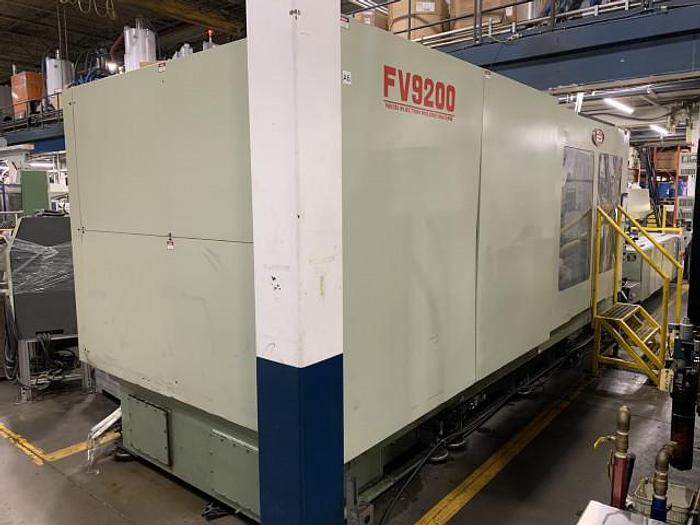

Used Nissei FV9200/860-600L (2003) Injection Molding Machine for Sale. This pre-owned Nissei plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Nissei Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
943 Ton |
|---|---|
| Shot Size |
201.2 oz |
| Tie Bar Spacing |
52.4" x 52.4" |
| Platen Size |
70.8" x 70.8" |
| Min / Max Mold Thickness |
19.7"/42.3" |
| Max Daylight |
88.9" |
| Clamp Stroke |
46.2" |
| Ejector Stroke |
7.8" |

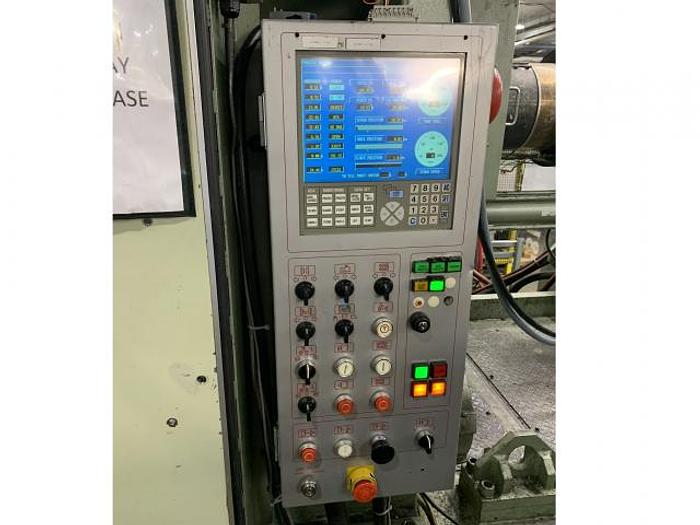

| Control |
NC9300T |

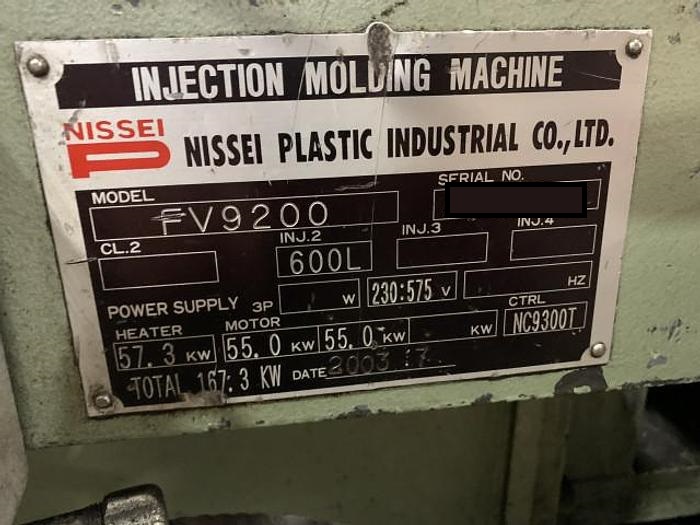

| Power Requirement |
575/3/60 |

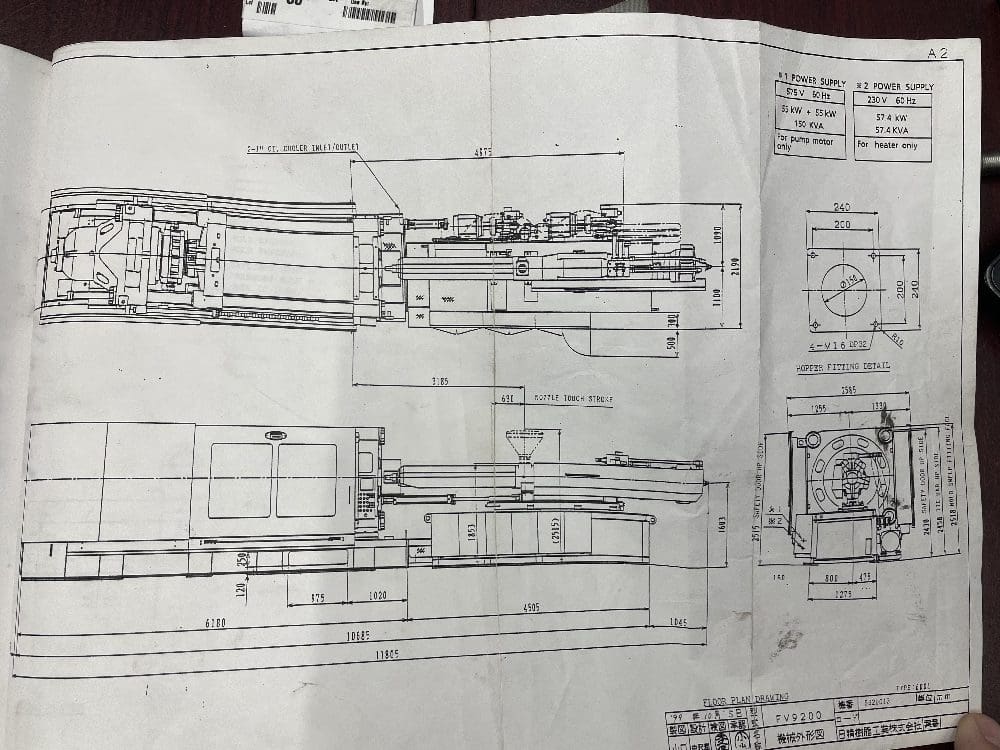

| Dimensions |
39" L x 7'3" W |
| Weight |
84,000 Lbs |
Features
|
Air Blow |
Dual Core Pull |
|
Under Power |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
