| Year | 2003 |
|---|---|
| Make | Daewoo |
| Model | Puma V550 |
Description |
CNC Vertical Turret Lathe |
| Reference # | 8075826 |

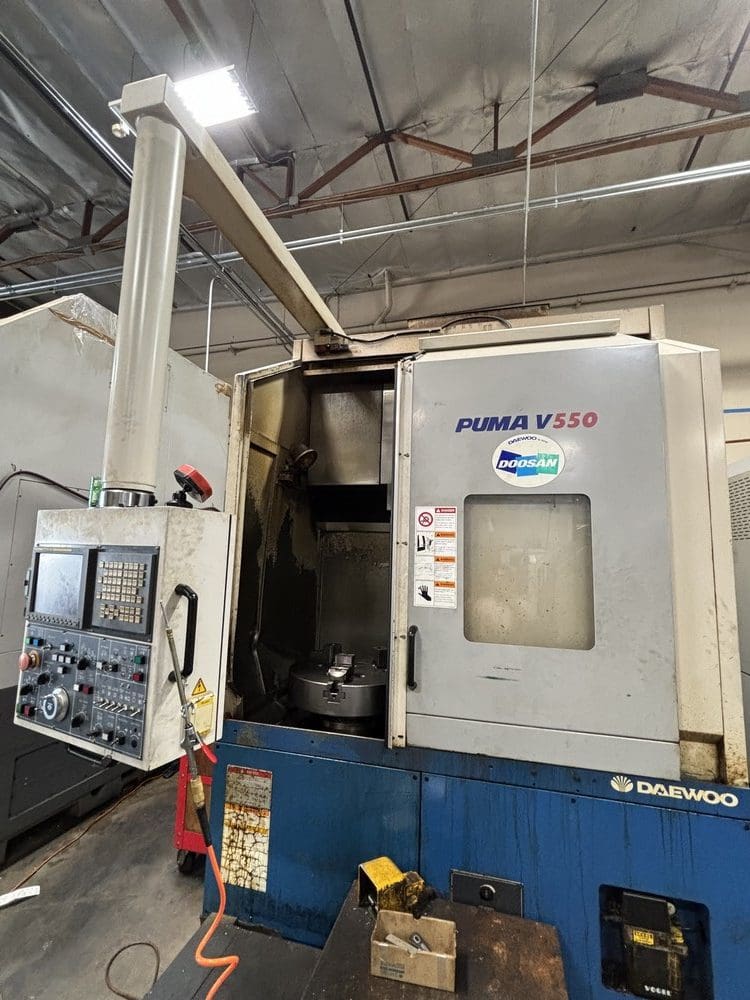

Used Daewoo Puma V550 (2003) CNC Vertical Turret Lathe for Sale. This pre-owned Daewoo CNC vertical turret lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Daewoo Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
24" |
|---|---|
| Swing |
31.5" |
| Turning Diameter |
28.7" |
| Spindle Speed |
2,000 RPM |
| Control |
Fanuc 18iTB |
| Distance Between Centers |
29.5" |
| Turret |
10 Station |
| Chip Removal |
Chip Conveyor |
| X-Axis Travel |
15.4" |
| Z-Axis Travel |
31" |
| Spindle Motor |
50 HP |
| Machine Weight |
19,850 Lbs. |
| Machine Size |
75" L x 107" W x 128" H |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
