| Year | 2003 |
|---|---|
| Make | AgieCharmilles |
| Model | Robofil 240 |
Description |
EDM Wire |
| Reference # | 8074580 |

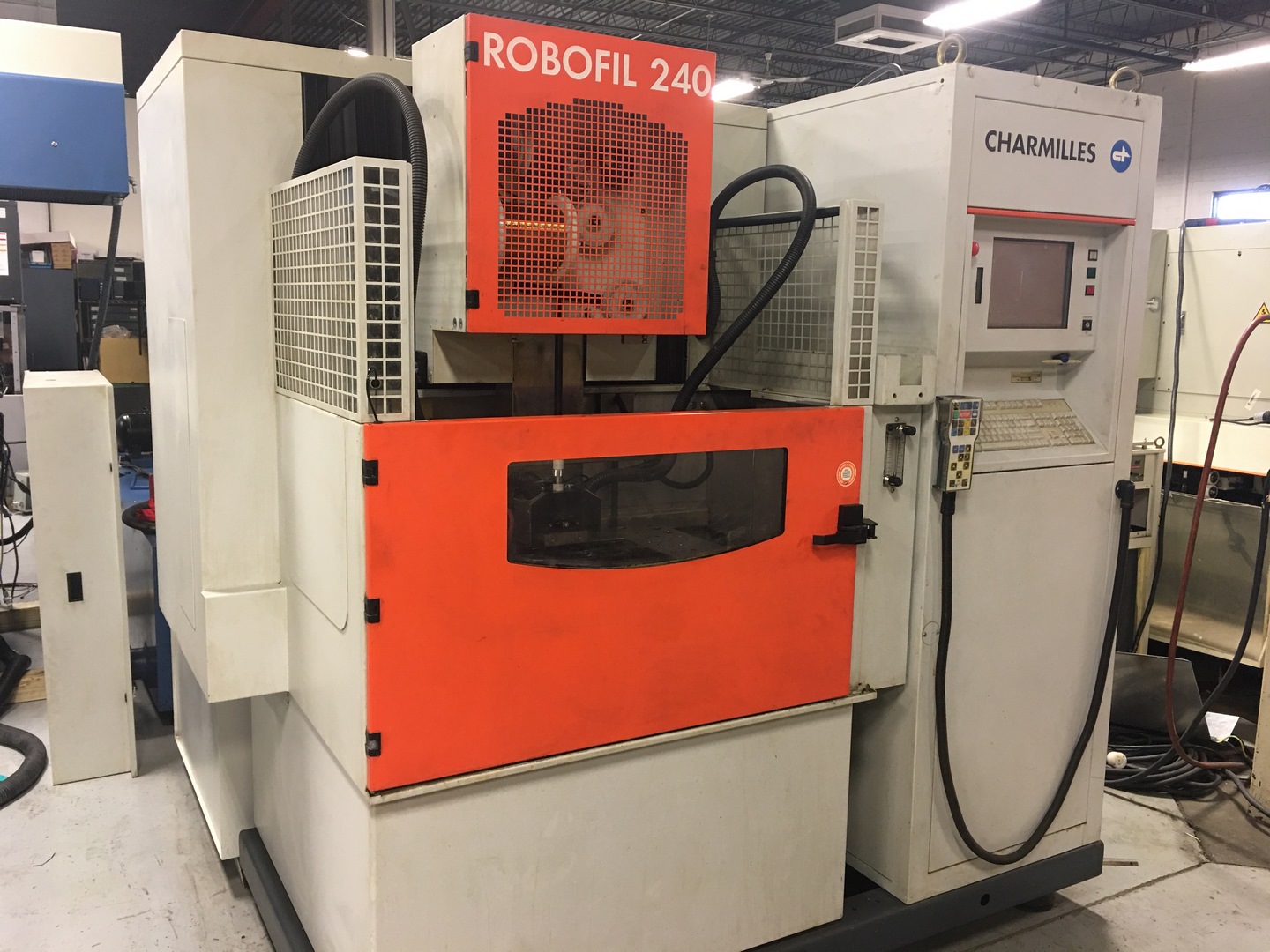

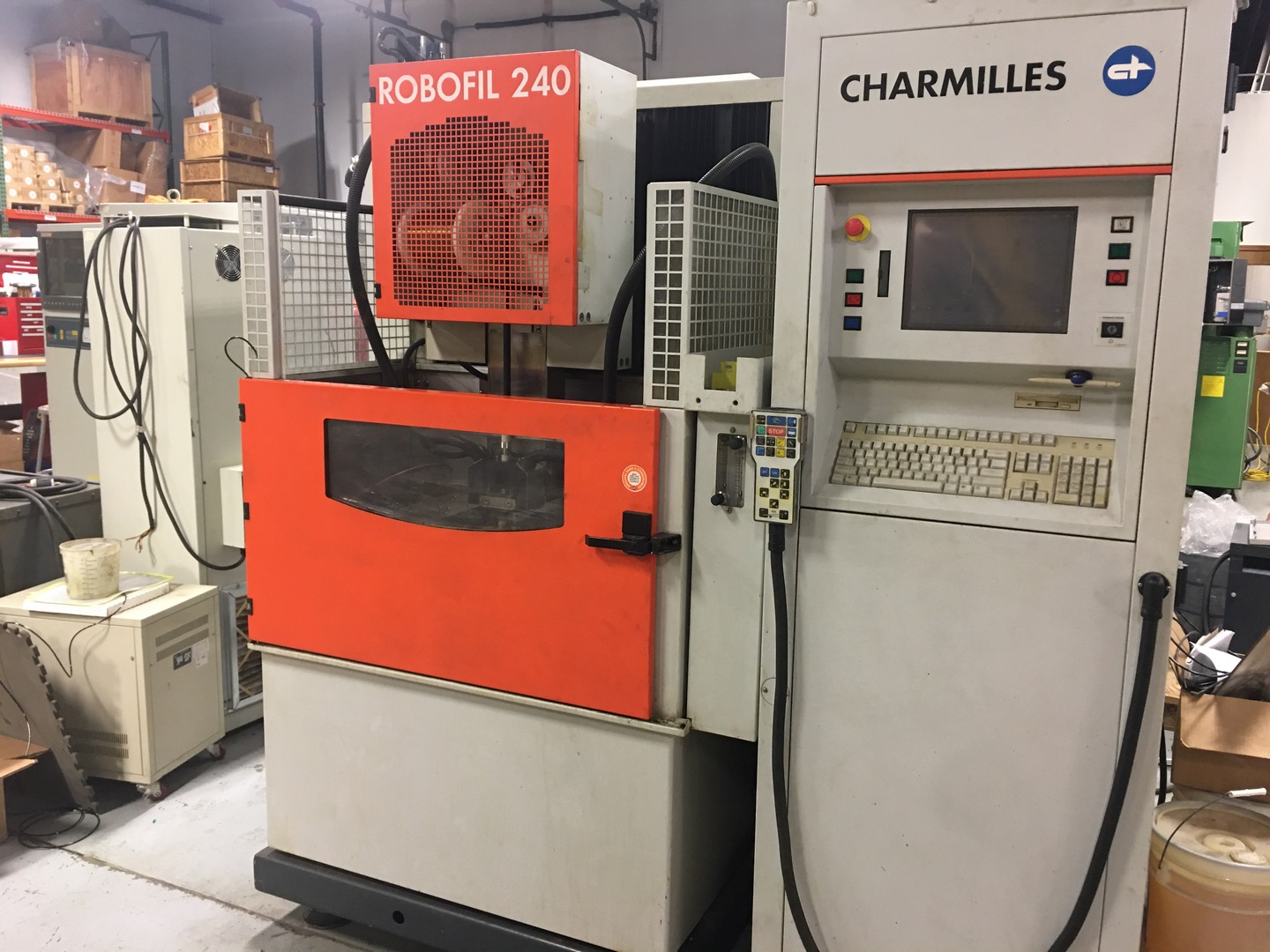

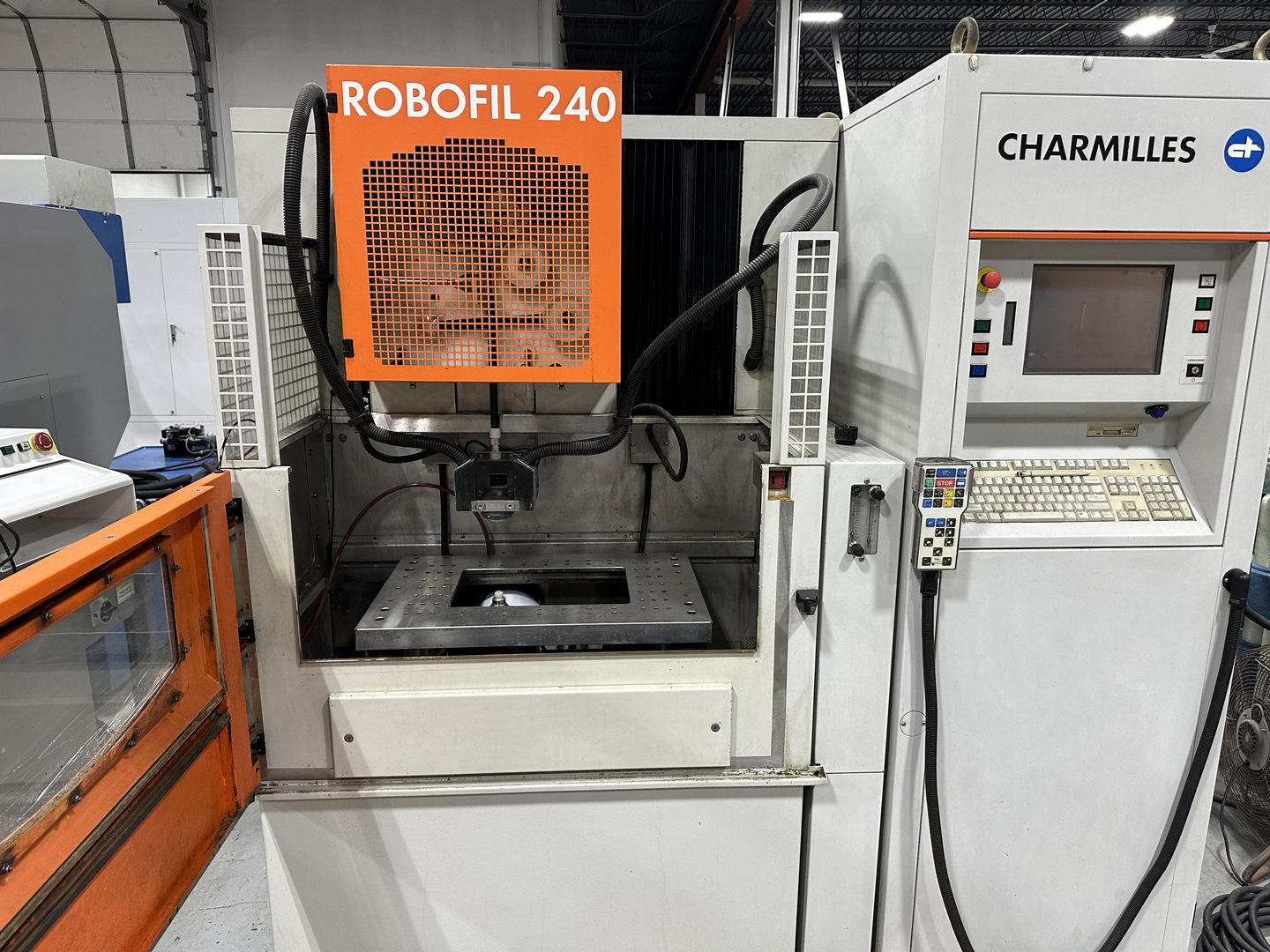

Used AgieCharmilles Robofil 240 (2003) CNC EDM for Sale. This pre-owned AgieCharmilles CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this AgieCharmilles EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.77" |
|---|---|
| Y-Axis Travel |
8.66" |
| Z-Axis Travel |
8.66" |
| Control |
CT Millennium |
| U/V Axis Travel |
13.77" x 8.66" |
| Degree Taper Cutting |
+/- 30 Degree |
| Power Requirement |
400/3/60 |
| Wire Diameter |
.004" to .012” |
| Max Work Piece Size |
39.37" x 21.65" x 8.66” |
| Machine Weight |
5,401 Lbs |
| Machine Dimensions |
79.53" x 80.7" x 78.74" |
| Note |
Refurbished |
Features
|
3D Part Alignment System |
Built-in Spent Wire Processor |
|
Collision Protection All Axes |
Dynamic Screen Function (DSF) |
|
Glass Scales All Axes |
Touch Screen / RS-232 / Ethernet |
|
Automatic Wire Threader (AT) |
Dielectric Chiller |
|
Windows Operating System |
