| Year | 2002 |
|---|---|
| Make | Okuma |
| Model | Impact LU45 |
Description |
CNC Lathe |
| Reference # | 8075357 |
Price |
Activate PricingInquire Now |

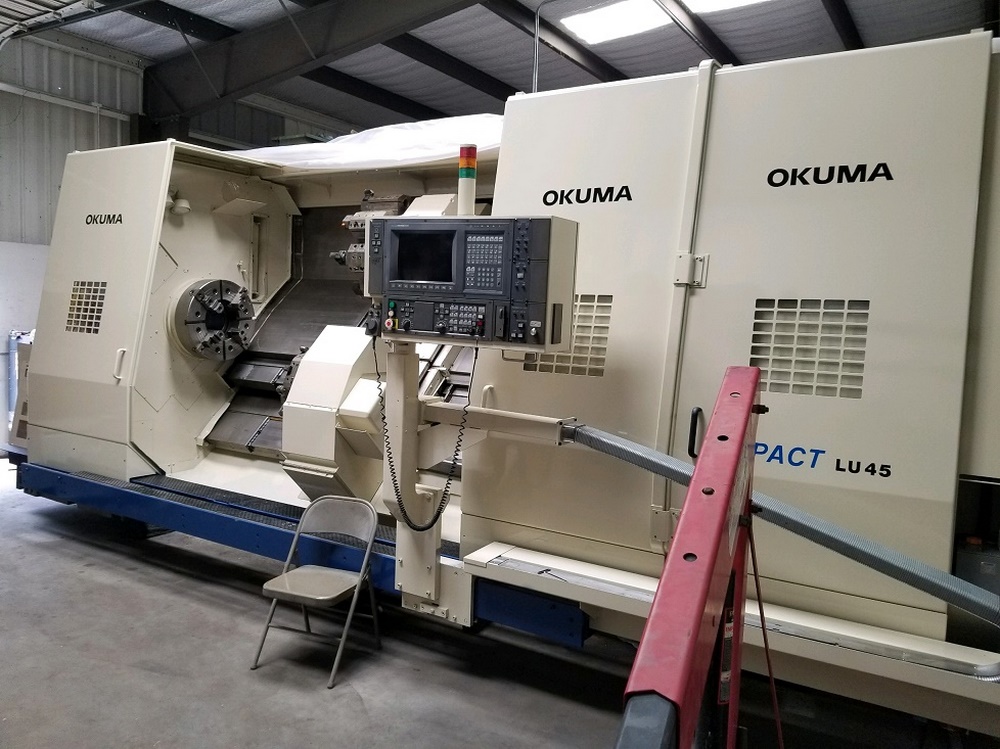

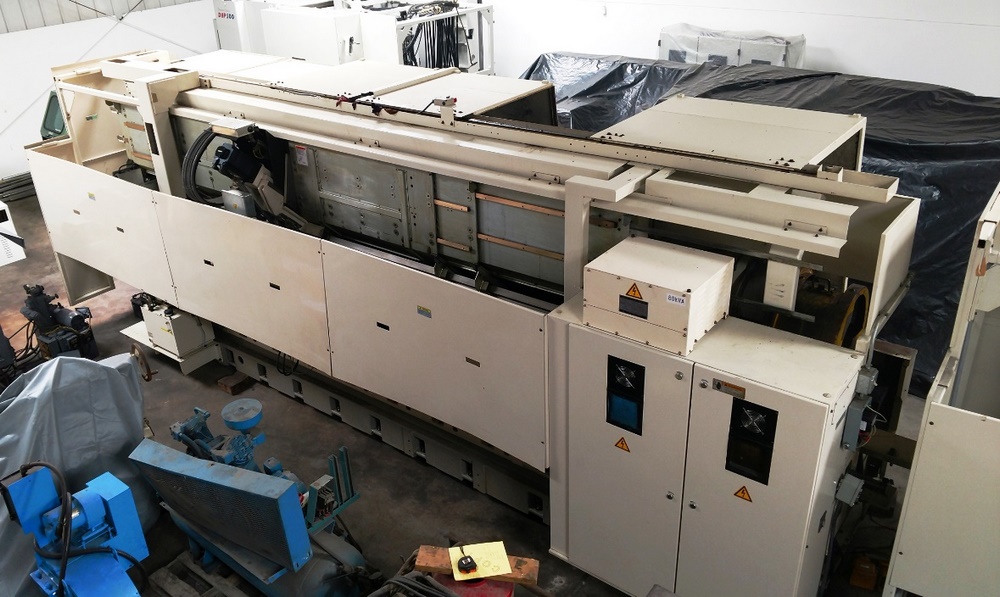

Used Okuma Impact LU45 (2002) CNC Lathe for Sale. This pre-owned Okuma CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

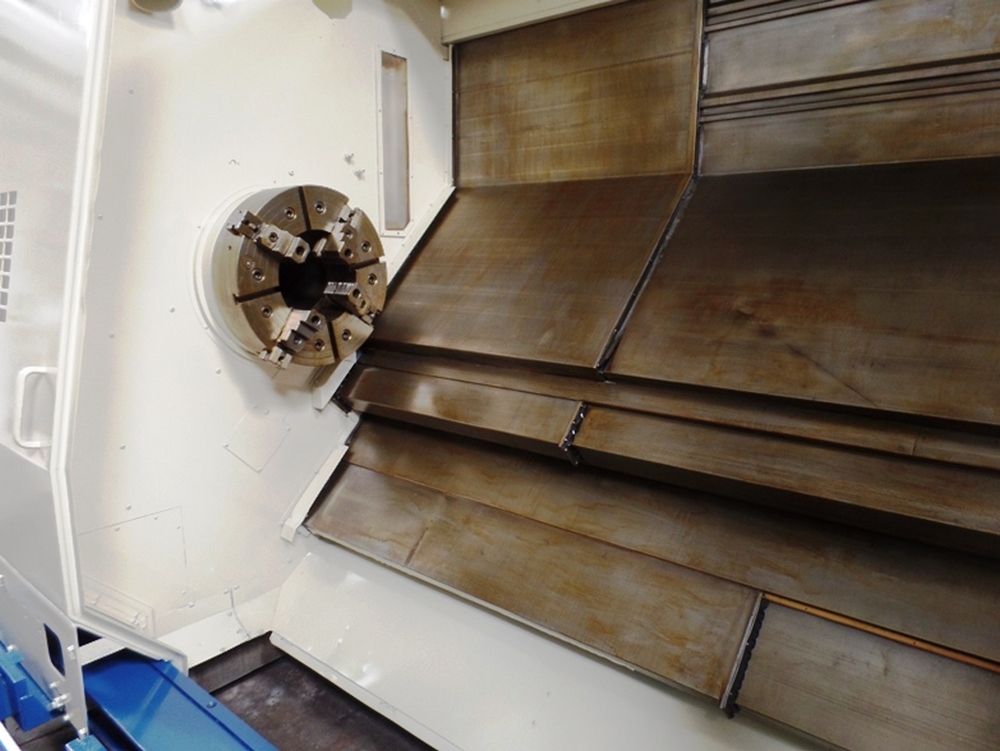

| Chuck Size |
24" |
|---|---|
| Bar Capacity |
10.23" |
| Swing |
33" |
| Turning Diameter |
23/18" |

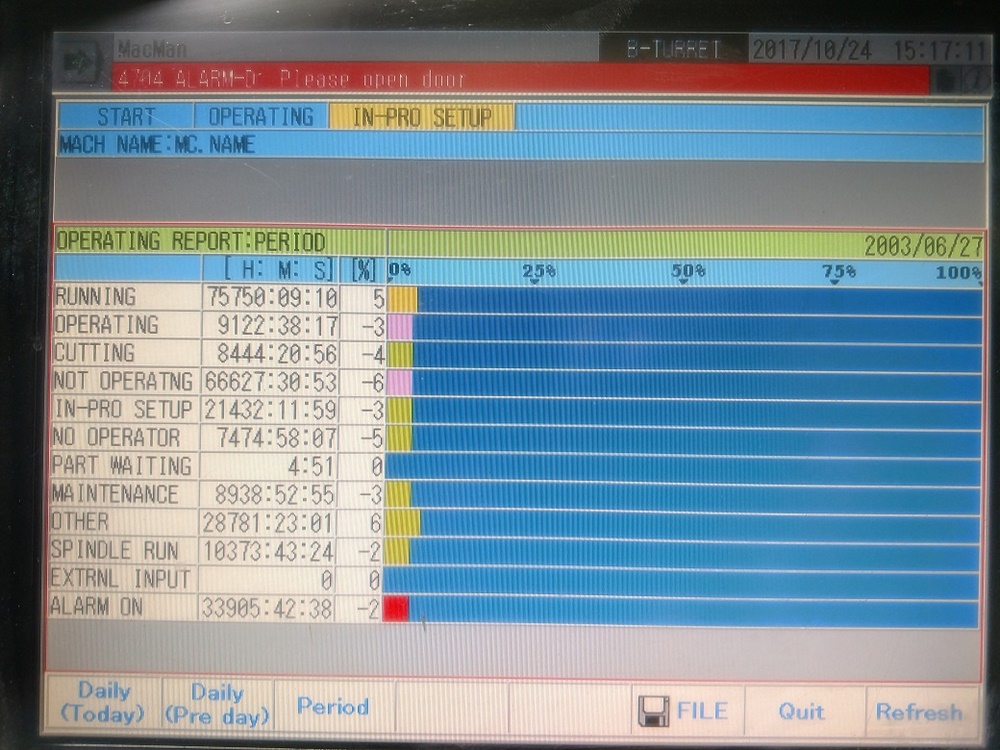

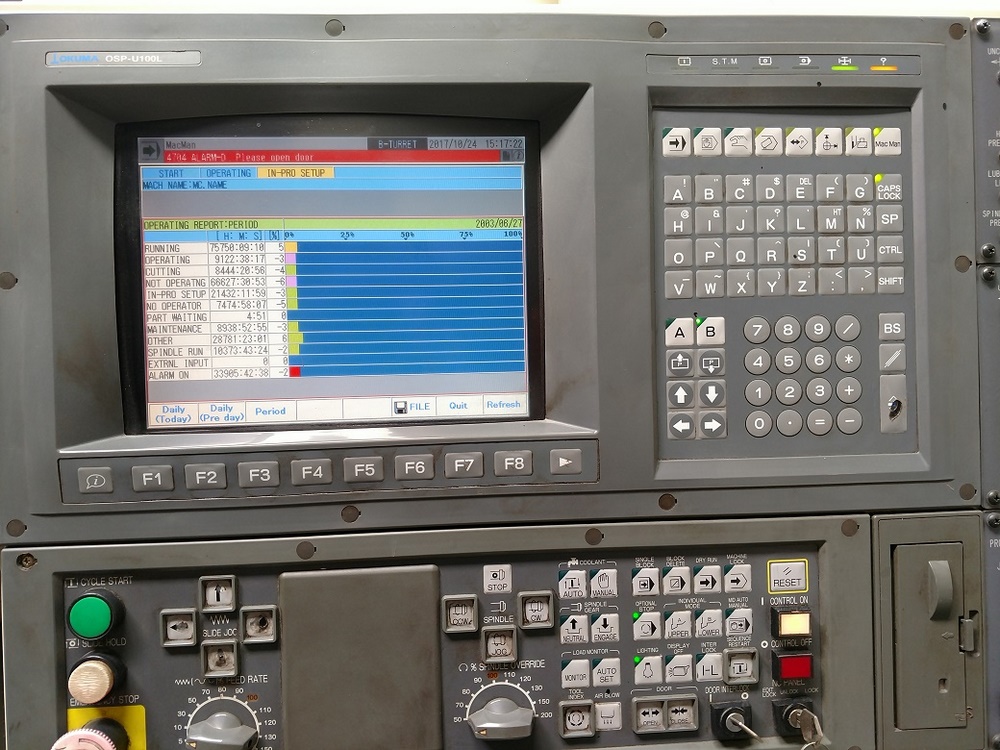

| Control |
OSP-E100L |
| Distance Between Centers |
121" |
| Chip Removal |
Chip Conveyor |
| Z-Axis Travel |
120" |
| X-Axis Travel |
26" |

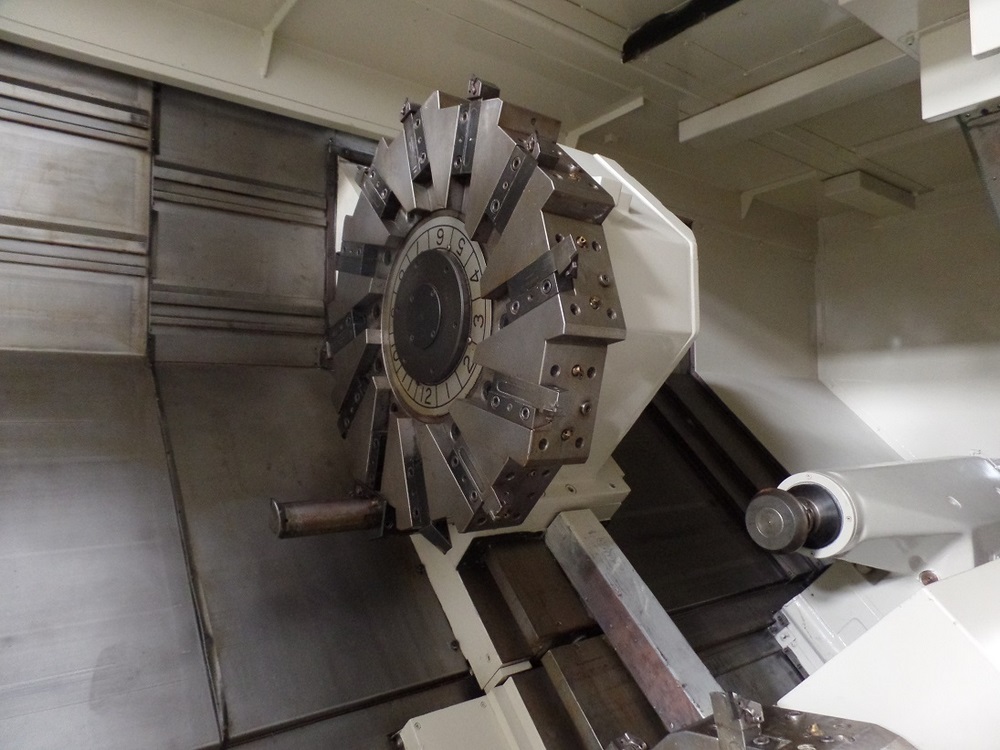

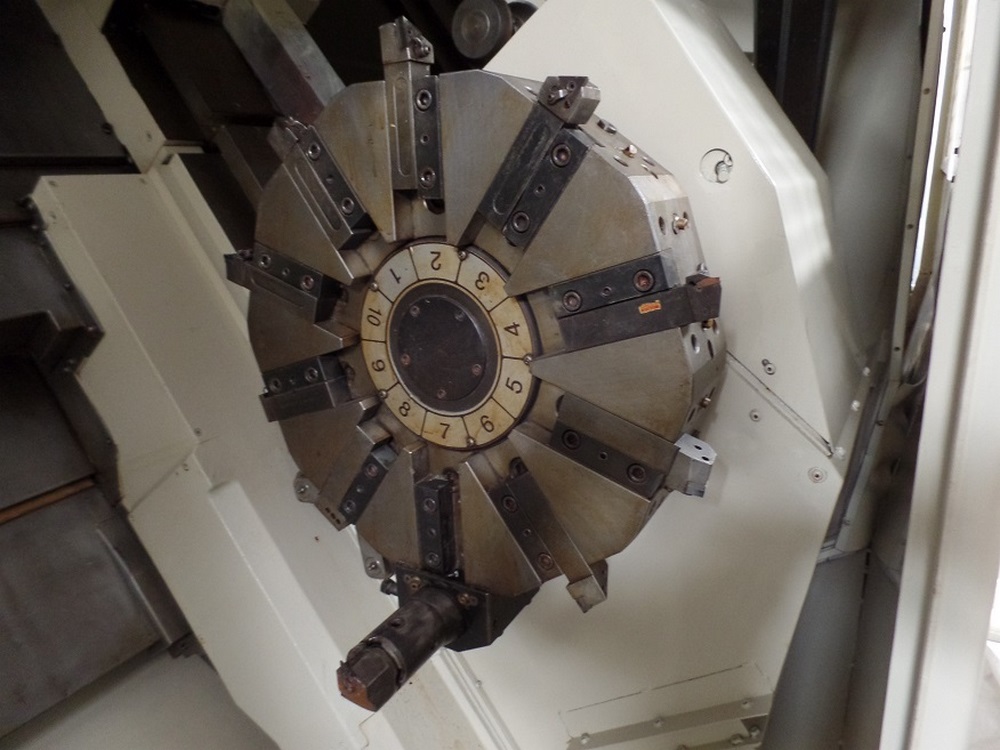

| Turret Stations |
12 Stations |
| Follow Rest |
Yes, on the lower turret |
| Spindle Bore |
10.23" |
| Spindle Nose |
A-2-20 |
| Quill Diameter |
5.12"/MT No. 5 |
| Spindle Speed |
900 RPM |
| Main Motor |
50 HP/60 HP (Cont./30 Min) |
| Power Requirement |
220/480/3/60 |
| Programming |
Conventional 2-Axis Programming Steps and Language/Conventional 2-Axis Programming Steps and Language/OSP Makes Conversions for Lower Turret/Machining is Executed in the Order of “P-codes” (P1-Pn) as Assigned by the Programmer |
| Machine Weight |
56,217 Lbs |
Features
|
(2) 24” Noble 4-Jaw F&R with 12.5” Bore |

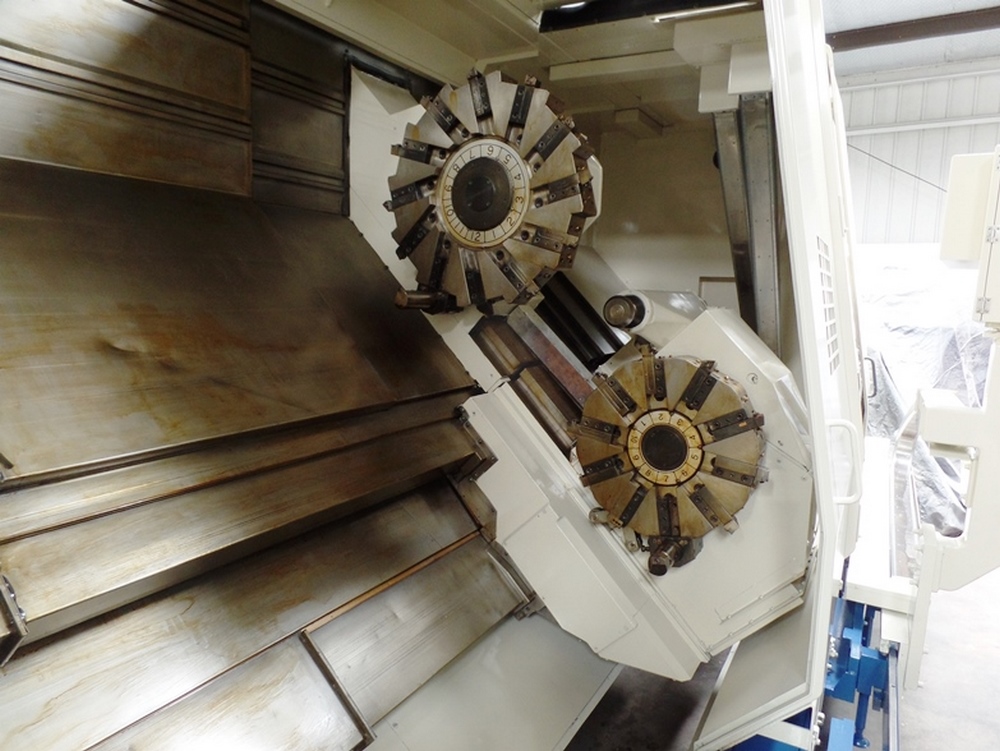

Dual Turret |
