| Year | 2002 |
|---|---|
| Make | Mitsubishi |
| Model | FA10 |
Description |
EDM Wire |
| Reference # | 8075339 |
Price |
Activate PricingInquire Now |

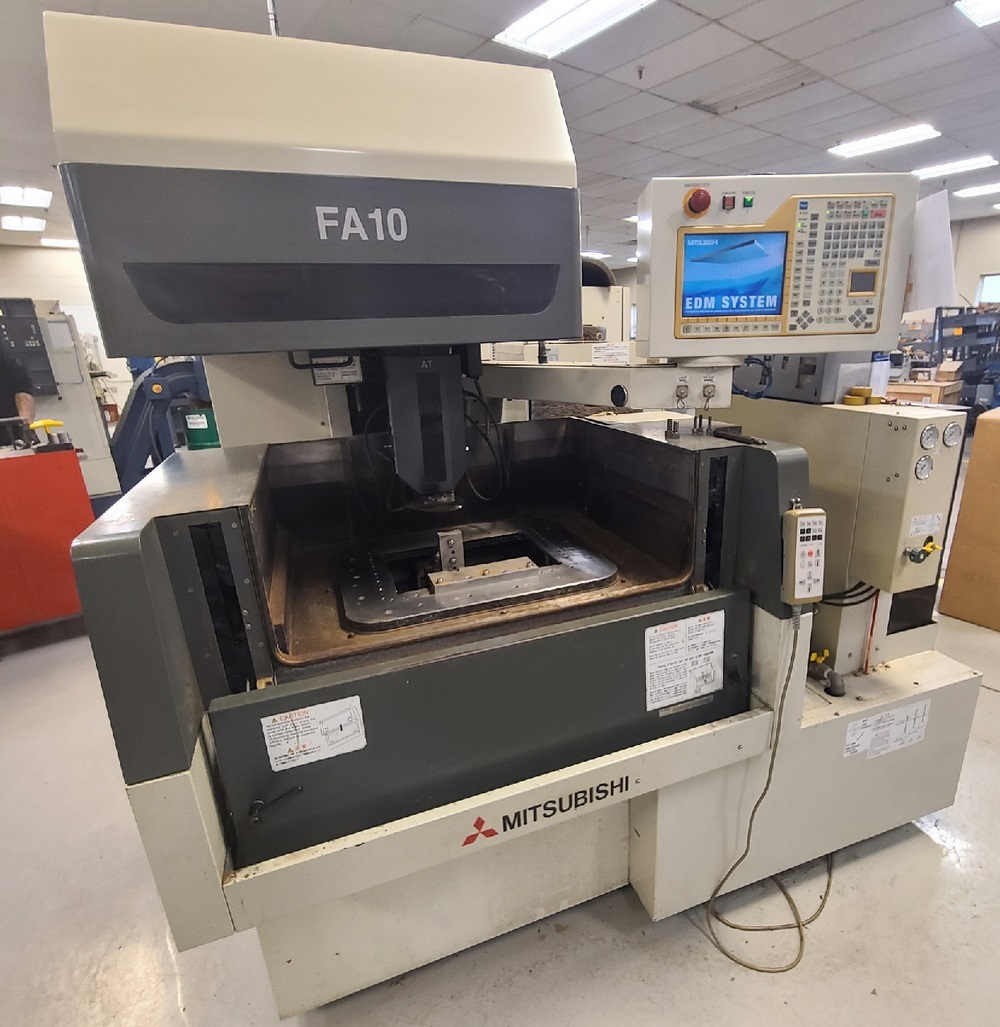

Used Mitsubishi FA10 (2002) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| X-Axis Travel |
13.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |
| Control |
Mitsubishi 64 Bit PC |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
+/- 30 Degree |
| Wire Diameter Range |
.006 - .012" |
| Approx Dimensions |
77.7'' x 81.6'' x 80.71'' |
| Approx Weight |
4,400 Lbs |
Features
|
Linear Motion Guideways |
Auto Lube System |
|
Auto Wire Threading |
Auto-Lock Vertical Tank Door Mechanism |
|
Automatic Fluid Level Control |
Chiller |
|
Filtration System |
Fine Resolution Encoder Feedback |
|
Full 4-Sided Work Table |
Hand Pendant Controller |
|
Moving Column Design |
Power Master Control (Automatically Adjusts Power Settings) |
|
Submerged Machining Capability |
Wire Chopper |
|
Color CRT with 3D Graphics |
