| Year | 2002 |
|---|---|
| Make | Current |
| Model | CT-300-5X |
Description |
EDM Hole Popper |
| Reference # | 8071634 |

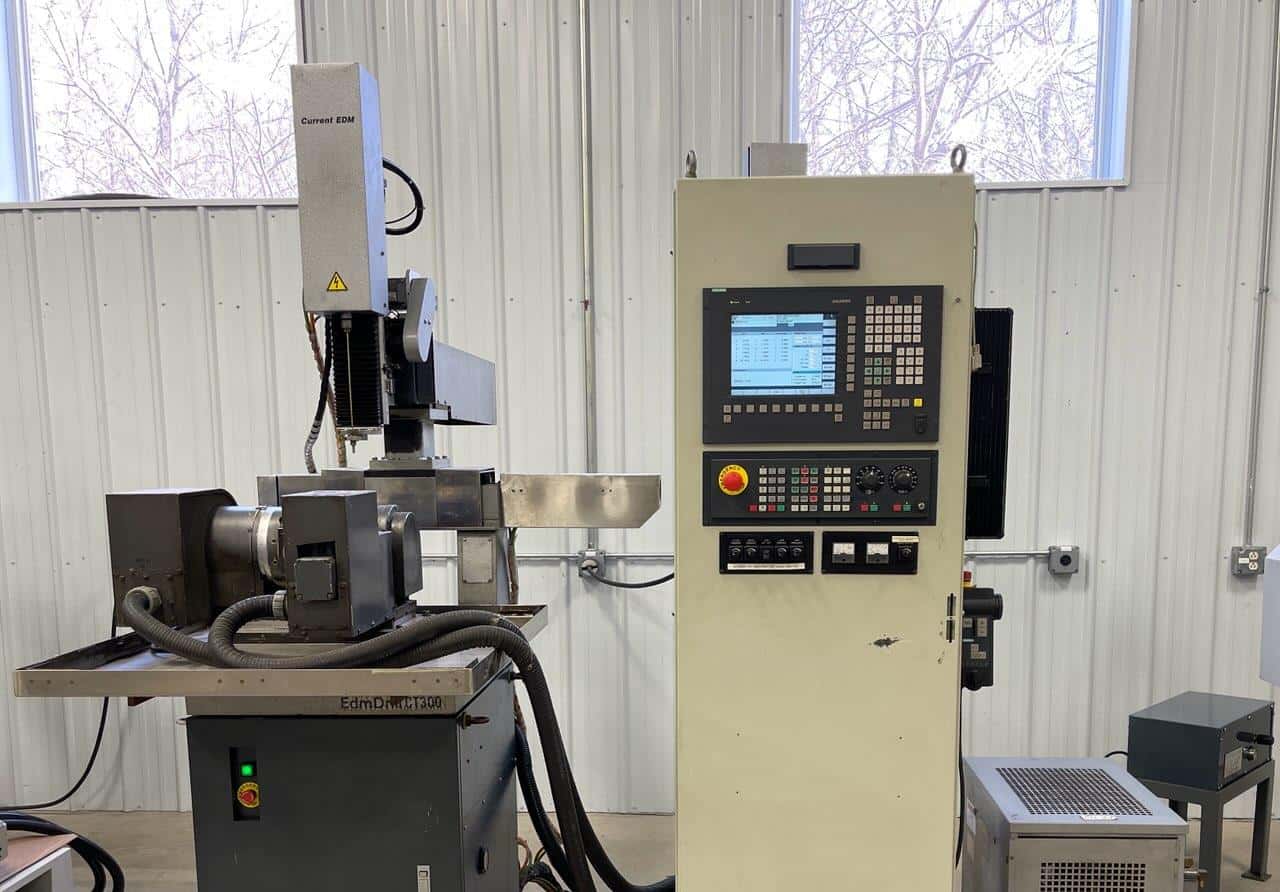

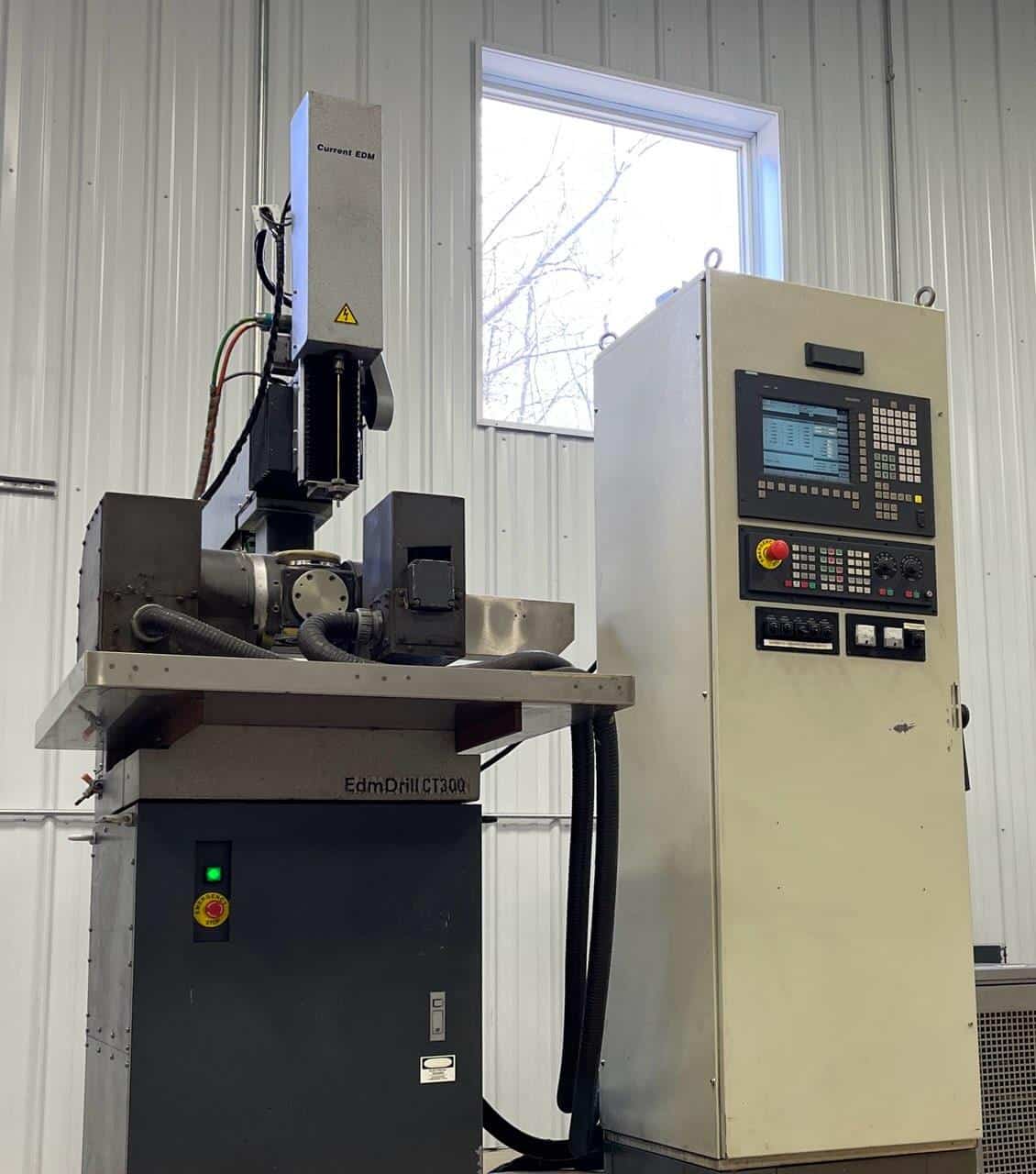

Used Current CT-300-5X (2002) CNC EDM for Sale. This pre-owned Current CNC EDM hole popper is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Current EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
12" |
|---|---|
| Y-Axis Travel |
8" |
| Z-Axis Travel |
16" |
| Control |

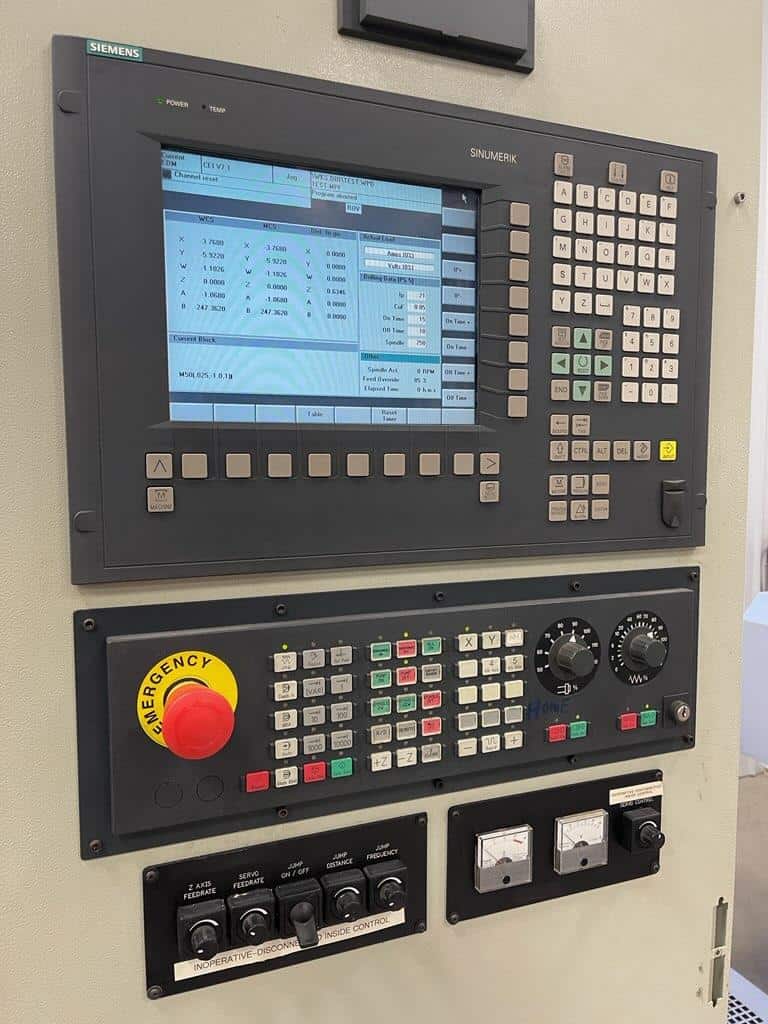

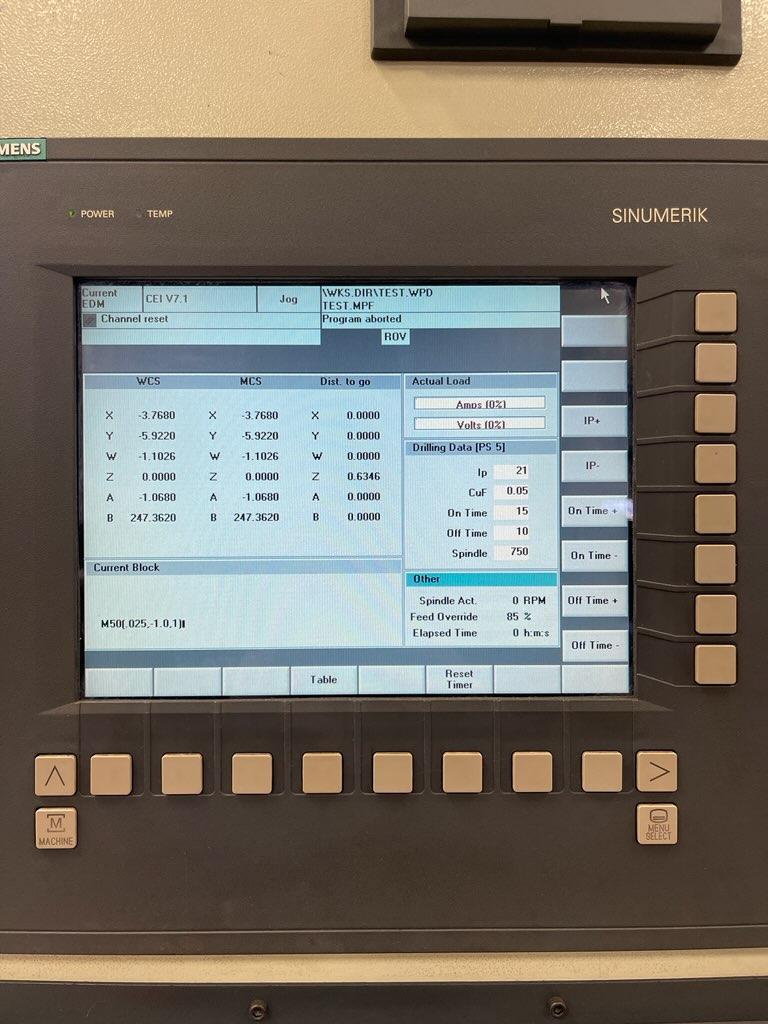

Siemens 840DI |
| Electrode Diameters |
.004" to .256" |
| Guide Axis Travel |
10" |
| Power Source |
57 AMP |
| Power Requirement |
440-480/3/60 |
| Table |
12" x 12" |
| Weight |
3,000 Lbs |
| Note |
Controller was Upgraded in 2016 to Siemens 840Di |
Features
|
C-Axis |
Chiller |
|
1.0 Gigabyte Program Storage (Minimum) |
10.4" TFT Color Monitor |
|
Rotary Encoder Glass Scale Feedback |
Single-Cast Rugged Bridge Design for Stability and Accuracy |
|
3.5" Disk Drive |
USB Port |
|
Stainless Steel Head & Precision Ballscrews |
5-Axes Pattern Shift & Pattern Offset with Hole Depth Adjustment |
|
CT300 Controller |
Custom Programming Screens Written by CEI |
|
Depth Control / Breakout Detection |
Ethernet Connection (RS232C) |
|

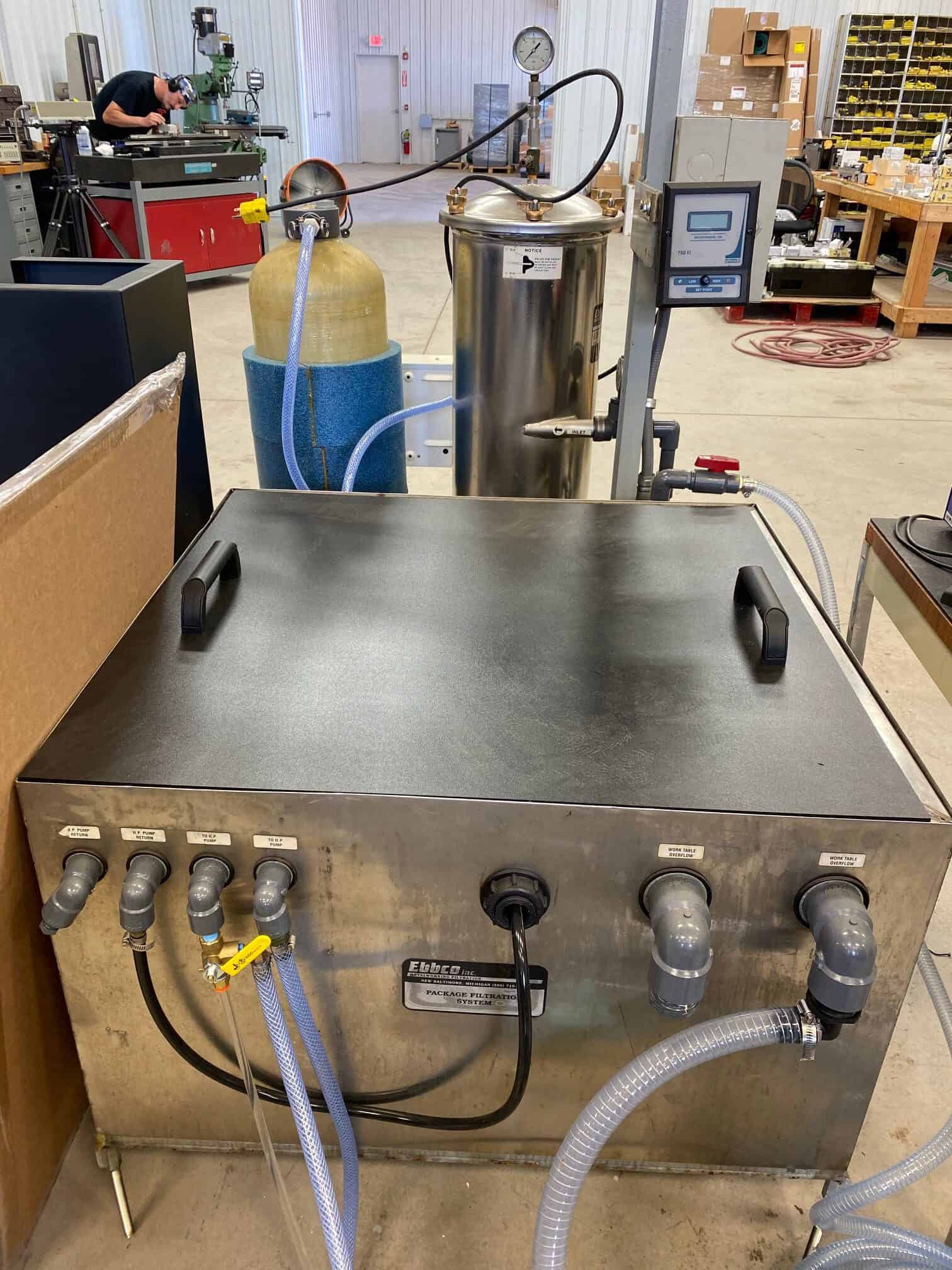

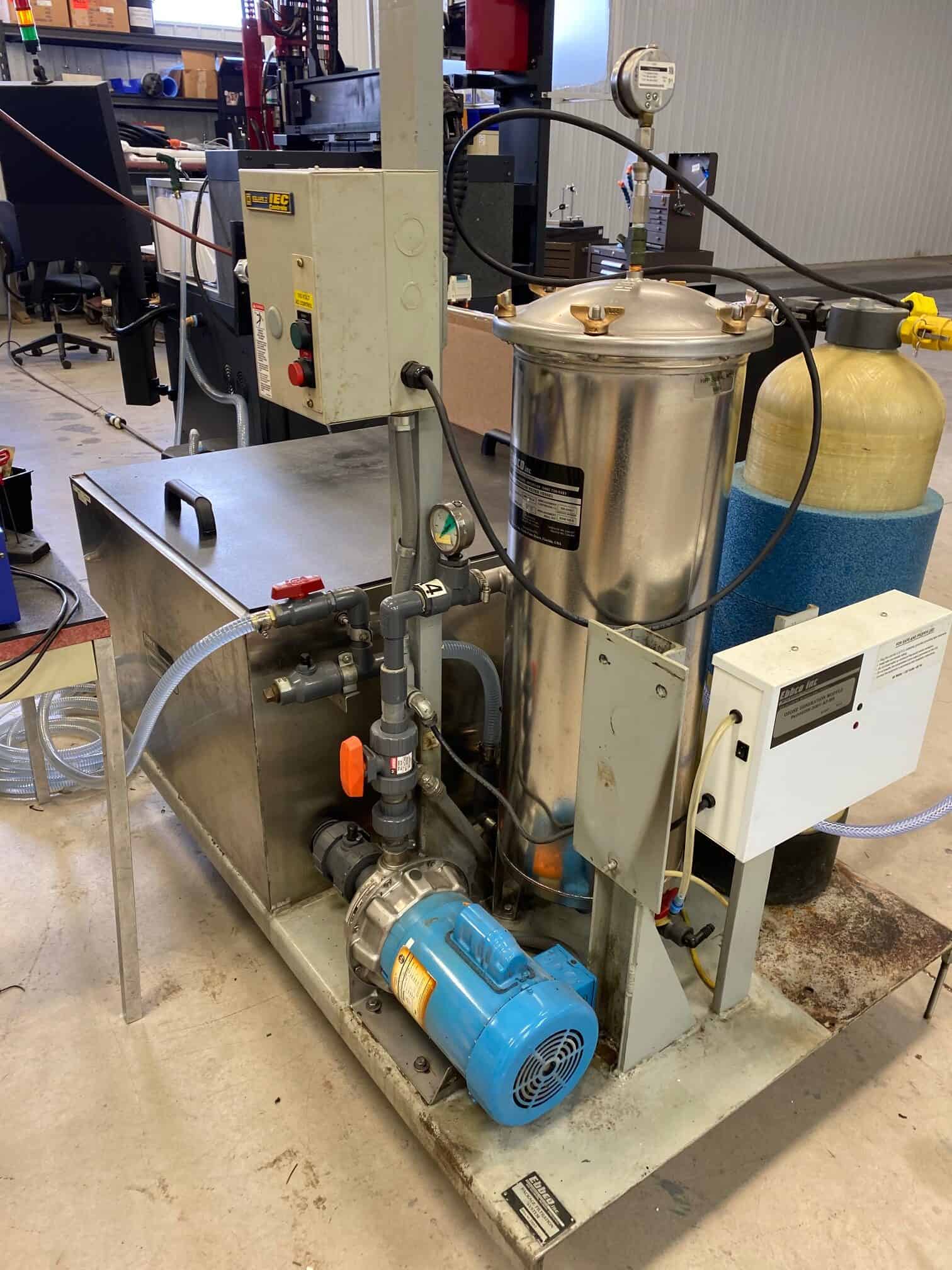

Includes 95 Gallon Dielectric System with Chiller |

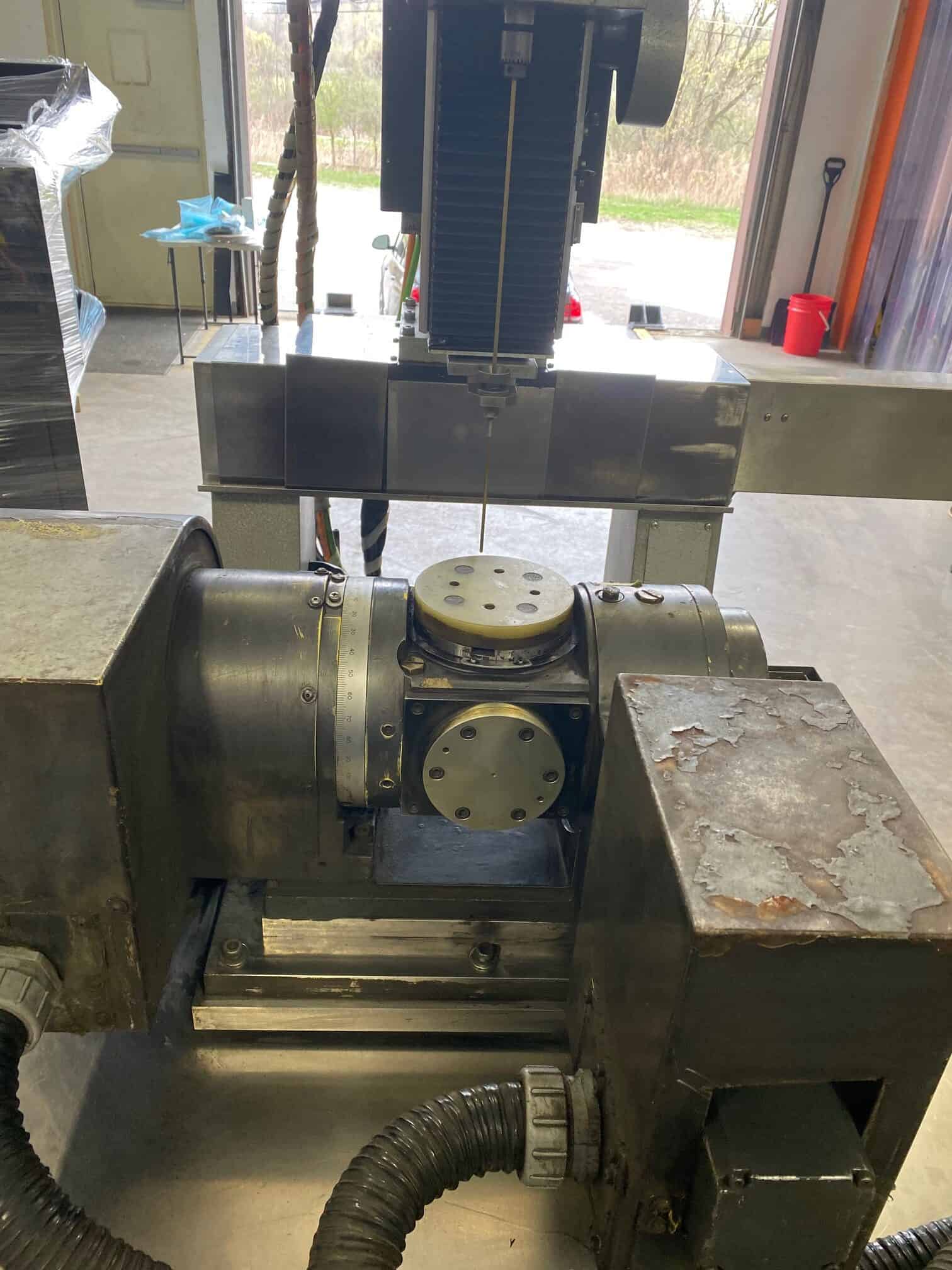

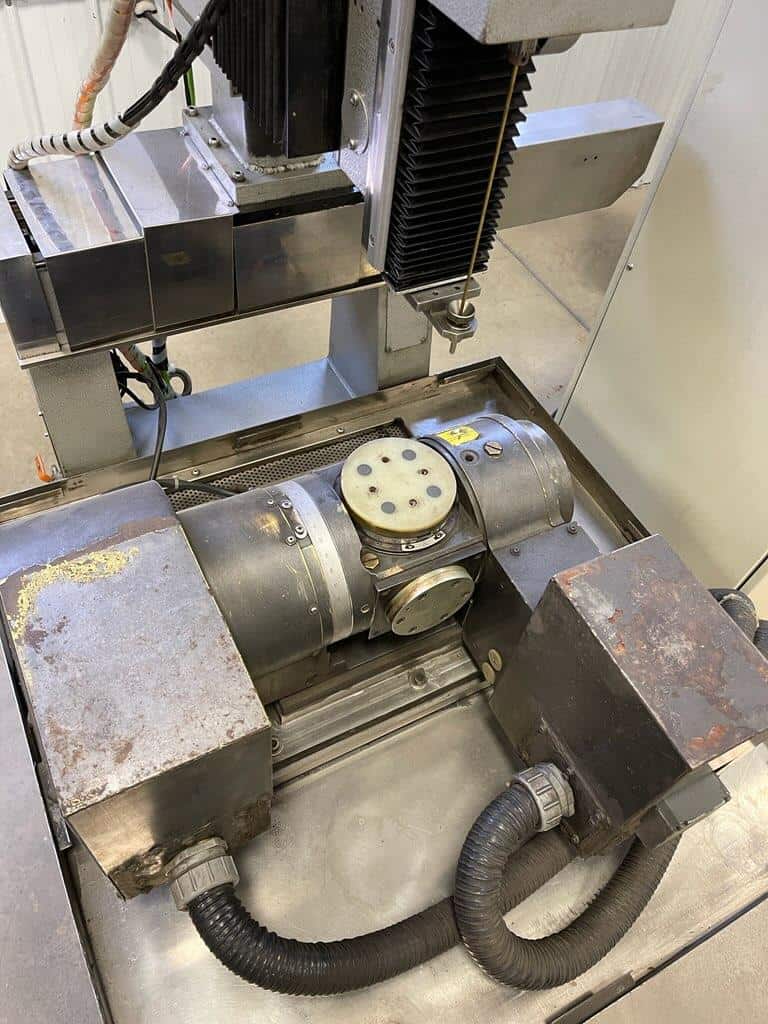

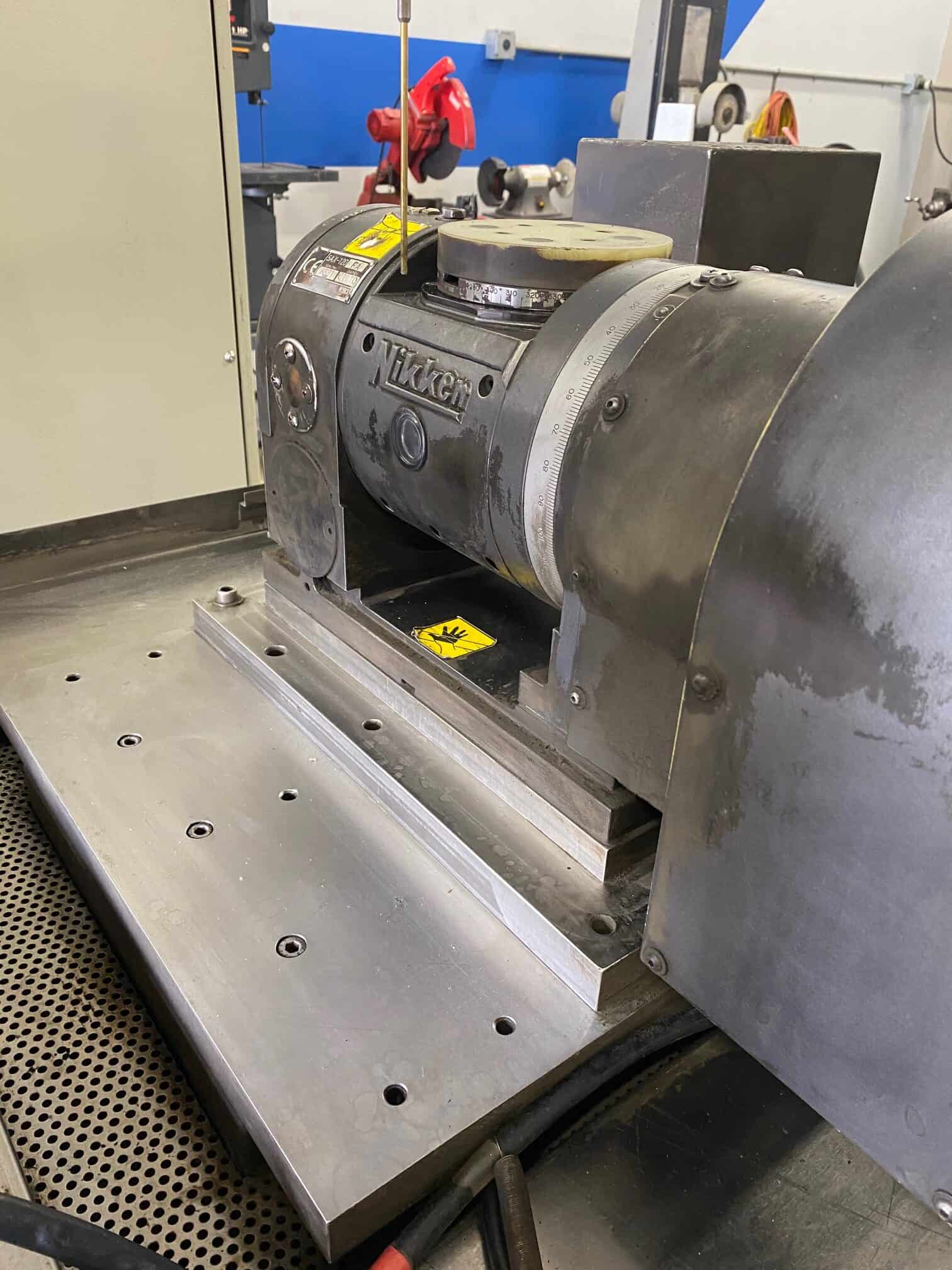

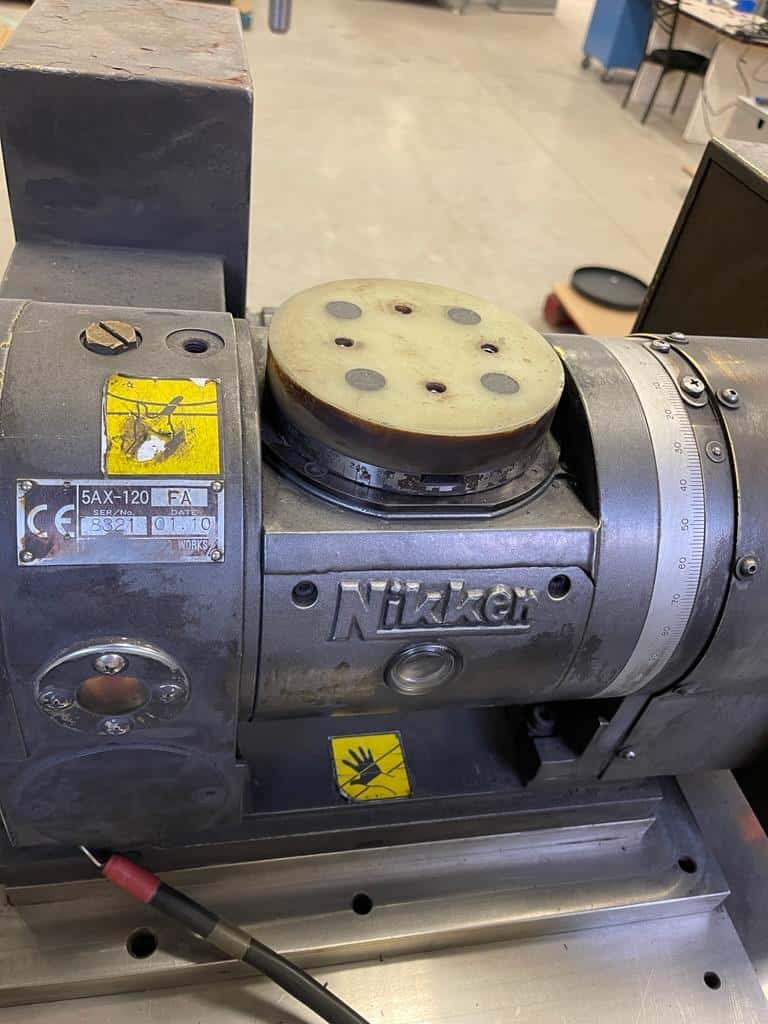

Nikken Stainless Steel 5-Axis Rotary Table |
|
One-Button Work Co-Ordinate Set-Up |
Windows NT Based Operating System |
