| Year | 2002 |
|---|---|

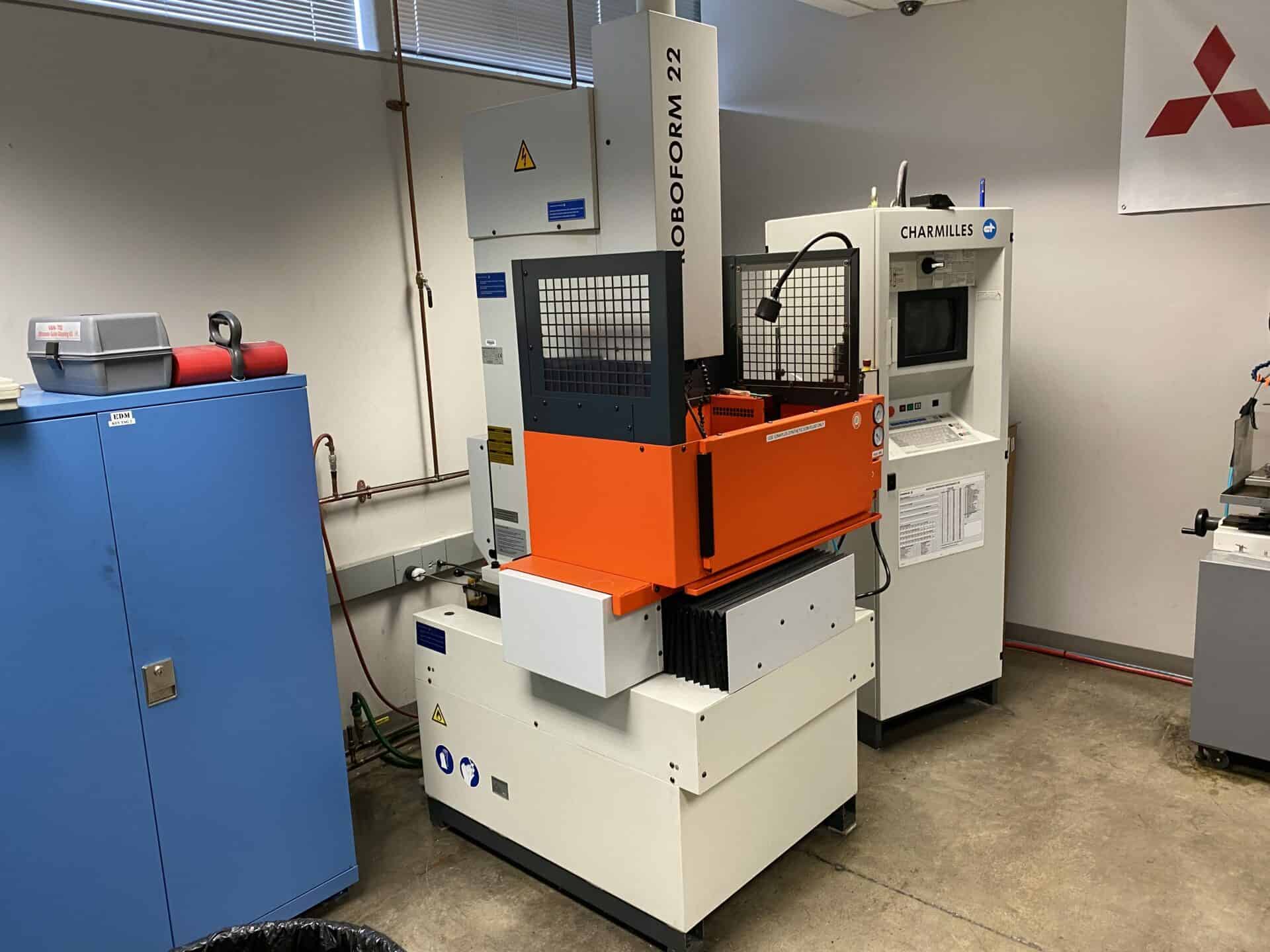

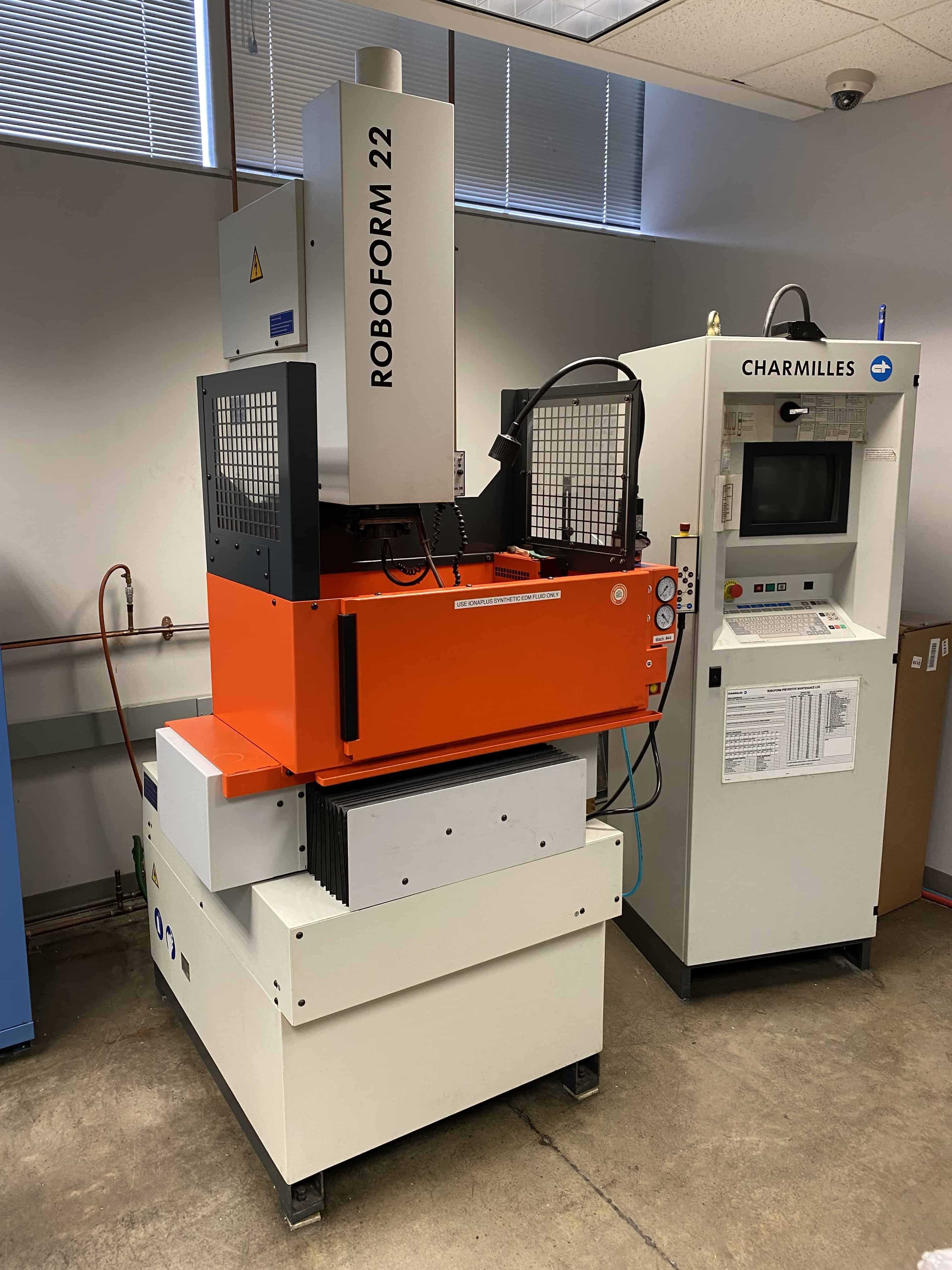

| Make | Charmilles |
| Model | Roboform 22 |
Description |
EDM Sinker |
| Reference # | 8070400 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
11.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
9.8" |

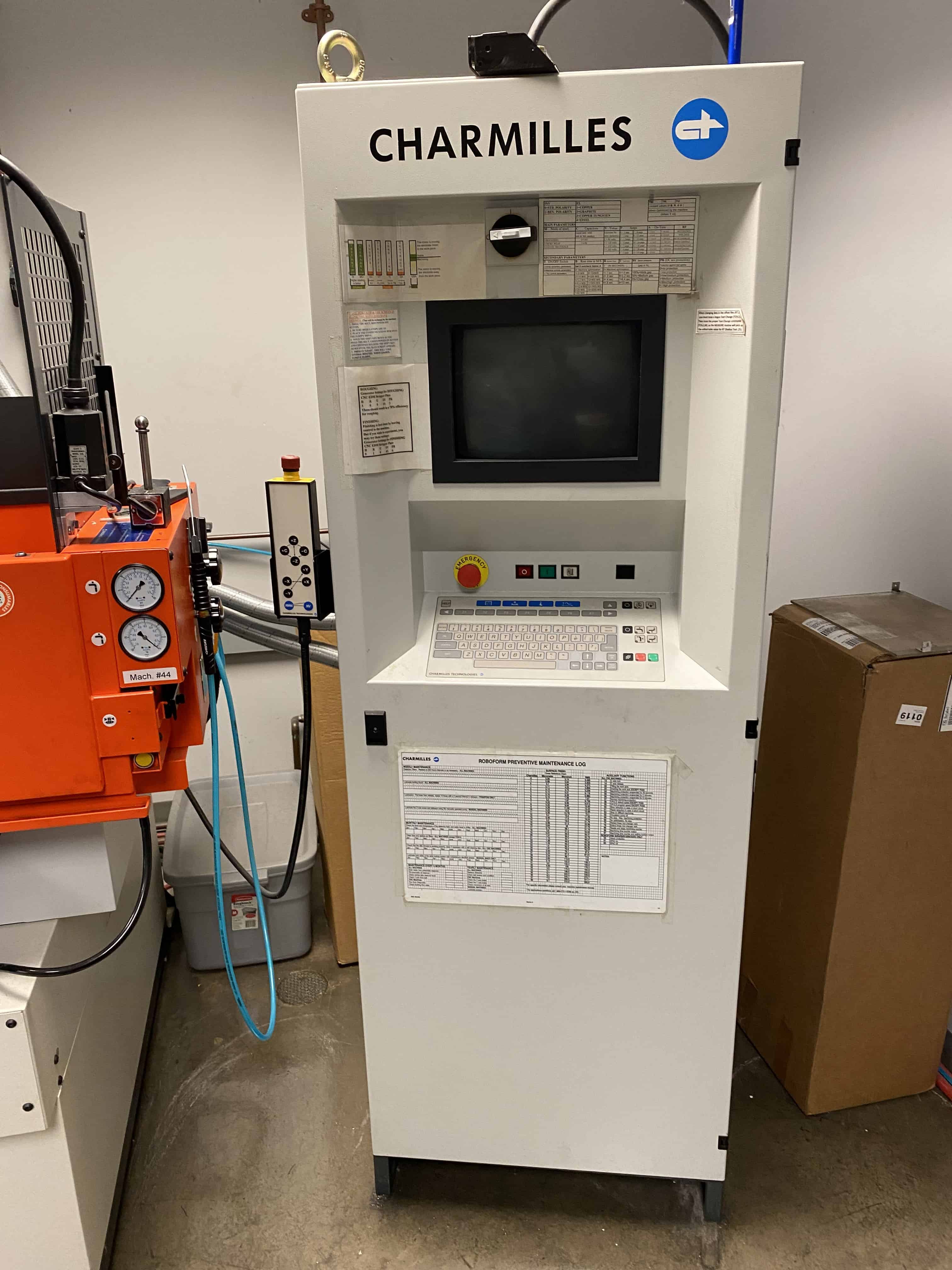

| Control |
Charmilles CNC |
| Power Source |
32 Amp |
| Chuck |
3R |
| Power Requirement |
380/3/60 |

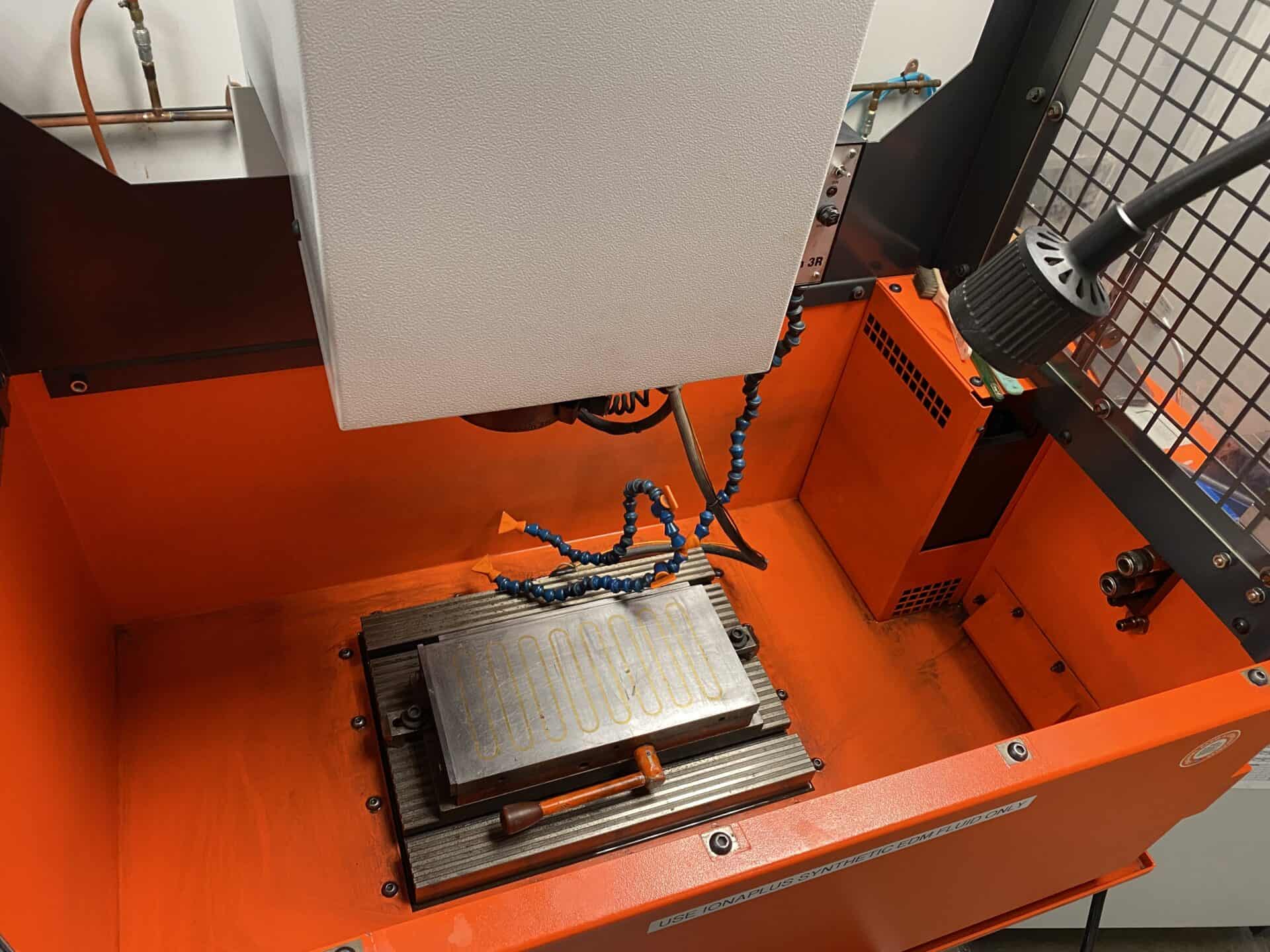

| Table Dimensions |
15.7" x 11.8" |
| Tank Dimensions |
37" x 20.9" x 13" |
| Max Workpiece Size |
29.1" x 17.7" x 10.6" |
| Max Workpiece Weight |
400lbs |
| Chuck to Table Distance |
7.3" - 17.1" |
| Max Electrode Weight |
55lbs |
| Machine Weight |
4000lbs |
| Table Resolution |
0.00002" |
| Floor Area (LxWxH) |
50" x 66" x 99" |
Features
|
All Available Manuals |
Glass Scale Feedback |
|

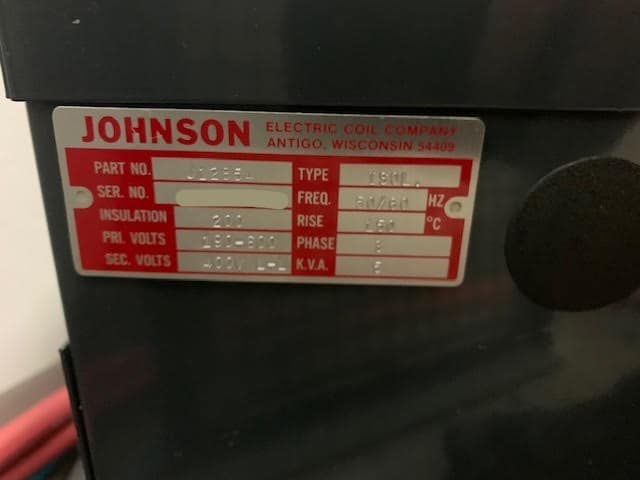

Transformer |

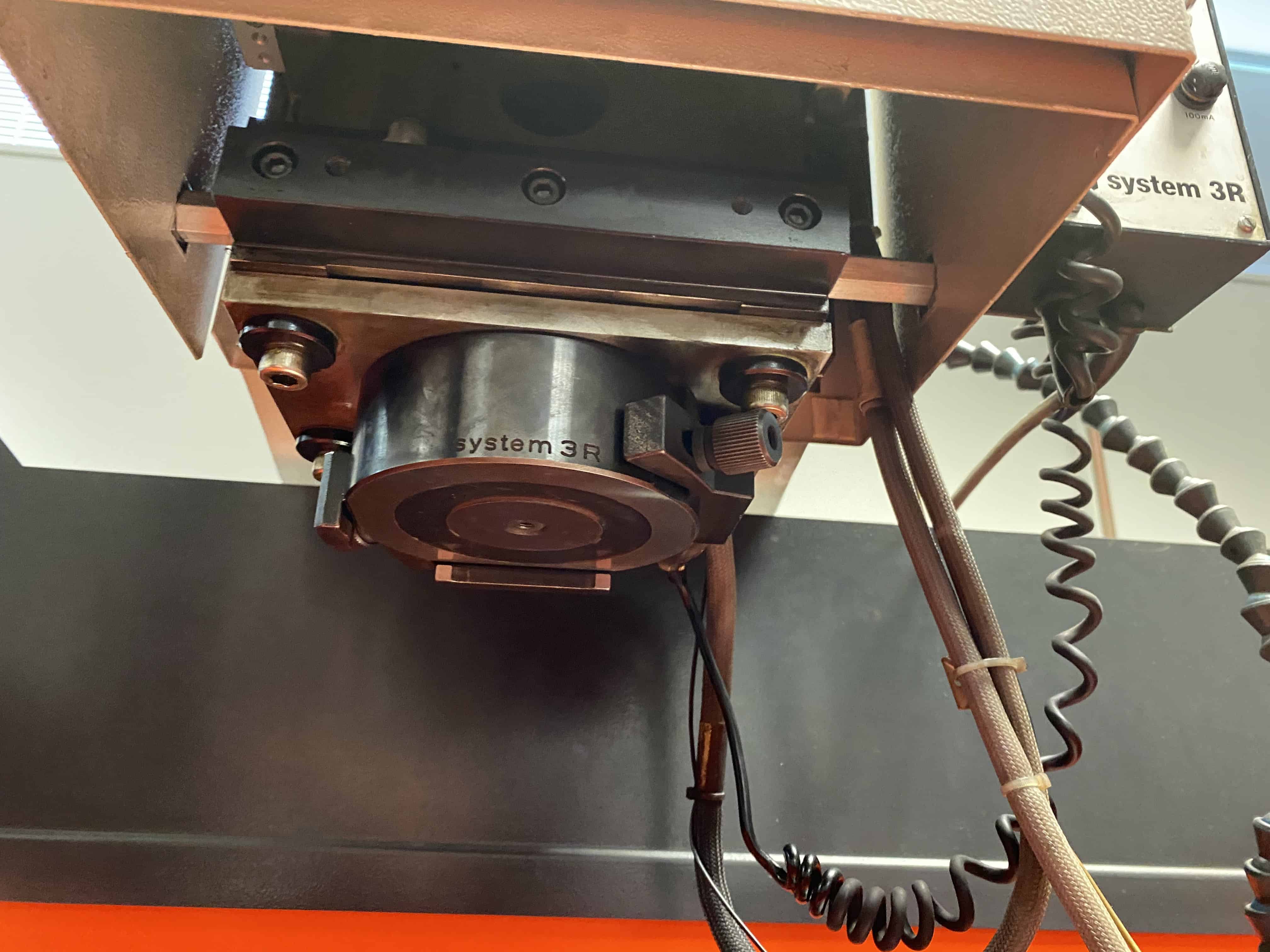

Magnetic 3R Chuck |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
