| Year | 2001 |
|---|---|
| Make | Van Dorn |
| Model | 230HT1220 |
Description |
230 Ton 25.4 oz Shot Size Injection Molding Machine |
| Reference # | 8071647 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

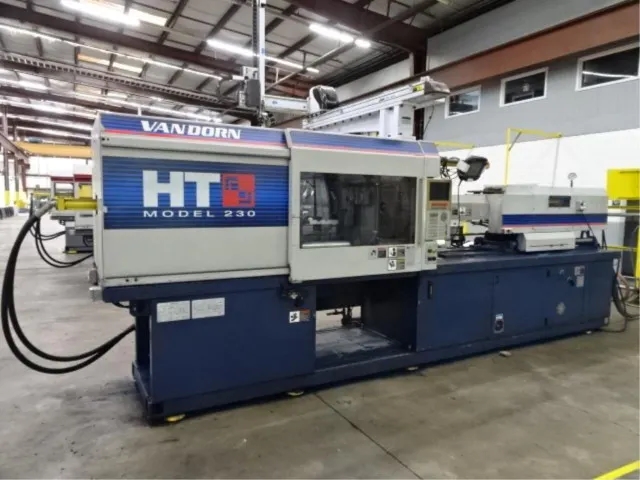

Used Van Dorn 230HT1220 (2001) Injection Molding Machine for Sale. This pre-owned Van Dorn plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Van Dorn Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
230 Ton |
|---|---|
| Shot Size |
25.4 oz |
| Tie Bar Spacing |
22" x 22" |

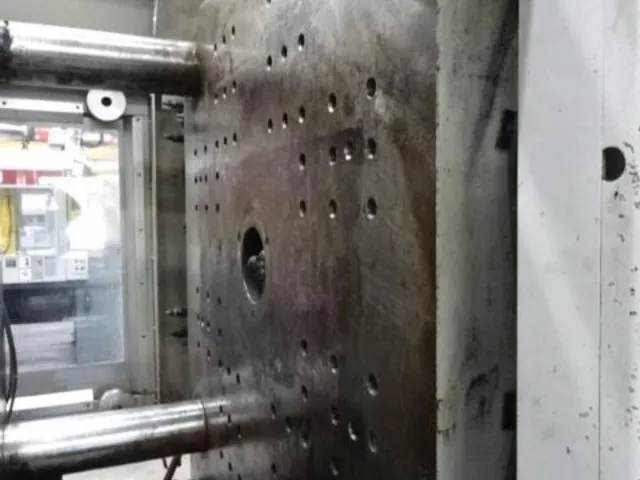

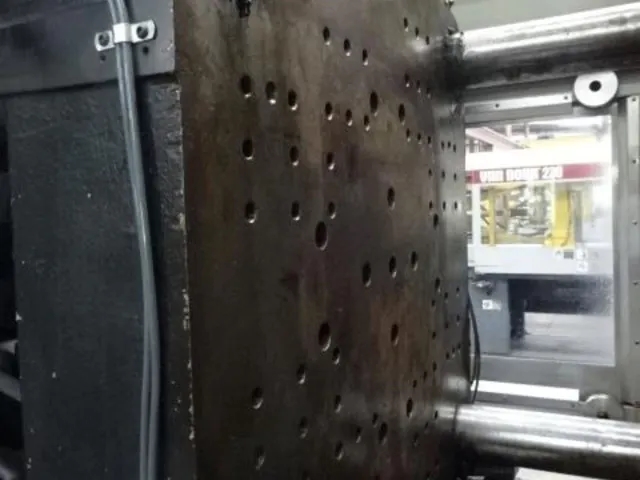

| Platen Size |
32" x 32" |
| Max Daylight |
42" |
| Clamp Stroke |
20" |
| Min Mold Height |
7" |
| Screw Diameter |
60 mm |
| Ejector Stroke |
4.5" |
| Control |

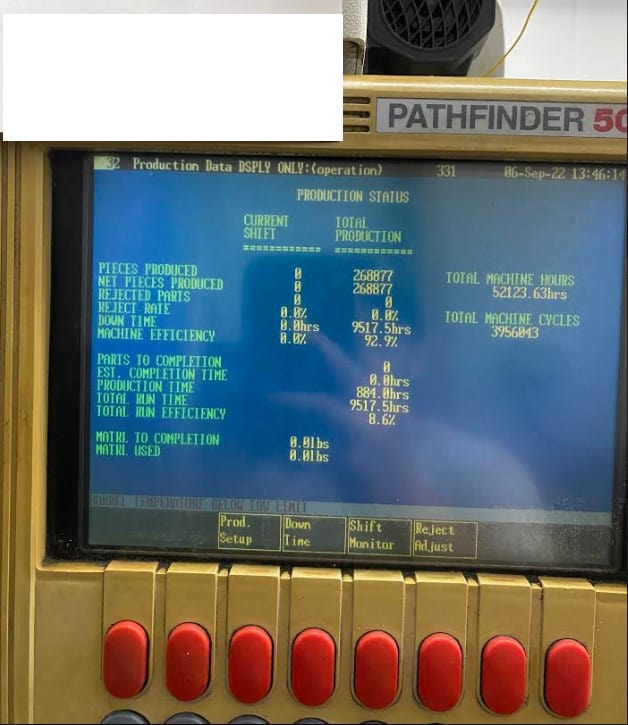

Pathfinder 5000 |
| Power Requirement |
460/3/60 |
| Machine Dimensions |
22'4" x 4'7" x 6'6" |
| Machine Weight |
21,300 Lbs |
Features
|
Core Pull |
Air Eject |
|
Hydraulic Knockout |
*
