| Year | 2001 |
|---|---|
| Make | LVD Strippit |
| Model | Global 20 1225 |
Description |
22 Ton Turret Punch |
| Reference # | 8070131 |

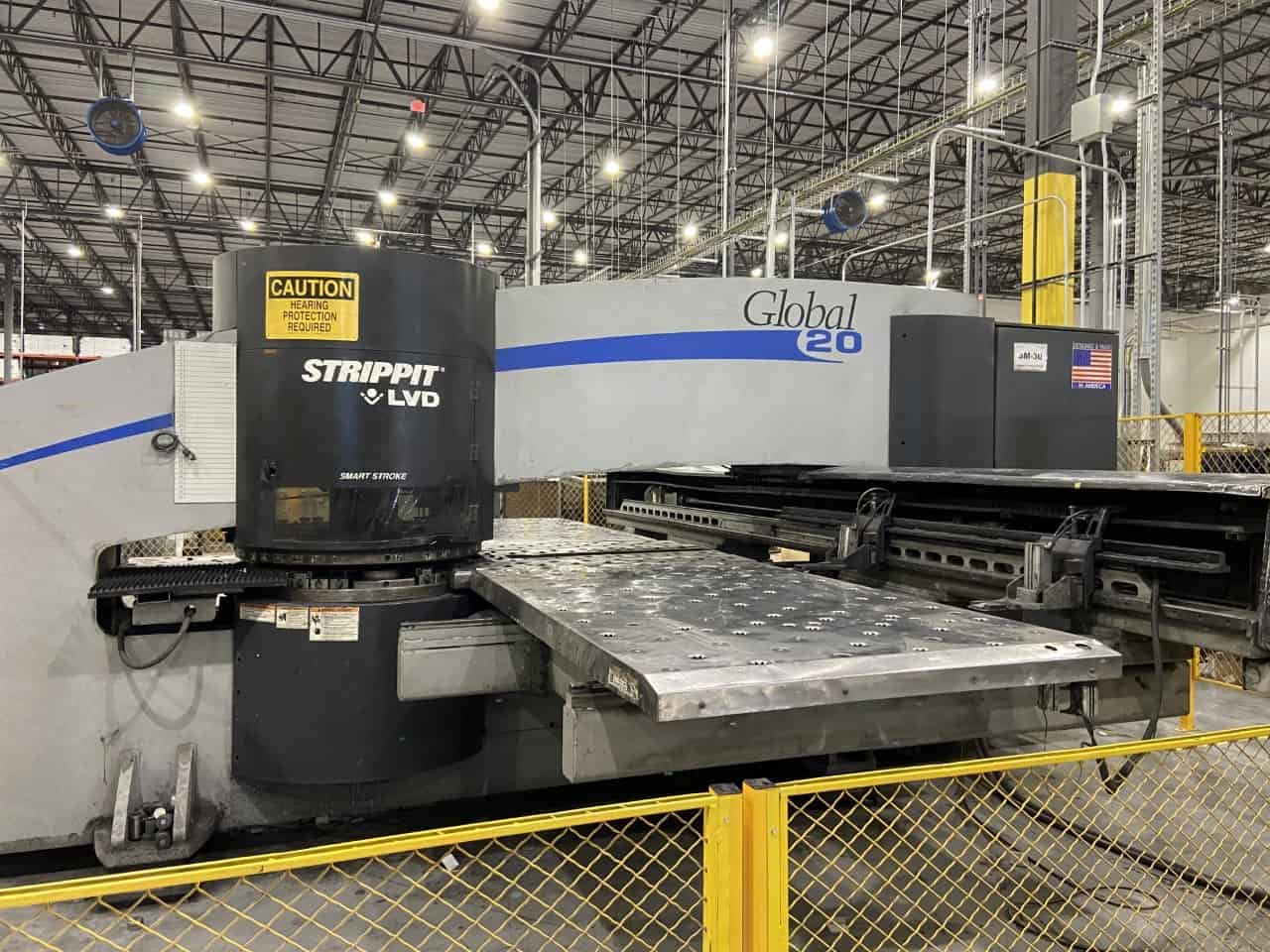

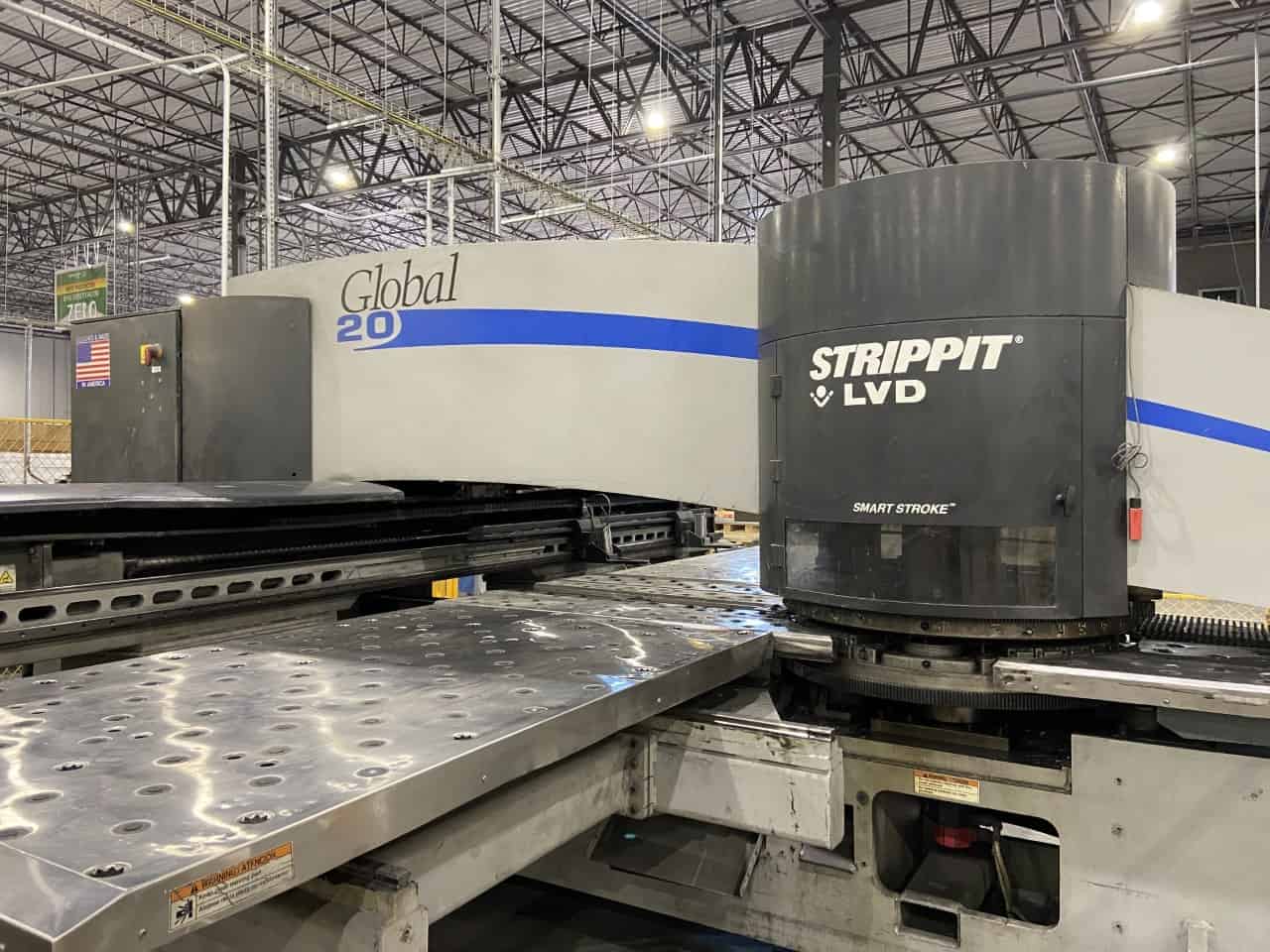

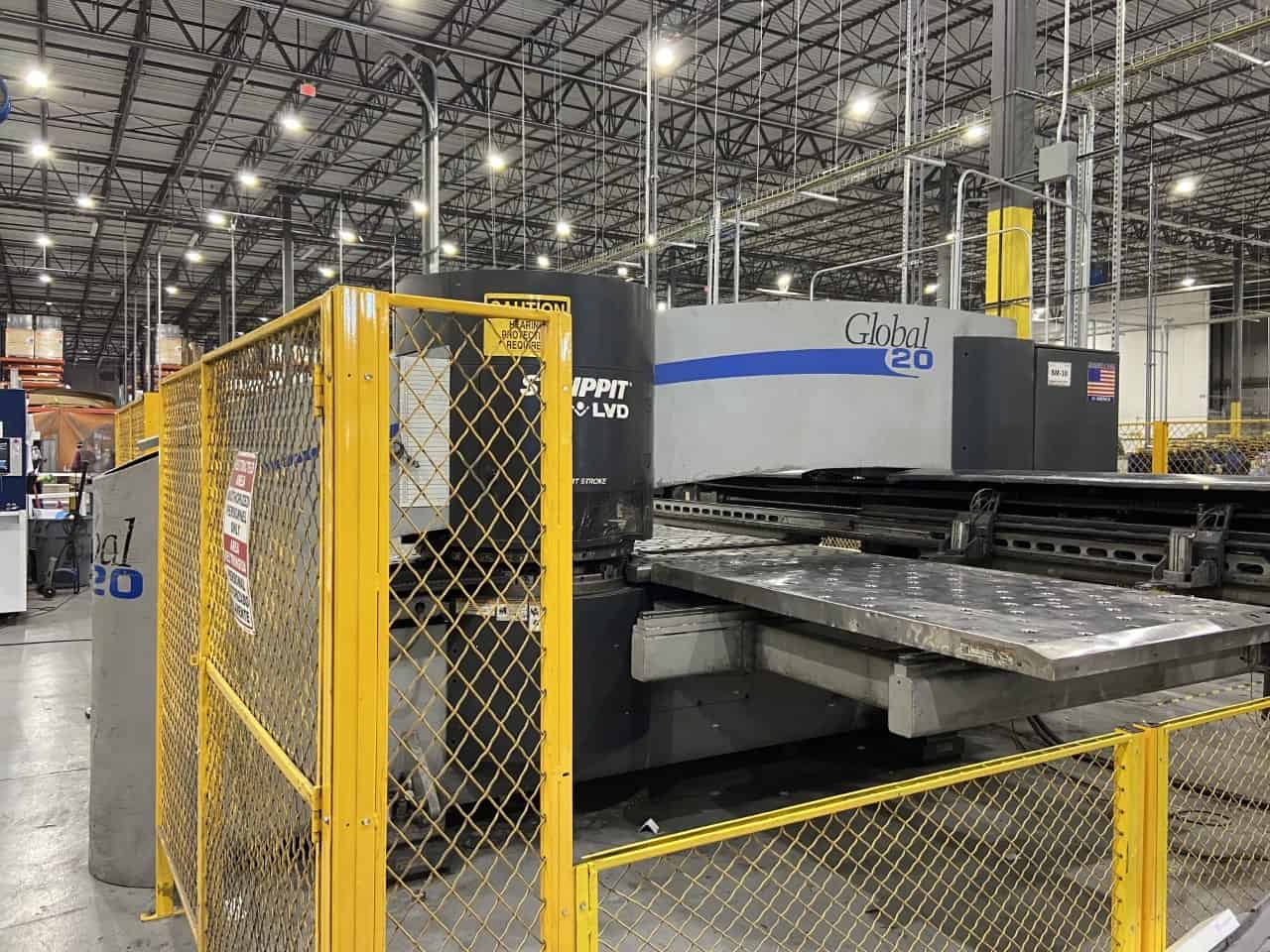

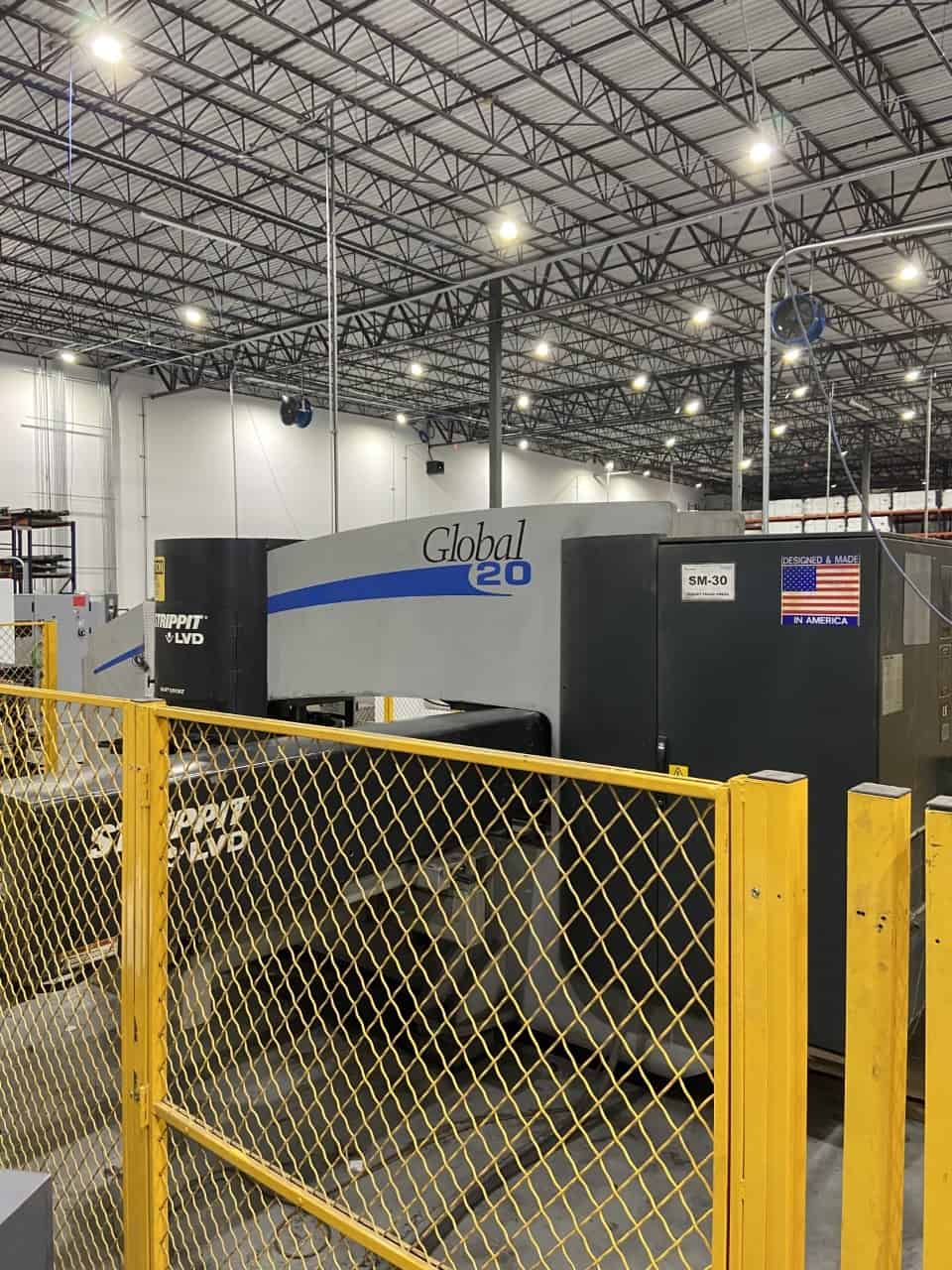

LVD Strippit Global 20 1225
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
48' |
| Sheet Length |
96" |
| Turret Stations |
30 Stations |
| X-Axis Travel |
50" |
| Y-Axis Travel |
100" |
| Throat Depth |
48" |
| Tooling Style |
Thin |
| Power Requirement |
460/3/60 |
| Max Sheet Size (Wirh Repo) |
50" x 196" |
| Max Material Thickness |
.25" |
| Max Hole Size (10 ga.) |
3.5'' |
| Dimensions |
14' x 18' x 8' |
| Weight |
36,500 lbs. |
Features
|
(2) Work Clamps |
Ball Transfer Table |
|
4 Auto Index Stations |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
