| Year | 2001 |
|---|---|
| Make | Graham Engineering |
| Model | Super 12 Wheel Blowmolder |
Description |
Blow Molder |
| Reference # | 8076337 |

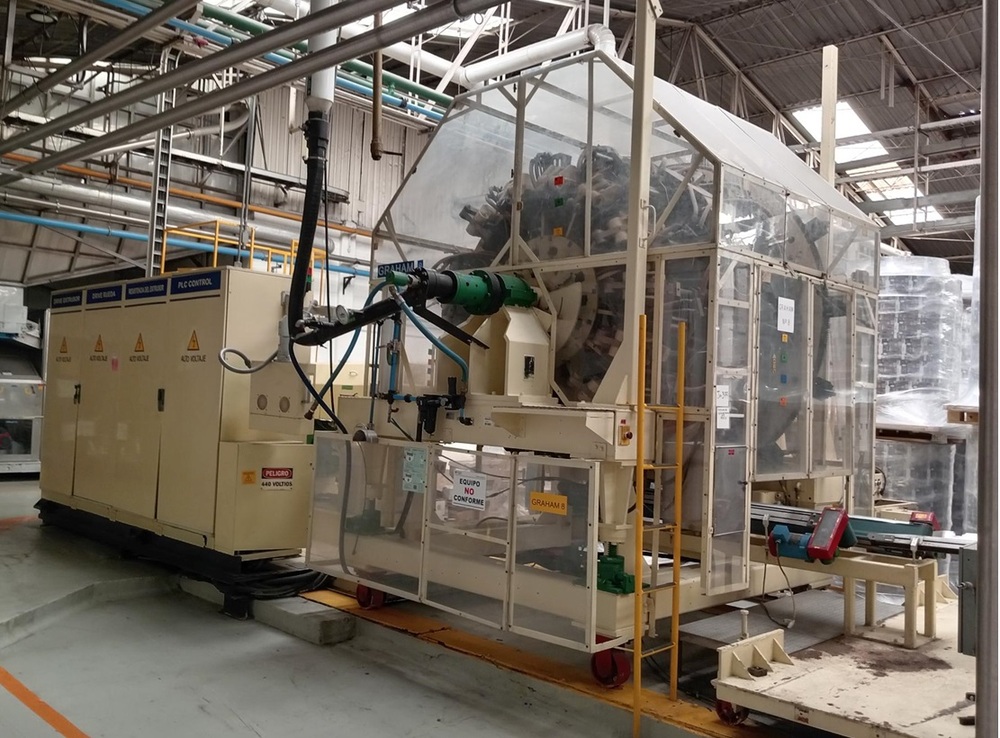

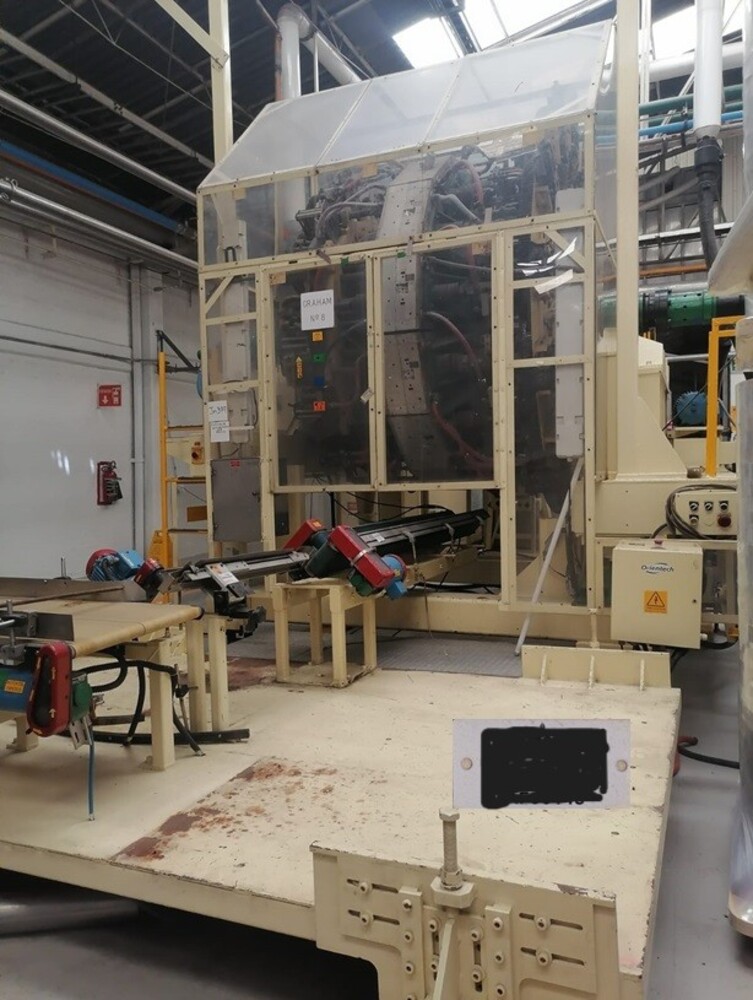

Used Graham Engineering Super 12 Wheel Blowmolder (2001) Blow Molder for Sale. This pre-owned Graham Engineering blow molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Graham Engineering Blow Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Style of Blow Molder |
(4) Layer 12-Station Rotary Blow Molder |
|---|---|
| Number of Stations |
(12) Stations |
| Clamping Force |
5 Ton Clamping Pressure at Each Station |
| Horsepower |
10 HP AC Variable Frequency Drive |

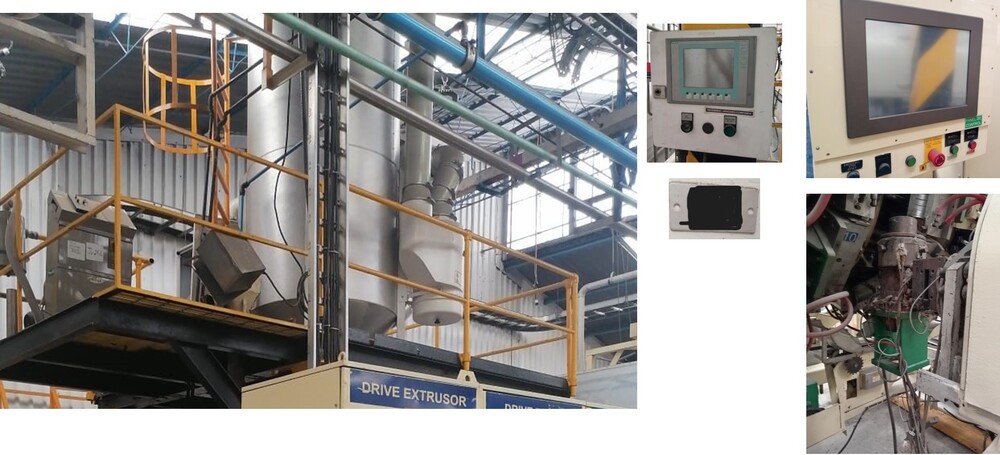

| Barrier Layer 4 |
One (1) 1224S 1¼“, 24:1 L/D Smooth Bore Air-Cooled Extruder with an AC Var. Frequency, 5 HP |
| Extrusion System (Adhesive Layers 3 & 5) |
One (1) 2524S 2½“, 24:1 L/D Smooth Bore Air Cooled Extruder with a DC Variable Speed Drive, 60 HP, 2000 RPM Motor |
| Extrusion System (Regrind Layer Between 2 & 6) |
One (1) 3524G 3½“, 24:1 L/D Grooved Bore Air-Cooled Extruder with an AC Variable Frequency Drive, 150 HP, 2000 RPM motor |
| Extrusion System (Virgin Layer Split Between Inner Layer 1 and Outer Layer 7) |
One (1) 4524G 4½“, 24:1 L/D Grooved Bore Water Cooled Extruder with an AC Variable Frequency Drive, 200 HP, 2000 RPM motor |
| Screen Changer |
One (1) 4½” (120 mm) Dynisco Screen Changer, Two Position Manual Pperation Designed for Leak-Free Operation at Pressures Up to 10,000 PSI (~690 Bar) |

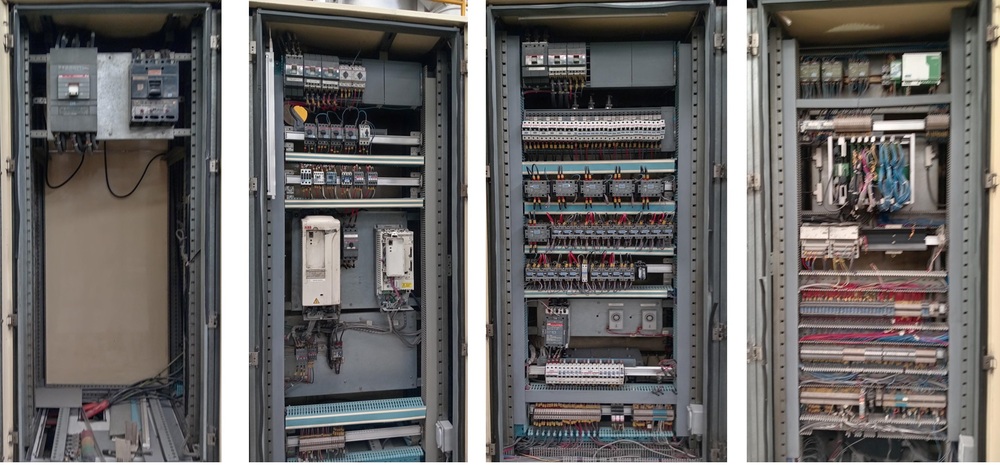

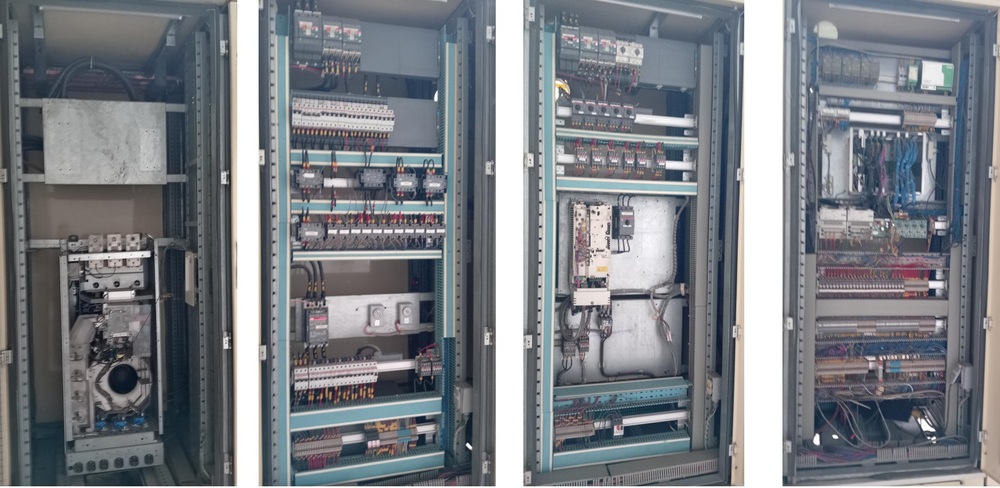

| Control |
Remote Die Pin Adjustment, All Temperature Control and Machine Functions are Managed via Touch Screen access including the 180-point Integral Parison Programmer, With Stored Recipes for Temperature as well as Parison Profiles |
| Flow Head |
Single Parison Seven (7) Layer Flow Head with Spiral Flow Layers on the High Flow Layers and includes Moog Servo Valve |
Features
|
Blow Cylinders |
Parison Air |
|
Pneumatic Knock |
Split Flow Choke to Divert the Regrind Layer on the Head and for the Adhesive Layer |
|
Under Wheel Lighting |
