| Year | 2001 |
|---|---|
| Make | Amada |

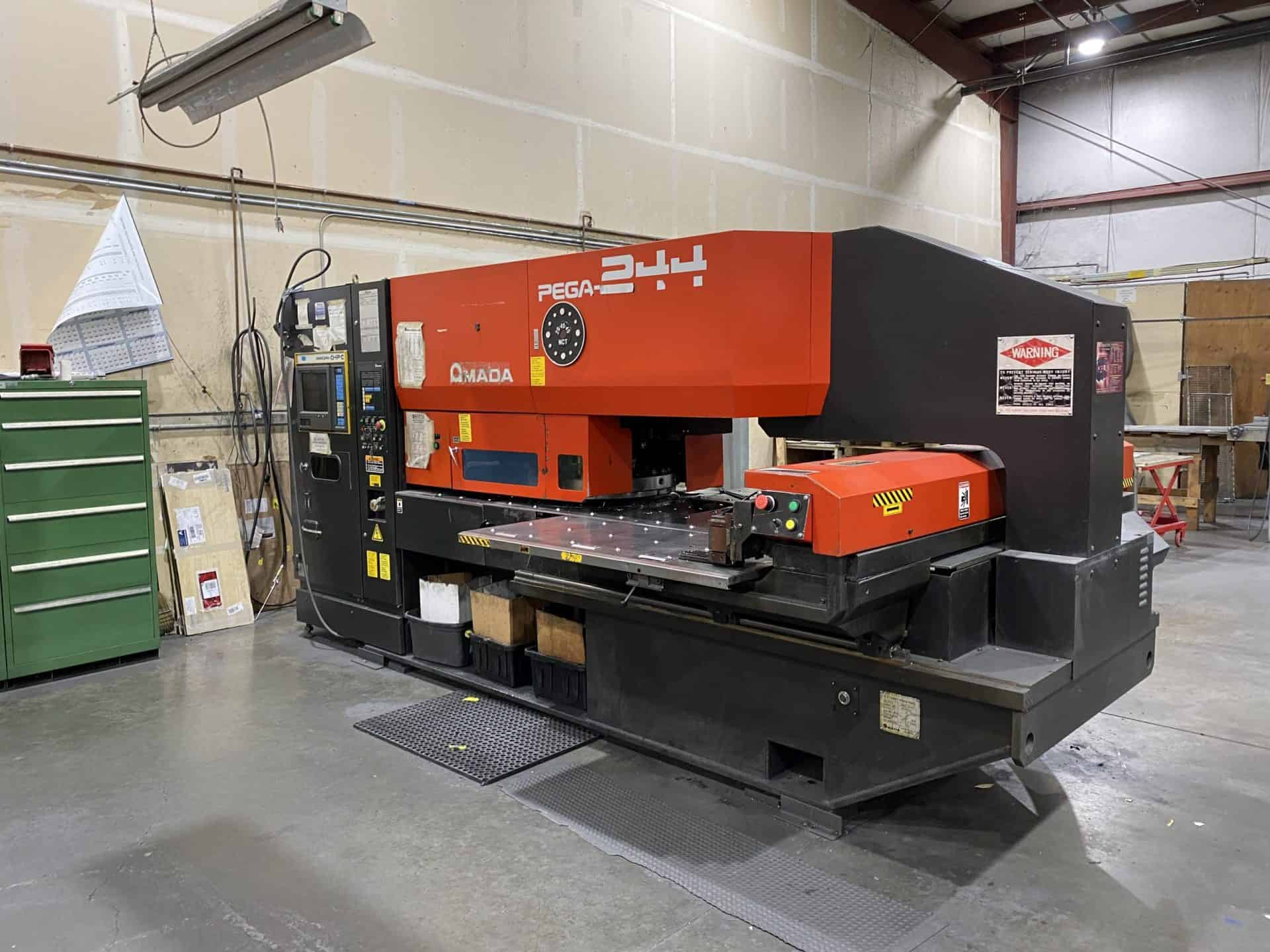

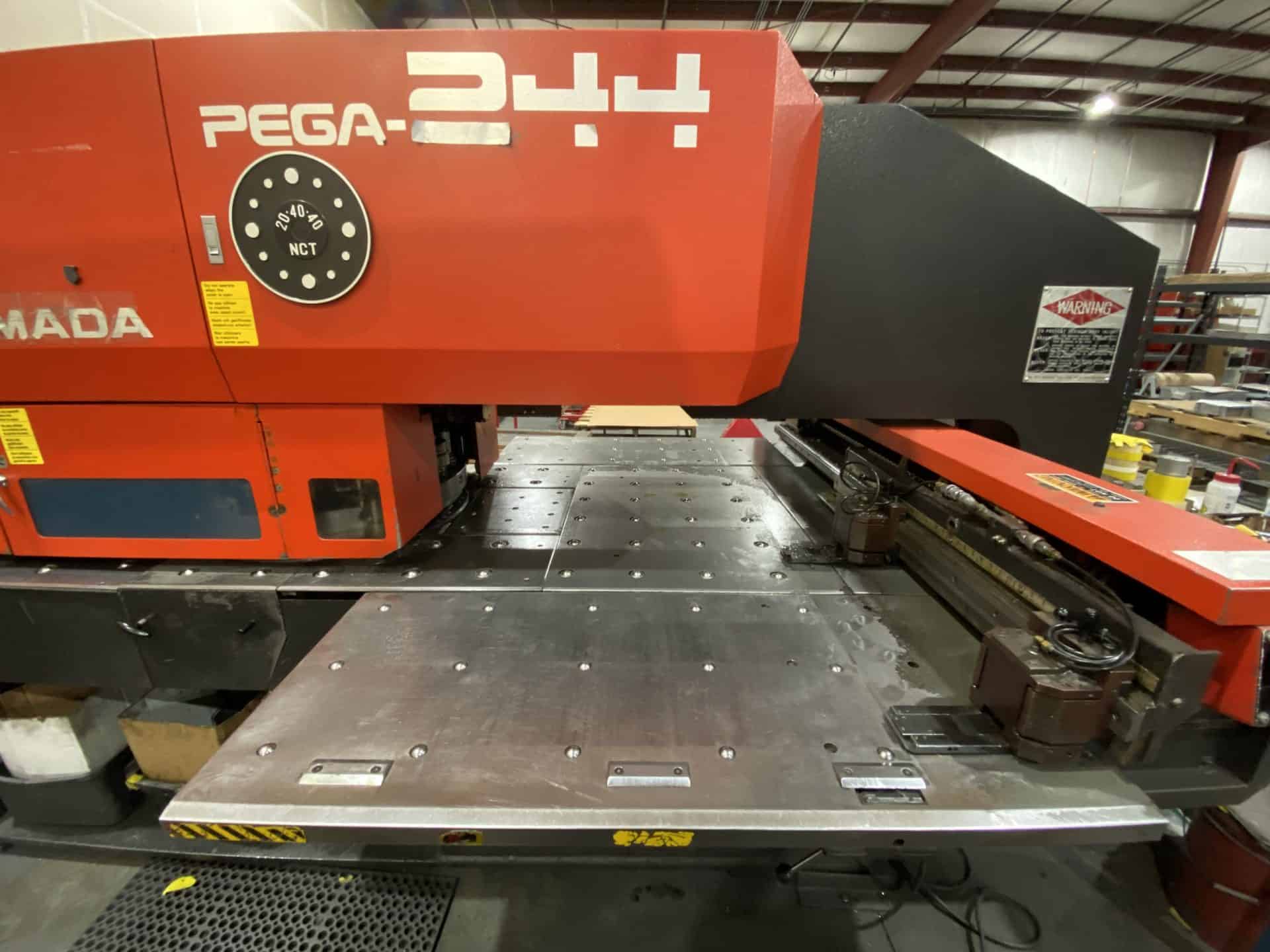

| Model | Pega-244 |
Description |
22 Ton Turret Punch |
| Reference # | 8068737 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
39" |
| Sheet Length |
79" |

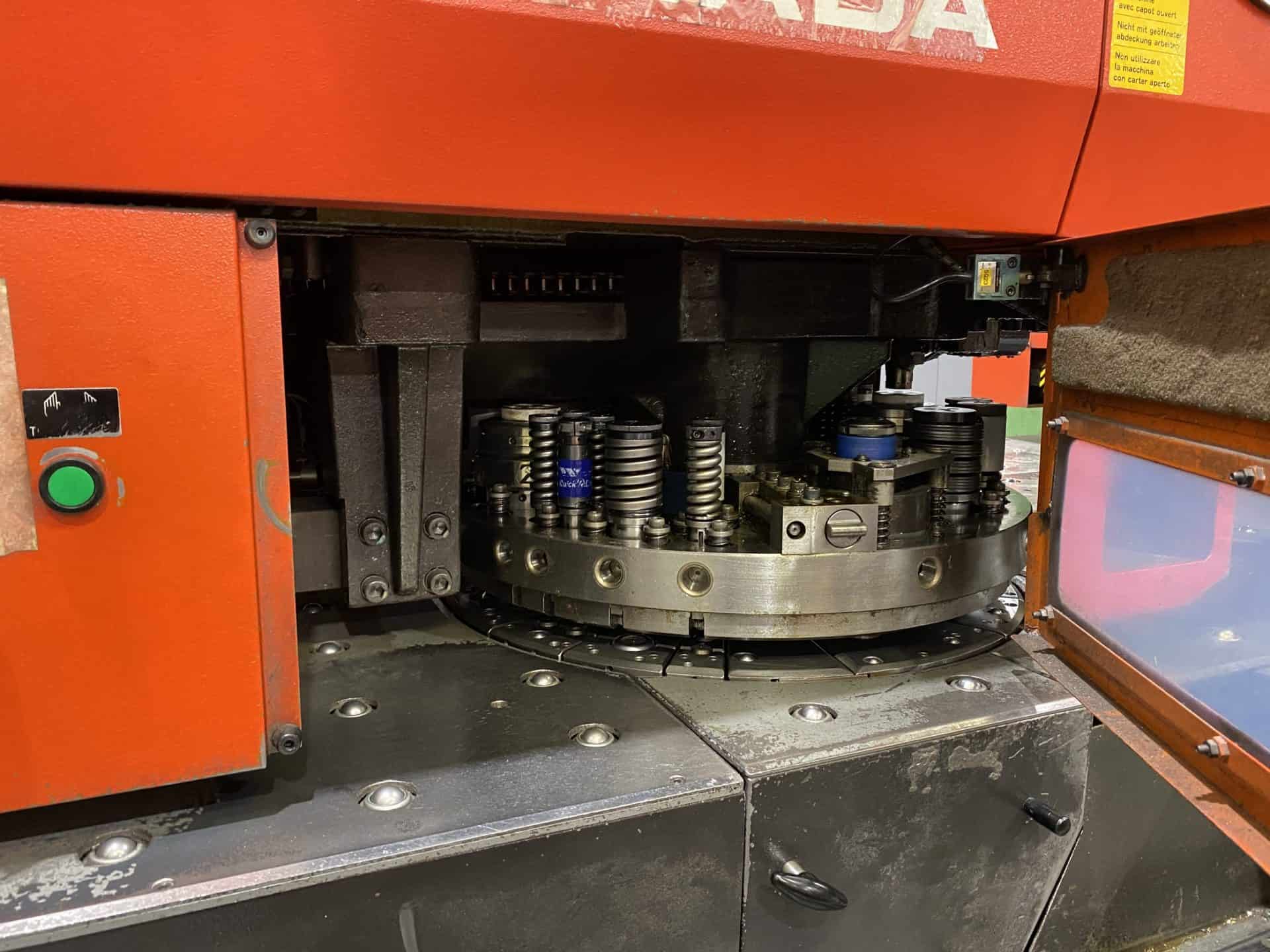

| Turret Stations |
H-Type 24 with 2-Auto Index Stations |
| Y-Axis Travel |
40" |
| Throat Depth |
40" |
| Tooling Style |
Amada Thick Turret |
| Power Requirement |
230/460/3 13kVA |
| Turret Speed |
30 RPM |
| Punch Rotation Speed |
60 RPM |
| Max. Hole Diameter |
3.5" |
| Max. Sheet Thickness |
0.25" |
| Max. Sheet Weight |
110 Lbs. |
| Weight |
18,750 Lbs. |
| (2 )Large Station Punch Holders |
3.5” & 2.0” Station |
Features
|
Roller Bearing Table |
Control Axes 3 (X Y & T) |
|
D.C. Servo-Motor |
Work Chute |
*
