| Year | 2000 |
|---|---|
| Make | Wysong |
| Model | H-2510 |
Description |
1/4" x 10' Hydraulic Shear |
| Reference # | 8073267 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

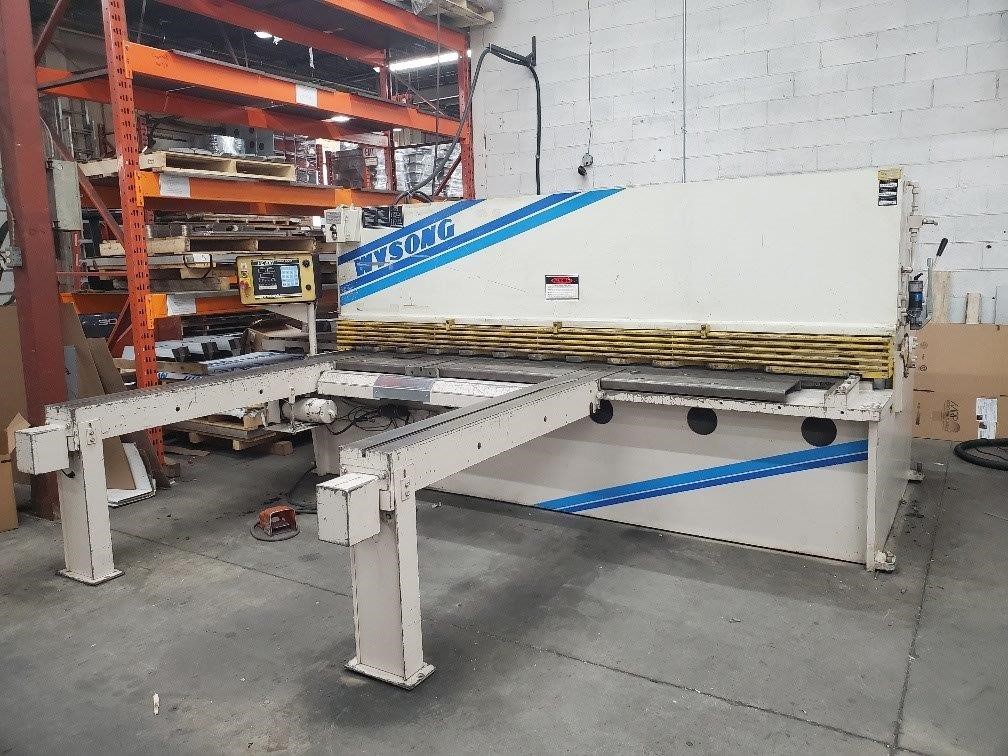

Used Wysong H-2510 (2000) Shear for Sale. This pre-owned Wysong shear is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Wysong Shear, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
1/4" |
|---|---|
| Max Shearing Length |
10' |
| Control |
Wysong PC-100 |
| Back Gauge |
48" |
| Squaring Arm |
120" |
| Gap in Frame |
3" |
| Overall Blade Length |
122" |
| Motor |
20 HP |
| Distance Floor to Top of Bed |
32" |
| Power Requirement |
575/3/60 |
| Approx. Dimensions |
148" x 96" x 72" |
| Approx. Weight |
20,000 Lbs |
Features
|
(2) Programmable Front Support Arms (60") |
Adjustable Stroke Length |
|
Combination Hold Down and Knife Guard |
Manual Blade Clearance Adjustment ( Material Thickness Selector) |
|
Pneumatic Rear Sheet Support System |
Programmable Front Squaring Arm |
|
Self-Compensating Hydraulic Hold Downs |
Electric Foot Pedal |
