| Year | 2000 |
|---|---|
| Make | Charmilles |
| Model | Roboform 35 |
Description |
EDM Sinker |
| Reference # | 8075481 |

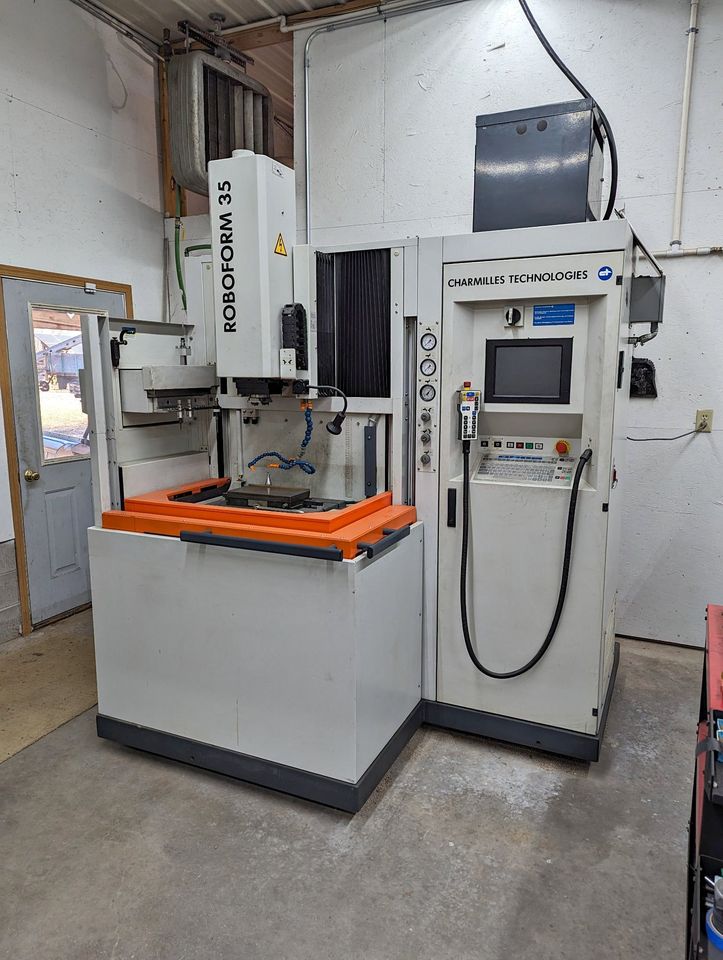

Used Charmilles Roboform 35 (2000) CNC EDM for Sale. This pre-owned Charmilles CNC EDM sinker is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Charmilles EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.78" |
|---|---|
| Y-Axis Travel |
9.84" |
| Z-Axis Travel |
11.81" |

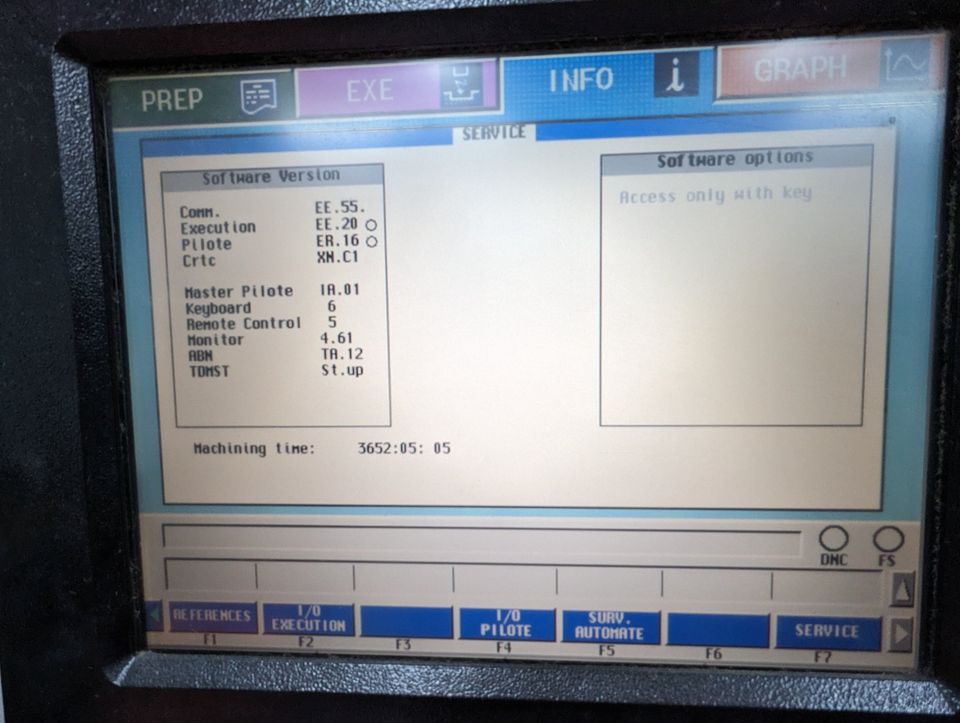

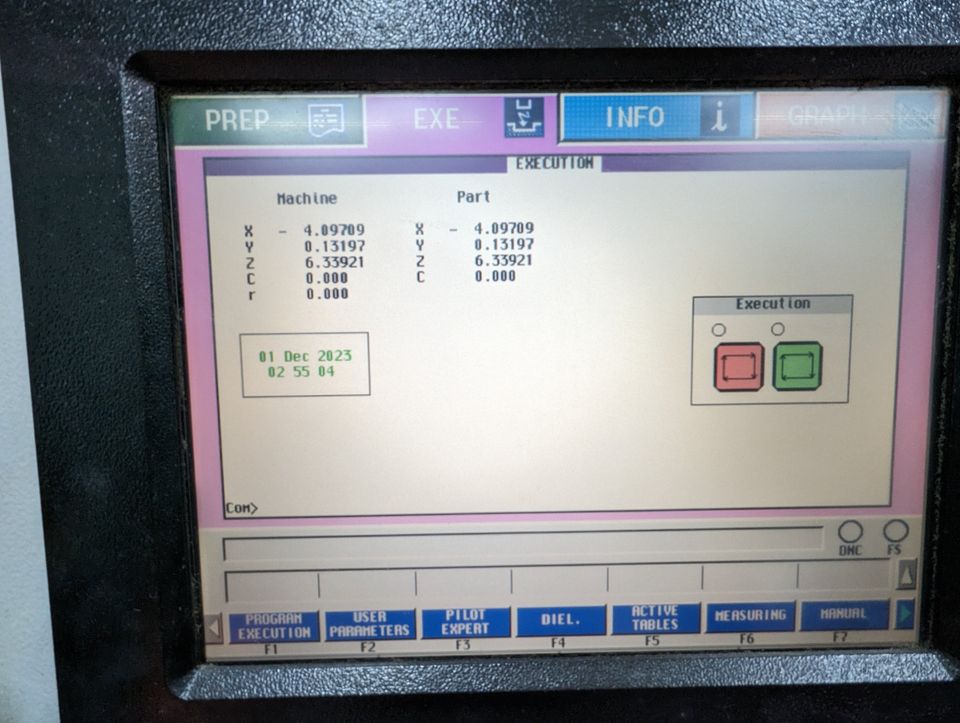

| Control |
Charmilles Control |
| Tool Changer |
Rack Style 4 Positions |
| Chuck |
Erowa |
| Max. Workpiece Size |
31.5" x 21.7" x 14.6" |
| Work Piece Weight |
110 Lbs |
| Work Table Size |
15.75" x 19.68" |
| Distance Between Chuck to Table |
5.9" - 17.7" |
| Max Electrode Weight |
110 Lbs |
| Approx Machine Weight |
6,200 lbs |
| Machine Size Approx. |
67" x 75" x 99" |
Features
|

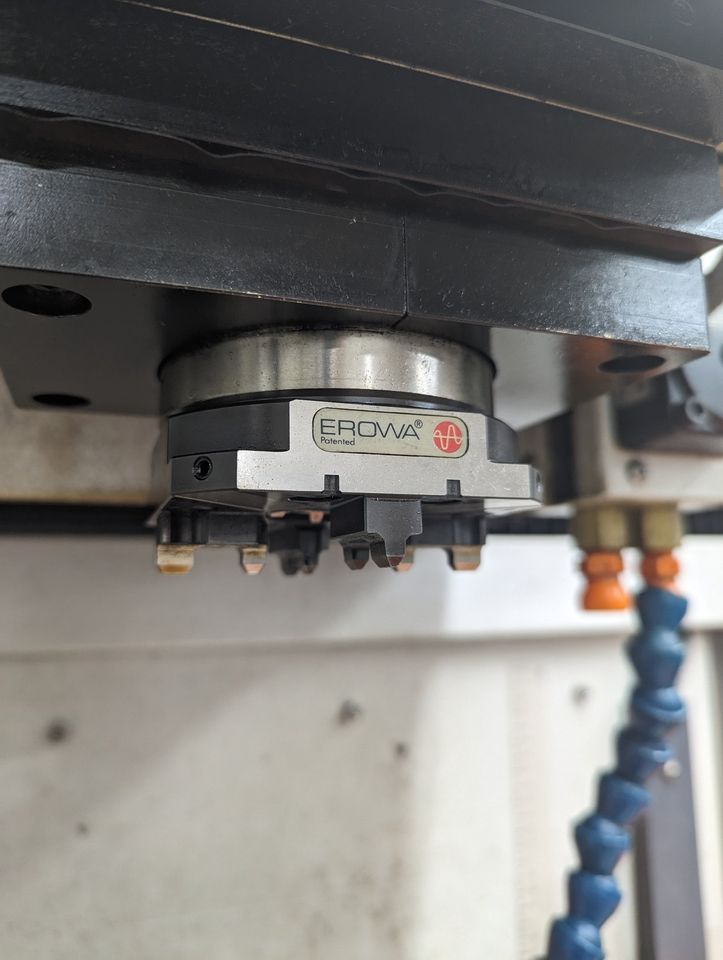

Erowa ER 020026 ITS Compact Combi Chuck |
Work Table Mounting 3 T-Slots |
|
C-Axis |

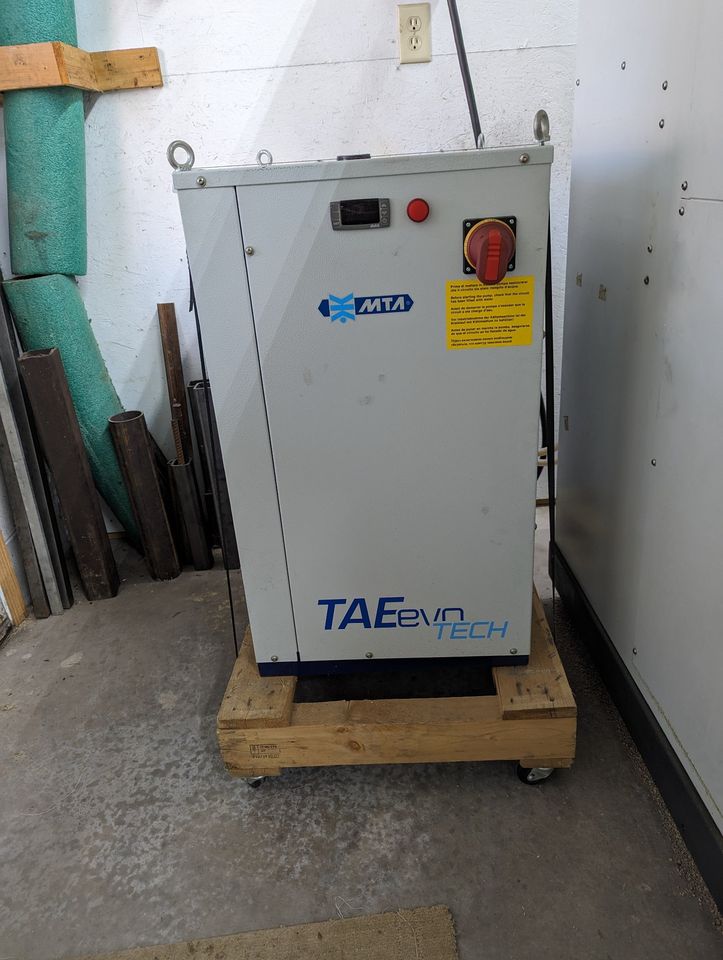

Chiller |
*
