| Year | 2000 |
|---|---|
| Make | Amada |
| Model | Togu III |
Description |
Tool Grinder |
| Reference # | 8072186 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

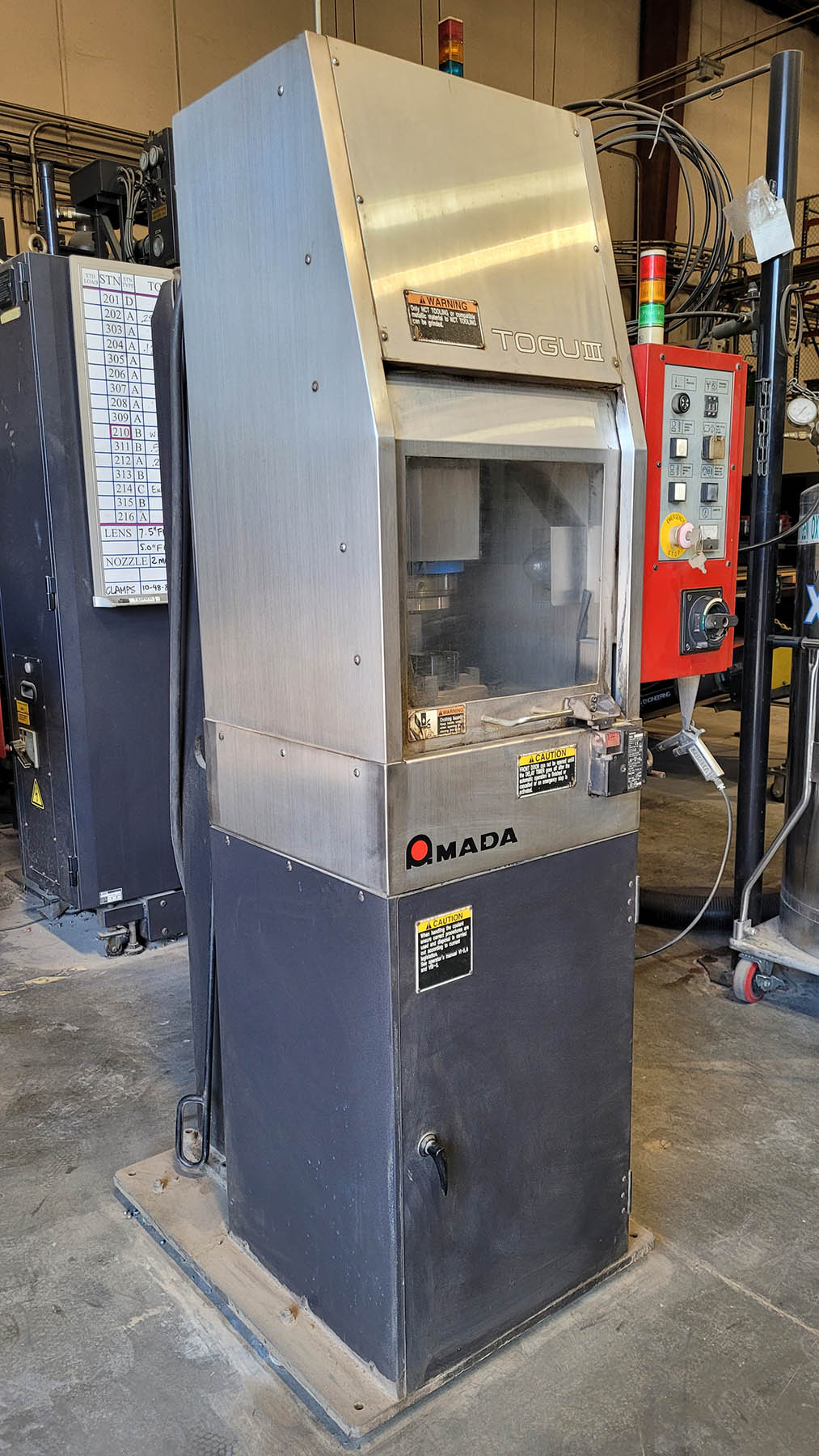

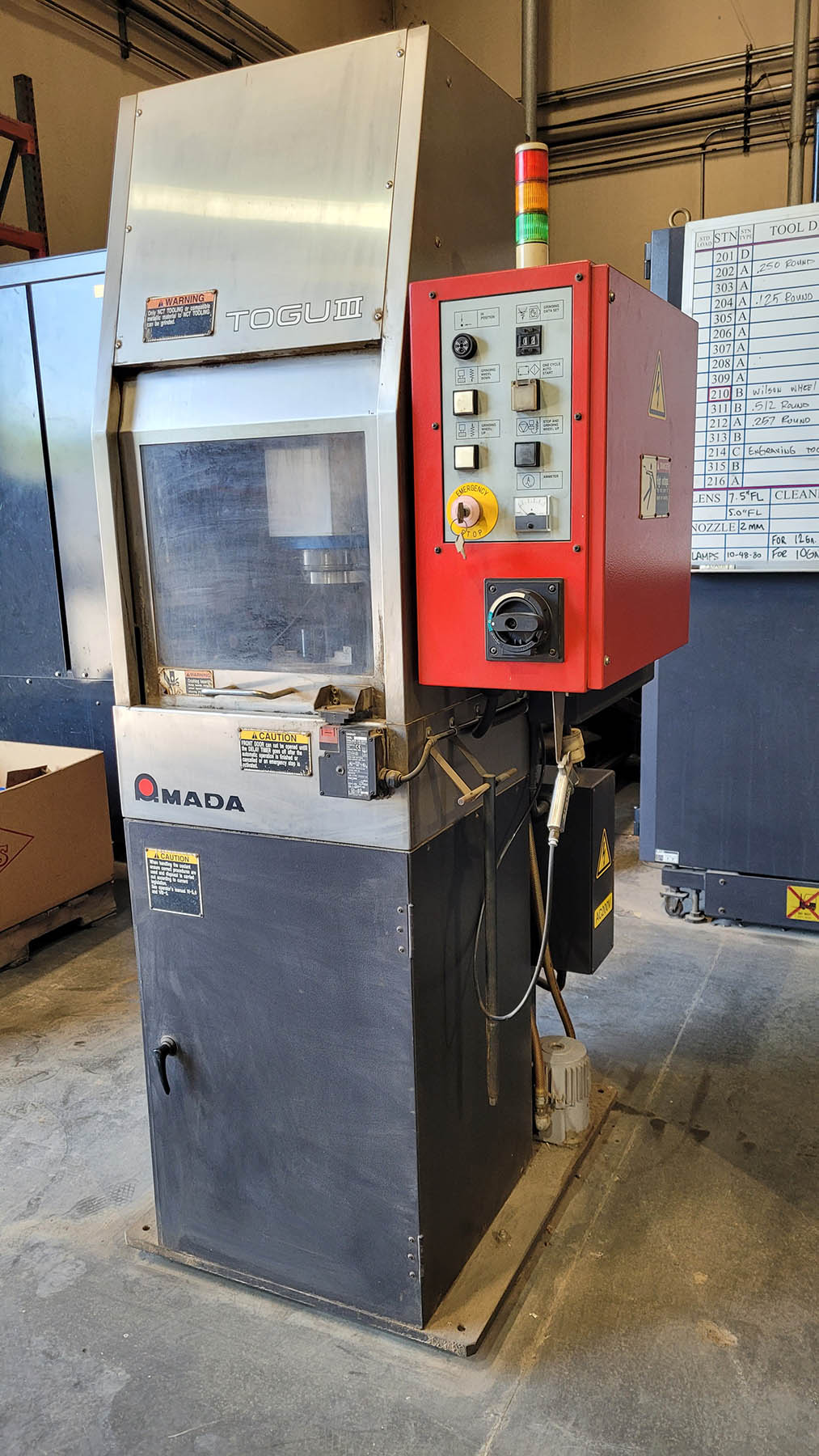

Used Amada Togu III (2000) Turret Punch Tool Grinder for Sale. This pre-owned Amada turret punch press tool grinder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Amada Tool Grinder, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Grinding Wheel |
CBN ⌀ 5.31 |
|---|---|
| Max. Diameter Tool Size |
⌀ 6.30 |
| Max. Grinding |
0.039″ |
| Main Axis Motor |
2 HP |
| Main Axis Rotaion Speed |
3000 r.p.m (60Hz) |
| Main Axis Travel |
9.45″ |
| Main Axis Feed Motor |
DC Servo motor 0.05 HP |
| Main Axis Feed Speed-High |
23.6 ipm |
| Main Axis Feed Speed-Middle |
2.36 ipm |
| Main Axis Feed Speed-Low |
0.002 ipm |
| Table Motor |
0.134 HP 4P |
| Table Rotation Speed |
72 r.p.m. (60Hz) |
| Cooling Water Pump Motor |
0.08 HP 2P |
| Cooling Water pump Motor Flow |
0.9 CFM (60HZ) |
| Power Supply |
AC 220 V 3Phase 2.5kVA |
| Air Supply |
60 CFM |
Features
|
Grinding Wheels |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
