| Year | 1999 |
|---|---|
| Make | Quintax |
| Model | QM30-1005-S5-1T8 |
Description |
5 Axis CNC Router |
| Reference # | 8075548 |
Price |
Activate PricingInquire Now |

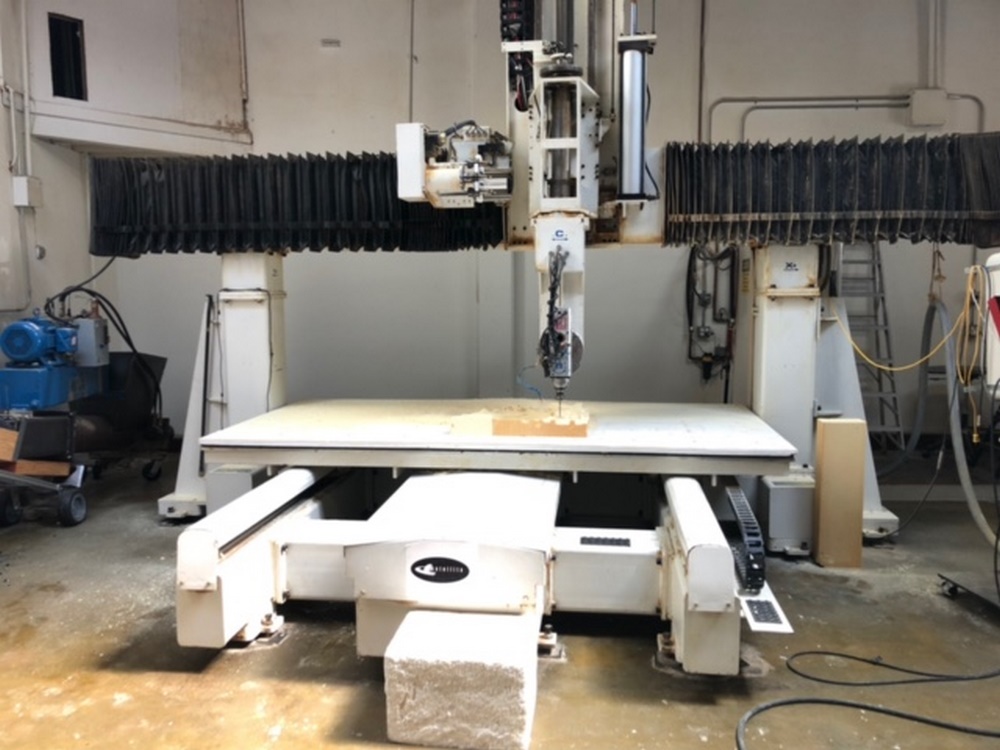

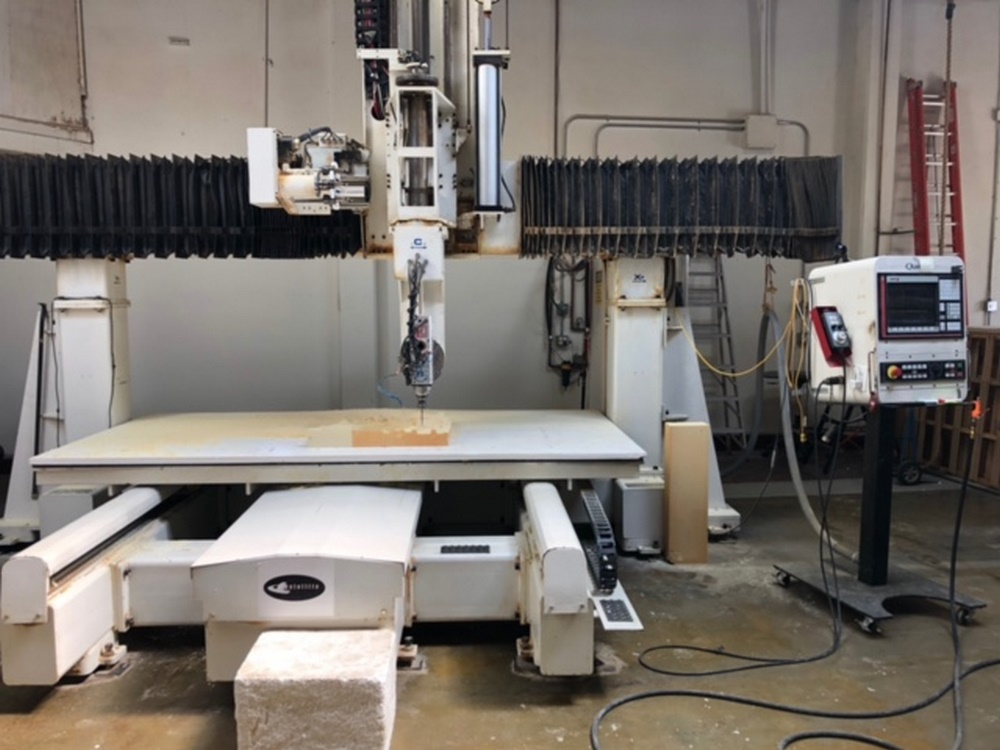

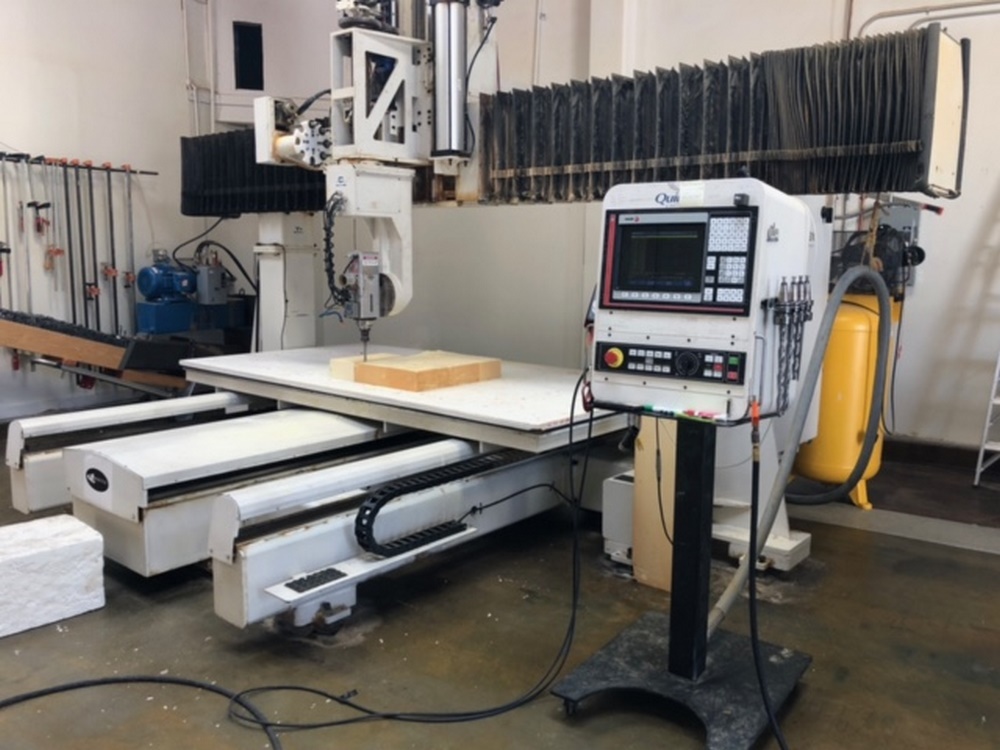

Used Quintax QM30-1005-S5-1T8 (1999) CNC Router for Sale. This pre-owned Quintax 5 axis cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Quintax CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Axis |
5 |
|---|---|

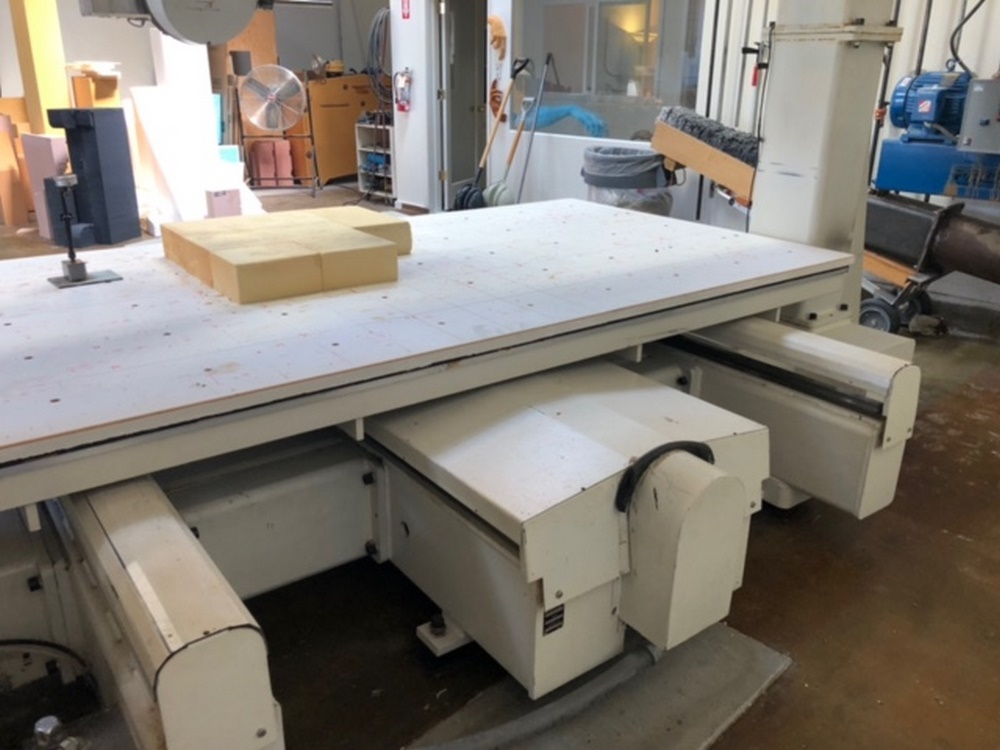

| Table Width |
60" |
| Table Length |
120" |
| Number of Tables |
1 |
| Table Hold Down |
Aluminum Plate, Drilled & Tapped for Mounting Fixtures |
| Spindle Mfg |
Colombo |
| Spindle Motor |
10 HP |
| Z-Axis Travel |
48" |
| Z - Clearance |
42" |
| Tool Changer |
(8) Position Carousel Style Traveling ATC |

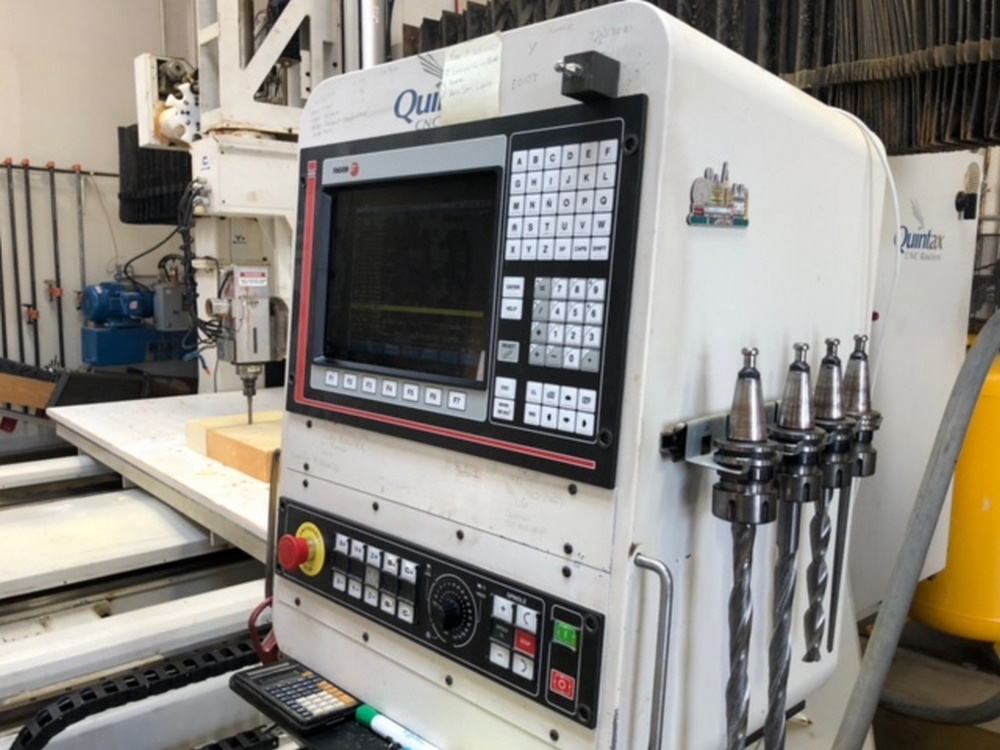

| Control |
Fagor 8055 |

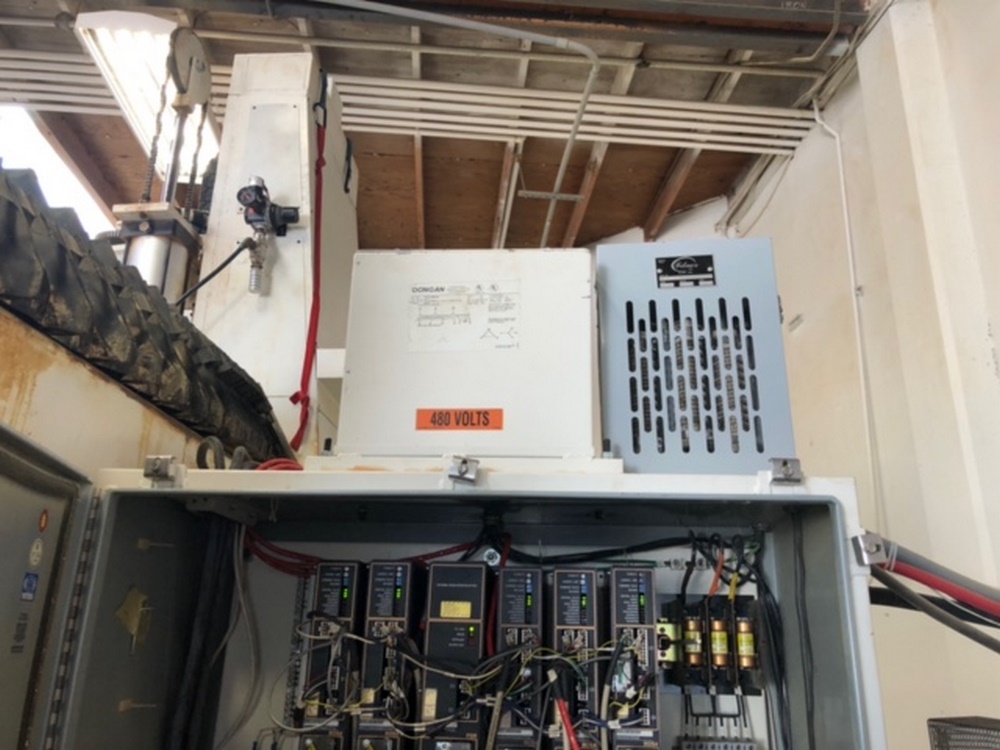

| Power Requirement |
480v - 3 ph (Transformer reduction to 208 V, 3-phase) |
Features
|
AC inverter drive with spindle/machine run time indicator (10 HP) |
AC servo drives for all axes – Medium Duty |
|
Full covers over ball screws |
bearings and rails |
|
Full machine documentation |
Intelligent multifunction teach pendant for rapid part digitizing & programming |
|
Operator podium for part program selection from loading position |
Tool Holder Included |
|
Trabon central lube system with low-level switch |
