| Year | 1998 |
|---|---|
| Make | Cincinnati Milacron |
| Model | Roboshot 165R-144 |
Description |
165 Ton 5 oz Shot Size Electric Injection Molding Machine |
| Reference # | 8073334 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

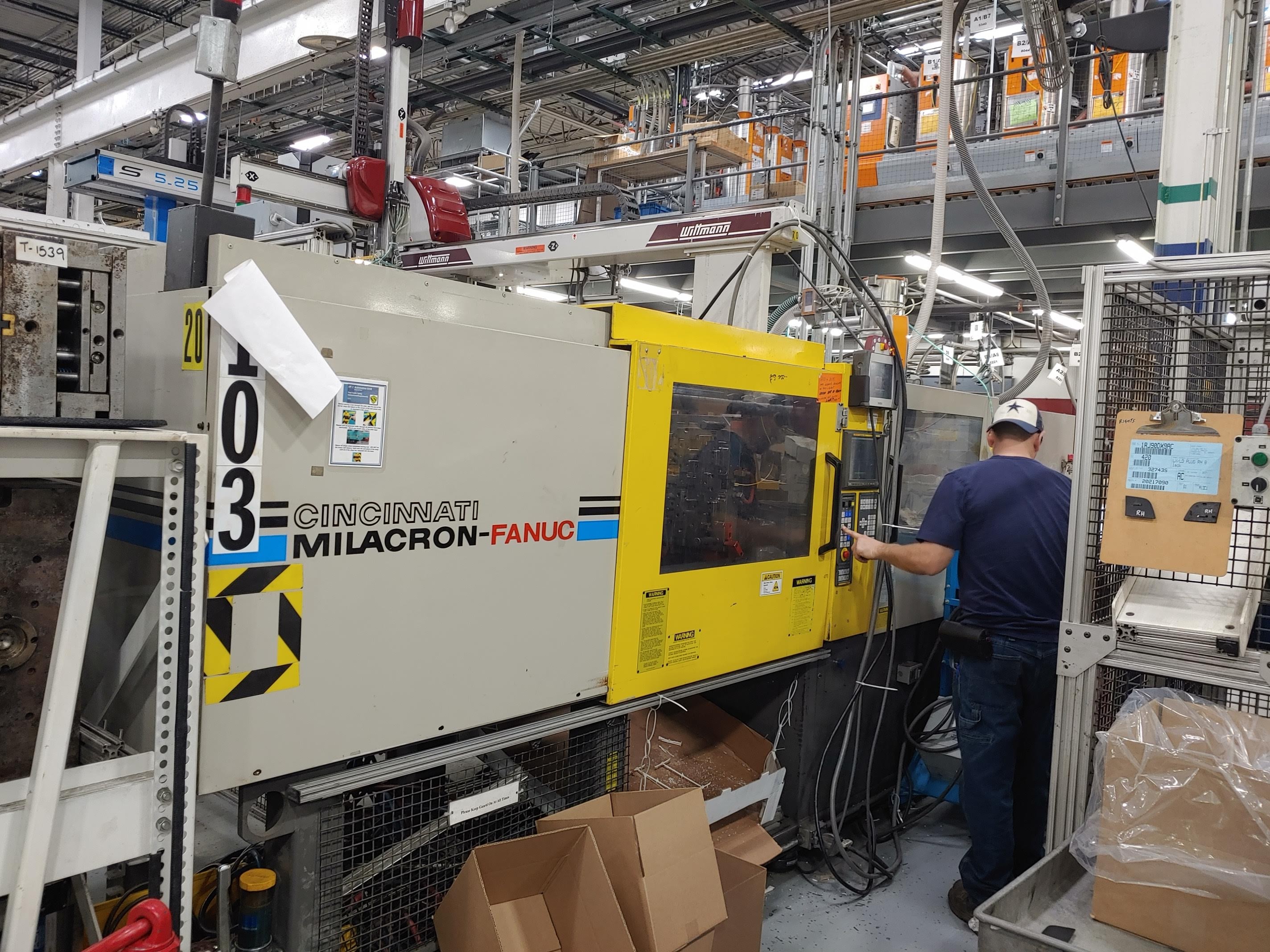

Used Cincinnati Milacron Roboshot 165R-144 (1998) Injection Molding Machine for Sale. This pre-owned Cincinnati Milacron plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Cincinnati Milacron Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
165 Ton |
|---|---|
| Shot Size |
5 oz |
| Tie Bar Spacing |
20" x 20" |
| Platen Size |
29.5" x 29.5" |
| Min / Max Daylight |
7.8"/36.61" |
| Min /Max Mold Height |
7.8"/19.3" |
| Clamp Stroke |
17.32" |
| Ejector Stroke |
5.12" |
| Control |

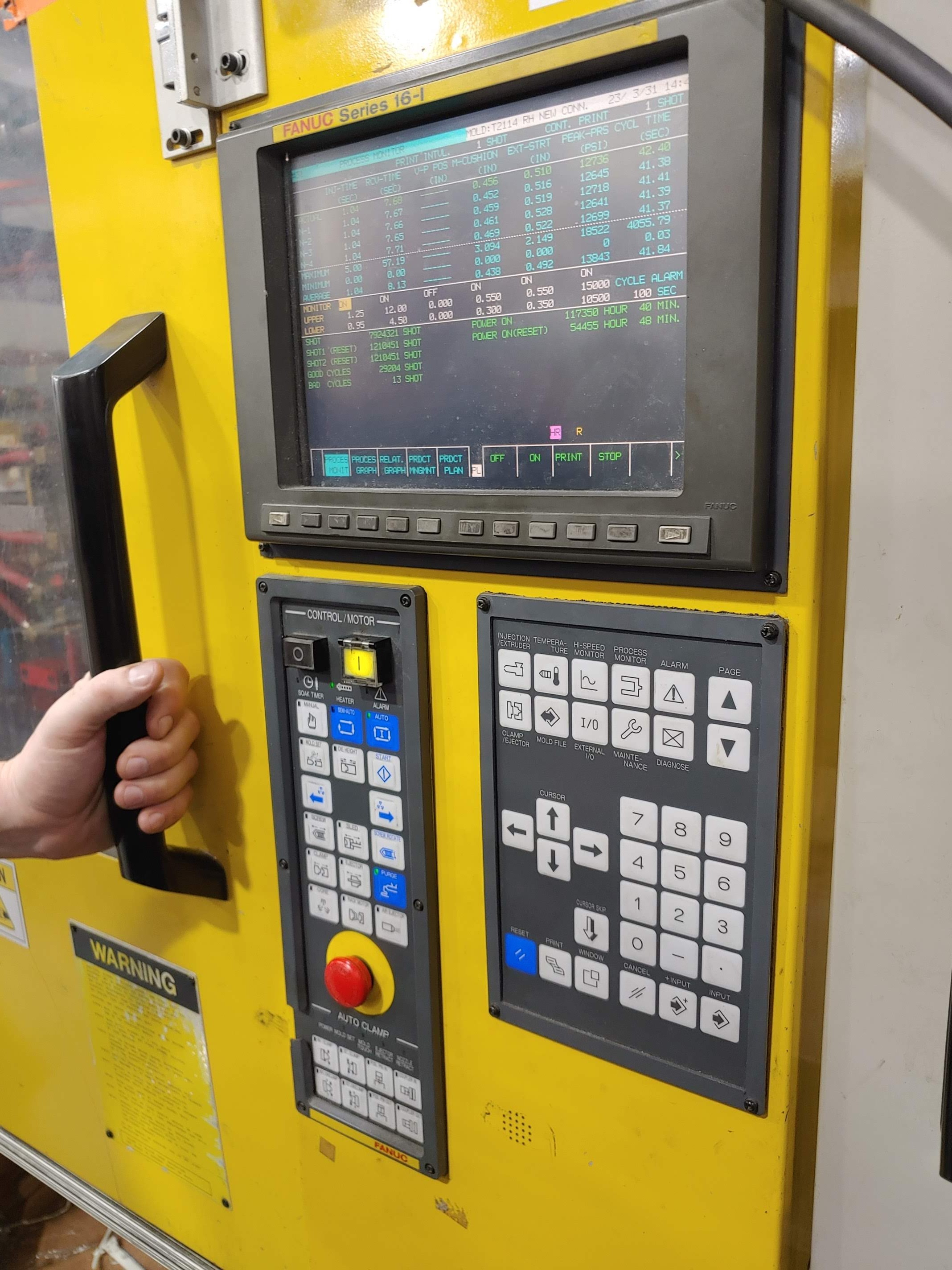

Fanuc |
| Machine Dimensions |
204.2" x 51.8" x 71.6" |
| Machine Weight |
14,960 lbs |
Features
|
Air Blow |
Hydraulic Knockout |
|
Robot Interface |
Under Power |
