| Year | 1997 |
|---|---|
| Make | Van Dorn |
| Model | 85HT5 |
Description |
85 Ton 5 oz Shot Size Injection Molding Machine |
| Reference # | 8073188 |

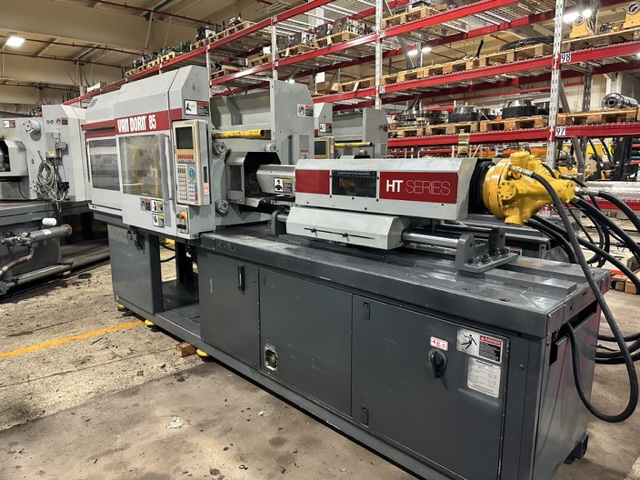

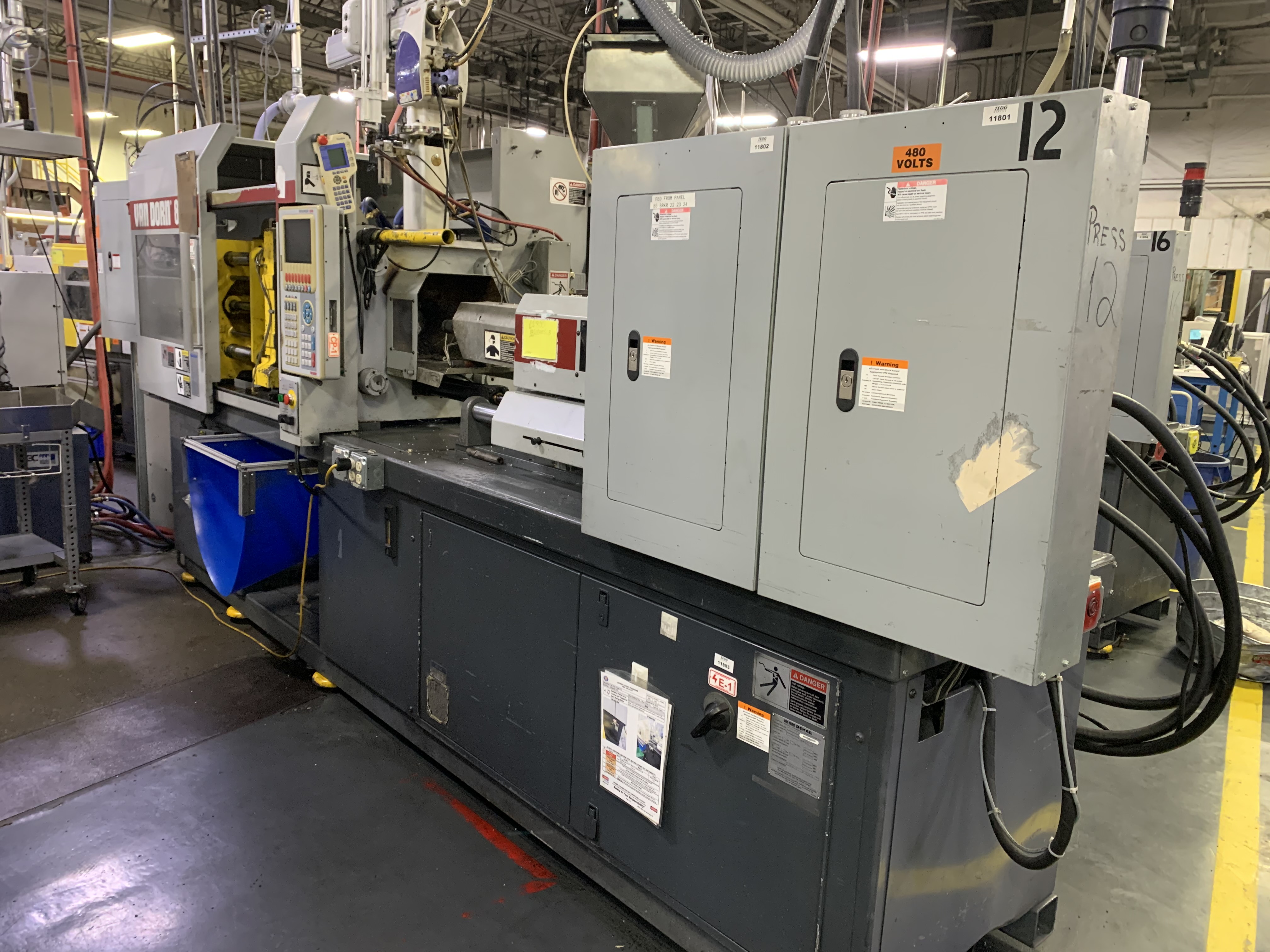

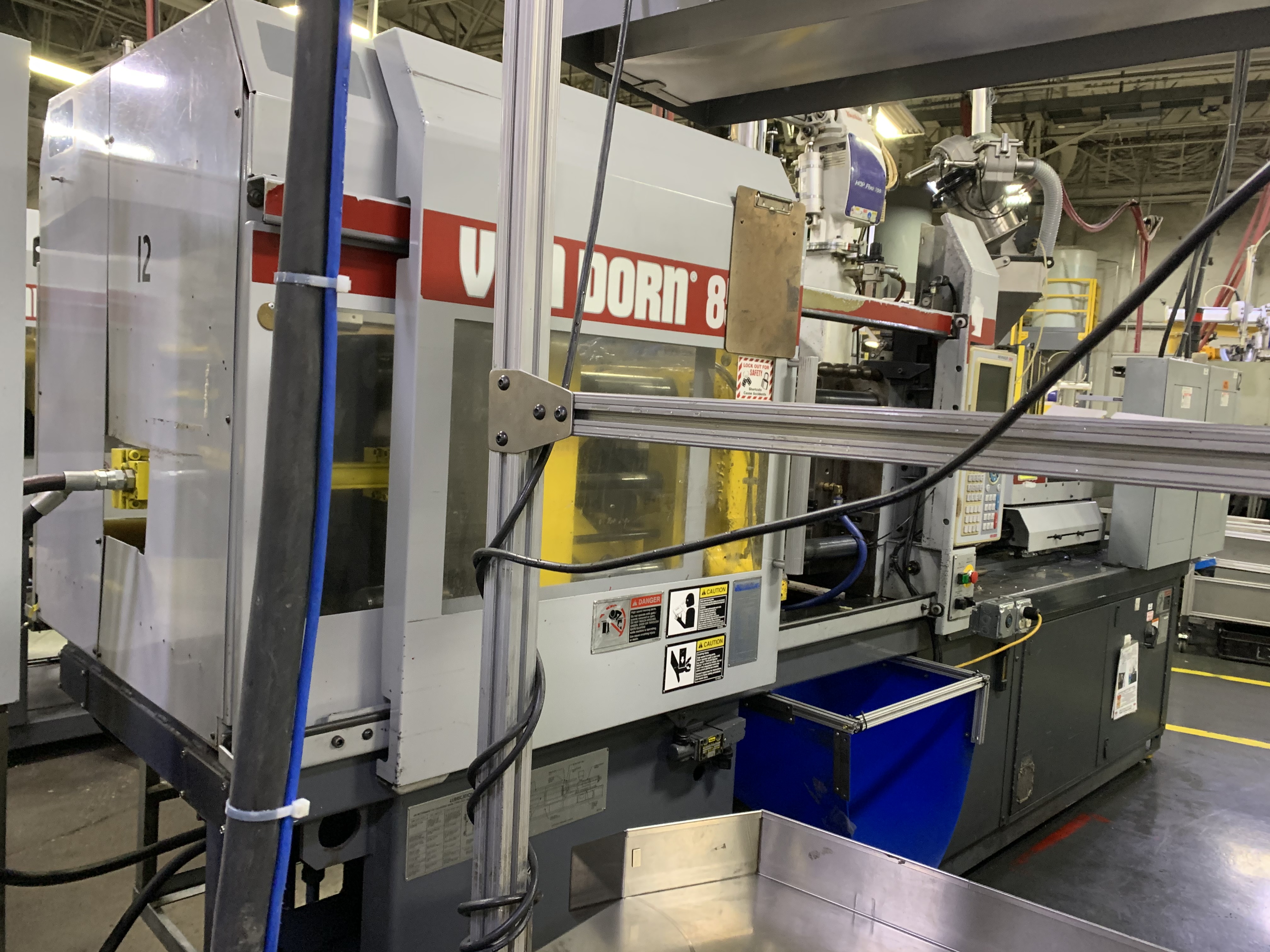

Used Van Dorn 85HT5 (1997) Injection Molding Machine for Sale. This pre-owned Van Dorn plastic injection molding machine is located in Michigan and available to be seen under power for an inspection. If you have any questions regarding this Van Dorn Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
85 Ton |
|---|---|
| Shot Size |
5 oz |
| Tie Bar Spacing |
16" x 13.6" |
| Platen Size |
22.8" x 20.4" |
| Max Daylight |
28" |
| Min /Max Mold Height |
4" / 16" |
| Clamp Stroke |
12" |
| Ejector Stroke |
3" |
| Control |
Pathfinder 2500 |
| Dimensions/Weight |
197"L x 51"W x 91"H / 10,000 lbs |
Features
|
Core Pull |
Hydraulic Knockout |
*
