| Year | 1997 |
|---|---|
| Make | Cincinnati |
| Model | 175AFMII10 |
Description |

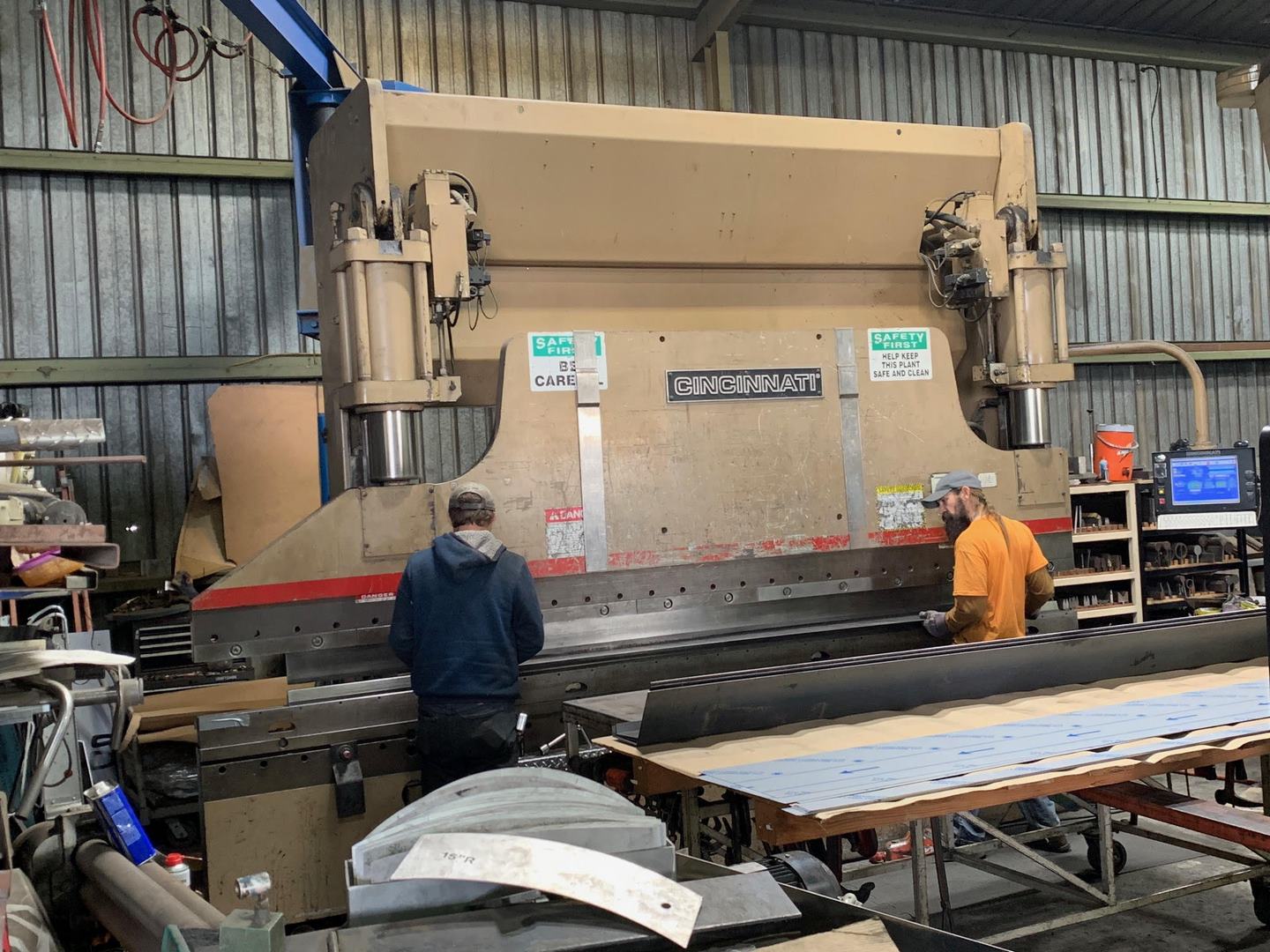

175 Ton x 14' Hydraulic Press Brake |
| Reference # | 8074657 |
Used Cincinnati 175FMII10 (1997) CNC Press Brake for Sale. This pre-owned Cincinnati CNC press brake is located in The United States. If you have any questions regarding this Cincinnati Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
175 Ton |
|---|---|
| Overall Length of Bed |
14' |
| Control |

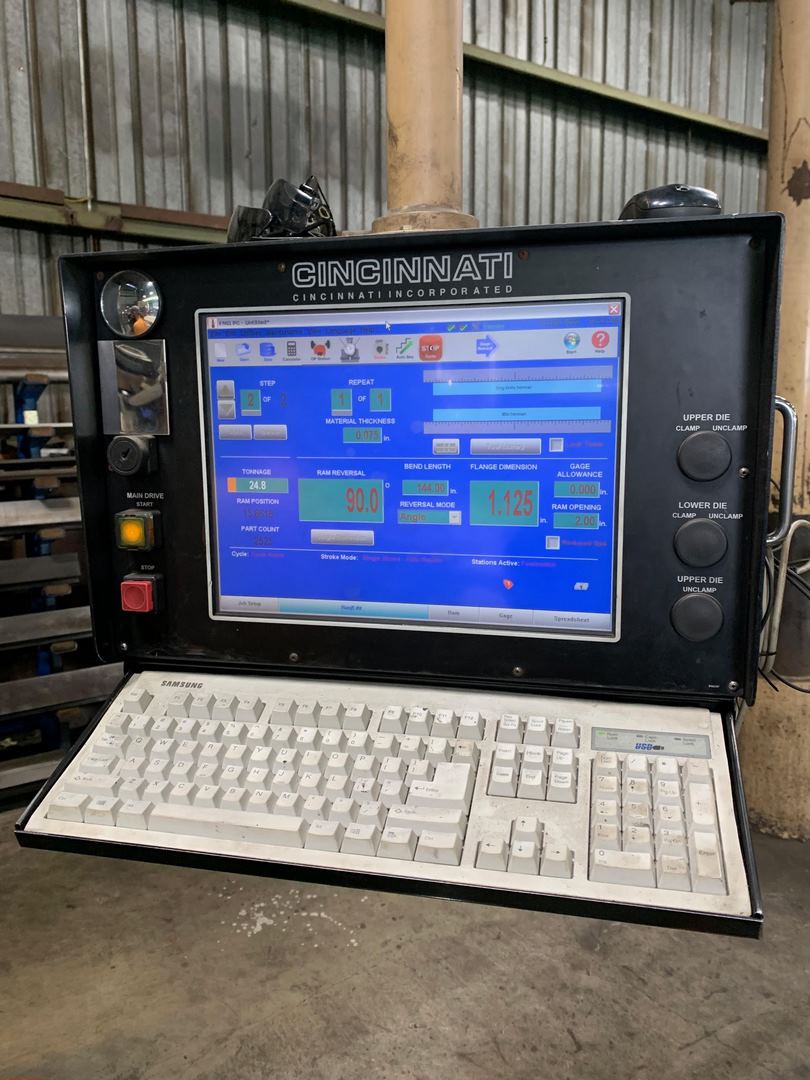

PC Based CNC Control |
| Distance Between Housings |
126" |
| Closed Height |
7" |
| Optional Stroke |
16" (6" Additional) |
| Variable Return |
1 - 290 IPM |
| Ram Speeds |
High Approach 260 IPM, Var. Forming 1 To 65 EPM |
| Air Bend |
3/8" X 6'-3" Mild Steel Over 3" Vee Die |
| Flat Top Filler Block |
5.0" Wide X 4.5" High & 14 Ft. Long |

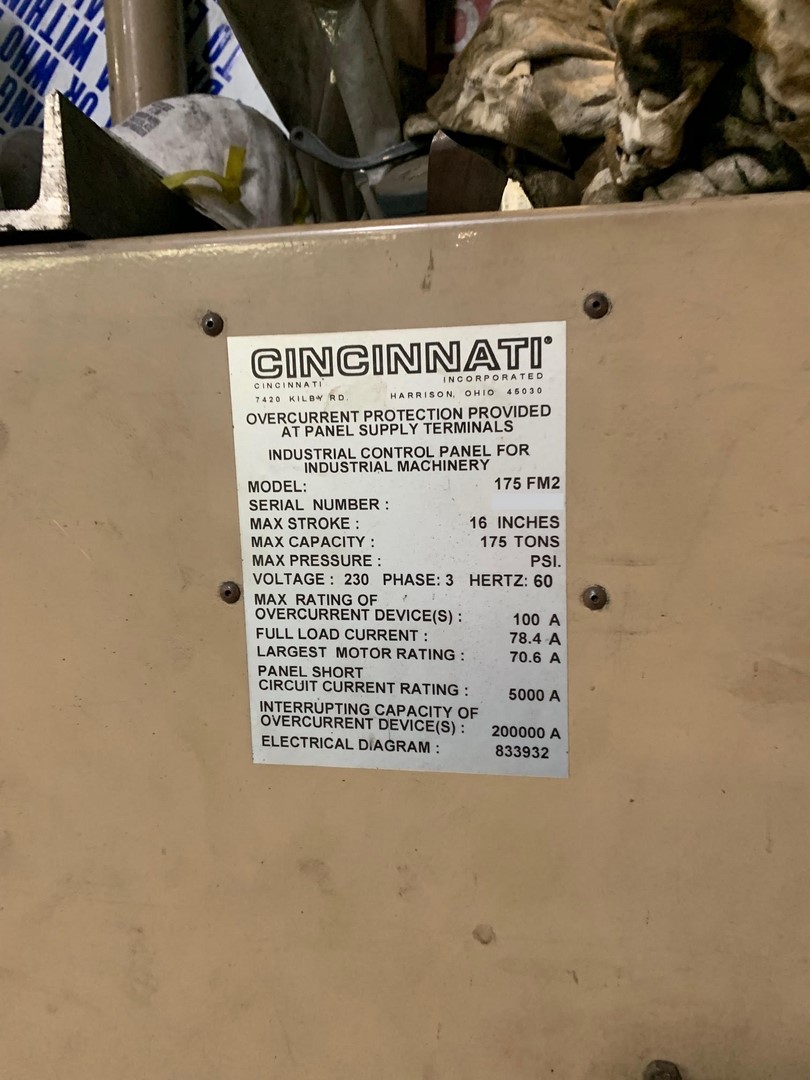

| Power Requirement |
480/3/60 |
Features
|
24" X-Axis (Standard) |
24” Bed & Ram Extensions on Left End |
|
25 HP Continuous Duty Motor Ano Variable Displacement Pump |
8" Manual R-Axis (Standard) |
|
Autocrown |
Bed & Ram Machined & Drilled For 7-3/4" Angle Brackets |
|

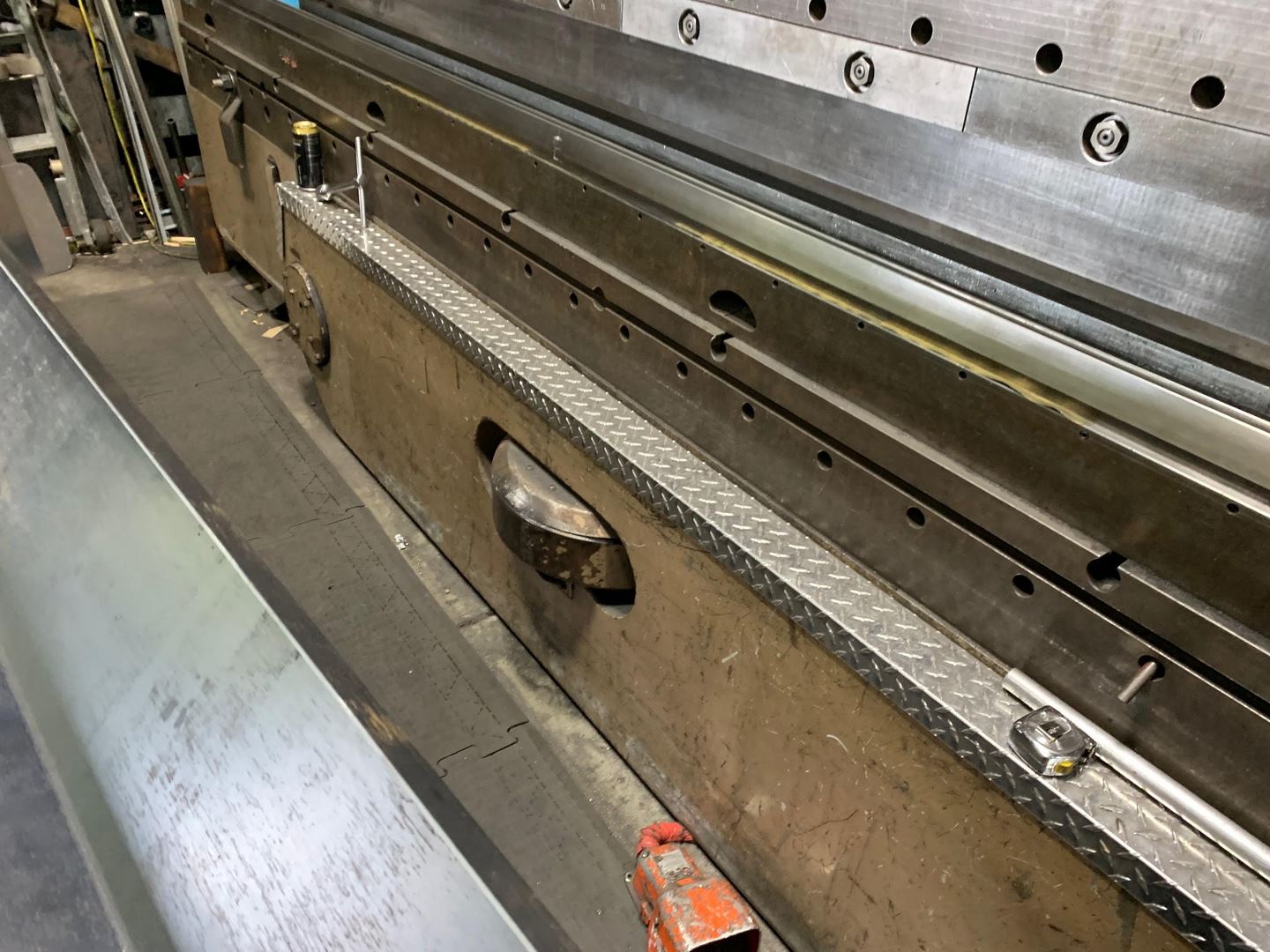

Bed Machined With Cross "C" Slots Full Length Die Slot Top |

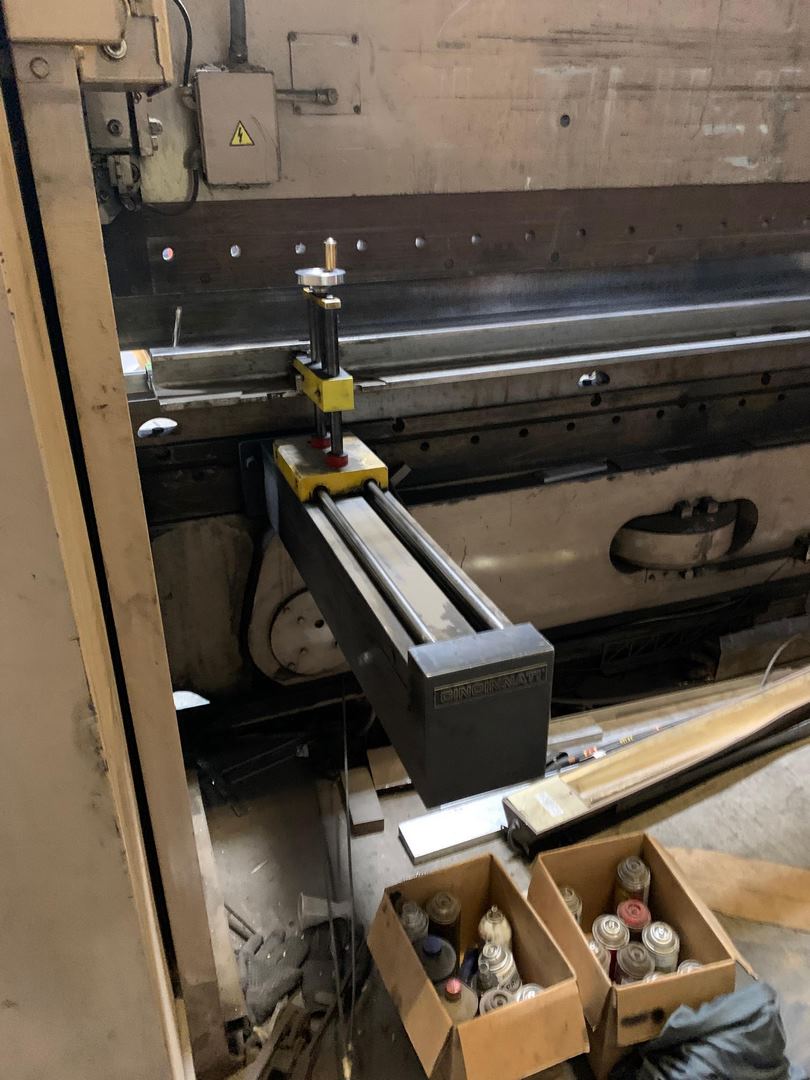

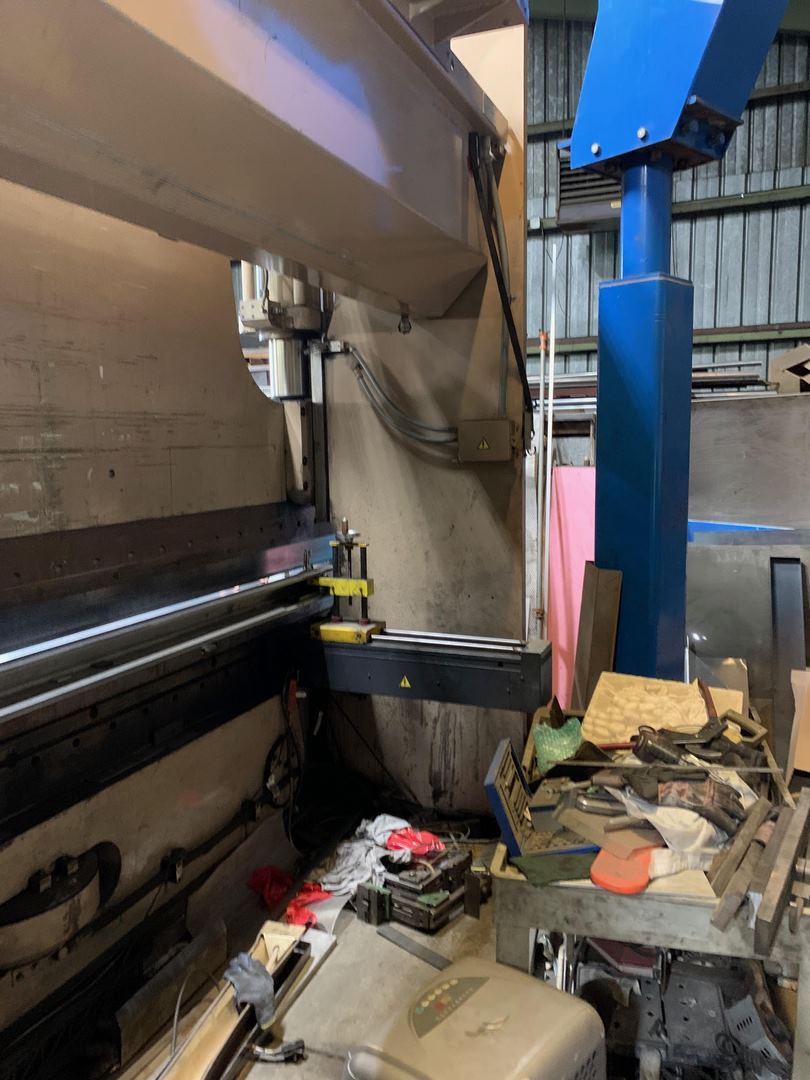

Heavy Duty CNC Backgage |
|
Pedestal Mounting of PalmButton Station |
Standard 3-Position Footswitch |
|
Thermostatically Controlled Oil Reservoir Heater |
Air Cooled Heat Exchanger |
