| Year | 1993 |
|---|---|
| Make | Magic |
| Model | MGL-5D |
Description |
Continuous Extrusion Blow Molder |
| Reference # | 8071070 |

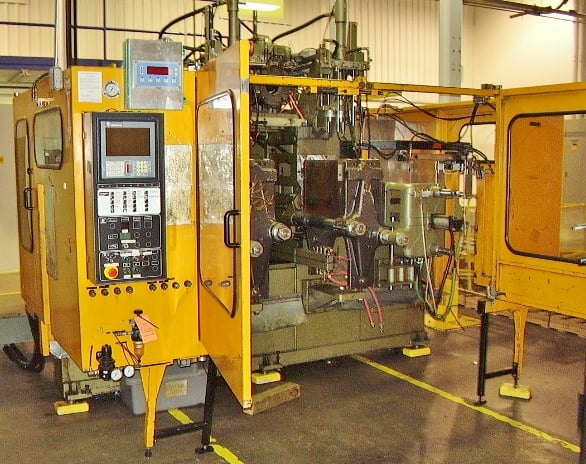

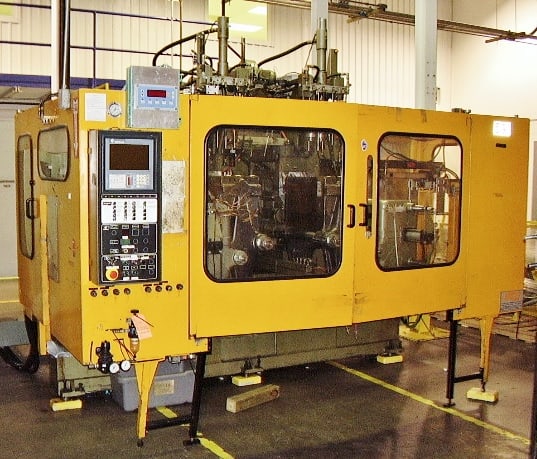

Used Magic MGL-5D (1993) Blow Molder for Sale. This pre-owned Magic blow molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Magic Blow Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number Of Stations |
2 |
|---|---|

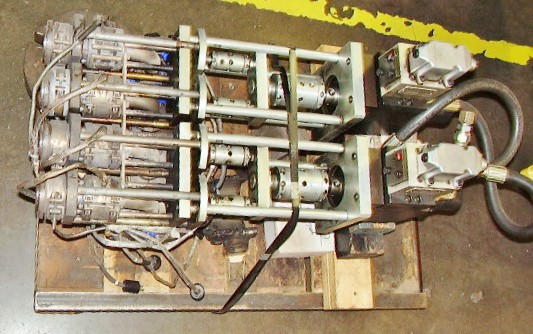

| Number of Heads |
4 x 85mm PE (or) 3 x 115mm |
| Extruder |
90mm |
| L/D Ratio |
24:1 |
| Extruder Horsepower |
60 HP Hydraulic Motor |
| Max Mold Size |
360 mm (w) x (2 x 100mm) Stack Height x 400 mm (h) |
| Max Daylight |
420mm |
| Opening Stroke |
210mm |
| Clamping Force |
60 KN |
| Clamp Hydraulic Drive |
40 HP |
| Dry Cycling |
1.8 sec |
| Machine Weight |
27,000 lbs |
| Note |
Includes Loading onto Buyer's Truck |
Features
|
Manuals |
Ladder & Platform |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
